DymaxRail 7655D1 track maintenance cart, 10-ton, 8 x 10 ft, with rail sweeps and 4-wheel air brake

TOWABLE TRACK MAINTENANCE RAIL CARTS

DymaxRail track maintenance carts tow loads and machinery to the work zone behind a hi-rail truck or rail excavator. Standard Series carts run 6 to 35 US tons, with a park brake, air brakes, or both. The 25-ton Elite Series adds bi-fold hydraulic ramps for loading machines and three brake systems: air for truck towing, hydraulic for rail excavators, plus a park brake.

KEY FEATURES

  • High Strength Frame & Deck: Heavy-duty deck construction and tube style steel framing ensure long-lasting durability.
  • Park Brake: Integrated manual park brake with a cobra-type pad for secure stopping on all standard models.
  • Tie Down & Lift Locations: Secure anchoring points to safely transport loads and facilitate cart placement on and off the tracks.
  • Optional Features: Options include adjustable axle gauge, directional lighting, steel stakes, lift chains, forklift tine pockets, jackstand stabilizers, ratchet strap tie-downs, air brakes, hydraulic brake with a release pump, slip-over gondola boxes or removeable panel walls.
Newspaper Newspaper Standard Series Brochure Newspaper Newspaper Elite Series Brochure User User Get a Quote

STANDARD SERIES TRACK CARTS

Pick a Standard Series base cart from 6 to 35 US tons, then add what the job calls for: air or hydraulic brakes, directional lighting, jackstand stabilizers, lift chains, forklift pockets, or slip-over gondola boxes.

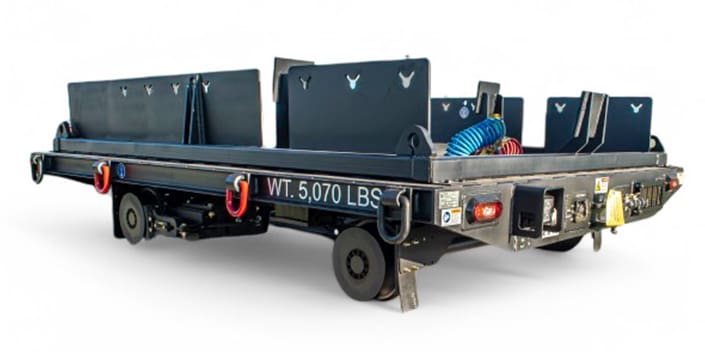

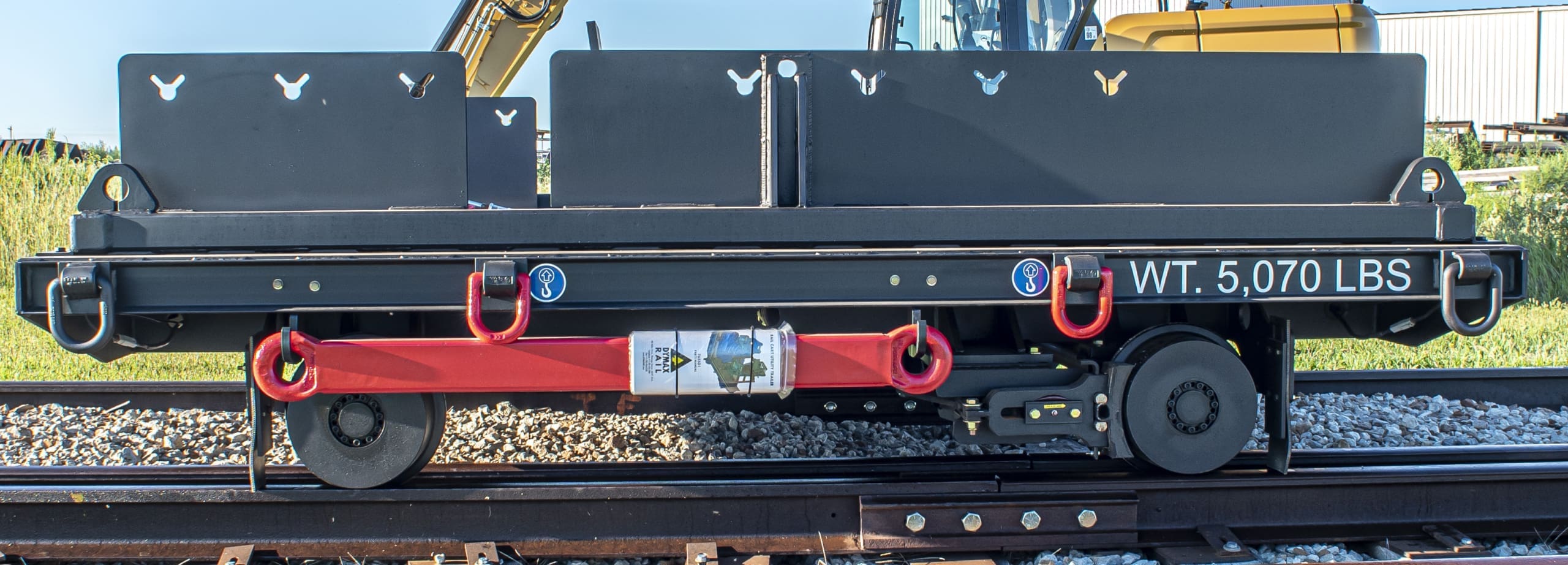

DymaxRail 10-ton, 8 x 10 ft track cart with autochange directional lighting, LED spot lamps and removable attachment tray
7655D1 – 10T – 8ft x 10ft
  • Heavy duty axles
  • Rail sweeps
  • Hitches
  • 4-wheel air brake
  • Autochange directional lighting systems with LED spot lamps
  • Removable attachment tray

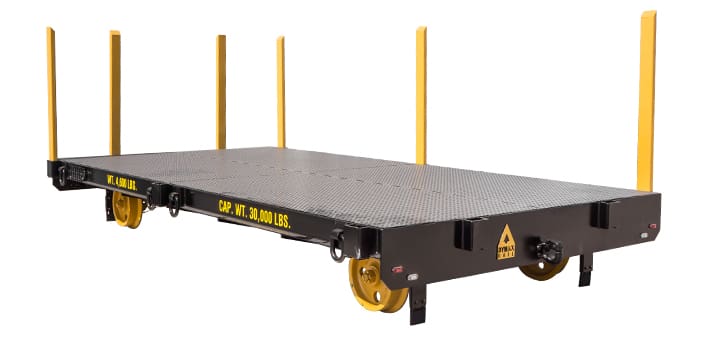

DymaxRail 6364D2 20-ton track cart, 8 x 16 ft, with plate deck, stakes and solar directional lighting
6364D2 – 20T – 8ft x 16ft
  • Tow pintle hitch
  • Park brake
  • Plate decking
  • Stakes
  • Sweeps
  • Solar powered directional lighting

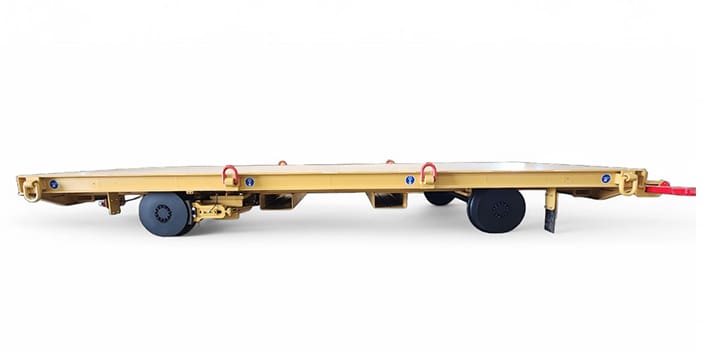

DymaxRail 8318D1 30-ton track cart, 6 x 16 ft, with 2-wheel air brake, park brake and tie downs
8313D1 – 30T – 6ft x 16ft
  • Tow pintle hitch
  • Park brake
  • 2-wheel air brake
  • Sweeps
  • Tie downs
  • Standard 4ft tow bar
  • Standard deck plate with forklift pockets

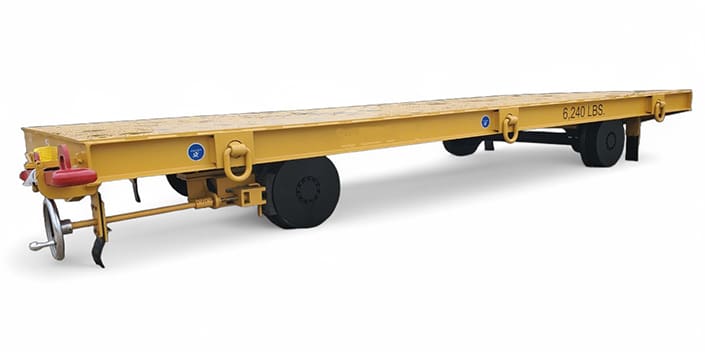

DymaxRail 7565D1 30-ton track cart, 6 x 16 ft, with 1/2-inch plate deck, tie downs and 4 ft tow bar
7565D1 – 30T – 6ft x 16ft
  • Tow pintle hitch
  • Park brake
  • Sweeps
  • Tie downs
  • Standard 4ft tow bar
  • HD 1/2″ plate deck

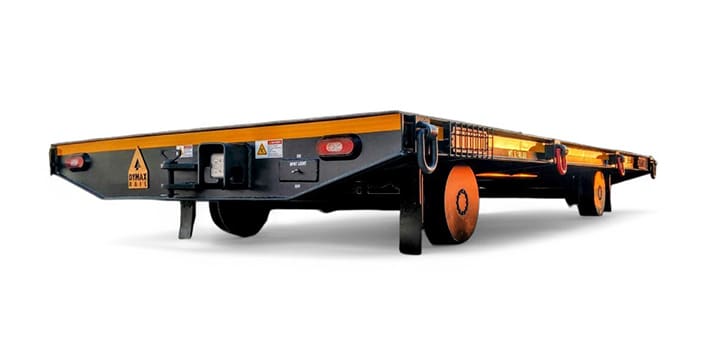

DymaxRail 7109D1 30-ton track cart, 7 x 16 ft, built for a US Army ammunition depot
7109D1 – 30T – 7ft x 16ft
  • Tow pintle hitch
  • Park brake
  • Sweeps
  • Tie downs
  • Directional lighting
  • Standard 4ft tow bar
  • Made for US Army Ammunitions Depot

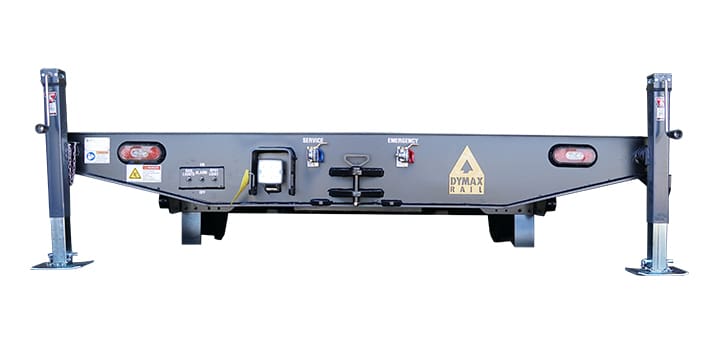

DymaxRail 7091D1 dual-gauge track cart, 8 x 20 ft, with 4-wheel air brake and corner stabilizers
7091D1 – 30T – 8ft x 20ft
  • Tow pintle hitch
  • Air brakes
  • Directional lighting
  • Spot lamp
  • Optional jack stands for stability

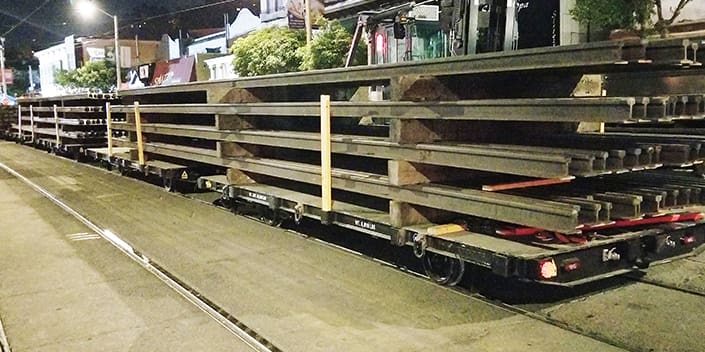

DymaxRail 6687D2 20-ton track cart, 8 x 20 ft, used on a San Francisco tunnel rehabilitation project
6687D2 – 20T – 8ft x 20 ft
  • Tow pintle hitch
  • Park brake
  • 2-wheel air brake
  • Sweeps
  • Tie downs
  • Directional lighting system
  • Stakes
  • San Francisco, CA Tunnel Rehab Project

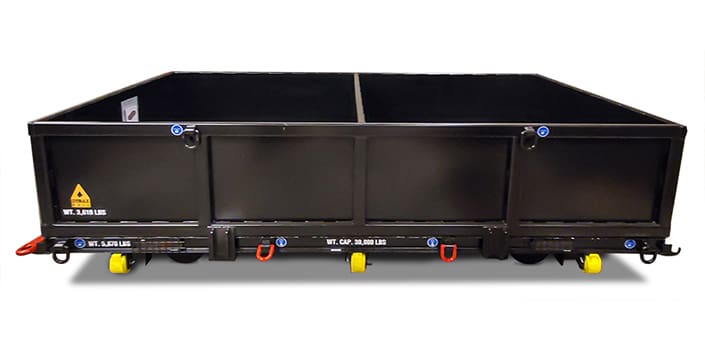

DymaxRail 20-ton, 8 x 16 ft track cart fitted with optional side panels
Side Panel Options for 8×16 Carts

Shown here: 7296D1-20T

  • Slip-on 2 bin box or available with sectional wall panels.
  • Ratchet tie downs with straps

→ See also: Gondola Box Wagon Track Cart product page.

ELITE SERIES TRACK CARTS

The Elite Series enhances performance with directional LED lighting, rear hydraulic ramps and multi-system brakes for seamless integration with various towing vehicles. Available in 8ft x 24ft with a 25-ton capacity, it’s built to handle the toughest jobs with ease.

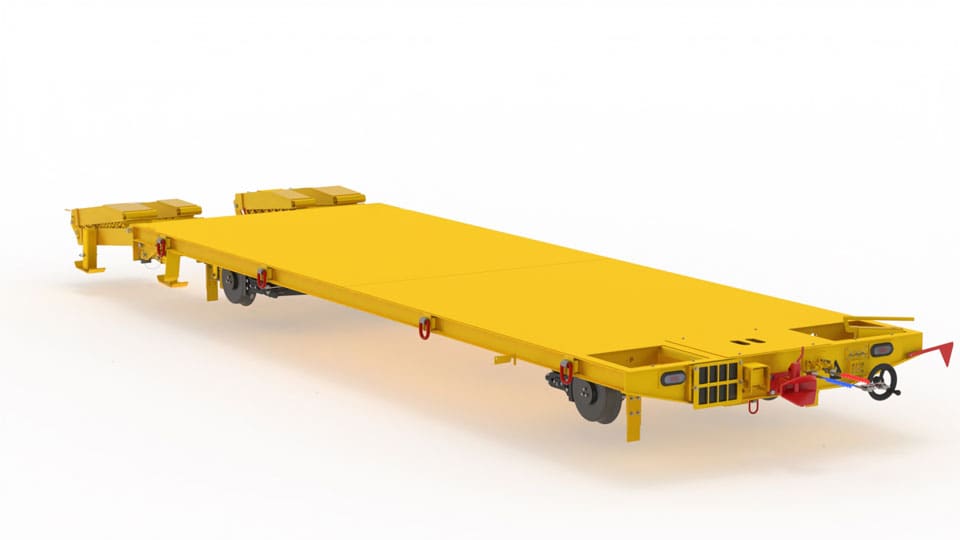

DymaxRail Elite Series 8263D1 track cart, 25-ton, 8 x 24 ft, with rear hydraulic ramps

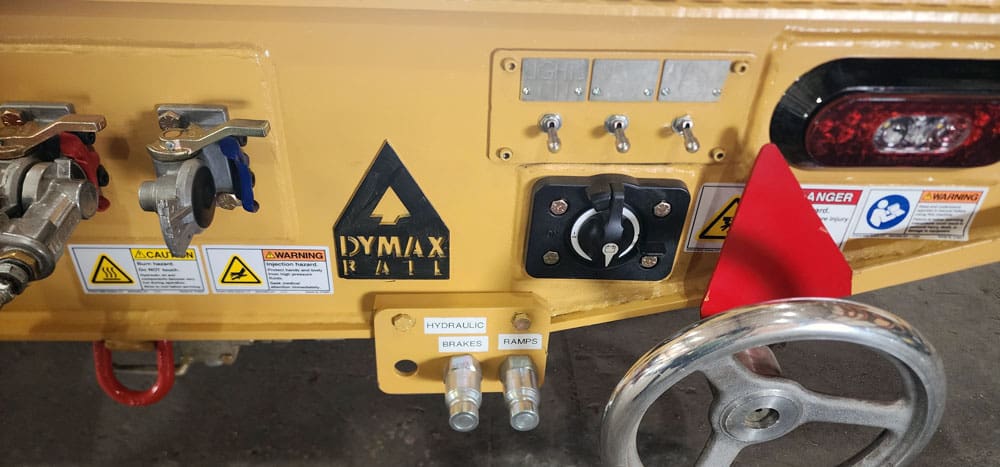

Front panel of the DymaxRail Elite Series 8263D1 track cart (add what’s visible: tow bar stow rack, Rockinger hitch, lighting)

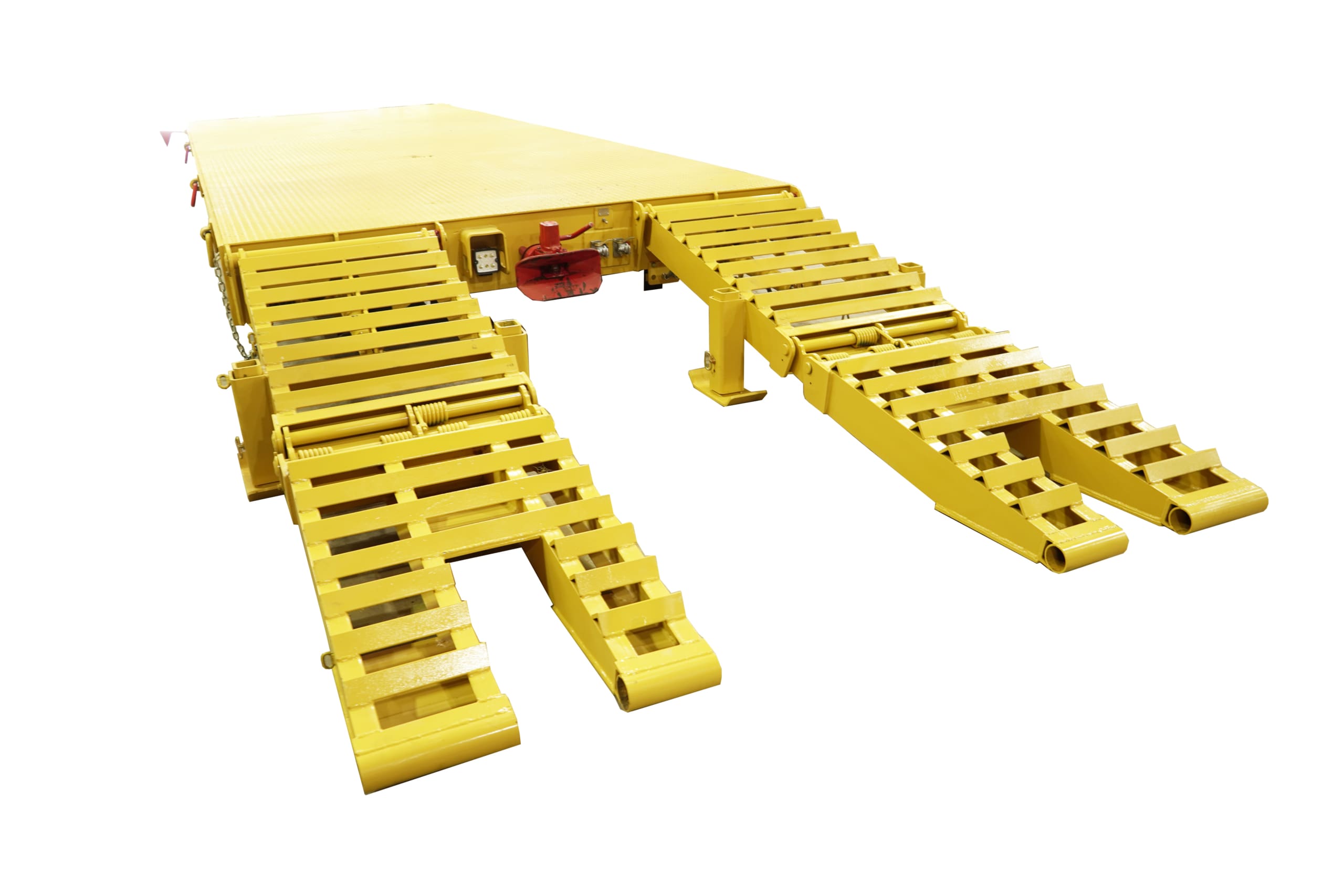

Bi-fold rear ramp on the DymaxRail Elite track cart lowered for loading machinery
  • High Strength Frame & Deck: Heavy-duty deck construction and tube style steel framing ensure long-lasting durability.
  • Versatile 3-Brake System: Designed for compatibility with various towing vehicles, featuring:
    • Manual Park Brake: Cobra style pad.
    • Hydraulic Brake: Optimized for railway excavators.
    • Four-Wheel Air Brakes: Ideal for truck towing.
    • Manual Hydraulic Pump: Enables brake release
      when needed.
  • Bi-Fold Ramps with 12v Pump: Designed for loading specialized machinery, featuring:
    • Rail Clearance Pocket: Provides smooth transition
      to and from the deck.
    • Manual Support Legs: Stabilizes the cart during
      equipment loading.
  • Secure Tie Downs & Lift Chains: Strategically placed anchoring points ensure safe load transport and easy cart placement on and off the tracks.
  • Solar Powered LED Lighting: Integrated red/white directional change lighting with high-intensity LED spot lamps for superior worksite illumination.

SPECIFICATIONS

Group Number: Model
Description
Load Rating (US Tons)
Weight (lbs)
5975D2: DX-RC-TMHD-6FT6x14P-DMX-6TC – Standard Track Cart

KEY FEATURES: Width: 6 1/2 feet • Length: 14 feet • Height off rail: 19.00 inches • Standard gauge: 1433 mm / 56.60 inches • Manual park brake

LOAD RATING: 6 Tons (US)

WEIGHT: 2,700 lbs
7655D2: DX-RC-TMHD-8x10AAL-DMX-10TC – Track Cart

KEY FEATURES: Width: 8 feet • Length: 10 feet • Height off rail: 20.0 inches • Standard gauge: 1433 mm / 56.60 inches • Heavy duty axles • Rail sweeps • Hitches • 4-wheel air brake • Autochange directional lighting systems with LED spot lamps • Removable attachment tray

LOAD RATING: 10 Tons (US)

WEIGHT: 3,500 lbs (cart only) / 5,070 lbs (with tray)
6818D2: DX-RC-TMHD-8x20AA-DMX-15TC – Track Cart

KEY FEATURES: Width: 8 feet • Length: 20 feet • Height off rail: 20.50 inches •Standard gauge: 1433 mm / 56.60 inches • 4-wheel air brake

LOAD RATING: 15 Tons (US)

WEIGHT: 4,800 lbs
6364D2: DX-RC-TMHD-8x16PL-DMX-20TC – Standard Track Cart

KEY FEATURES: • Width: 8 feet • Length: 16 feet • Height off rail: 21.5 inches • Standard gauge: 1433 mm / 56.60 inches • Manual Park Brake • Directional Lights

LOAD RATING: 20 Tons (US)

WEIGHT: 4,630 lbs
7296D2: DX-RC-TMHD-8x16AAL-DMX-20TC – Track Cart

KEY FEATURES: • Width: 8 feet •Length: 16 feet •Height off rail: 21.5 inches • Standard gauge: 1433 mm / 56.60 inches •4 wheel air brake • Directional lights

LOAD RATING: 20 Tons (US)

WEIGHT: 5,870 lbs
6687D2: DX-RC-TMHD-8x20PAL-DMX-20TC – Standard Track Cart

KEY FEATURES: Width: 8 feet • Length: 20 feet •Height off rail: 21.5 inches • Standard gauge: 1433 mm / 56.60 inches • Manual park brake • 2 wheel air brake • Directional lights

LOAD RATING: 20 Tons (US)

WEIGHT: 6,010 lbs
7629D1: DX-RC-TMHD-8x20P-DMX-30TC – Standard Track Cart

KEY FEATURES: Width: 8 feet • Length: 20 feet • Height off rail: 22 inches • Standard gauge: 1433 mm / 56.60 inches • Manual park brake

LOAD RATING: 30 Tons (US)

WEIGHT: 6,090 lbs
7565D1: DX-RC-TMHD-6X16P-DMX-30TC – Standard Track Cart

KEY FEATURES: Width: 6 feet • Length: 16 feet • Height off rail: 22 inches • Standard gauge: 1433 mm / 56.60 inches • Manual park brake • Heavy duty axles • Rail sweeps • Welded pin eye hitch • 1/2” thick steel deck plate

LOAD RATING: 30 Tons (US)

WEIGHT: 6,240 lbs
8318D1: DX-RC-TMHD-6x16PA-DMX-32TC – Track Cart

KEY FEATURES: Width: 6 feet • Length: 16 feet • Height off rail: 22.00 inches • Standard gauge: 1433 mm / 56.60 inches • Heavy duty axles • Rail sweeps • Hitches • 2-wheel air brake • Manual park brake • Autochange directional lighting systems with LED spot lamps

LOAD RATING: 35 Tons (US)

WEIGHT: 6,100 lbs
7017D1: DX-RC-TMHD-8x24AAWG-DMX-32TC – Track Cart

KEY FEATURES: • Width: 8 feet • Length: 24 feet • Height off rail: 22.00 inches •Wide gauge: 66 inches • 4 wheel air brake

LOAD RATING: 35 Tons (US)

WEIGHT: 8,380 lbs
7091D1: DX-RC-TMHD-8X20AALDG-DMX-32TC – Track Cart

KEY FEATURES: • Width: 8 feet • Length: 20 feet • Height off rail: 22.00 inches • Dual gauge (standard to broad 66”) • 4 wheel air brake • 4x corner manual stabilizers • Auto change directional lighting systems with LED spot lamps.

LOAD RATING: 35 Tons (US)

WEIGHT: 7,000 lbs
Design and specifications are subject to change without notice.

All carts listed feature non-insulated railgear and are suited for standard gauge track (56.50 inches / 1435mm). Custom solutions are available for narrow and wide track gauges. Contact DymaxRail 1-800-530-5407 for special applications and options.
Group Number: Model
Description
Load Rating (US Tons)
Weight (lbs)
8263D1: DX-RC-TMHD-8X24HAPR-DMX-25TC – Elite Series

Rail Cart – Track Maintenance HD Elite

KEY FEATURES: Width: 8 feet • Length: 24 feet • Height off rail: 27 inches • Standard gauge: 1433mm / 56.60 inches • 4-wheel air brake • Manual park brake • 2-wheel hydraulic brake • Directional lighting • Ramps & manual stabilizer • 12v hydraulic power unit • Rockinger hitches • Towbar with stow rack

LOAD RATING: 25 Tons (US)

WEIGHT: 10,100 lbs

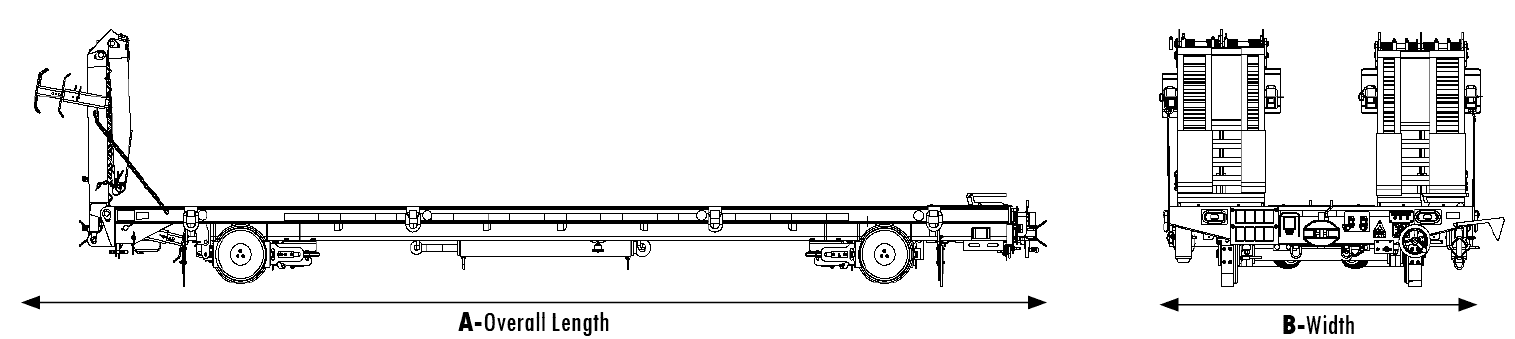

A – 323.1 inches (Overall Length)

B – 96.8 inches (Deck) x 100.8 inches Overall width)
Design and specifications are subject to change without notice.

Elite series carts include special features not available on standard track carts. For custom sizes or additional capacities, please contact DymaxRail 1-800-530-5407 for more information.
