Dymax Rail Rollers
What are rail rollers used for?
Dymax Rail Rollers are used for laying rail in mass transit or freight applications. Rollers are designed using high strength steels and are available in standard angle iron frame or in a smooth street roller frame group. Width of the roller is 8 inches and works with most rail sizes. Rail Roller stands are available upon request.

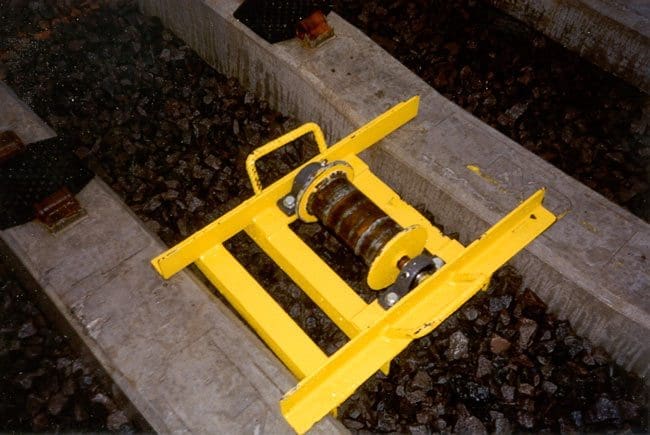

Standard Rail Roller

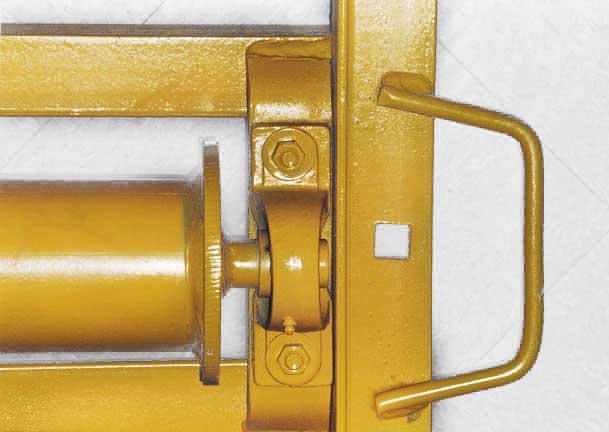

Available with 18 or 30” span the Standard Rail Roller features a 8 inch roller width and twin pillow block bearings for smooth rolling of rail up to ¼ mile length.
- 8.00” roller width
- Twin roller bearings with two handles
- 18” angle iron lower frame length for spanning ties
- Dymax Part No: DY6137

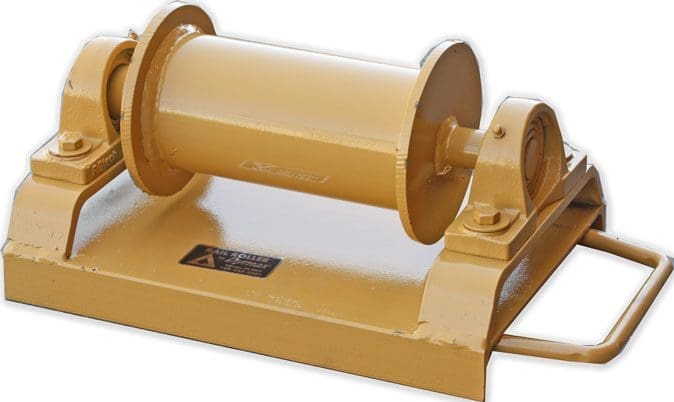

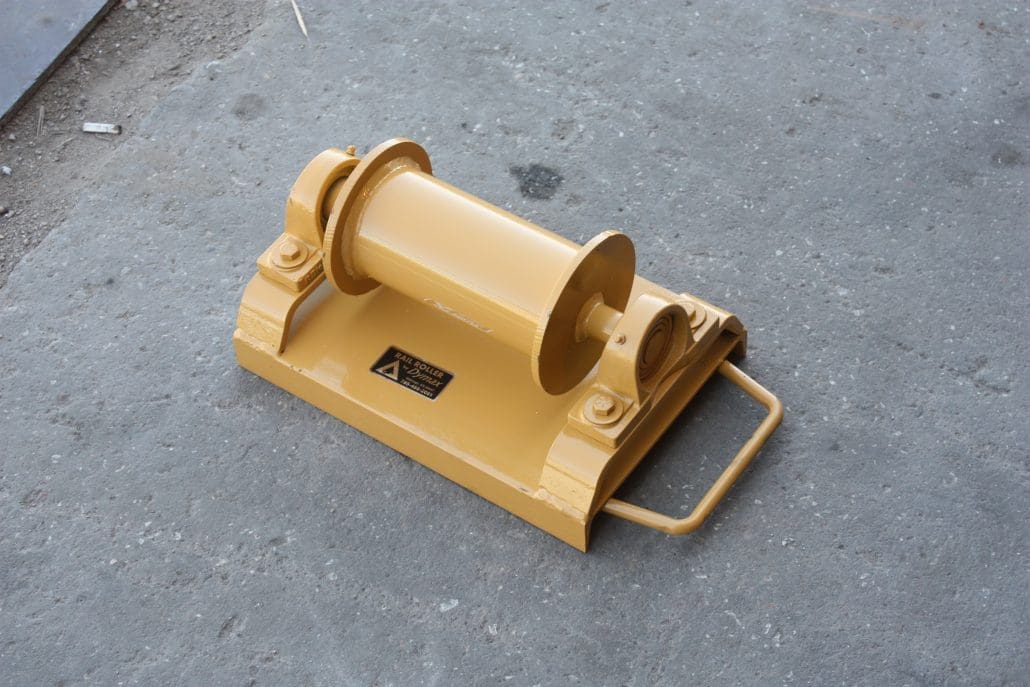

Street-Style Rail Roller
Street Style Rail Rollers feature low profile frame specifically designed for working on concrete or smooth surface operations. Street Roller models are made to order.
- 8.00” in roller width
- Two handles with twin pillow block bearings
- 10” width across lower frame for placement on flat surfaces
- Dymax Part No: DY100320
Specifications
| Model Code | Description | Features | Weight (lbs) each |
| DX-RR-STD-8.00x18in
DY6137 |
Rail Roller – Standard – 8.00x18in | 18in length across angle iron • 8.00” roller width • two handles • two pillow block bearings | 52 |
| DX-RR-STD-8.00x30in
DY6138 |
Rail Roller – Standard – 8.00x30in | 30in length across angle iron • 8.00” roller width • two handles • two pillow block bearings | 60 |
| DX-RR-STR-8.00x10in
DY100320 |
Rail Roller – Street Style – 8.00x10in | 10in lower angle frame width • 8.00” roller width • two handles • two pillow block bearings | 40 |
| Contact DymaxRail for insulated options and roller stands. Pricing and options are based upon quantities ordered. | |||
Options
- 30” Standard Type Roller Model Dymax Part No. DY6138

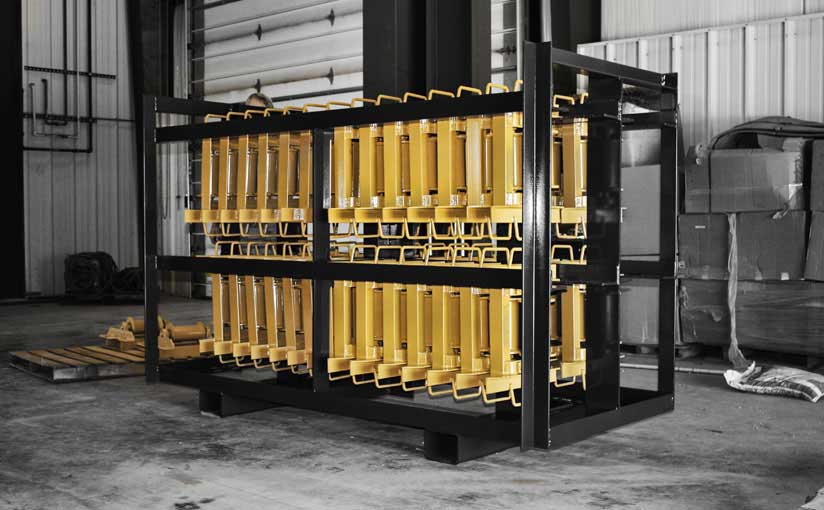

- Rail Roller Stand
- Insulated designs
