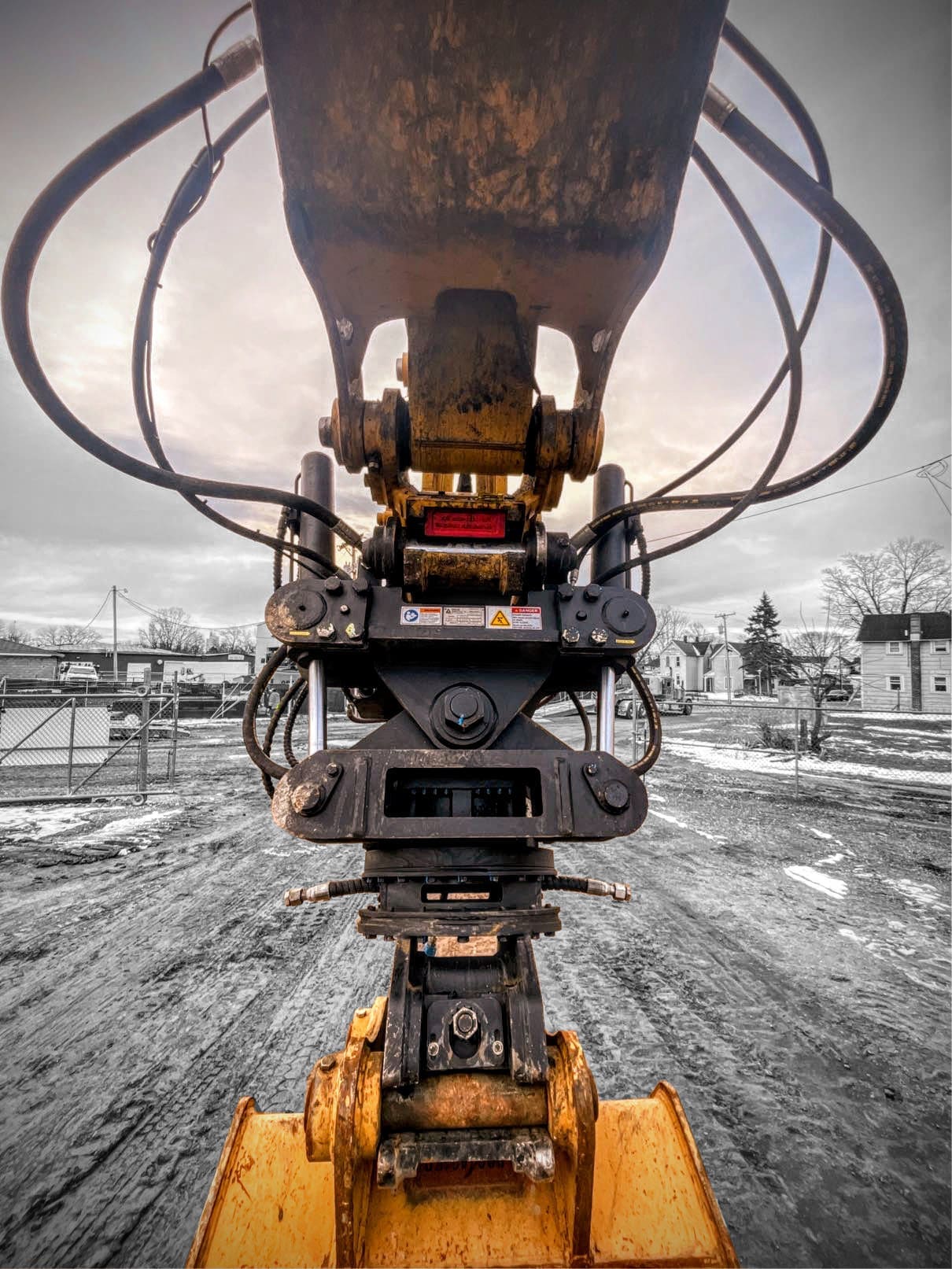

Tilt-Rotate Quick Coupler for Cat 313–330 Excavators

Runs on your standard auxiliary circuit — No high-flow hydraulics.

The DymaxRail Tiltrotator Quick Coupler is engineered to give operators superior flexibility by combining hydraulic tilt, full 360° rotation, and quick attachment swaps. Designed for CAT A, B, and CB linkage machines, this coupler fits directly to the factory stick using the OEM pin spacing and auxiliary hydraulics.

Applications

  • Railway maintenance and construction
  • Utility, infrastructure, and rights-of-way applications
  • Rental fleets needing simplified operations

KEY FEATURES

  • Rotate 360° and tilt up to 40° each way for maximum maneuverability.
  • Switch attachments with a manual cam lock coupler.
  • Heavy-duty trunnion-mounted tilt cylinders with integrated load hold valves.
  • Integrated diverter valve requires just one low flow, medium pressure circuit for operation.
  • Runs hydraulic attachments through a 5-line pass-through; 30T handles non-hydraulic tools.
  • Rugged design with upgraded flow paths and reduced backpressure.

SPECIFICATIONS

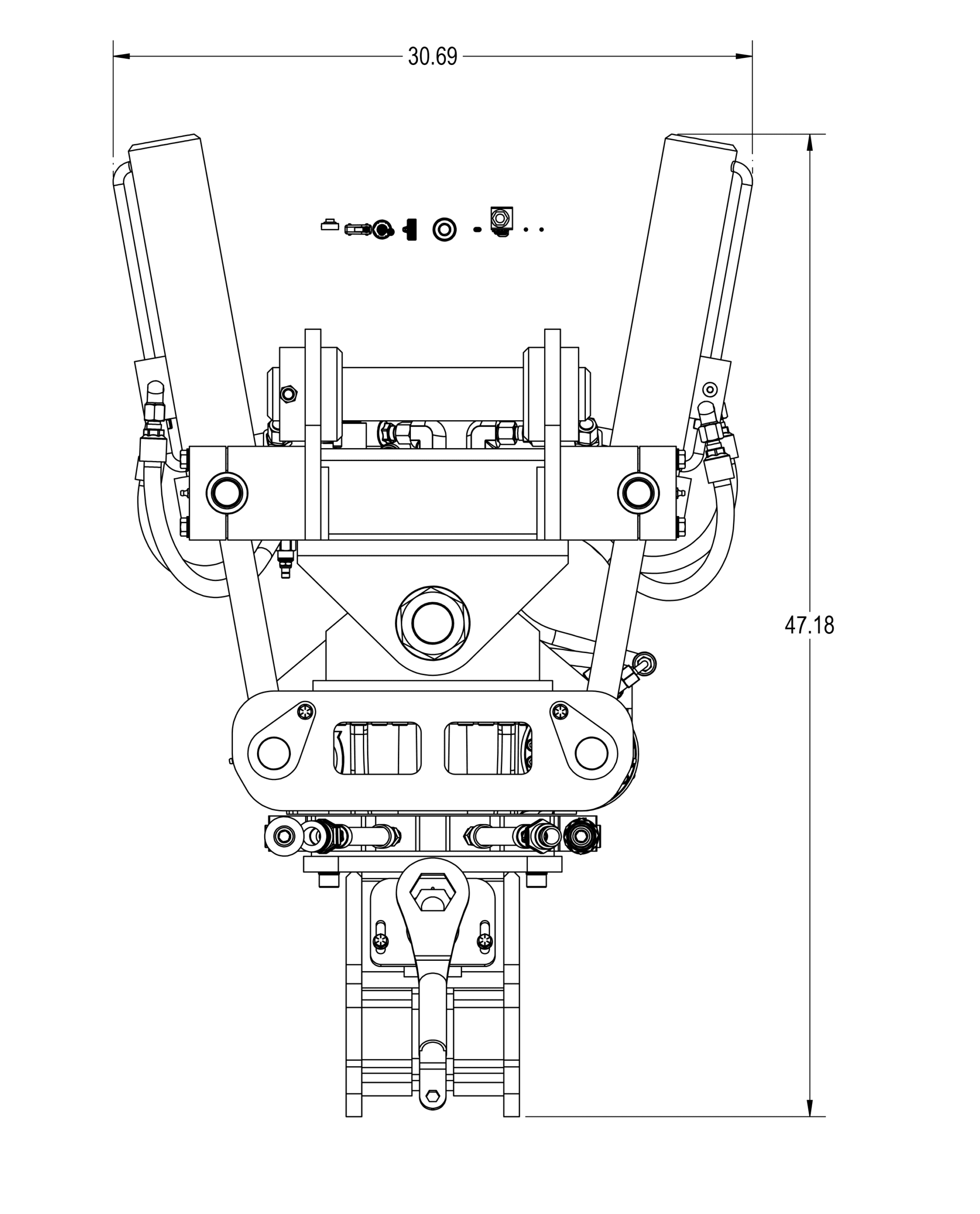

MODEL: DX-QC-PGM-360T80AL-HX-15T

DESCRIPTION: Quick Coupler-Pin Grab Manual-360 degrees rotation + Tilt 80 degrees for Cat A Linkage-Hydraulic Excavator-15 Ton

WEIGHT: 1,355 lbs

COMPATIBILITY:

– Will fit Cat 313-315 A linkage machinery
– Lower coupler picks up A linkage attachments

STANDARD FEATURES:

– RB120 Rotary box group with 5 oil lines passing through (standard box)
– Twin cylinder rotation system with trunnion mounts, hardlined 3.5×20
– Manual pin grab coupler for A linkage Cat attachments (65mm pins)
– Includes set of pins for top machine connection (A linkage 65mm pins)
– Includes 24V electro valve on top group for powering secondary (tilt-rotate) solution.

HYDRAULIC REQUIREMENTS: The excavator will require the following circuits for operation. All of the circuits are two-way valve controls.

Circuit 1 – Rotator
– Type: Two-way flow for both directions of rotation
– Flow GPM/PSI (min/max): 8-10 GPM @ 3000
– Preferred to set up with proportional controller with Cat OEM tool control circuit.

Circuit 2 – Tilt (Electro-controlled)
– Via valve on attachment
– Preferred to setup with proportional controller with Cat OEM tool control circuit.

Best to setup on dedicated functions on machine with proportional controls for smooth operation. The max limits for oil range and pressures are listed above. Contact Dymax for information.

Design and specifications are subject to change without notice.

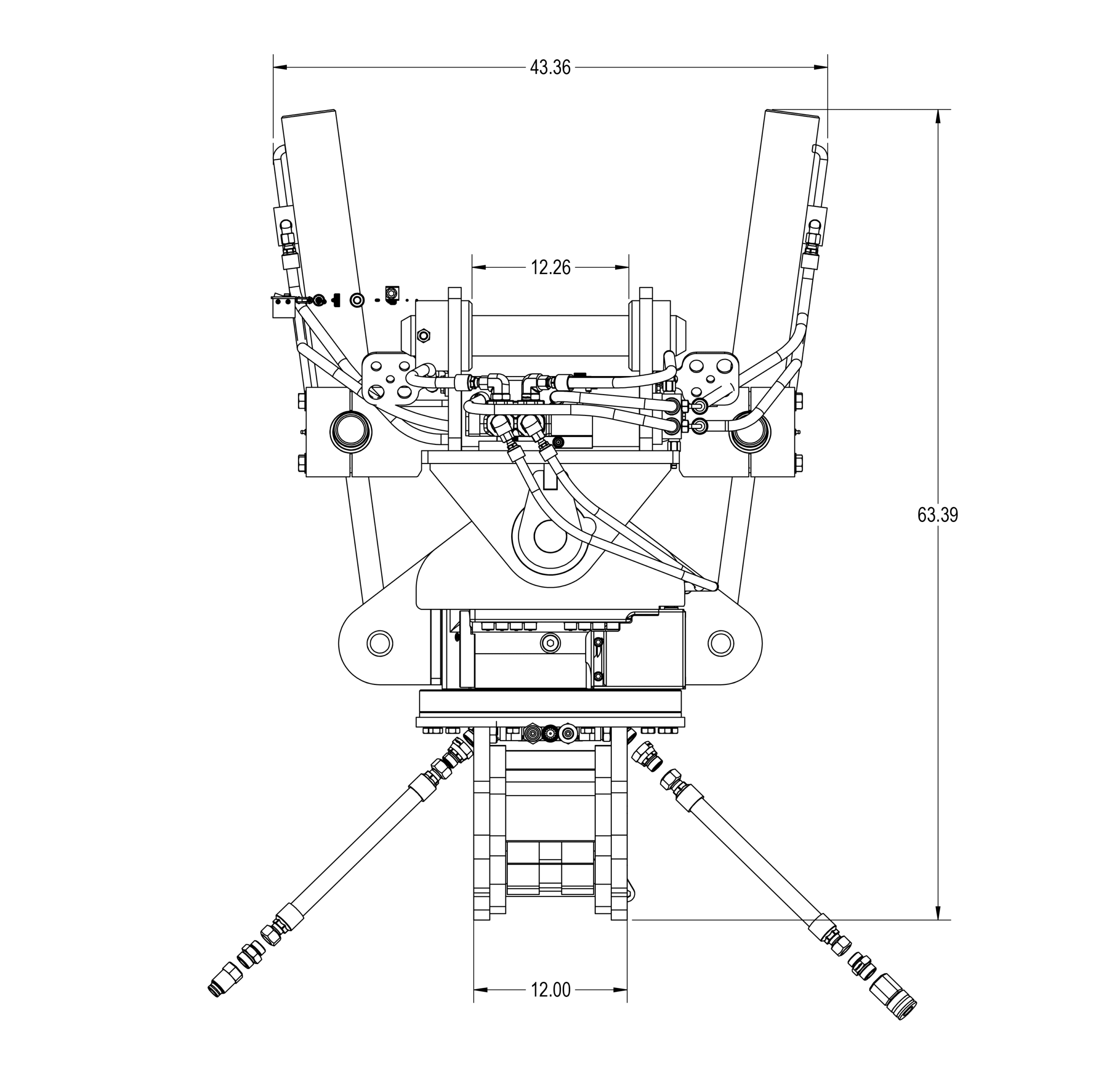

MODEL: DX-QC-PGM-360T80BL-HX-20T

DESCRIPTION: Quick Coupler-Pin Grab Manual-360 degrees rotation + Tilt 80 degrees for Cat B Linkage-Hydraulic Excavator-20 Ton

WEIGHT: 2,200 lbs

COMPATIBILITY:

– Will fit Cat 320-323-324-325 B linkage machinery

– Lower coupler picks up B linkage attachments

STANDARD FEATURES:

– RB200 rotary box group with 5 oil lines pass through (standard box)

– Twin cylinder rotation system with trunnion mounts, hardlined

– Manual pin grab coupler for B linkage Cat attachments

– Includes set of pins for top machine connection (B linkage)

HYDRAULIC REQUIREMENTS: The excavator will require the following circuits for operation.

ROTATOR: 8-10 GPM max @ 3000 psi

– Valve Type: Two-way flow for both directions of rotation.

– Works from standard auxiliary circuit on Caterpillar B linkage excavator.

TILT: 8-10 GPM max @ 3000 psi

– Valve Type: Electro-hydraulic 24V valve with wiring kit provided.

– Requires installation of the wiring kit to power the tilting function.

Questions? Please contact DymaxRail sales.

Design and specifications are subject to change without notice.

MODEL: DX-QC-PGM-360T80CBL-HX-30T

DESCRIPTION: Quick Coupler-Pin Grab Manual-360 degrees rotation + Tilt 80 degrees for Cat CB Linkage-Hydraulic Excavator-30 ton

WEIGHT: 2,300 lbs

COMPATIBILITY:

– Will fit Cat 325 and 330 CB linkage machinery

– Lower coupler picks up CB linkage attachments

STANDARD FEATURES:

– RB270 rotary box group (DY167250)

– Twin cylinder tilt system with trunnion mounts, hardlined up to 80 degrees total

– Manual pin grab coupler for CB linkage Cat attachments

– Includes set of pins for top machine connection (CB linkage)

NOTE: There is no oil feed-through with this design. Suited for non-hydraulic attachments, blades, buckets, forks, etc.

HYDRAULIC REQUIREMENTS: The excavator will require the following circuits for operation.

ROTATOR: 8-10 GPM max @ 3000 psi

– Valve Type: Two-way flow for both directions of rotation.

– Works from standard auxiliary circuit on Caterpillar B linkage excavator.

TILT: 8-10 GPM max @ 3000 psi

– Valve Type: Two-way flow for both directions of rotation.

– Works from standard auxiliary circuit on Caterpillar B linkage excavator.

Questions? Please contact DymaxRail sales.

Design and specifications are subject to change without notice.

FAQ

No. This coupler runs rotation off the machine’s standard auxiliary circuit at 8–10 GPM, 3,000 psi. On the 15- and 20-ton models, the tilt is 24V electric, so you’re not adding a second hydraulic circuit or a high-flow package.
The DymaxRail tilt-rotate coupler will fit Cat 313 through 315 A linkage machinery, Cat 320 through 325 B linkage machinery, and Cat 325 through 330 CB linkage machinery.
The 15- and 20-ton models have a 5-line oil pass-through for hydraulic tools. The 30-ton is built for non-hydraulic attachments such as blades, buckets, and forks.
A manual cam-lock pin grab (65 mm pins on A linkage). There are no electronics in the lock to fail or recalibrate, fewer wear points than a hydraulic auto-coupler, and it’s serviceable in the field.
360° continuous rotation and 80° of tilt, 40° each direction.
