PRODUCT HIGHLIGHTS
- Machine Compatibility: Excavators or backhoe loaders
- Workhead Style: Jackson 6700-style for production tamping
- Motor Options: 2 or 4 HARSCO-style vibrator assemblies
- Rotation: 360° electro-hydraulic rotation or TRQ models for tiltrotators
APPLICATIONS
- Mainline production tamping
- Turnout and crossover maintenance
- Surfacing and lining for track programs
- High-volume tie replacement projects
- Class 1 and contractor MOW programs
KEY FEATURES
- Jackson 6700-style workhead: Delivers 46Hz tamping frequency and consistent squeeze force across the tine set — the same workhead geometry Class 1 and contractor operators already know.

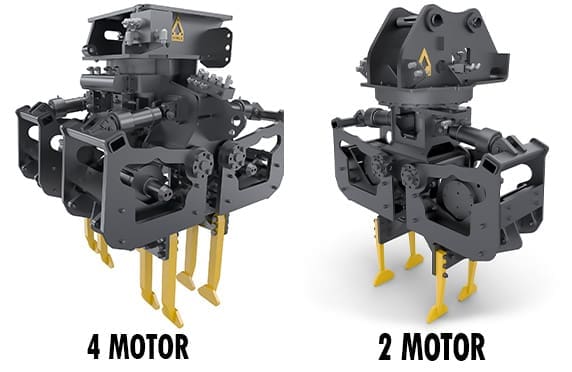

- 2 or 4 motor configurations: Scale output to the work. Run 2 motors for spot tamping and turnout maintenance; step up to 4 for production surfacing runs.

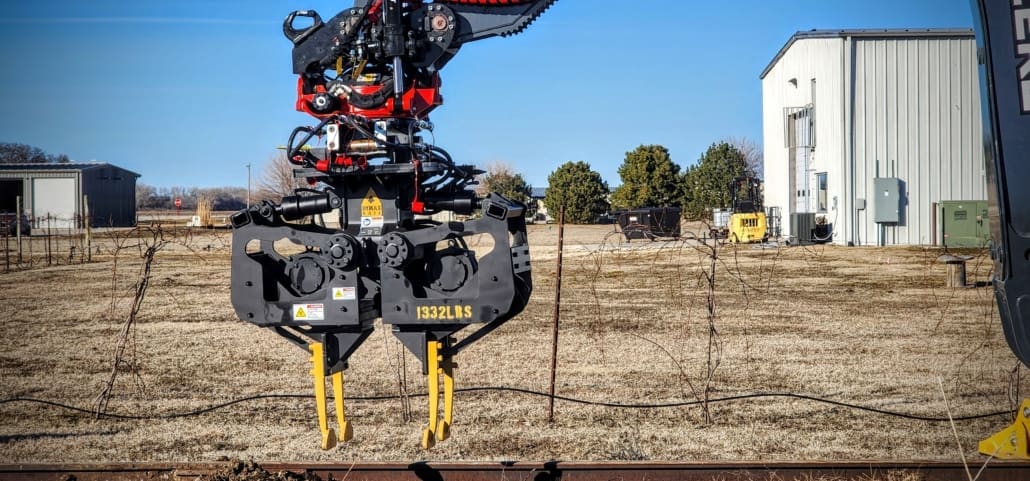

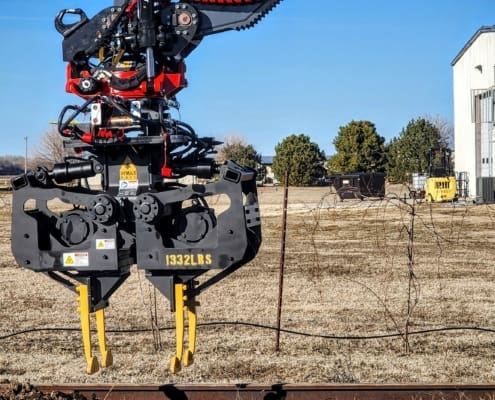

- Rotation options: Full 360° electro-hydraulic rotation lets you work across the track without repositioning the machine. TRQ models mount directly to tiltrotator-equipped carriers.
- 360° rotation or TRQ models: Choose electro-hydraulic rotation or tiltrotator compatibility for maximum carrier flexibility.
- Bolt-on steel tines: Easy to service and replace, with weld-on pads for long wear life.
- Harsco vibrator assemblies: Delivers 46HZ tamping frequency
- Integrated flow control & divider: Ensures smooth, efficient operation across various carriers.

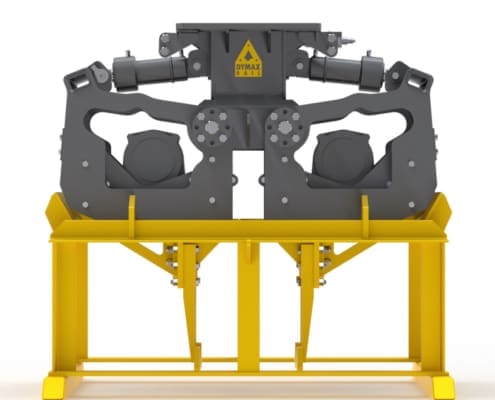

- Transport stand with tie-down points: Simplifies handling, transport, and storage.
SPECIFICATIONS
MODELS WITH 2 MOTORS / 360° ROTATION
| Model Code Description Weight (lbs) |
| DX-BT-DYM67-360×2-BL-10
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 2 motors-Backhoe Loader-Class 10 STANDARD FEATURES: – Two Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 4x bolt-on tamping tines with replaceable weld on pads – Twin cylinder – Machine adapter with pins – 12/24v Electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 1900 lbs |
| DX-BT-DYM67-360×2-BL-20
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 2 motors-Backhoe Loader-Class 20 STANDARD FEATURES: – Two Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 4x bolt-on tamping tines with replaceable weld on pads – Twin cylinder – Machine adapter with pins – 12/24v Electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 1900 lbs |
| DX-BT-DYM67-360×2-HX-12T
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 2 motors-Hydraulic Excavator-12 Ton STANDARD FEATURES: – Two Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 4x bolt-on tamping tines with replaceable weld on pads – Twin cylinder – Machine adapter with pins – 12/24v Electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 1950 lbs |
| DX-BT-DYM67-360×2-HX-16T
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 2 motors-Hydraulic Excavator-16 Ton STANDARD FEATURES: – Two Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 4x bolt-on tamping tines with replaceable weld on pads – Twin cylinder – Machine adapter with pins – 12/24v Electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 1950 lbs |
| DX-BT-DYM67-360×2-HX-20T
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 2 motors-Hydraulic Excavator-20 Ton STANDARD FEATURES: – Two Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 4x bolt-on tamping tines with replaceable weld on pads – Twin cylinder – Machine adapter with pins – 12/24v Electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 2250 lbs |
Design and specifications are subject to change without notice.
MODELS WITH 2 MOTORS / NO ROTATION
| Model Code Description Weight (lbs) |
| DX-BT-DYM67-TRQx2-BL-10
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 2 motors-Backhoe Loader-Class 10 STANDARD FEATURES: – Twin Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 4x bolt-on tamping tines with replaceable weld on pads – Two squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 1500 lbs |
| DX-BT-DYM67-TRQx2-BL-20
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 2 motors-Backhoe Loader-Class 20 STANDARD FEATURES: – Twin Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 4x bolt-on tamping tines with replaceable weld on pads – Two squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 1500 lbs |
| DX-BT-DYM67-TRQx2-HX-8T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 2 motors-Hydraulic Excavator-8 Ton STANDARD FEATURES: – Twin Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 4x bolt-on tamping tines with replaceable weld on pads – Two squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 1500 lbs |
| DX-BT-DYM67-TRQx2-HX-12T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 2 motors-Hydraulic Excavator-12 Ton STANDARD FEATURES: – Twin Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 4x bolt-on tamping tines with replaceable weld on pads – Two squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 1500 lbs |
| DX-BT-DYM67-TRQx2-HX-16T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 2 motors-Hydraulic Excavator-16 Ton STANDARD FEATURES: – Twin Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 4x bolt-on tamping tines with replaceable weld on pads – Two squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 1500 lbs |
| DX-BT-DYM67-TRQx2-HX-20T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 2 motors-Hydraulic Excavator-20 Ton STANDARD FEATURES: – Twin Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 4x bolt-on tamping tines with replaceable weld on pads – Two squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 1600 lbs |
Design and specifications are subject to change without notice.
MODELS WITH 4 MOTORS / 360° ROTATION
| Model Code Description Weight (lbs) |
| DX-BT-DYM67-360×4-HX-16T
Ballast Tamper-DymaxRail Series 67-360 degree rotation x 4 motors-Hydraulic Excavator-16 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 8x bolt-on tamping tines with replaceable weld-on pads – Four squeeze cylinders – Machine adapter with pins – 24v electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 5000 lbs |
| DX-BT-DYM67-360×4-HX-20T
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 4 motors-Hydraulic Excavator-20 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 8x bolt-on tamping tines with replaceable weld-on pads – Four squeeze cylinders – Machine adapter with pins – 24v electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 5000 lbs |
| DX-BT-DYM67-360×4-HX-25T
Ballast Tamper-DymaxRail Series 67-360 degrees rotation x 4 motors-Hydraulic Excavator-25 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 360 degree rotation system – 8x bolt-on tamping tines with replaceable weld-on pads – Four squeeze cylinders – Machine adapter with pins – 24v electro-hydraulic diverter valve with cable kit – Transport stand with tie downs included WEIGHT: 5000 lbs |
Design and specifications are subject to change without notice.
MODELS WITH 4 MOTORS / NO ROTATION
| Model Code Description Weight (lbs) |
| DX-BT-DYM67-TRQx4-HX-12T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 4 motors-Hydraulic Excavator-12 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 8x bolt-on tamping tines with replaceable weld on pads – Four squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 4300 lbs |
| DX-BT-DYM67-TRQx4-HX-16T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 4 motors-Hydraulic Excavator-16 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 8x bolt-on tamping tines with replaceable weld on pads – Four squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 4350 lbs |
| DX-BT-DYM67-TRQx4-HX-20T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 4 motors-Hydraulic Excavator-20 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 8x bolt-on tamping tines with replaceable weld on pads – Four squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 4400 lbs |
| DX-BT-DYM67-TRQx4-HX-25T
Ballast Tamper-DymaxRail Series 67-Tilt Rotator Coupler x 4 motors-Hydraulic Excavator-25 Ton STANDARD FEATURES: – Four Harsco style vibrator assemblies – Similar styling to Jackson 6700 workhead tampers – 8x bolt-on tamping tines with replaceable weld on pads – Four squeeze cylinders – Machine adapter with pins – Transport stand with tie downs included WEIGHT: 4450 lbs |
Design and specifications are subject to change without notice.
HYDRAULIC REQUIREMENTS
| 2 MOTOR / 360 ROTATION MODELS:
DX-BT-DYM67-360×2-BL-10 | DX-BT-DYM67-360×2-BL-20 | DX-BT-DYM67-360×2-HX-12T | DX-BT-DYM67-360×2-HX-16T | DX-BT-DYM67-360×2-HX-20T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following (2x) circuits to operate the attachment. This attachment is provided with an electro-hydraulic valve to power the rotation circuit. Installation of the cable kit is required prior to use. If your machine does not have the correct number of hydraulic circuits please contact Dymax sales to discuss alternative solutions for setup of the attachment.
CIRCUIT 1 – MOTOR (BOTH) CIRCUIT 2 – TINE SQUEEZE CIRCUIT 3 – ROTATION NOT SUPPLIED: Jumper hose lines and disconnects from the attachment to the machine. |
| 2 MOTOR / NO ROTATION MODELS:
DX-BT-DYM67-TRQx2-BL-10 | DX-BT-DYM67-TRQx2-BL-20 | DX-BT-DYM67-TRQx2-HX-8T | DX-BT-DYM67-TRQx2-HX-12T | DX-BT-DYM67-TRQx2-HX-16T | DX-BT-DYM67-TRQx2-HX-20T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following (2x) circuits to operate the attachment.
CIRCUIT 1 – MOTOR (BOTH) CIRCUIT 2 – TINE SQUEEZE NOT SUPPLIED: Jumper hose lines and disconnects from the attachment to the machine. |
| 4 MOTOR / 360 ROTATION MODELS:
DX-BT-DYM67-360×4-HX-16T | DX-BT-DYM67-360×4-HX-20T | DX-BT-DYM67-360×4-HX-25T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following (2x) circuits to operate the attachment. This attachment is provided with an electro-hydraulic valve to power the rotation circuit. Installation of the cabling kit is required prior to use. If your machine does not have the correct number of hydraulic circuits or controls please contact your sales representative to discuss alternative solutions for setup of the attachment.
CIRCUIT 1 – MOTOR CIRCUIT 2 – TINE SQUEEZE CIRCUIT 3 – ROTATION NOT SUPPLIED: Jumper hose lines and disconnects from the attachment to the machine. |
| 4 MOTOR / NO ROTATION MODELS:
DX-BT-DYM67-TRQx4-HX-12T | DX-BT-DYM67-TRQx4-HX-16T | DX-BT-DYM67-TRQx4-HX-20T | DX-BT-DYM67-TRQx4-HX-25T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following (2x) circuits to operate the attachment.
CIRCUIT 1 – MOTOR CIRCUIT 2 – TINE SQUEEZE NOT SUPPLIED: Jumper hose lines and disconnects from the attachment to the machine. |
Not the right fit for your operation? Find the tamper that is. View all DymaxRail Ballast Tamper models →
FAQ
WHAT IS A JACKSON 6700-STYLE TAMPER?
The Jackson 6700 is a production tamping workhead design, historically associated with Harsco Rail, that has been widely used in North American mainline and turnout tamping programs. It uses paired vibrator assemblies — typically two or four motors — to deliver consistent squeeze force and high-frequency compaction across the tine set. The Series 67 is built around this workhead geometry, which means operators already trained on 6700-style equipment will recognize the tool behavior and maintenance requirements. For Class 1 railroads and large contractors running production programs, that familiarity reduces training time and simplifies parts sourcing.

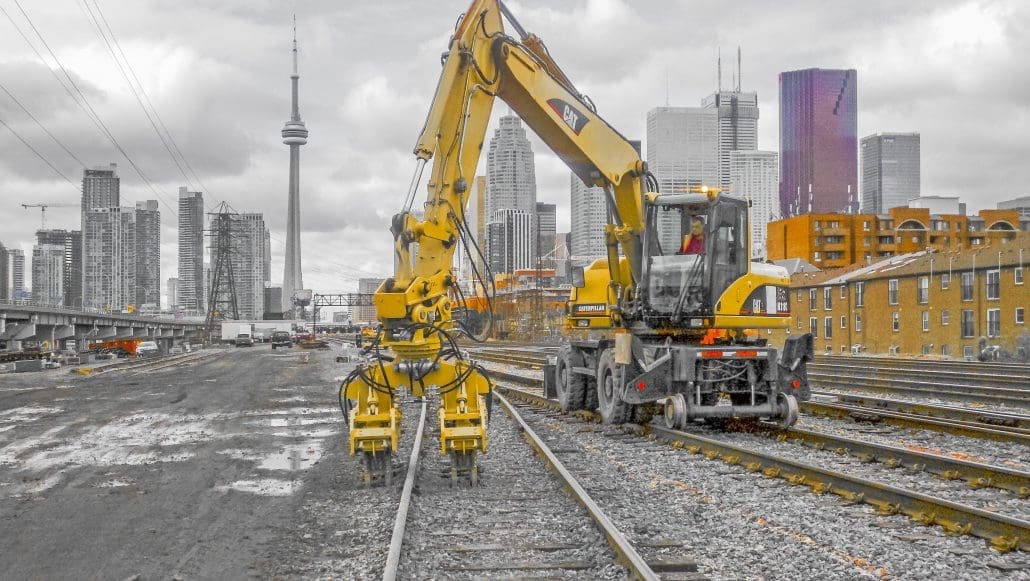

CAN AN EXCAVATOR-MOUNTED TAMPER HANDLE PRODUCTION MAINLINE WORK?
It depends on the scope. A dedicated continuous tamping machine will always outpace an excavator attachment on a long, uninterrupted surfacing run. But the Series 67 in a 4-motor configuration is built for high-output work — 8 tines, 46Hz frequency, 360° rotation — and is used on Class 1 and major contractor MOW programs for production tamping in situations where a full tamping machine isn’t available, isn’t cost-effective to mobilize, or can’t access the work zone. For tie replacement projects, turnout programs, and supplemental tamping alongside a production crew, the Series 67 closes the gap considerably.
WHAT’S THE DIFFERENCE BETWEEN THE 2-MOTOR AND 4-MOTOR CONFIGURATIONS?
Both use Harsco-style vibrator assemblies and the same Jackson 6700-style workhead. The 2-motor models (4 tines, twin cylinder) are suited for spot tamping, turnout maintenance, and programs where the carrier is a backhoe loader or mid-size excavator. The 4-motor models (8 tines, four cylinders) are built for production surfacing on larger carriers — 16 to 25-ton excavators — where flow requirements and machine weight support the heavier assembly. If you’re unsure which configuration matches your machine and program, contact DymaxRail with your carrier model and hydraulic flow specs.
