DYMAX RAIL RIDER WX1B | HI-RAIL FOR WHEEL EXCAVATORS WITH BLADES

Sennebogen 718 wheeled excavator with the Dymax Rail Rider WX4S hi-rail attachment in transport mode at a railroad crossing, showing boom tucked into the railgear with the attachment still on

Built for rail work

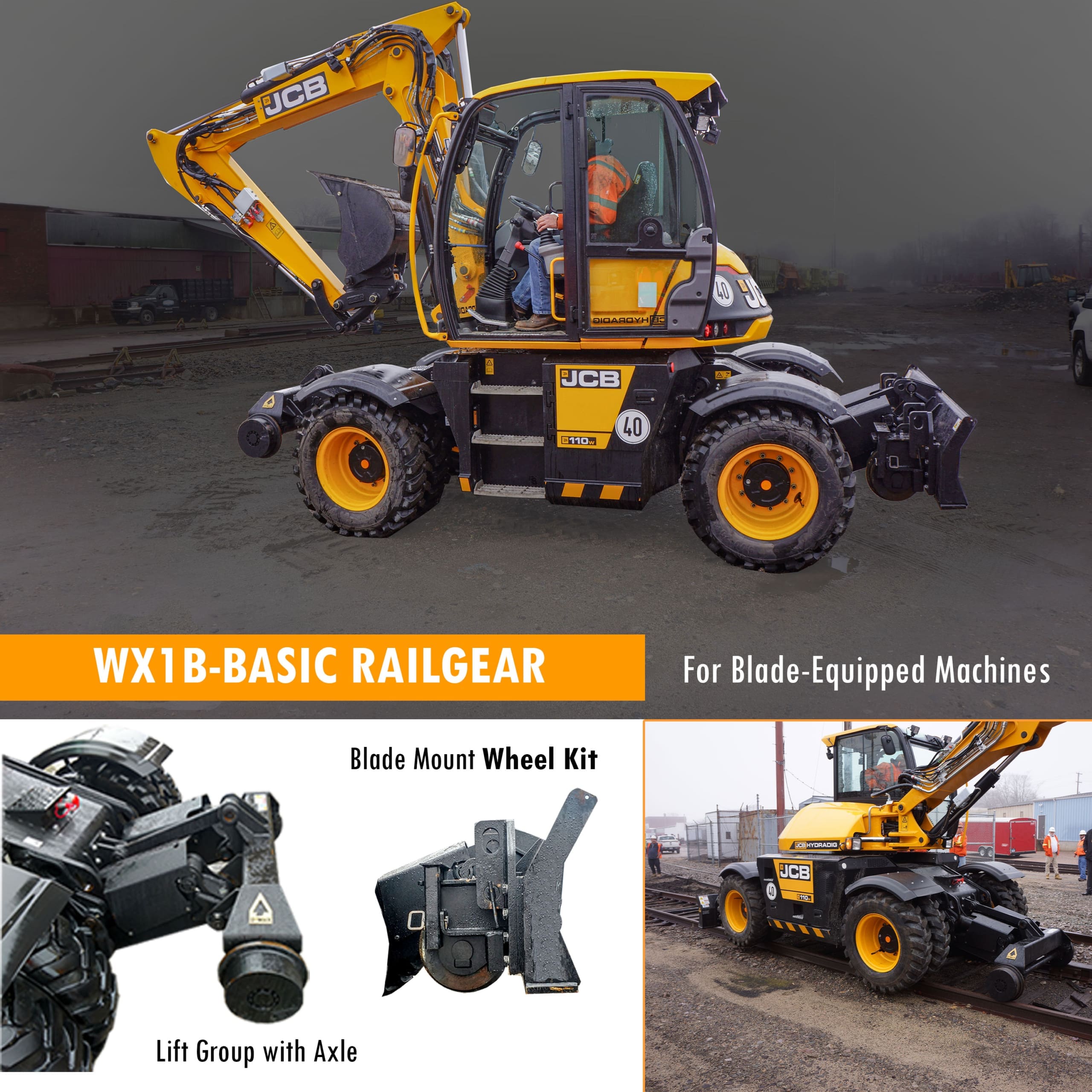

The Dymax Rail Rider WX1B is a simple hi-rail guidance system for wheel excavators with a front blade and rear stabilizers. Blade-mounted front guide wheels and a rear railgear assembly provide dependable rail guidance while keeping the excavator fully functional for off-rail work. Optional upgrades are available to match specific railway, transit, and utility applications.

Book-open Book-open Brochure User User Request a Quote

KEY FEATURES & BENEFITS

  • Simple Rail Guidance System — Economical solution for placing wheel excavators on rail.
  • Blade-Mounted Front Guide Wheels — Front rail wheels mount directly to the excavator blade, which stays fully functional for dozing.

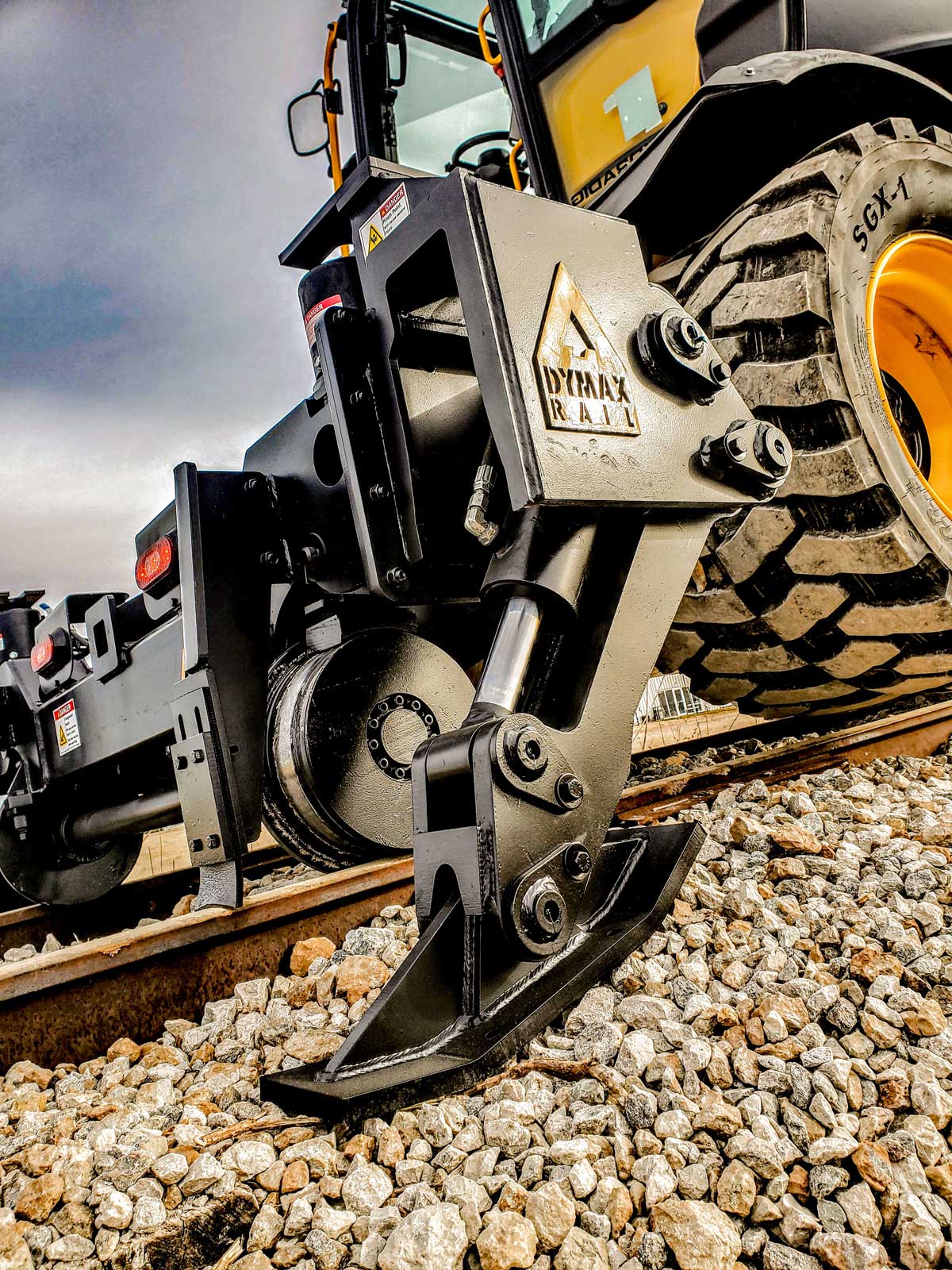

  • Stabilizer-Side Rear Railgear — Rear rail wheels mount to the machine’s existing stabilizers using removable, non-welded adapters.
  • Minimal Machine Changes — Adds rail capability without the complexity of a full hi-rail conversion.
  • Simple & Familiar Controls — Easy operation designed around existing excavator functions.
  • Cost-Effective Rail Access — Ideal for contractors seeking occasional or light-duty rail guidance capability.
Sennebogen 718 wheeled excavator with the Dymax Rail Rider WX4S hi-rail attachment in transport mode at a railroad crossing, showing boom tucked into the railgear with the attachment still on

OPTIONS

  • Insulated Rail Wheels — Designed for operation in signal-sensitive railway environments.
  • Hydraulic Rail Clamps — Provided additional rail holding capability and operational security.
  • Enhanced Stabilizer Arms — Heavy-duty two-position stabilizer arms replace the factory stabilizers to improve leverage, ground contact, and stability on ballast shoulders and uneven right-of-way conditions.
  • 3rd Rail Stabilizers — Specialized stabilization package designed for transit and electrified railway systems requiring third-rail clearance and support.
  • Full Front Rail Axle with 3rd Rail Stabilizers (Option) — Replaces the OEM blade assembly with a full-width rail axle and integrated 3rd rail stabilizers for maximum stability and support during demanding on-rail operations.
  • Customized Control Systems — Control configurations tailored to machine capabilities, operator preferences, and customer requirements.
Sennebogen 718 wheeled excavator with the Dymax Rail Rider WX4S hi-rail attachment in transport mode at a railroad crossing, showing boom tucked into the railgear with the attachment still on
Sennebogen 718 wheeled excavator with the Dymax Rail Rider WX4S hi-rail attachment in transport mode at a railroad crossing, showing boom tucked into the railgear with the attachment still on

APPLICATIONS

  • Transit Maintenance
  • Signal & Utility Trenching
  • Switch Maintenance & Rail Yards
  • Material Handling & Bridge Work
  • Vegetation Management
  • Emergency Response
Sennebogen 718 wheeled excavator with the Dymax Rail Rider WX4S hi-rail attachment working a wooded right-of-way, illustrating transit maintenance, vegetation management, and switch maintenance applications

SPECIFICATIONS

Model Number
Description
Weight (lbs)
DX-RRDG-WX1B-CATM314-HX-14T

Rail Rider Guide-WX series 1 -blade, 2 stabilizers-Caterpillar M314-Wheel Excavator-14 ton

WEIGHT: 6,000 lbs
DX-RRDG-WX1B-CATM315-HX-15T

Rail Rider Guide-WX series 1 blade 2 stabilizers-Caterpillar M315-Wheel Excavator-15 ton

WEIGHT: 6,000 lbs
DX-RRDG-WX1B-CATM316-HX-16T

Rail Rider Guide-WX series 1 Blade 2 stabilizers-Caterpillar M316-Wheel Excavator-16 ton

WEIGHT: 6,500 lbs
DX-RRDG-WX1B-CATM318-HX-18T

Rail Rider Guide-WX series 1 blade, 2 stabilizers-Caterpillar M318-Wheel Excavator-18 ton

WEIGHT: 6,500 lbs
DX-RRDG-WX1B-VOLEW160-HX-16T

Rail Rider Guide-WX series 1-Blade, 2-stabilizers-Volvo EW160-Wheel Excavator-16 ton

WEIGHT: 6,500 lbs
DX-RRDG-WX1B-VOLEW180-HX-18T

Rail Rider Guide-WX series 1 Blade 2 stabilizers-Volvo EW180-Wheel Excavator-18 ton

WEIGHT: 6,500 lbs
DX-RRDG-WX1B-CASEWX160E-HX-16T

Rail Rider Guide-WX series 1-blade, 2 stabilizers-Case WX160E-Wheel Excavator-16 ton

WEIGHT: 6,500 lbs

Design and specifications are subject to change without notice. Weights do not include various options. For custom solutions, contact DymaxRail Sales: 1-800-530-5407.

Standard Features for WX1B models
EXCAVATOR ARRANGEMENT

• Fits wheel excavators equipped with a front blade and 2 stabilizers

• For standard rail gauge: 1435 mm (56.50 in)

STABILIZER SIDE

• Removable non-welded machine adapters with full box-frame support

• Hydraulic-release, spring-applied shoe brakes on 2 rail wheels

• Rail sweeps

• Tow hitch on one side with an included 4-foot tow bar

• Replaceable DymaxRail non-insulated rail wheels

BLADE SIDE

• Factory blade remains fully functional

• Slider-style railgear raises clear of the rail for off-track blade operation

OTHER FEATURES

• FRA installation kit including beacon, fire extinguisher, safety decals, reflective tape, and first aid kit (U.S. and Canada only)

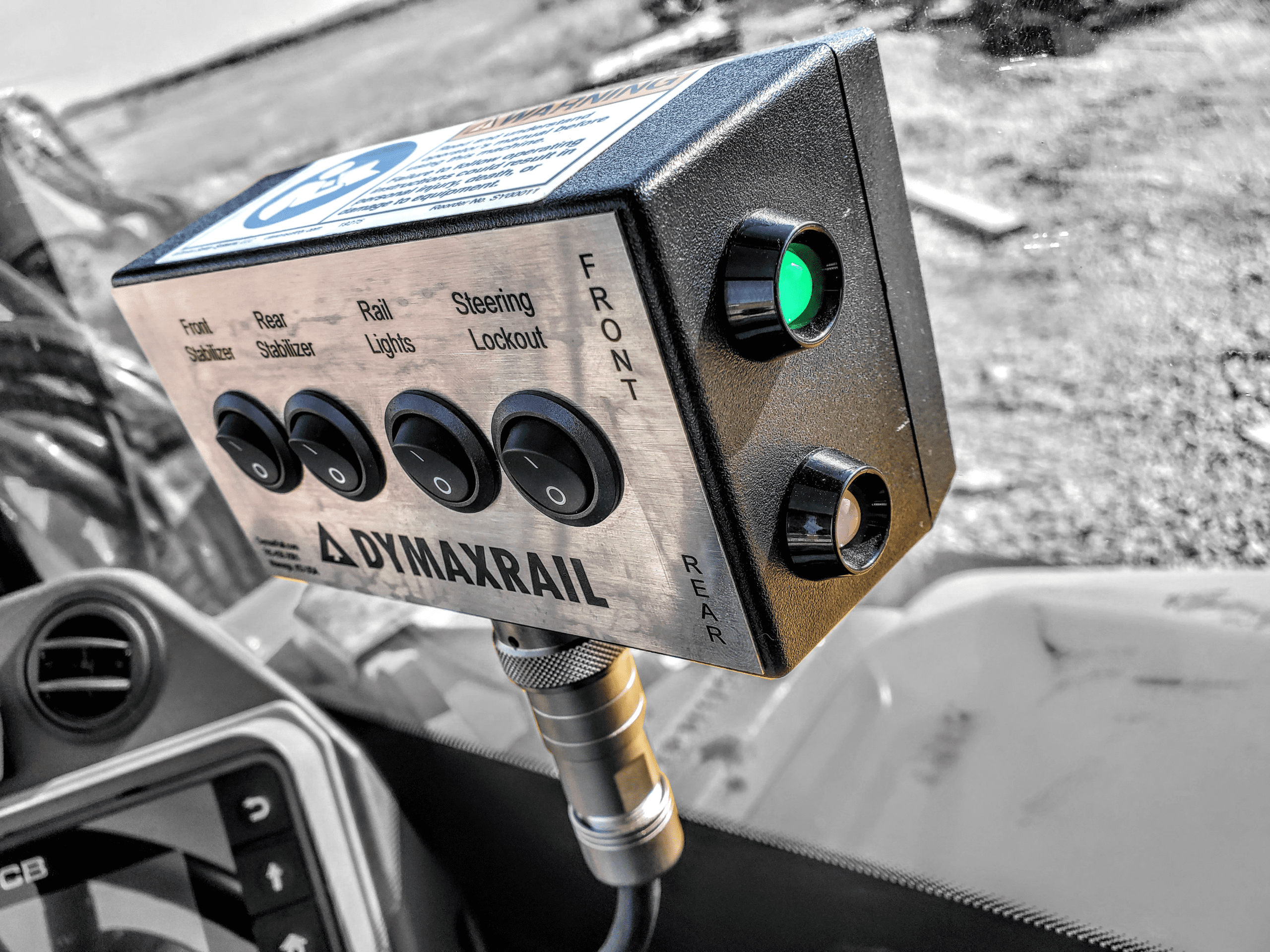

CONTROL SYSTEM

• Manual valve control group

• Brake release pump with mount plate

MACHINE REQUIREMENTS

• Boom or slew lockout required for transport. Verify this feature is available on the host machine.

DymaxRail Sales: 1-800-530-5407.

OPTIONS & UPGRADES – WX1B MODELS FOR BLADE-EQUIPPED WHEEL EXCAVATORS
  • Insulated Rail Wheels
  • Hydraulic Rail Clamps
  • Enhanced Stabilizer Arms
  • 3rd Rail Stabilizers
  • Full Front Rail Axle + 3rd Rail Stabilizers (Option) — Replaces the OEM blade assembly
  • Customized Control Systems

Design and specifications are subject to change without notice. For custom solutions, contact DymaxRail Sales: 1-800-530-5407.

HYDRAULIC REQUIREMENTS
Control configurations vary by wheel excavator manufacturer and machine arrangement. DymaxRail customizes the control package to match the host machine’s hydraulic and operating systems. Contact DymaxRail for specific control functions and operating details for your machine.
SHIPPING DIMENSIONS
Shipping dimensions vary by machine model and configuration.  Contact DymaxRail for application-specific dimensions.
INSTALLATION
DymaxRail offers factory installation at our facility in Wamego as well as dealer-installed programs through authorized partners. Installation kits, documentation, and technical support are available to help provide local service and support throughout North America.

FAQ

The Rail Rider WX1B uses the wheel excavator’s rubber tires for rail propulsion. This configuration is best suited for machines where the inner tires ride directly on top of the rail head.

Tire selection can have a significant impact on rail performance and stability. Consult your equipment dealer for recommended tire packages, or work with DymaxRail to identify the best solution for your application. Foam-filled tire options are also available for enhanced durability and stability.
Wheel excavators offer fast road mobility, reduced transport requirements, and excellent visibility while maintaining the ability to perform a wide range of railway maintenance and construction tasks.
