Blast Booth Transfer Cart for Shot Blast and Sandblast

Move heavy parts through shot blast and sandblast rooms.

Designed for industrial applications, our Blast Booth Rail Cart is built to withstand the harsh conditions of shot blasting and sandblasting environments. Engineered for superior durability, this cart is ideal for transporting heavy loads through enclosed abrasive processes while protecting critical components from wear and contamination.

1
2
3
4

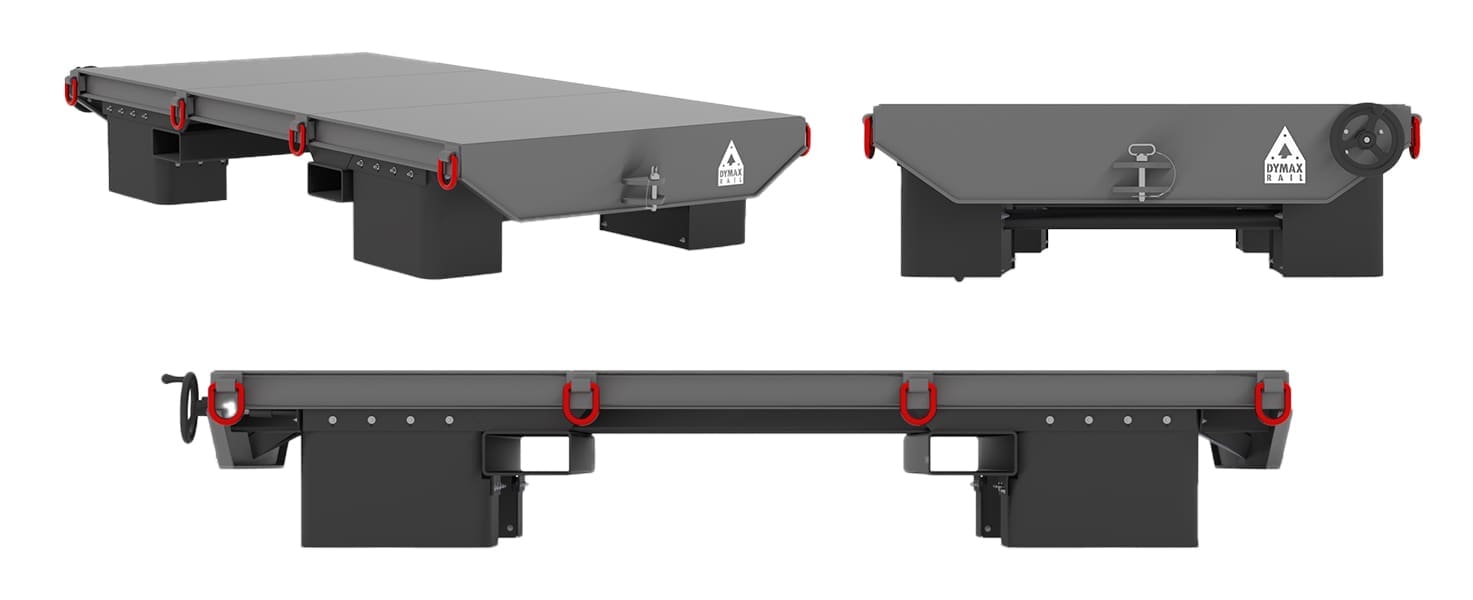

DymaxRail industrial blast booth rail cart with tie-downs, park brake wheel, rubber skirting, and forklift pockets.
1

Tie Down Locations. Secure Loads.

2

Park Brake Wheel. Turn to set.

3

Rubber Skirting. Shields wheels and bearings.

4

Forklift Tine Pockets. Lift and carry. Easily stack multiple carts in storage.

Book-open Book-open Brochure User User Request a Quote

KEY FEATURES

  • High Strength Frame & Deck: Heavy-duty deck construction and steel framing for long-lasting durability.
  • Park Brake: Integrated manual park brake with cobra type pad.
  • Rubber Protective Skirting: Protects components from abrasive materials and enhances durability during blasting processes.
  • Tie Down Locations: Secure points for safely anchoring loads during transport, preventing unwanted movement.
  • Forklift Pockets: Integrated forklift pockets for easy handling and repositioning within facilities.
  • Options: V-clearing blade, load capacities, and other custom solutions, engineered to order.

This cart hauls parts through the booth. To fixture and blast them in place, see the Blast Booth Dolly Cart — a 60-ton rail-mounted T-slot table.

SPECIFICATIONS

Group Number: Model
Description
Weight (lbs)
8249D1: DX-RC-INDT-6X6P-DMX-15TC

Rail Cart-Industrial Transfer-6 feet wide x 6 feet long with park brake-DymaxRail-15 ton capacity

SPECIAL APPLICATIONS: Blast Room

STANDARD FEATURES:

  • Track gauge: Standard 1435mm / 56.50 inches
  • Deck length: 72.00 inches
  • Overall length: 80.50 inches
  • Deck width: 72.00 inches
  • Brake: standard park
  • Hitches: both sides fitted with pin hitch (welded ears)
  • Height off rail: 24 inches
  • Deck style: solid plate 1/4 inch thick
  • Lift rings: not available
  • Tie downs: provided with D rings on outside for load tie-down (4x per side)
  • Uniform load rating: 15-ton capacity
  • Axle type: non-insulated

INCLUDES OPTIONS ADDED:

  • Forklift pockets for easy unloading integrated into main deck structure on ends.
  • Bolt-on blast (sandblast) rubber skirting around bearings to protect seals, bearings, and wheels

WEIGHT: 2400 lbs
8248D1: DX-RC-INDT-6x12P-DMX-15TC

Rail Cart-Industrial Transfer-6 feet wide x 12 feet long with park brake-DymaxRail-15 ton capacity

SPECIAL APPLICATIONS: Blast Room

STANDARD FEATURES:

  • Track gauge: standard 1435mm / 56.50 inches
  • Deck length: 144.50 inches
  • Overall length: 157.75 inches
  • Deck width: 72 inches
  • Overall width: 76 inches
  • Brake: standard park
  • Hitches: both sides fitted with pin hitch (welded ears)
  • Height off rail: 24 inches
  • Deck style: solid plate 1/4 inch thick
  • Lift rings: not available
  • Tiedowns: provided with D rings on outside for load tie-down (4x per side)
  • Uniform Load Rating: 15-ton capacity
  • Axle type: non-insulated

INCLUDES OPTIONS ADDED:

  • Forklift pockets for easy unloading
  • Bolt-on blast (sandblast) rubber skirting around bearings to protect seals, bearings, and wheels

Weight: 3910 lbs
Design and specifications are subject to change without notice. Custom solutions available. Please contact DymaxRail 1-800-530-5407 for more information.
