DYMAX RAIL RIDER WX4S | Hi-Rail for Wheel Excavators with 4 Stabilizers

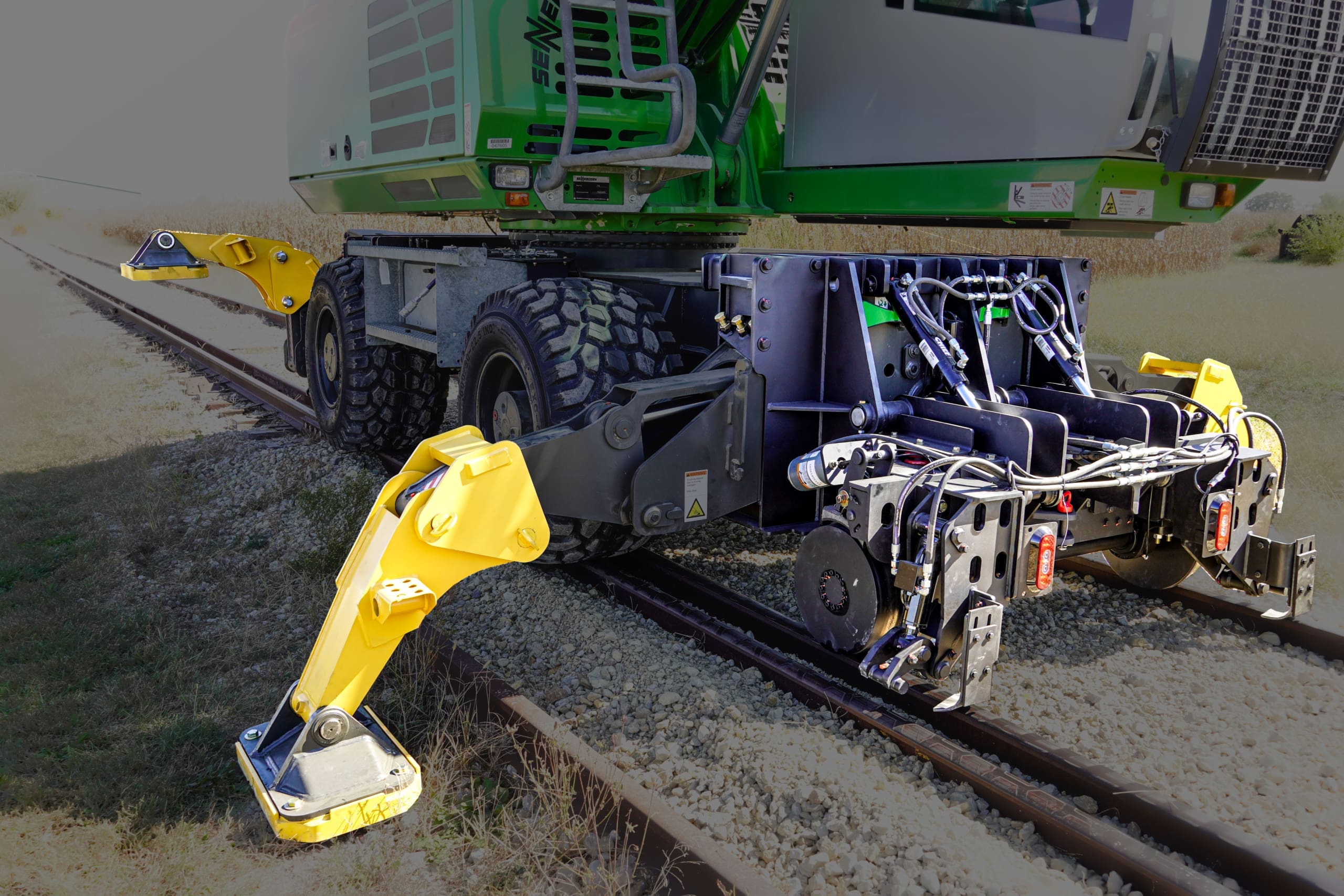

Dymax Rail Rider WX4S hi-rail system mounted on a Sennebogen 718 4-stabilizer wheel excavator, showing the railgear deployed on track.

Built for STABLE PRODUCTION

The Dymax Rail Rider WX4S is a wheeled excavator hi-rail system built around the stability and performance of 4-stabilizer excavators. This railgear mechanically adapts to the host machine without cutting, welding, or modifying.

Adding rail capability doesn’t cost you anything on the wheel side — the excavator works the way it always has when the railgear comes off.

Book-open Book-open Brochure User User Request a Quote

KEY FEATURES & BENEFITS

  • No Cutting, Welding, or Permanent Machine Modifications: Preserves OEM machine warranty and resale value.
  • Engineered for Stability: Lower center of gravity for safer over-the-side work and rail travel.
  • Simplified Railgear Controls: Operation is simple and intuitive, allowing operators to transition between rail and off-rail work with minimal changes to normal machine operation.
  • Work Mode, Transport Mode: Stabilizers fold tight. Boom tucks into the railgear with the attachment still on. No oversize permits, no second vehicle.
  • Rail Performance Package: Heavy-duty rail axles, hydraulic brakes, rail clamps, optional super single tires.

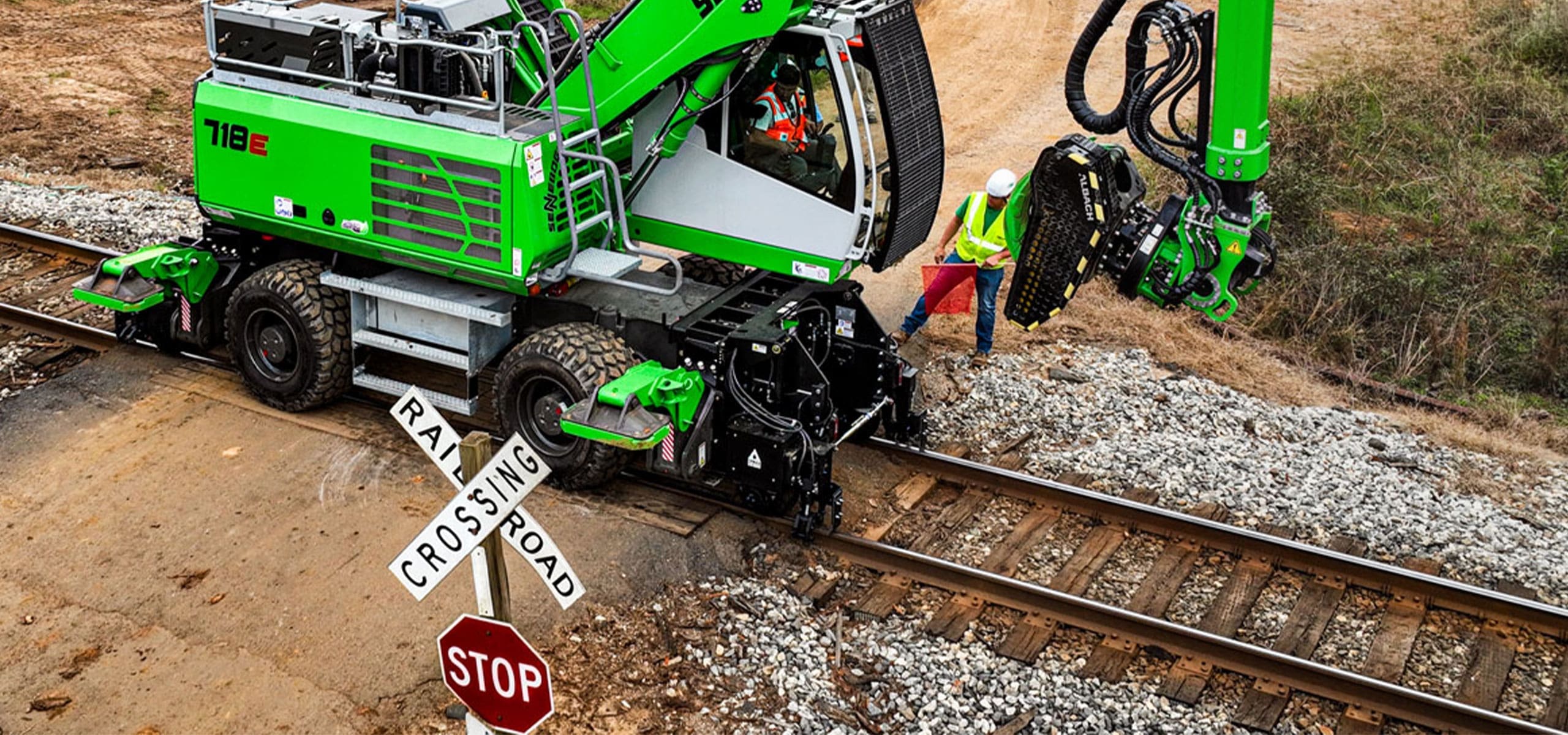

Sennebogen 718 wheel excavator equipped with Dymax Rail Rider WX4S hi-rail system, traveling on track at a railroad crossing.

APPLICATIONS

  • Transit Maintenance
  • Signal & Utility Trenching
  • Switch Maintenance & Rail Yards
  • Material Handling & Bridge Work
  • Vegetation Management
  • Emergency Response

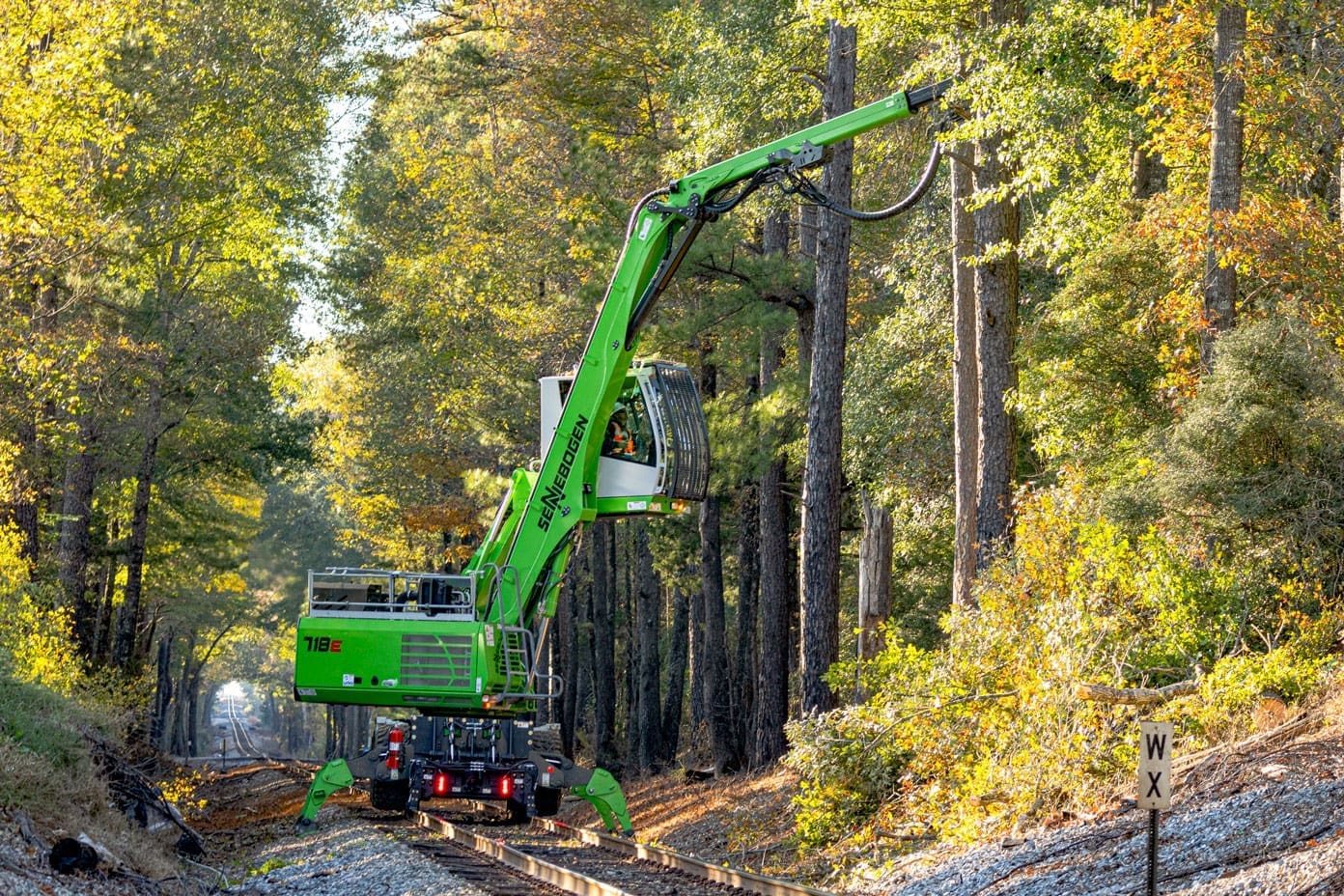

Sennebogen 718 heel excavator with Dymax Rail Rider WX4S hi-rail system performing vegetation management along rail right-of-way.

SPECIFICATIONS

Available Now: Caterpillar M318 / M320 / M322, Sennebogen 718, Volvo EW180 / EW220.  Contact DymaxRail for excavators not listed.

Model
Description
Weight
DX-RRDG-WX4S-CATM318-HX-18T

Rail Rider Guide-WX4S mount group with Clamps and Enhanced Stabilizers

WEIGHT: 8,950 lbs
DX-RRDG-WX4S-CATM320-HX-20T

Rail Rider Guide-WX4S mount group with Clamps and Enhanced Stabilizers – Caterpillar M320

WEIGHT: 10,800 lbs
DX-RRDG-WX4S-CATM322-HX-20T

Rail Rider Guide-WX4S mount group with Clamps and Enhanced Stabilizers – Caterpillar M322

WEIGHT: 10,800 lbs
DX-RRDG-WX4S-SENN718-HX-20T

Rail Rider Guide-WX4S mount group with Clamps and Enhanced Stabilizers – Sennebogen 718

WEIGHT: 10,800 lbs
DX-RRDG-WX4S-VOLEW180-HX-18T

Rail Rider Guide-WX4S mount group with Clamps and Enhanced Stabilizers – Volvo EW180

WEIGHT: 8,950 lbs
DX-RRDG-WX4S-VOLEW220-HX-20T

Rail Rider Guide-WX4S mount group with Clamps and Enhanced Stabilizers – Volvo EW220
DX-RRDG-WX2INSTALLDMX

DymaxRail Installation @ Factory – Wamego, KS

WEIGHT: 10,800 lbs

Design and specifications are subject to change without notice. For custom solutions, contact DymaxRail Sales: 1-800-530-5407.

STANDARD FEATURES WX4S BASIC CONFIGURATION
EXCAVATOR ARRANGEMENT = 4 Stabilizer Configuration

  • Standard rail gauge (1435 mm / 56.50 in)
  • Removable non-weld machine adapters with full box frame support.
  • Radial lift group with full axle and split-slider box with full axle.
  • Hydraulic release, spring-applied shoe brakes on all wheels for maximum holding force.
  • Replaceable DymaxRail non-insulated wheels. (Insulated upgrade available.)
  • Rail sweeps
  • Tow hitch on both sides, with included 4-foot tow bar.
  • FRA installation kit including beacon, fire extinguisher, tape, decals, and first aid kit. (Available in U.S./Canada markets.)
  • Four (4) enhanced 2-position stabilizer arms with pads.

DymaxRail Sales: 1-800-530-5407.

OPTIONS – WHEEL EXCAVATOR
  • Insulated Design
  • Rail Clamps

Design and specifications are subject to change without notice. For custom solutions, contact DymaxRail Sales: 1-800-530-5407.

HYDRAULIC REQUIREMENTS
Control configurations vary by wheel excavator manufacturer and machine arrangement. DymaxRail customizes the control package to match the host machine’s hydraulic and operating systems. Contact DymaxRail for specific control functions and operating details for your machine.
SHIPPING DIMENSIONS
Shipping dimensions vary by machine model and configuration. WX railgear equipped with rail clamps may increase overall machine length to approximately 265 in (6.7 m). Transport width varies based on machine size and stabilizer arrangement. Contact DymaxRail for application-specific dimensions.
INSTALLATION
DymaxRail offers factory installation at our facility in Wamego as well as dealer-installed programs through authorized partners. Installation kits, documentation, and technical support are available to help provide local service and support throughout North America.

FAQ

The WX uses the wheel excavator’s rubber tires for rail propulsion. Available with super single tire packages on select models for increased rail contact, improved traction, and extended service life.
Wheel excavators offer fast road mobility, reduced transport requirements, and excellent visibility while maintaining the ability to perform a wide range of railway maintenance and construction tasks.
Yes. The system is optimized for 4-stabilizer wheel excavators but is also available for select blade-equipped machine configurations. Please contact DymaxRail for information pertaining to blade-equipped models.
