The Dymax Railcar Air Brake Control System brings high-performance braking to your loader for safe, efficient railcar movement. Powered by your machine’s hydraulics, it uses a heavy duty 2-stage screw compressor—no engine required. Operators control car brakes and air latches from the cab. The system mounts flexibly on the coupler, frame, or rear deck to suit your setup.
Hydraulic Air Compressor – Rotary Screw Type
Single or Dual Air Tank – 6.4 / 12.8 gallons
Mounting Plate – Rear or front mount or machine mounted
Air Latch – Coupler latch, upgraded from standard hydraulic.
Air Hose – Connects to train cars

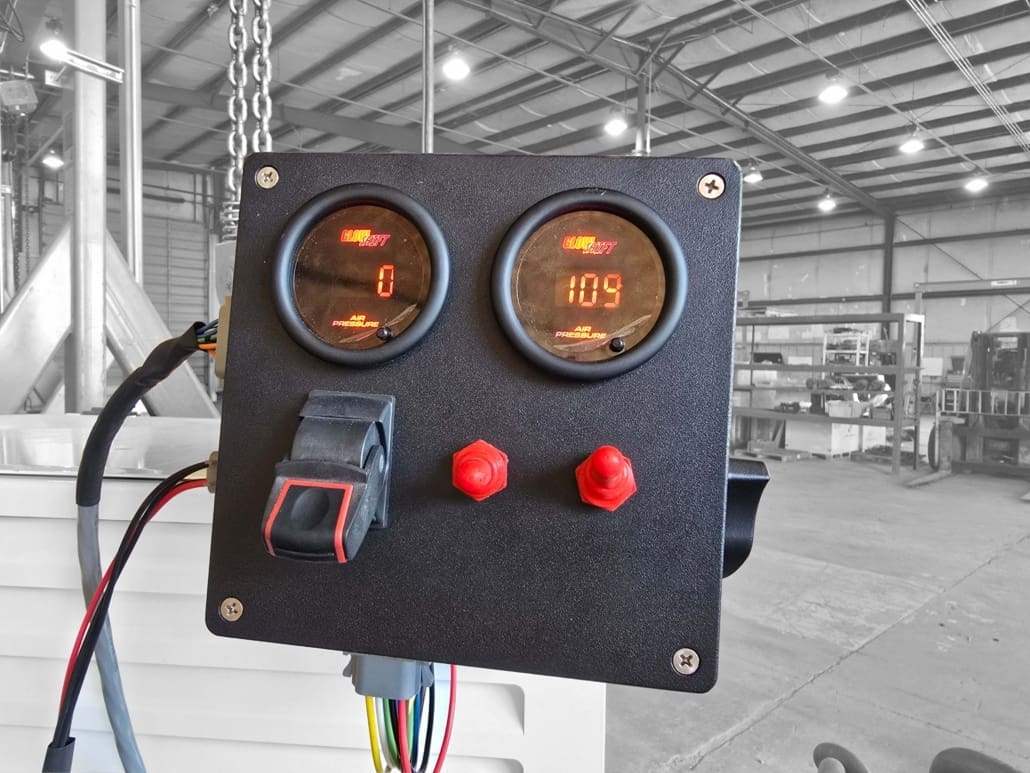

Control box with parts group

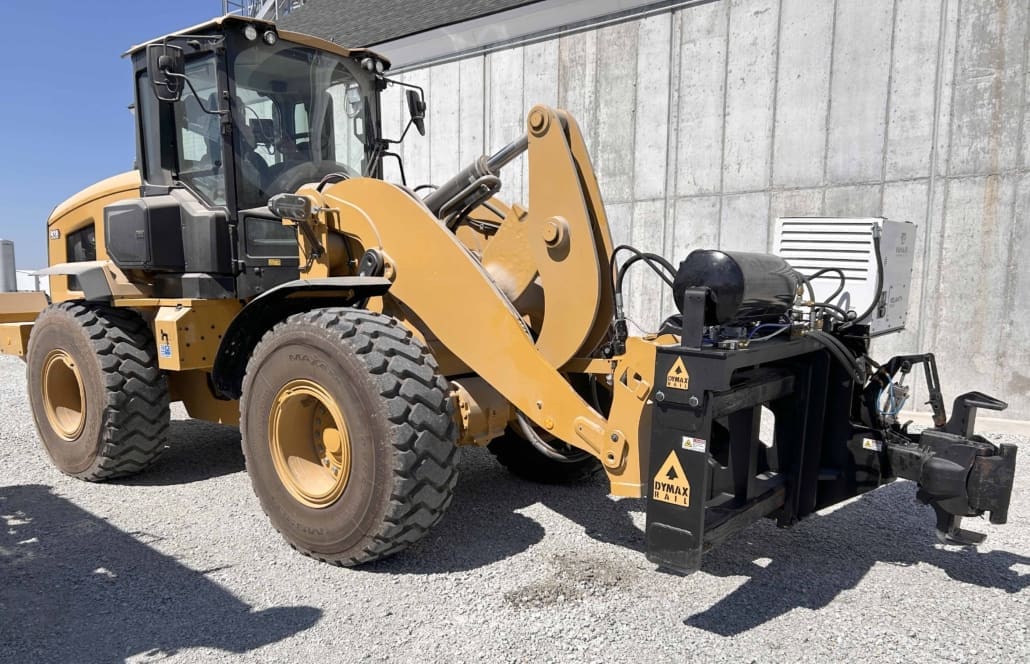

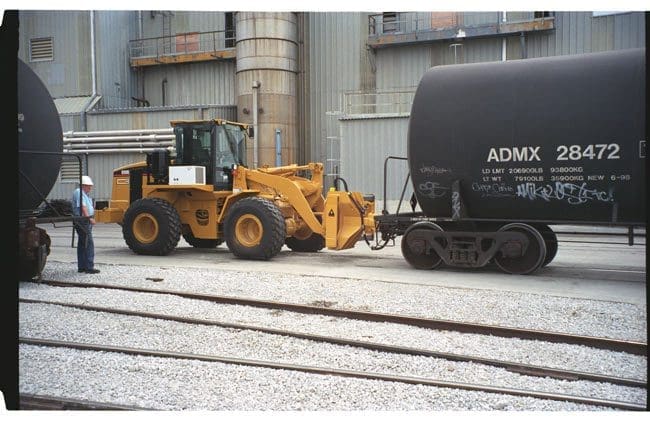

With a Dymax Railcar Coupler + optional air brake system, you can transform your wheel loader or tractor into a powerful railcar mover. It’s the most cost-effective way to safely spot railcars using equipment you already own.

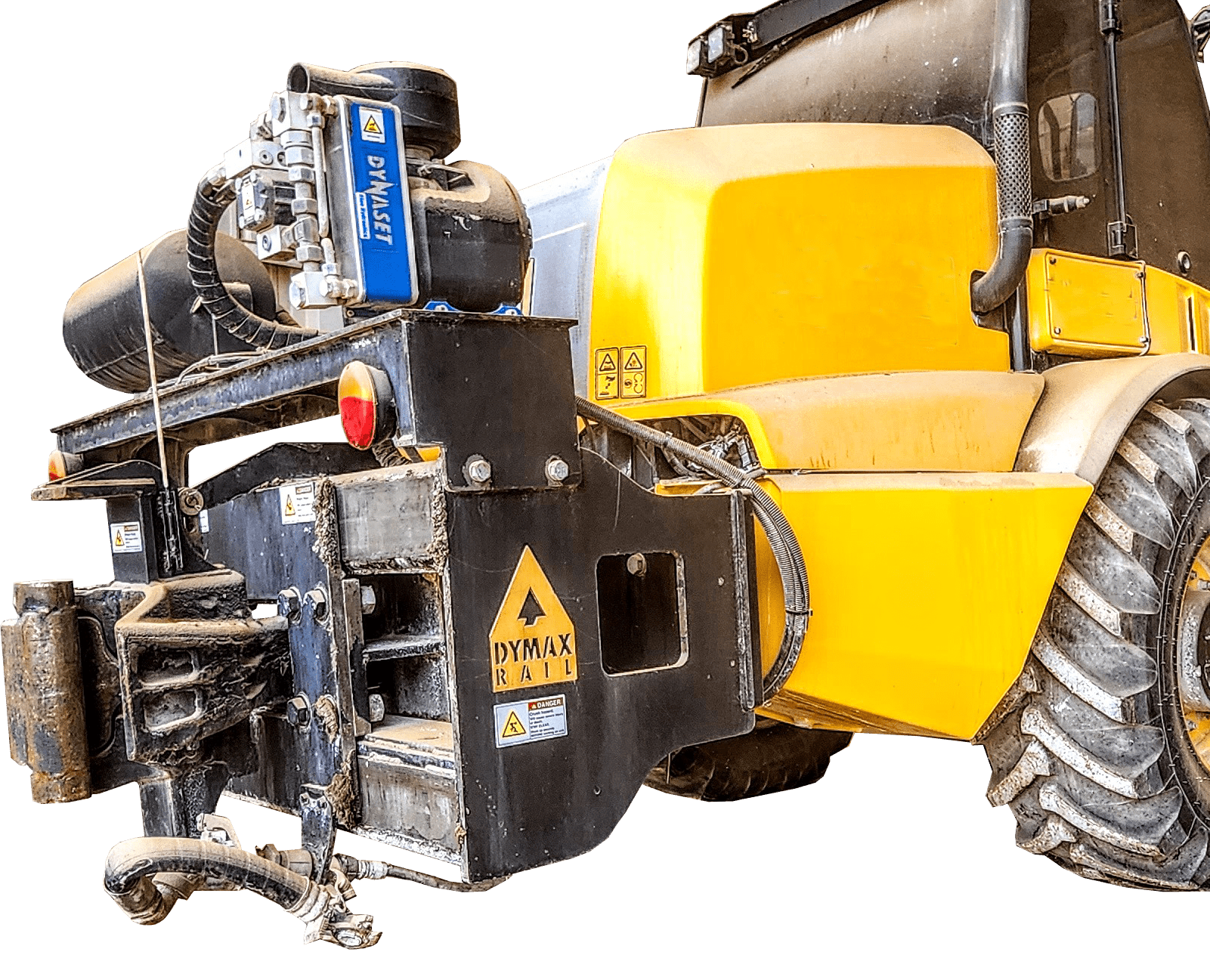

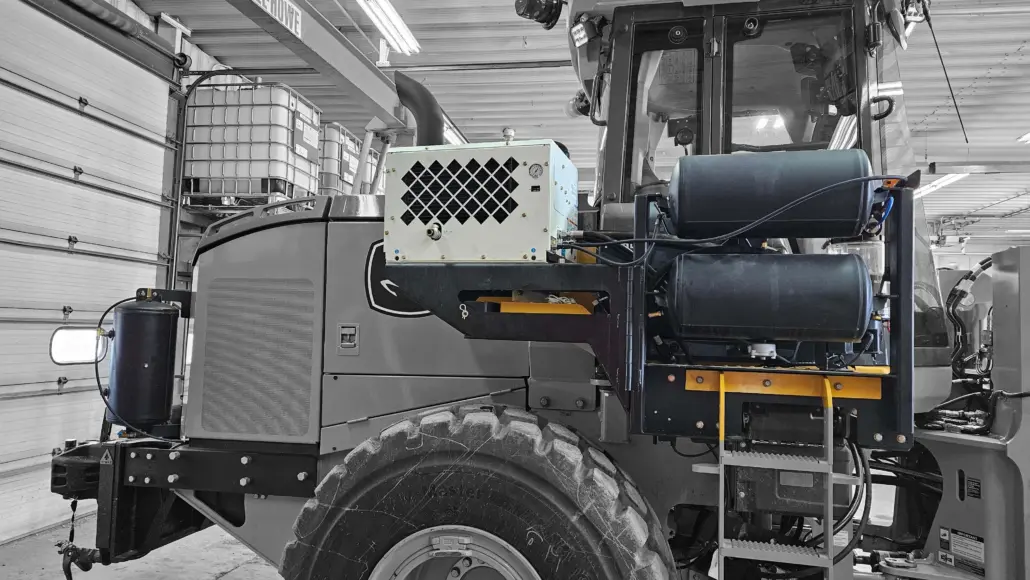

Railcar air brake systems are adaptable for rear-mounted couplers or other machine locations, with optional extra tanks for increased capacity.
RAILCAR AIR BRAKE CONTROL SYSTEMS
| Models Description Weight (lbs) |
| DX-RCQ-AIR-TRAIN1-WL with 1 tank
Mount Type: Bolted design – front, rear, or mid-mount for loader and tractors Gallons: 6.4 (1 tank) Railcars to Move: 1-3 Weight: 495 |
| DX-RCQ-AIR-TRAIN2-WL with 2 tanks
Mount Type: Bolted design – front, rear, or mid-mount for loader and tractors Gallons: 12.8 (2 tank) Railcars to Move: 4-6 Weight: 525 |
Custom configurations with additional air tanks are available upon request. Specifications are subject to change without notice and weights shown are approximate.
