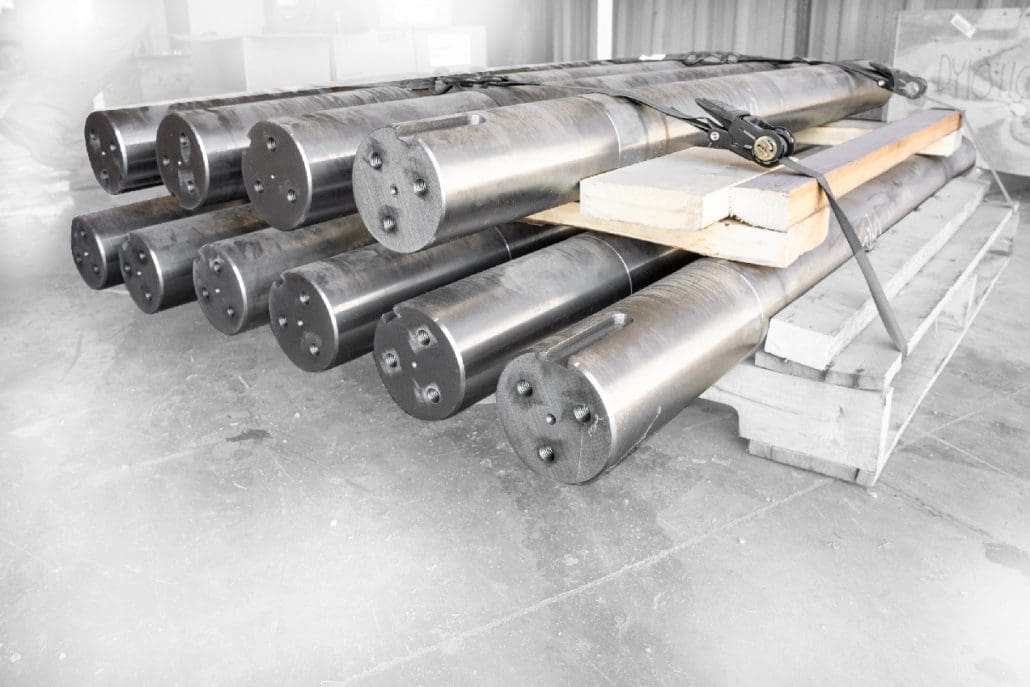

Dymax Custom Railway Axles
Dymax Rail offers heavy capacity railway axle solutions designed to meet customer requirements. Models listed are standard axle arrangements featuring heat treated solid rail wheels that deliver high performance and long lasting durability.
Narrow, Standard or Broad Track Gauge
DymaxRail’s custom made axles are available for narrow, standard and broad track gauges. Available for 914mm, 1047mm, 1435mm and up to 1676mm.
Features
- High strength axles
- Heat treated rail wheels
- Sealed bearings
Options
- Suspension designs
- Integrated swivel systems
- Capacities up to 90 tons
- Insulated designs
- All rail gauges
Specifications
| Model Code | Rail Wheel Diameter | Weight lbs each / set(approx) |
| Tapered Bearing | ||
| DX-AXL-NIN-15T-RR-1435mm | 16in | 773 / 1546 |
| DX-AXL-NIN-20T-RR-1435mm | 16in | 872 / 1744 |
| DX-AXL-NIN-27T-RR-1435mm | 16in | 960 / 1920 |
| DX-AXL-NIN-35T-RR-1435mm | 20in | 1630 / 3260 |
| DX-AXL-NIN-42T-RR-1435mm | 24in | 2456 / 4912 |
| DX-AXL-NIN-72T-RR-1435mm | 24in | 2794 / 5588 |
| Spherical Bearing | ||
| DX-AXL-NIN-75T-RR-1435mm | 24in | 2470 4940 |
| DX-AXL-NIN-120T-RR-1435mm | 24in | 2874 |
Non insulated models. Contact DymaxRail for special designs or insulated requirements.
