CUSTOM RAIL CARTS

ENGINEERED FOR PERFORMANCE. DESIGNED FOR YOUR INDUSTRY.

DymaxRail designs and manufactures custom rail carts for operators who need more than a standard rail cart configuration. From track maintenance and heavy material transport to steel facilities, infrastructure work, and specialized industrial applications, our custom rail carts are engineered around your load requirements, gauge, environment, and operating constraints.

Whether the need is higher capacity, a specialized deck, integrated attachments, or a completely unique application, we build rail cart solutions around the job. Not sure you need a custom build? Compare our rail transfer carts: 13 models, 6 to 70 US tons.

Book-open Book-open Brochure User User Contact Us

Example Custom Rail Cart Solutions

Maintenance Cart Solution

Steel Making Facility – Featuring V Clearing Blade

Group Number: Model
Description
Weight (lbs)
8269D1: DX-RC-INDT-8×16-DMX-30TC

Maintenance Cart Solution for Steel Making Facility

STANDARD FEATURES:

  • Standard gauge: 56.50 inches / 1435mm
  • Height off rail: 27 inches
  • 6 inch underframe clearance
  • 30 ton capacity with V Clearing Blade

WEIGHT: 8,450 lbs
Design and specifications subject to change without notice.  Custom solutions available. Contact DymaxRail 1-800-530-5407 for more information.

Trash Bin Cart

Made for San Diego Trash Interceptor Project

Group Number: Model
Description
Weight (lbs)
8232D1: DX-RC-INDT-7X16P-DMX-10TC

Made for San Diego Trash Interceptor Project

  • Standard Gauge – 56.50 inches / 1435mm
  • Rubber skirting for sound dampening
  • Trash container mounting brackets
  • 10 ton capacity

WEIGHT: 4,475 lbs
Design and specifications subject to change without notice. Custom solutions available. Contact DymaxRail 1-800-530-5407 for more information.

Steel Coil Cart

Nucor Steel Facility

Group Number: Model
Description
Weight (lbs)
7170D1: DX-RC-INDT-10x20P-DMX-60TC

Steel Coil Cart – Nucor Steel Facility

STANDARD FEATURES:

  • Heavy duty frame to resist twist
  • Steel deck plate
  • 60 ton capacity

WEIGHT: 11,520 lbs
Design and specifications subject to change without notice. Custom solutions available. Contact DymaxRail 1-800-530-5407 for more information.

Low Profile Heavy Duty Cart

Wide Gauge for 84″ track

Group Number: Model
Description
Weight (lbs)
6257D1: DX-RC-INDT-10x13P-DMX-40TC

STANDARD FEATURES:

  • Wide gauge: 84.00 inches / 2133mm
  • Steel deck plate
  • 40 ton capacity

WEIGHT: 10,970 lbs
Design and specifications subject to change without notice. Custom solutions available. Contact DymaxRail 1-800-530-5407 for more information.

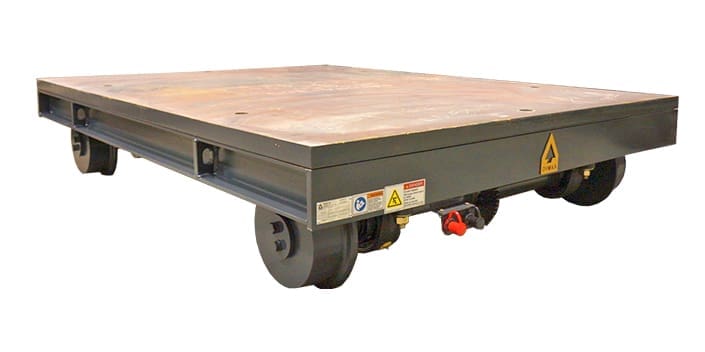

Electric Drive Cart – 6356D1

Custom gauge with motor package. Featuring a 2.0” thick top deck. Power supply not included.

Trolly Cart for tools and supplies

Narrow gauge design suited for hauling welders or similar equipment in quarry applications or other applications.

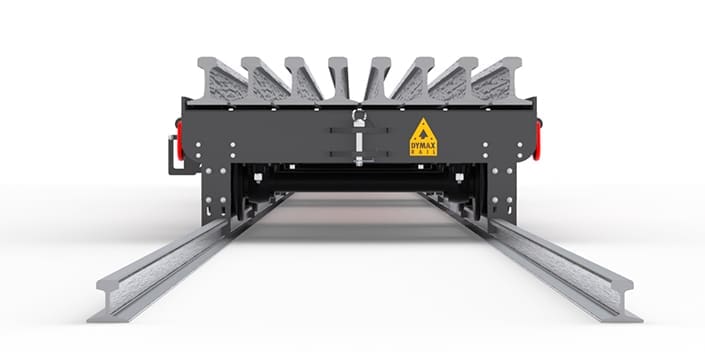

Rail Train Carts

For transporting rail. Featuring integrated rollers.

CUSTOMER STORIES

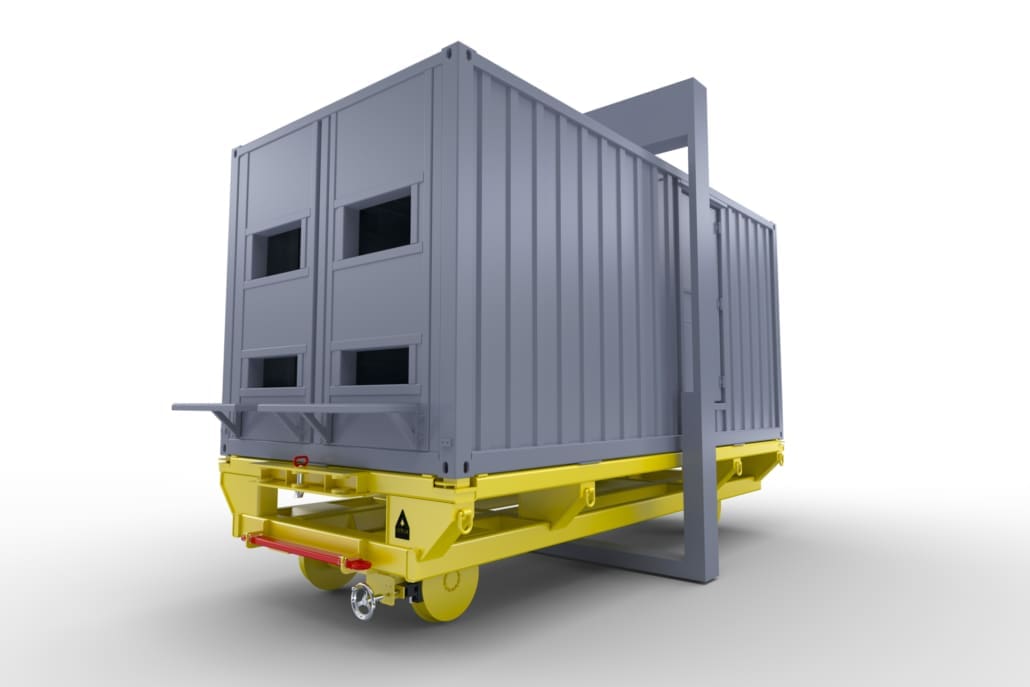

Railcart Undercarriage Container Chassis – United Launch Alliance

CAPE CANAVERAL, FLORIDA

DymaxRail delivered an innovative industrial rail cart with blast room chassis to help move United Launch Alliance’s Atlas and Vulcan rockets to and from the launch pad.

Group Number: Model – Weight (lbs)
Description
7279D1: DX-RC-INDSX-10x20P-DMX-60TC  – WEIGHT: 12,060 lbs

7647D1: DX-RC-INDSX-10x40P-DMX-60TC – WEIGHT: 19,700 lbs

7648D1: DX-RC-INDSX-10x44P-DMX-60TC – WEIGHT: 20,610 lbs

Railcart Undercarriage Container Chassis – Cape Canaveral

  • Standard gauge: 56.50 inches / 1435mm
  • 60 ton capacity
  • Used in conjunction with steel blast rooms at rocket launch pads
  • Available for 20, 40 and 44 foot container sizes (does not include container)
Design and specifications subject to change without notice. Custom solutions available. Contact DymaxRail 1-800-530-5407 for more information.
Custom DymaxRail 30-ton rail cart with removable decking used as mobile drilling platform for Nicholson Construction at Eucha Dam

Nicholson Construction Uses Custom Dymax Rail Cart to Reinforce Eucha Dam

A removable decking system transforms this custom 30T rail cart into a mobile drilling platform.

READ CUSTOMER STORY
