Move them all. Big or small.

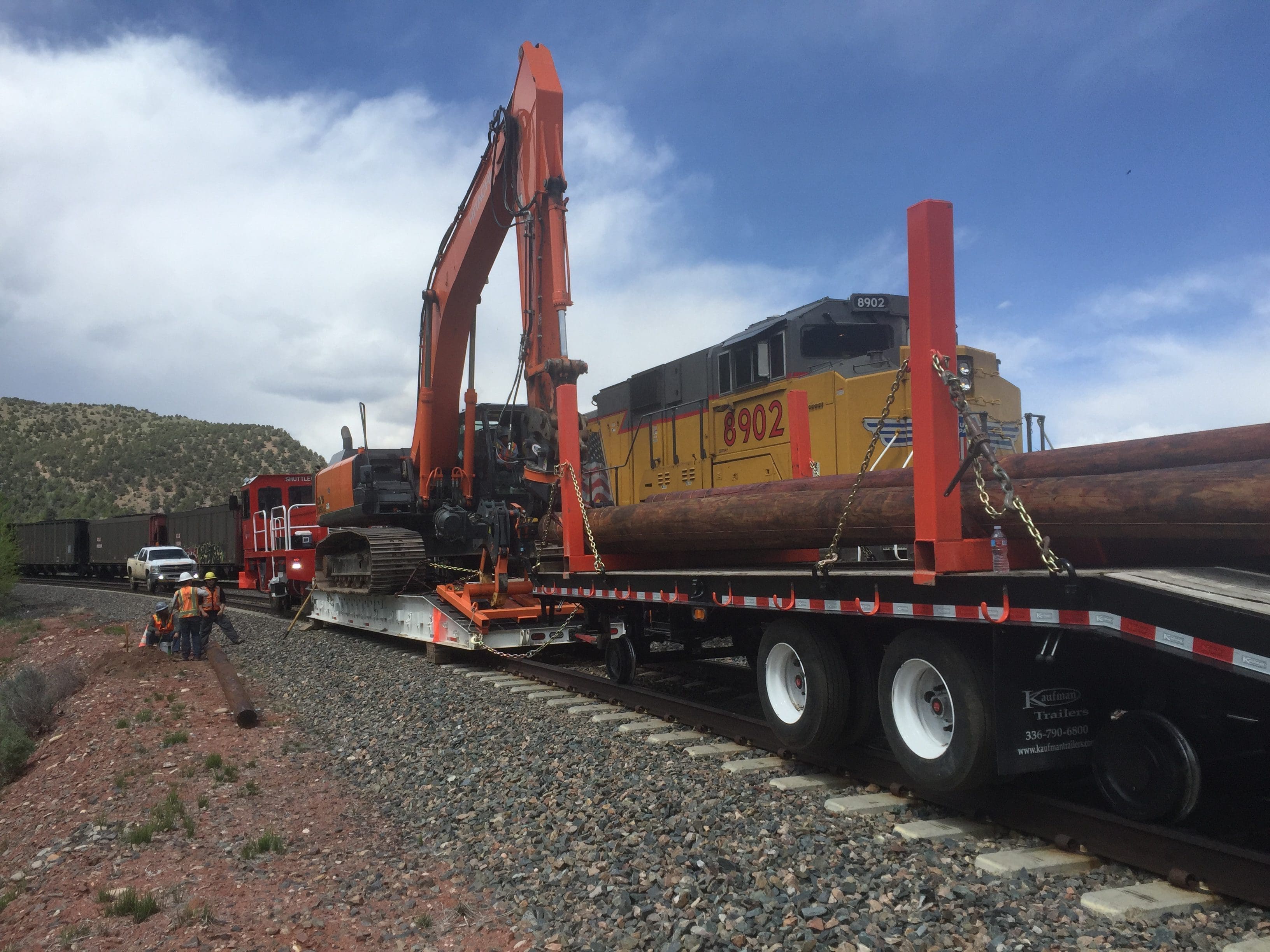

DymaxRail Machinery Carts are purpose-built for transporting large cranes, cement trucks, excavators, dozers and other heavy equipment to remote locations. Available in 6-ton, 40-ton, and up to 100-ton capacities, these carts provide unmatched reliability for bridge maintenance, infrastructure projects and rail construction.
Available in the following configurations:
- Excavator Series: Optimized for transporting tracked excavators.
- All Purpose Series: Designed to accommodate both wheeled and tracked machinery.
KEY FEATURES
- High-Strength Frame & Deck: Reinforced steel frame with Apitong hardwood and grip bars for superior durability.
- Advanced Railgear: DymaxRail high-performance railgear with specialized bogie design for smooth curve navigation on larger models.
- Air Brake System: Designed for seamless integration with hi-rail trucks and railcar movers.
- Secure Tie Downs & Lift Points: Strategically placed anchoring points for safe transport and easy placement.
- Solar-Powered LED Lighting: Red/white directional change lighting with high-intensity LED spot lamps for enhanced visibility.
- Heavy-Duty Ramps & Stabilizers:
- Excavator Series: Welded ramp; 6-ton models feature removable car-hauler-style ramps.
- All Purpose Series: Hydraulic ramps with rail clearance pockets for smooth loading.
- Hydraulic Power Unit: Integrated system for operating ramps and stabilizers.

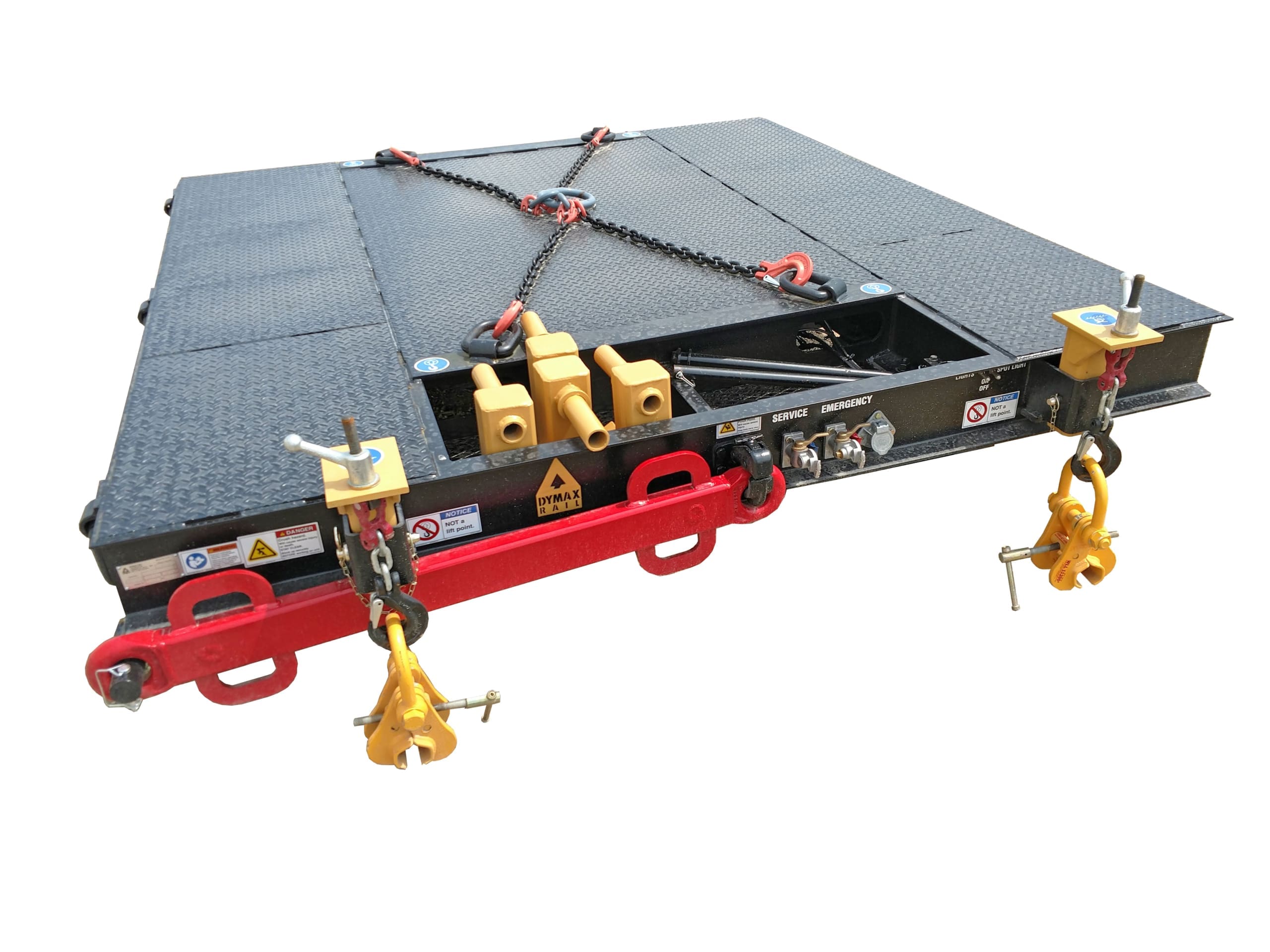

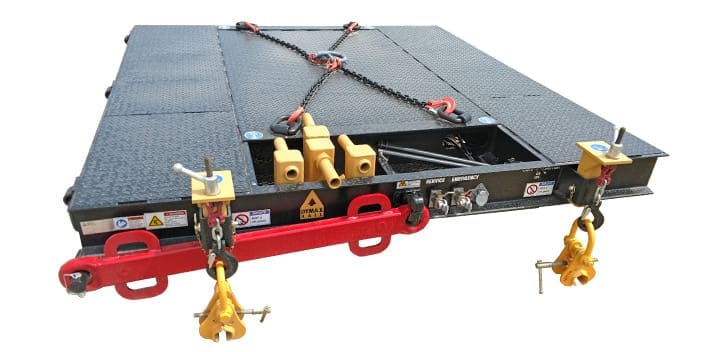

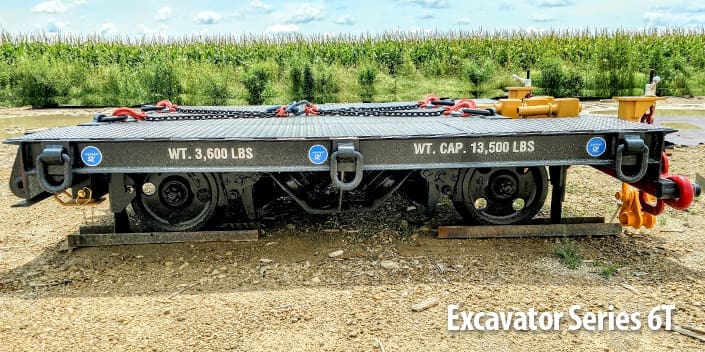

EXCAVATOR SERIES TOW CART – 06 TON
1
2
3
4
1
Towbar with stow rack
2
Ramp Supports
3
Air Brakes
4
Rail Clamps
Ramps are easy to remove and can be stowed within the trailer frame for secure storage and quick access.

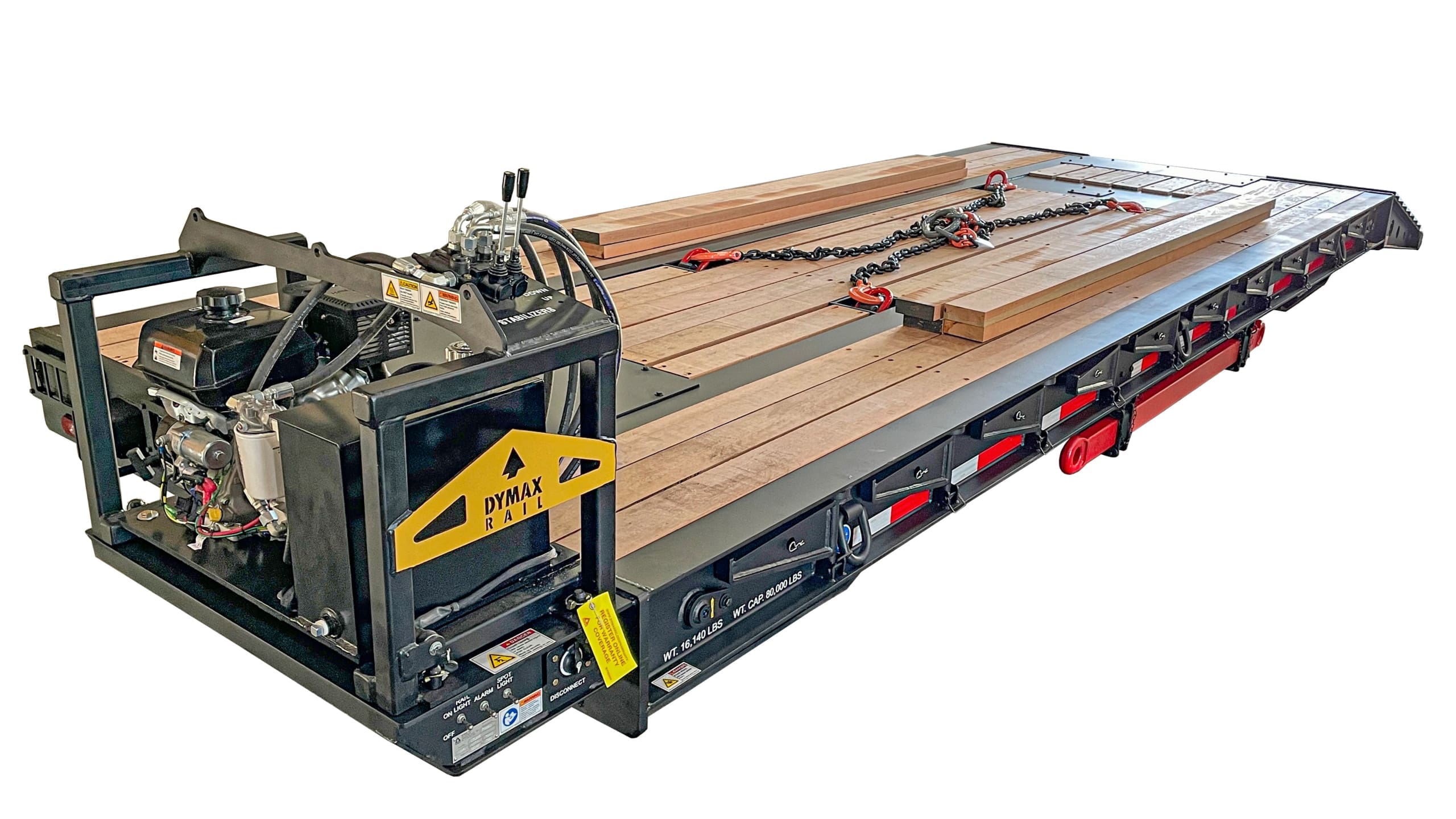

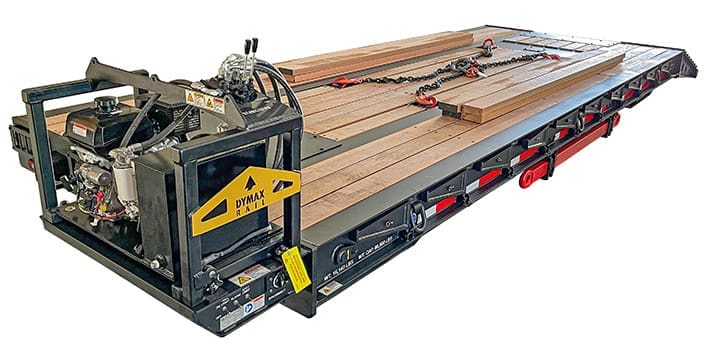

EXCAVATOR SERIES TOW CART – 40 TON
1
2
3
4
1
Hydraulic Power Drive Unit
2
Directional Lighting Switches
3
Tow Bar with Stow Rack
4
(Not shown) Heavy-duty fixed ramps with grouser grab bars, 4 hydraulic stabilizers
Apitong hardwood decking provides excellent strength and durability for hauling excavators with steel grousers.

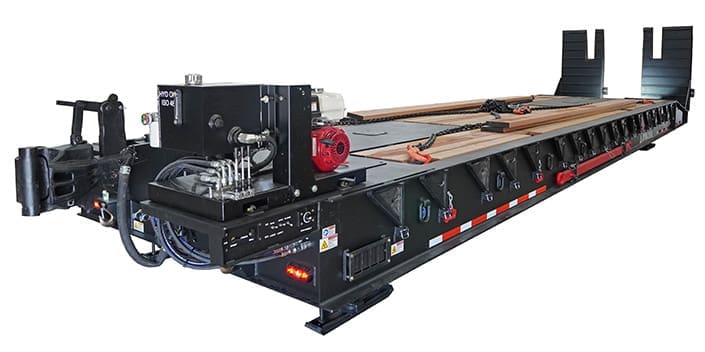

ALL PURPOSE MACHINERY CART – 50 & 100 TON
1
2
3
4
5
6
7
1
Train air hose connection for car mover
2
Control panel – main power switches
3
4 hydraulic stabilizers
4
Apitong wood deck with lift chains
5
Heavy duty hydraulic ramps with rail pocket and grouser grab bars.
6
Swingouts
7
(Not pictured) Truck air gladhand connections, car knuckle with manual latch

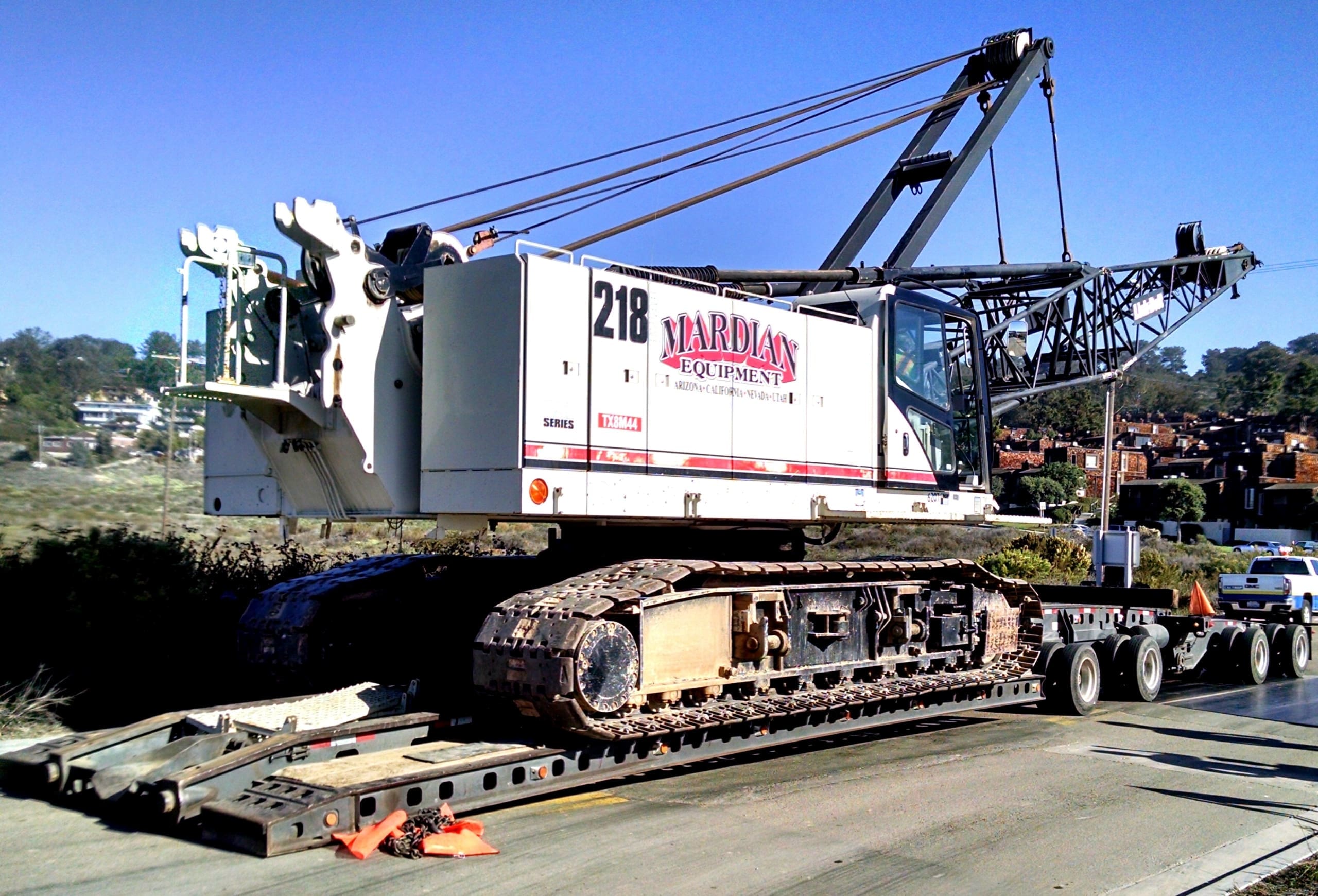

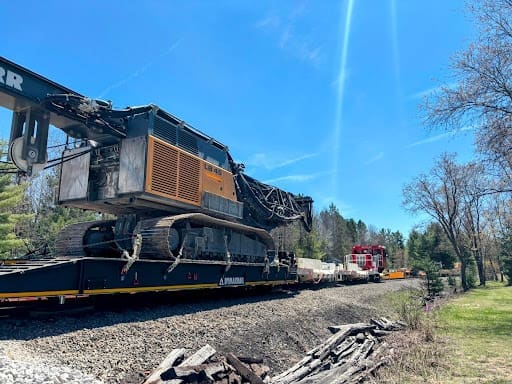

Transport cement trucks, wheeled and crawler cranes, excavators and other specialized equipment.
SPECIFICATIONS
EXCAVATOR TYPE MACHINERY CARTS
| Group Number Model Description Load Rating (US Tons) Weight (lbs) |
| 6882D2
DX-RC-MAC-8ftx8ft6-DMX-06TC – Machinery Cart DIMENSIONS:
KEY FEATURES:
LOAD RATING: 6 Tons (US) WEIGHT: 3,600 lbs |
| 7583D1
DX-RC-MAC-8ft6x25-DMX-40TC – Machinery Cart DIMENSIONS:
KEY FEATURES:
OPTIONS: Pin on railcar coupler adapter LOAD RATING: 40 Tons (US) WEIGHT: 16,140 lbs |
| Design and specifications are subject to change without notice.
All carts listed feature non-insulated railgear and are suited for standard gauge track 56.50 inches (1435mm). Custom solutions are available for narrow and wide track gauges. Contact DymaxRail Sales 1-800-530-5407 for special applications and options. |
ALL PURPOSE MACHINERY CARTS
| Group Number Model Description Load Rating (US Tons) Weight (lbs) |
| 7941D1
DX-RC-MAC-8ft6x39-DMX-50TC – Machinery Cart DIMENSIONS:
KEY FEATURES:
LOAD RATING: 50 Tons (US) WEIGHT: 29,000 lbs |
| 8257D1
DX-RC-MAC-9ft6x45-DMX-100TC – Machinery Cart DIMENSIONS:
KEY FEATURES:
LOAD RATING: 100 Tons (US) WEIGHT: 42,160 lbs |
| EXTRA WIDE FRAME
8445D2 DX-RC-MAC-12ft4x45-DMX-100TC – Machinery Cart DIMENSIONS:
KEY FEATURES:
LOAD RATING: 100 Tons (US) WEIGHT: 52,500 lbs |
| Design and specifications are subject to change without notice.
All carts listed feature non-insulated railgear and are suited for standard gauge track 56.50 inches (1435mm). Custom solutions are available for narrow and wide track gauges. Contact DymaxRail Sales 1-800-530-5407 for special applications and options. |
