Flat-Deck Track Dolly Cart for Rail Material Transport

Haul Beams, Panels, and Long Loads

Move long, awkward, heavy loads by rail with the DymaxRail Track Dolly Cart. The flat steel deck sits low and stable on the track and carries up to 40 tons. Need more length? Run two in tandem.

1
2
3
4
Track dolly cart features: high-strength beam frame, low-profile DymaxRail sealed-bearing wheels, steel deck plate, and welded clevis eye
1

High Strength Beam

2

DymaxRail Wheels. Low profile design featuring sealed bearings for long lasting durability.

3

Steel Deck Plate

4

Welded eye for clevis connection

Newspaper Newspaper Brochure User User Contact Us

KEY FEATURES

  • Heavy Duty Design: Built to endure tough conditions while ensuring smooth operation on rail tracks.
  • Flexible Application: Can be used to transport beams, track components, switch and crossing components when two carts are used in tandem.
  • Brakes: Available with manual park brake or optional air brake solution.
  • Tie Down Locations: Secure points for safely anchoring loads during transport, preventing unwanted movement.
  • Special Track Gauges: Available for narrow gauge and broad gauge applications, including extra-wide gauge for specialized industries.

Need the deck to rotate? Check out the Swivel Top Track Dolly Cart.

SPECIFICATIONS

Group Number
Model
Description
Weight (lbs)
7916D1

DX-RC-DLY56-72×36-DMX-20TC

Rail Cart-Dolly 56.5in Track Gauge-72 inches wide x 36 inches across top deck-Dymax-20 ton capacity

STANDARD FEATURES:

  • Capacity: 40,000 lbs / 20 ton
  • Wheels: 7 inch rail wheels
  • Track Gauge: 56.5 inch / 1435mm
  • Deck: Steel flat top
  • Height off rail: 17 inches

WEIGHT: 1700 lbs
7671D1

DX-RC-DLY84-96×36-DMX-22T

Rail Cart-Dolly 84in Track Gauge-96 inches wide x 36 inches across top deck-Dymax-22 Ton

STANDARD FEATURES:

  • Capacity: 45,000 lbs / 22.5 ton
  • Wheels: 7 inch rail wheels
  • Track Gauge: 84 inch
  • Deck: Steel flat top
  • Height off rail: 17 in

WEIGHT: 1800 lbs
7918D1

DX-RC-DLY56-72×36-DMX-40TC

Rail Cart-Dolly 56.5in Track Gauge-72 inches wide x 36 inches across top deck-Dymax-40 ton capacity

STANDARD FEATURES:

  • Capacity: 80,000 lbs / 40 ton
  • Wheels: 11 inch rail wheels
  • Track Gauge: 1435mm / 56.5 inch
  • Deck: Steel flat top
  • Height off rail: 21 in

WEIGHT: 3000 lbs
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407.

PRODUCT GALLERY

PreviousNext
12

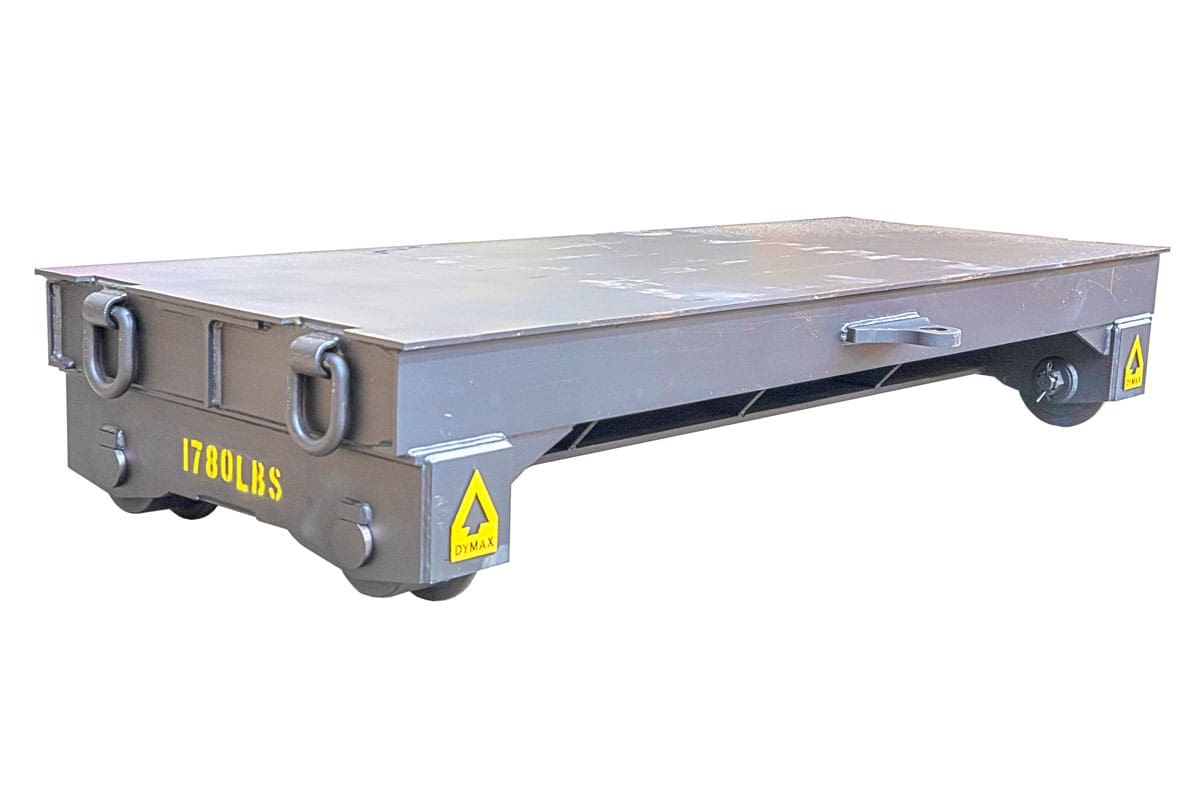

DymaxRail track dolly cart with a flat steel deck on low-profile rail wheels for hauling beams and track materials
DymaxRail track dolly cart under fabrication in the shop, showing its welded steel frame, four rail wheels, and lift eye
