Rail Handler SG

Handle 40 ft Rail Without a Rigging Crew

A Grip That Won’t Slide — Even on Insulated Joints

Standard grapples hold rail with friction. That works until you pick up an insulated joint — the smooth sleeve gives the jaws nothing to bite, and the rail slides. The Dymax Rail Handler SG solves this with an over-center lock that holds the jaws past center mechanically.

Fits 12-ton excavators and grapple trucks. Built for spot rail replacement, IJ handling, and railcar unloading.

BROCHURE VIDEO GET A QUOTE

Key Features

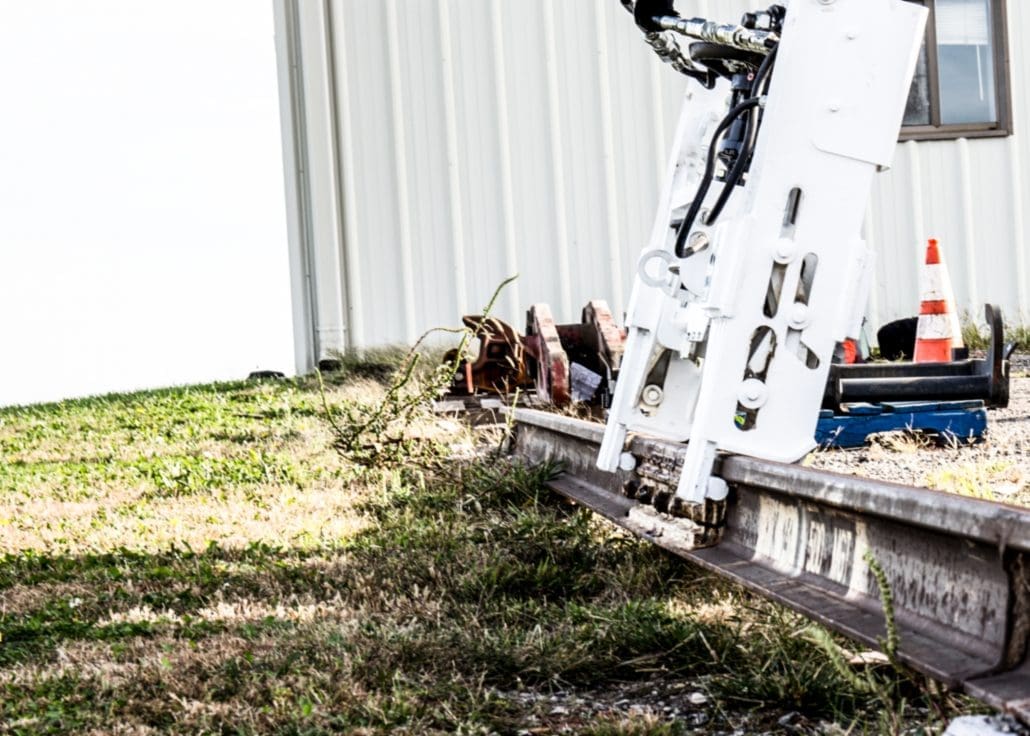

Over-center lock holds rail mechanically — won’t release if hydraulic pressure drops
Handles all standard rail profiles, up to 40 ft
Telescopic arm: 68 in retracted, 93 in extended
Bolt-on machine adapter with pins
Storage stand for stowing and transport

Options

SG360 model for grapple trucks can be configured to fit Kinshofer or alternate rotation systems
Custom configurations available — contact DymaxRail

APPLICATIONS

Spot rail replacement
Insulated joint handling
Railcar unloading

Find the Right Model for Your Machine

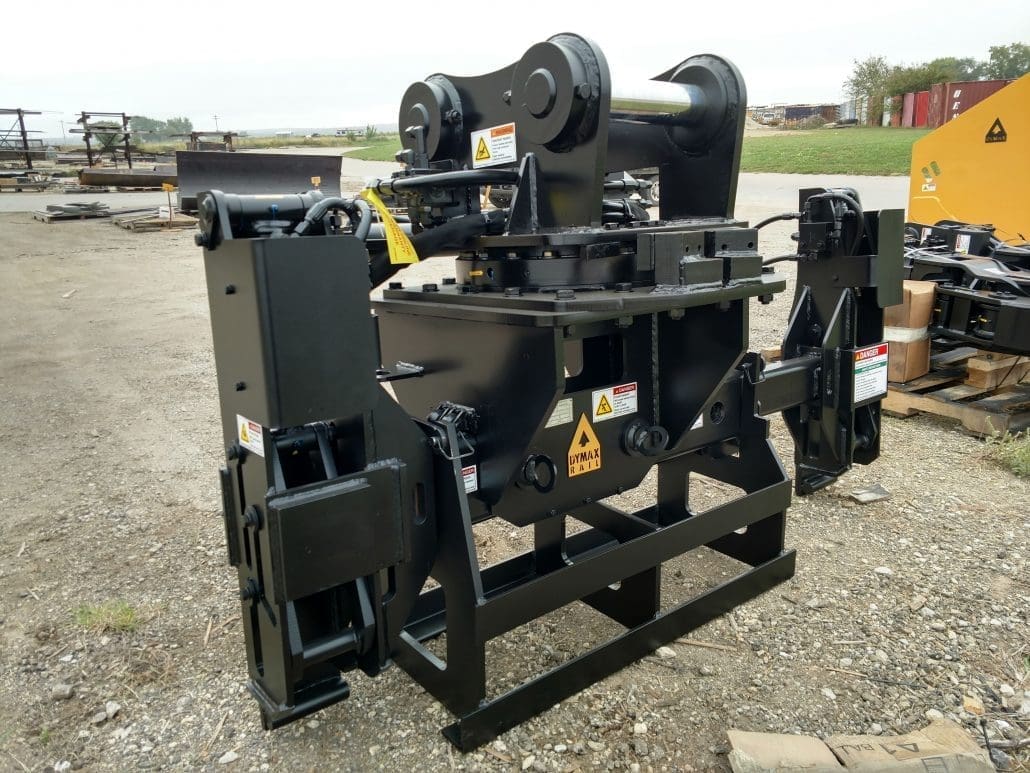

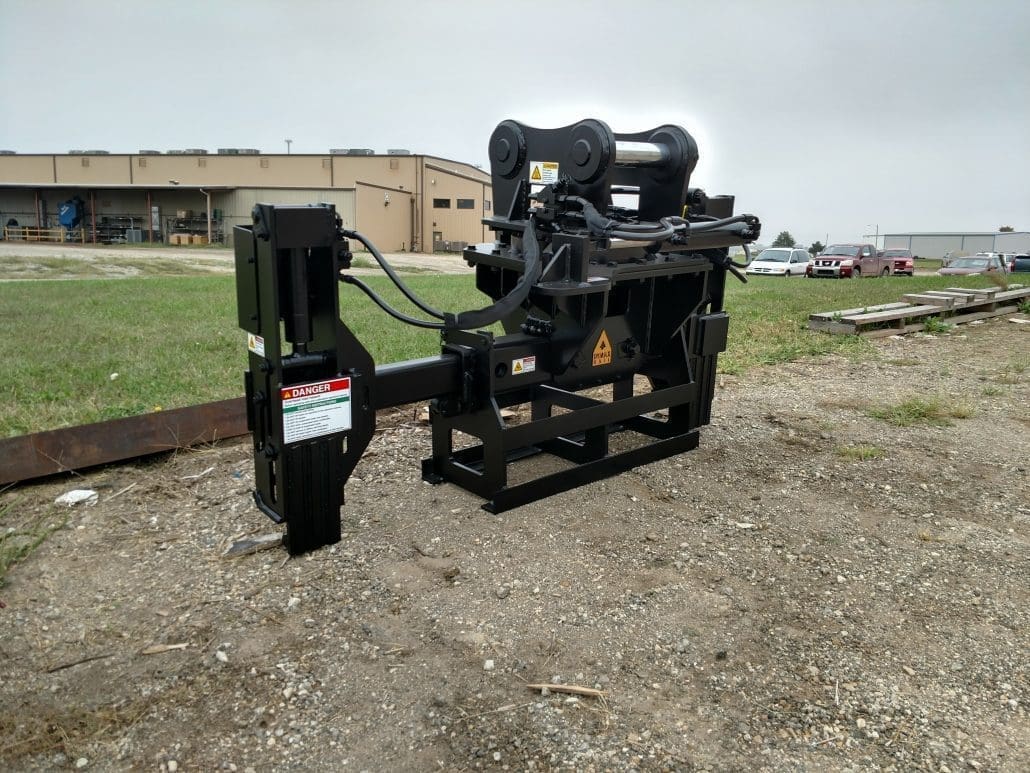

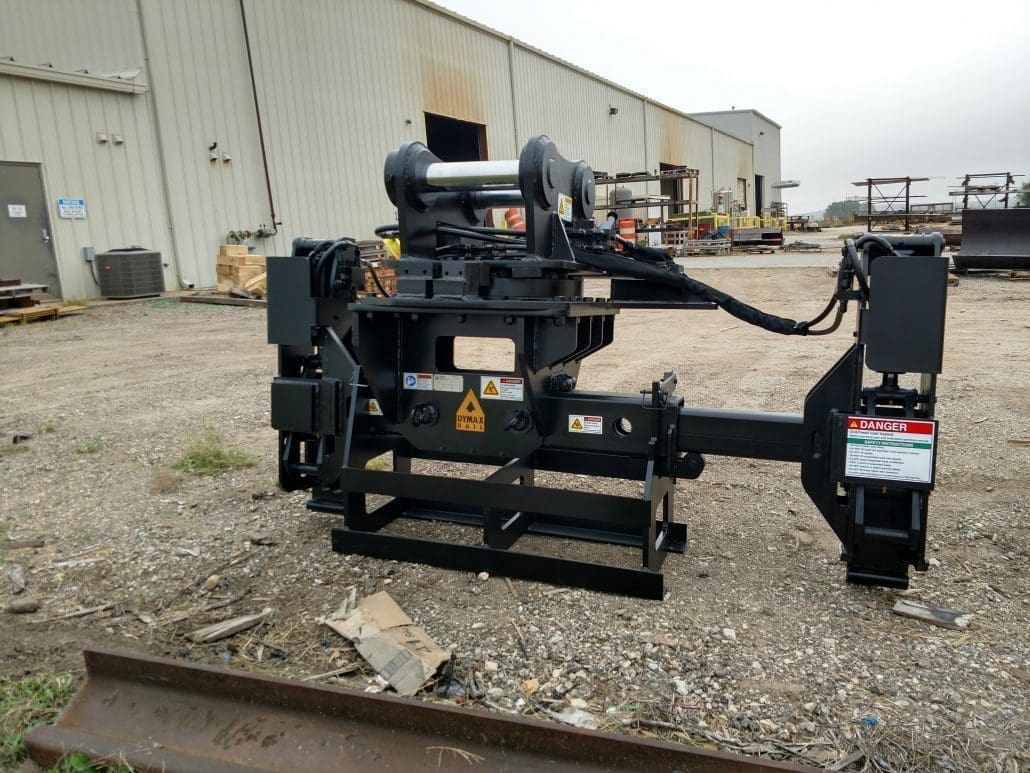

DymaxRail Rail Handler SG60 with 60-degree hydraulic rotator for 12-ton excavators

SG60 — Excavator

The SG60 mounts on 12-ton hydraulic excavators. It includes a 60° hydraulic rotator and an electro-hydraulic valve kit. The telescopic arm extends from 68 in to 93 in. Load-holding cylinders keep rail locked through the full range of motion. Ships with a storage stand and machine adapter with pins. Weight: 2,200 lbs.

DymaxRail Rail Handler SG360 with 360-degree rotator and clevis mount for grapple trucks

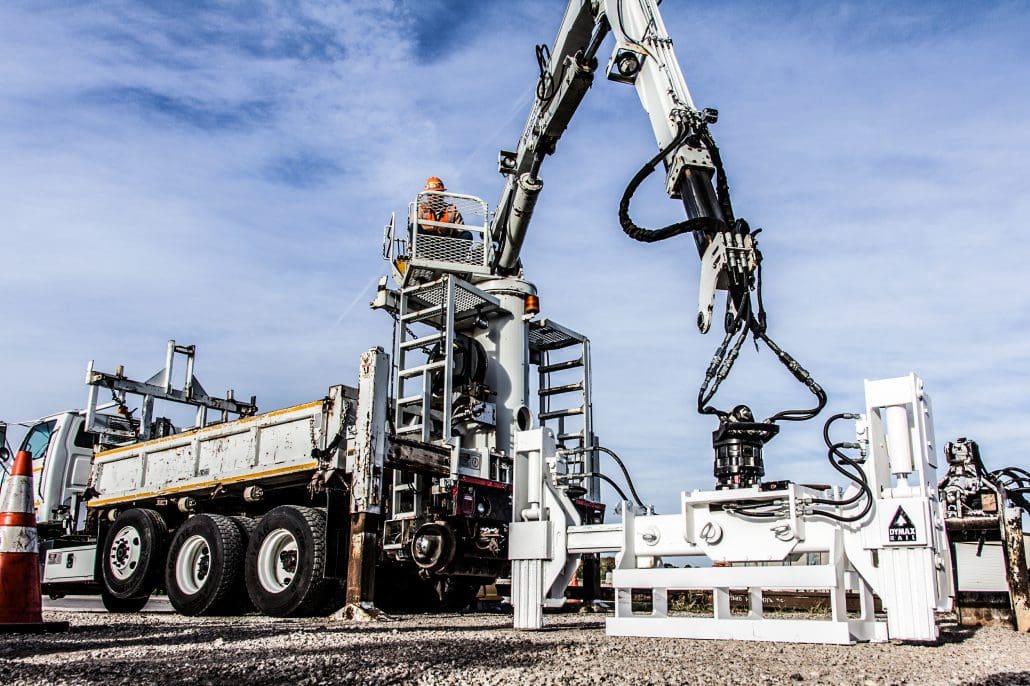

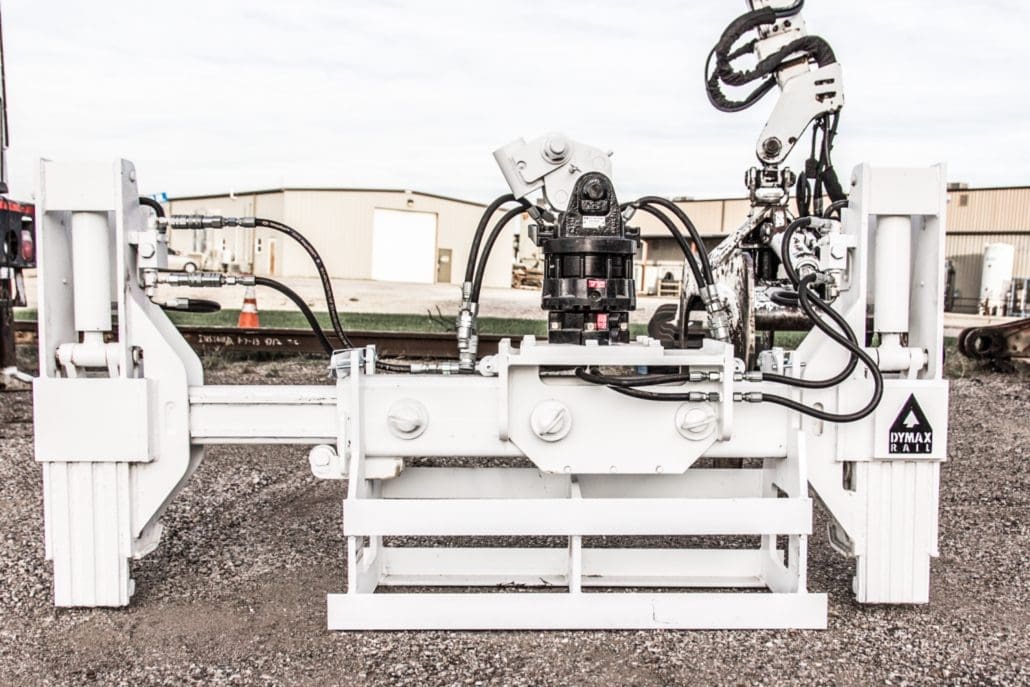

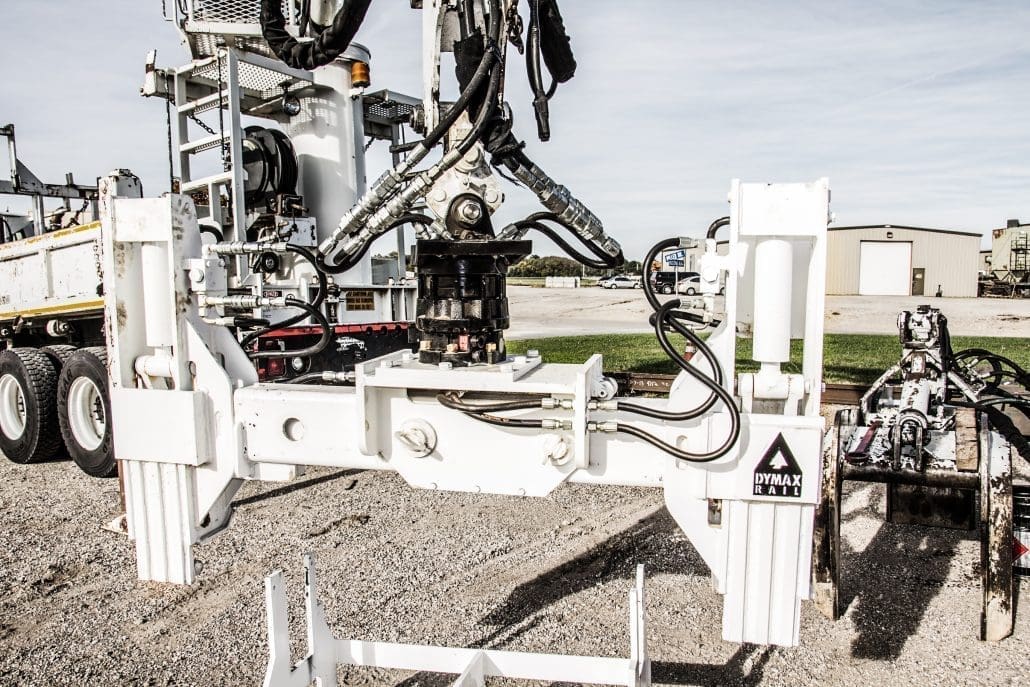

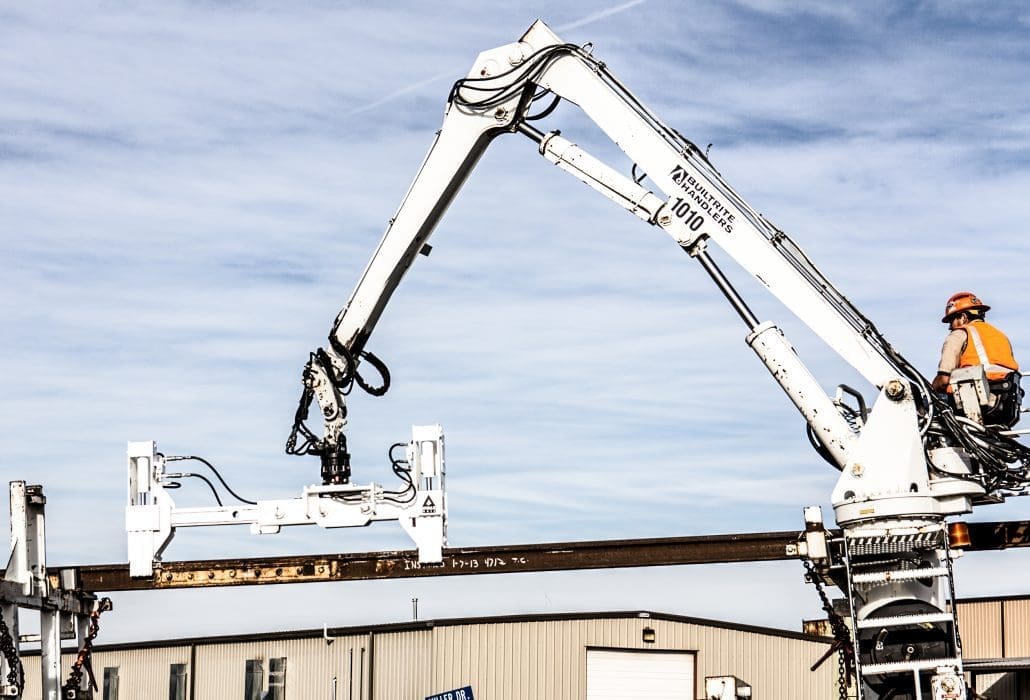

SG360 — Grapple Truck

The SG360 is built for Class 10 grapple trucks and crane machinery. It uses a 360° rotator with a 10-ton clevis mount. The center carriage adjusts manually for insulated jointed rail. Telescopic arm extends from 68 in to 93 in. Weight: 1,500 lbs.

Option: can be configured to fit Kinshofer or alternate rotation systems.

SGTRQ — Tiltrotator Hookup

The SGTRQ connects directly to tiltrotator coupler systems on excavators. No separate rotator — the tiltrotator provides positioning. Same over-center lock grip and telescopic arm (68 in to 93 in) as the other SG models. Single hydraulic circuit operation. Weight: 1,200 lbs.

SPECIFICATIONS

RAIL HANDLER SG MODELS

Model
Description
Weight

DX-RH-SG60-68inx93in-HX-12T

Rail Handler-Small Grapple 60 deg rotate-68 inches collapsed x 93 inches extended-Hydraulic Excavator-12 Ton

STANDARD FEATURES:
– Includes stand group
– 60 degree rotator with electro-hydraulic valve kit
– Single offset center carriage with single telescopic arm
– Load holding design
– Machine adapter with pins

WEIGHT: 2200 lbs

DX-RH-SGTRQ-68inx93in-HX-12T

Rail Handler-Small Grapple-Tilt Rotator Coupler-68 inches collapsed x 93 inches extended-Hydraulic Excavator-12 Ton

STANDARD FEATURES:
– Includes stand group
– No rotator. Fits tiltrotator coupler
– Single offset center carriage with single telescopic arm
– Load holding design
– Machine adapter with pins

WEIGHT: 1200 lbs

DX-RH-SG360-68inx93in-GT-10

Rail Handler-Small Grapple 360 deg rotate-68 inches collapsed x 93 inches extended-Grapple Truck-Class 10

STANDARD FEATURES:
– Includes stand group
– Manual adjusting center carriage with telescopic arm for handling insulated jointed rail
– 10T rotator system with clevis
– Load holding design

WEIGHT: 1500 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

MODEL: DX-RH-SG60-68inx93in-HX-12T

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits.

CIRCUIT 1 – Rail Grapples
– Type: Two-way
– GPM (min/max) 15-20, PSI (max) 3,000

CIRCUIT 2 – Rotator
– Type Electro-Hydraulic Valve + needle valves. Requires installation of 16ga cable, connectors, and switch.

NOT SUPPLIED: Not provided with jumper hose lines.

MODEL: DX-RH-SGTRQ-68inx93in-HX-12T

HYDRAULIC REQUIREMENTS: Your machine will require the following circuits.

CIRCUIT 1 – Rail Grapples
– Type: Two-way
– Max GPM (min/max) 15/20, PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hose lines.

MODEL: DX-RH-SG360-68inx93in-GT-10

HYDRAULIC REQUIREMENTS: This work tool requires (2x) circuits for operation.

CIRCUIT 1 – Rail Grapples
– Type: Two-way
– GPM (min/max) 15-20, PSI (max) 3,000

CIRCUIT 2 – Rotator
– Type: Two-way
– GPM (max) 10, PSI (max) 3,000

NOT SUPPLIED: Not provided with jumper hose lines

FAQ

WHAT’S THE DIFFERENCE BETWEEN THE RAIL HANDLER SG AND THE RAIL HANDLER LG?

The SG handles rail up to 40 ft. The LG handles 80–100 ft.

The SG mounts on 12-ton excavators, grapple trucks, and backhoe loaders. The LG requires a 20-ton excavator.

The SG is built for spot replacement, IJ handling, and railcar unloading. The LG is designed for high-volume work like delivering rail to flash butt welders.

The SG uses an over-center lock. The LG uses a positive-lock system. Both hold rail without sliding.

WHAT IS AN OVER-CENTER LOCK AND WHY DOES IT MATTER?

An over-center lock pushes the grapple jaws past their center point and holds them there mechanically. The rail can’t slide out, even if hydraulic pressure drops.

This matters most when handling insulated joints. IJs have a smooth joint sleeve that standard friction grapples can slip on. The SG’s over-center lock eliminates that risk.

WHAT MACHINES DOES THE RAIL HANDLER SG FIT?

Three models cover three machine types. The SG60 fits 12-ton hydraulic excavators. The SG360 fits Class 10 grapple trucks and cranes. The SGTRQ connects to tiltrotator coupler systems on excavators and backhoe loaders. All models bolt on with a machine adapter and pins.

CAN THE SG360 BE ADAPTED TO DIFFERENT ROTATION SYSTEMS?

Yes. The grapple truck model ships with a 10-ton dangling rotator and clevis mount. It can also be configured to fit Kinshofer or other rotation systems. Contact DymaxRail to discuss your setup.
