Railcar QUICK Couplers:

Dymax Railcar Quick Coupler are attachments that adapt to wheel loaders or tractors enabling operations such as coops, aggregate and load transfer facilities, port and terminal railways and rail yard applications to safely pull railcars. Dymax Railcar coupler systems are available to fit the front and rear of Wheel Loaders and Tractors with a minimum of 115-130 horsepower for pulling small car volumes.

We offer specialized design services and work with our local tractor dealers to provide turnkey ready railcar movers using tractor base platforms. These machines are highly versatile and are ideal for pulling low carload volumes. Contact us today to learn more about DymaxRail’s innovative solutions for moving railcars.

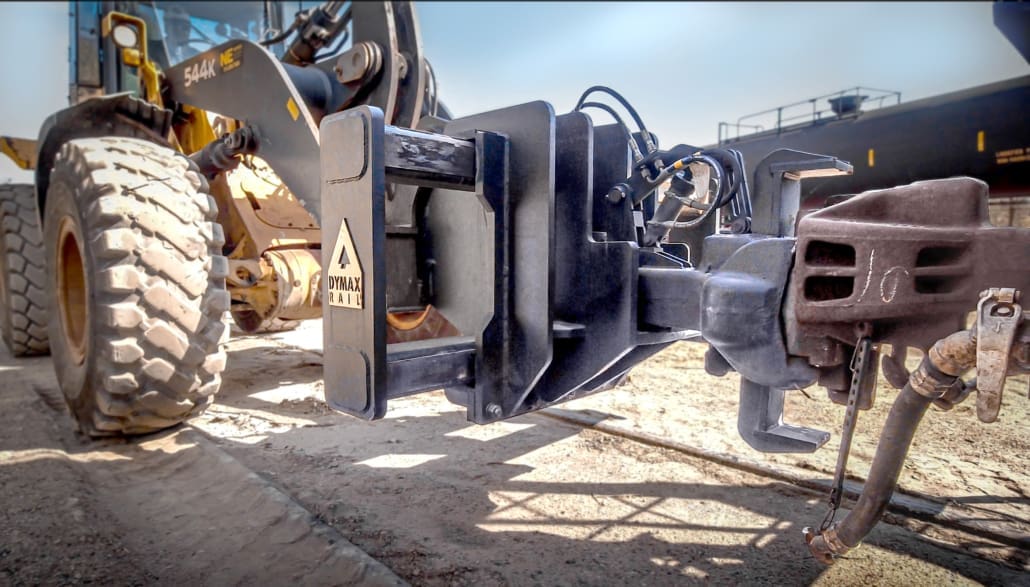

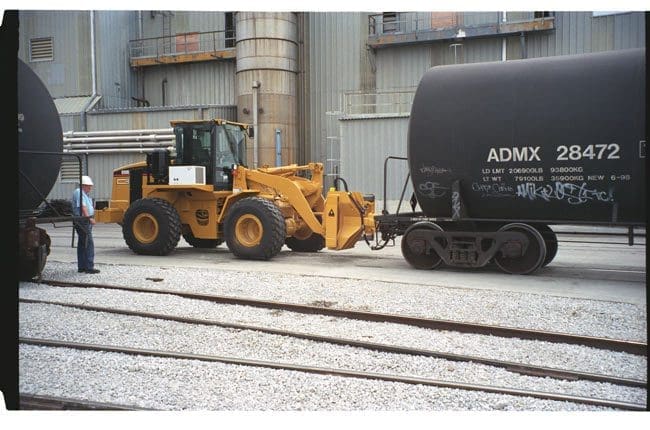

FRONT MOUNT – LOADER:

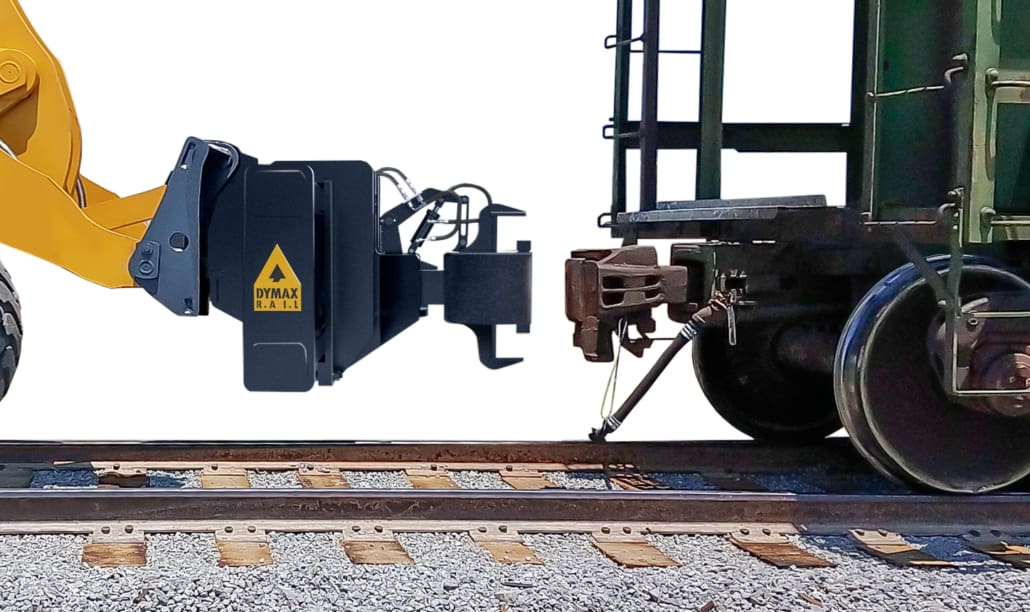

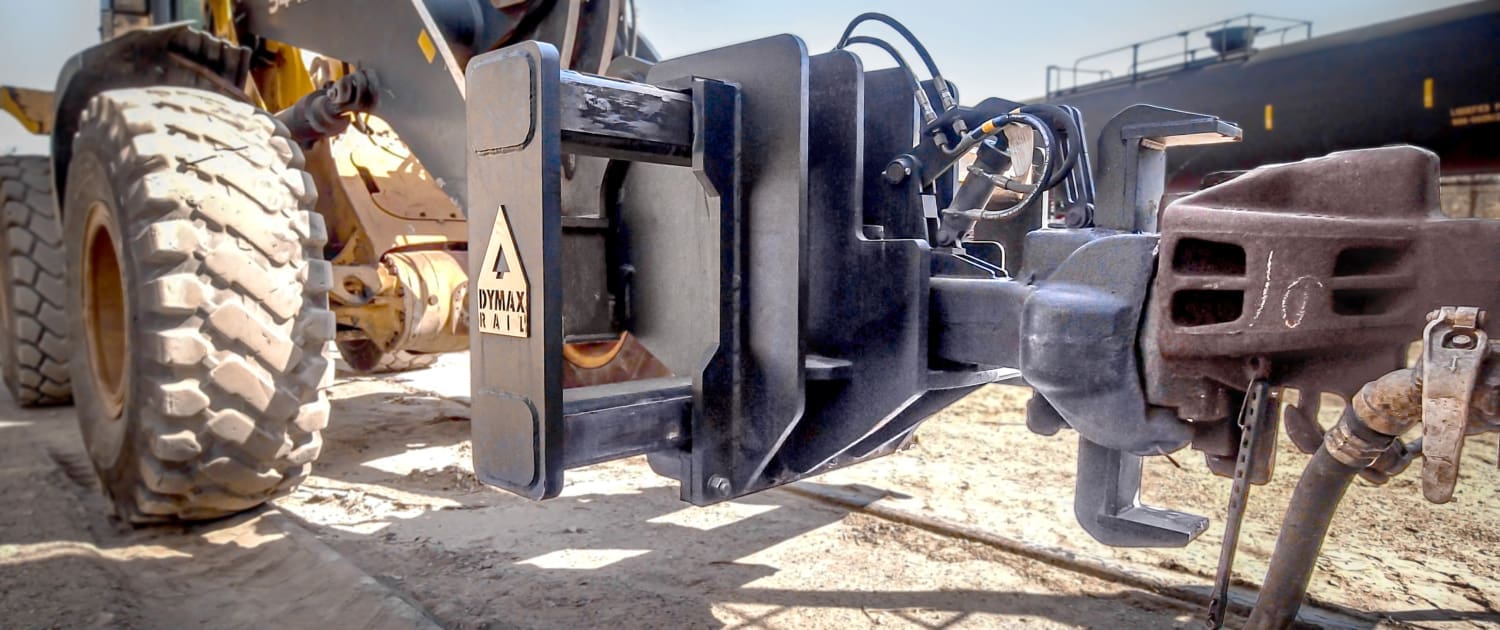

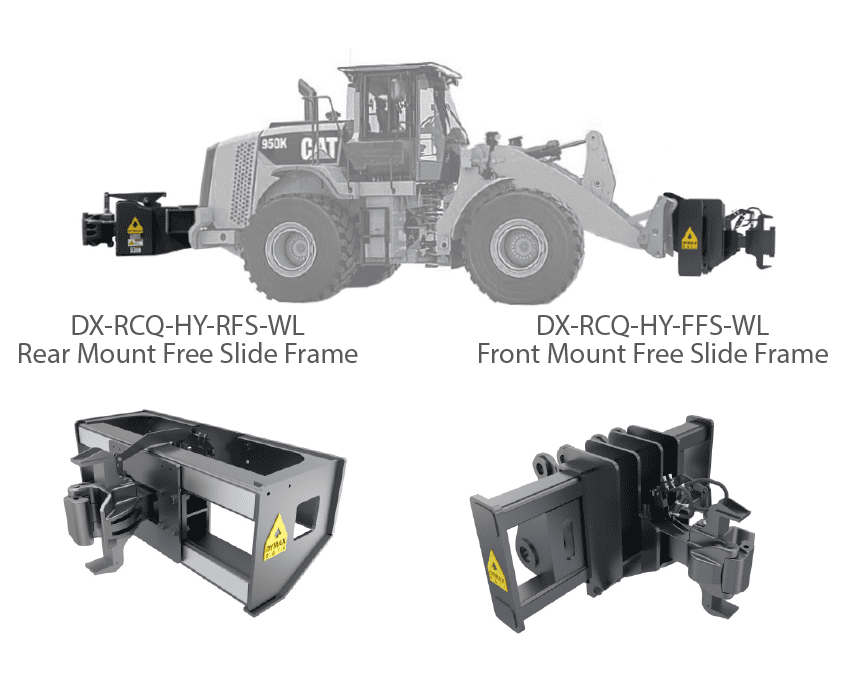

Dymax Front Mounted Railcar Quick Couplers feature free slide frames with pivoting AAR train car coupler with hydraulic pin. Made to fit specific wheel loader coupler systems or can be made to pin direct to the loader arms. Optional vertical float with shelf coupler available for uneven terrain applications.

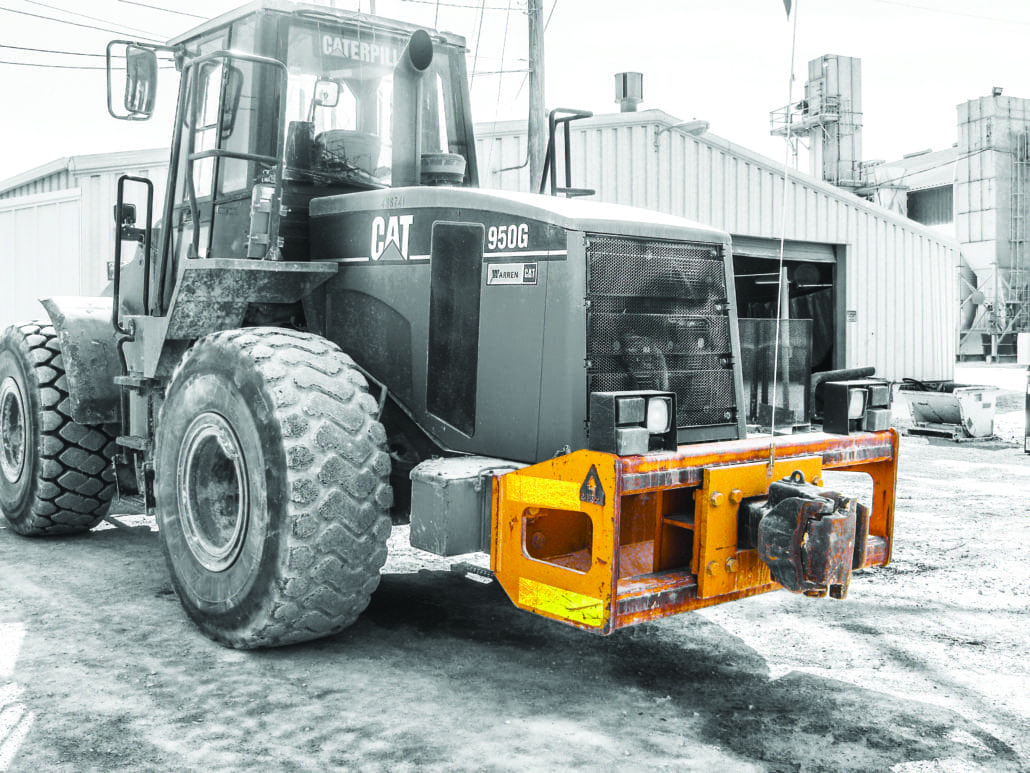

REAR MOUNT LOADER:

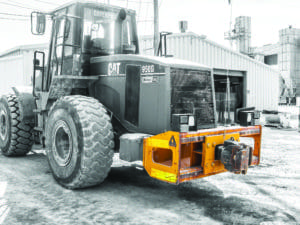

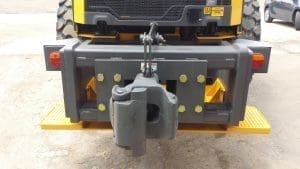

Dymax Rear Mounted Railcar Quick Coupler Solutions are designed specifically to fit the make and model of each machine. We work closely with OEM’s to make sure that stability of the loader and performance is not effected. Rear mounted railcar coupler systems feature free slide frames with pivoting AAR train car coupler with hydraulic pin.

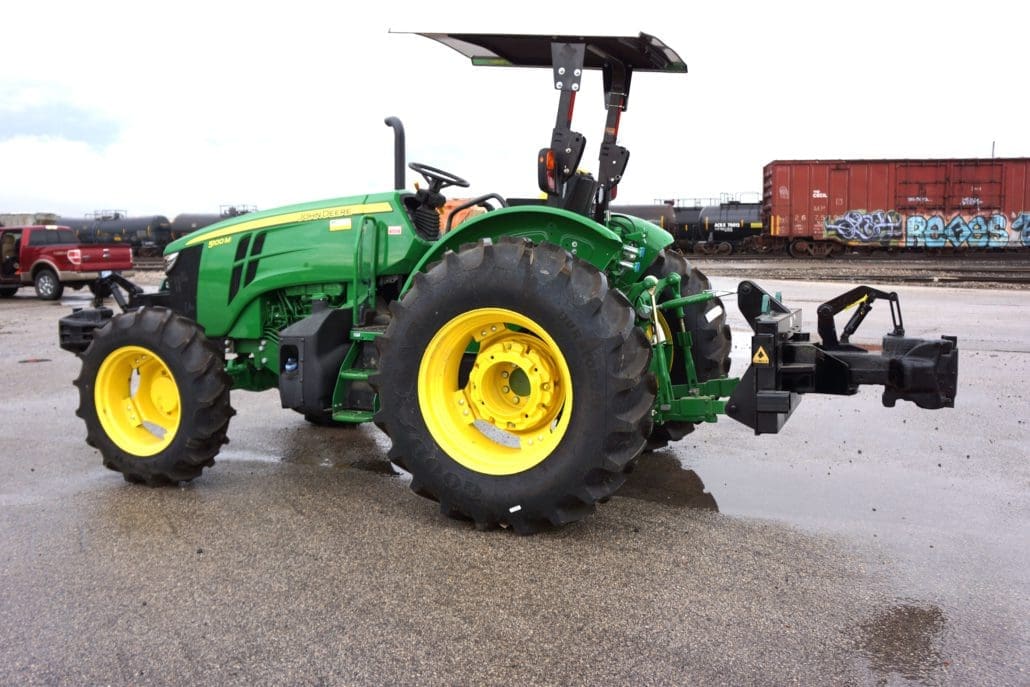

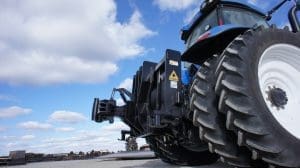

TRACTOR MODELS:

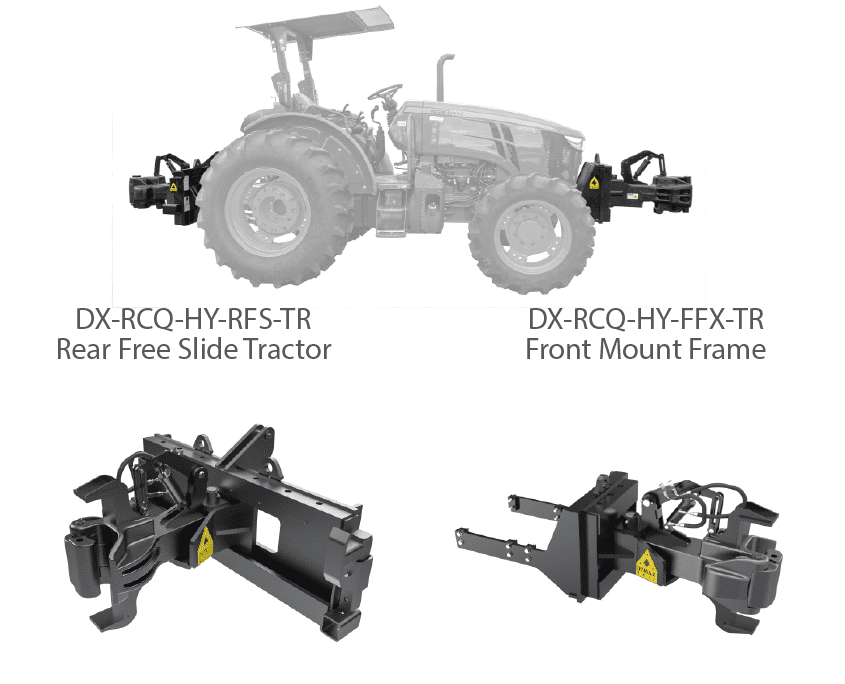

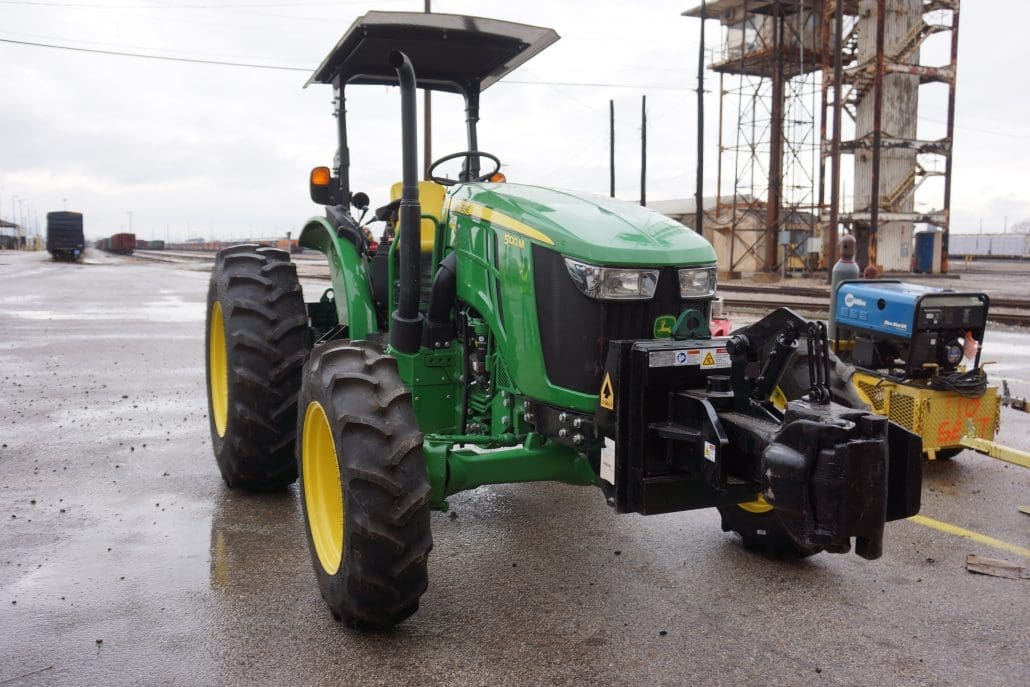

Dymax Railcar Coupler Systems for Tractors are available to fit the front chassis or can be mounted to the three point hitch. We can also help you adapt railgear, brushcutters and loaders to create the ultimate tractor railcar mover solution.

Features

AAR Train Car Coupler
Pivot Coupling
Free Slide Frame
Hydraulic pin latch
Includes adapter for machine connection

Options

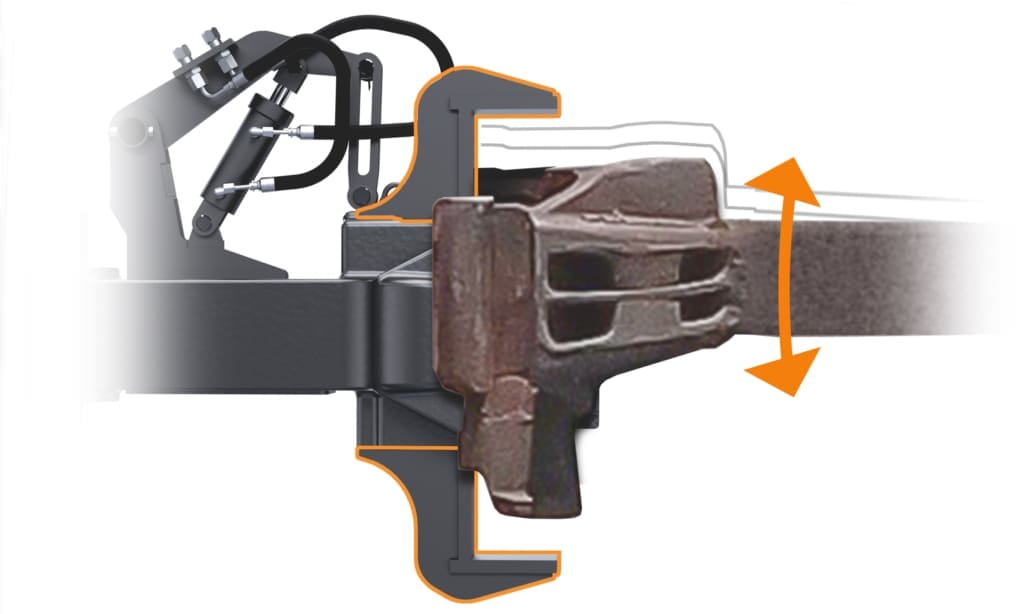

Vertical float with shelf coupler
Hydraulic side shift positioner

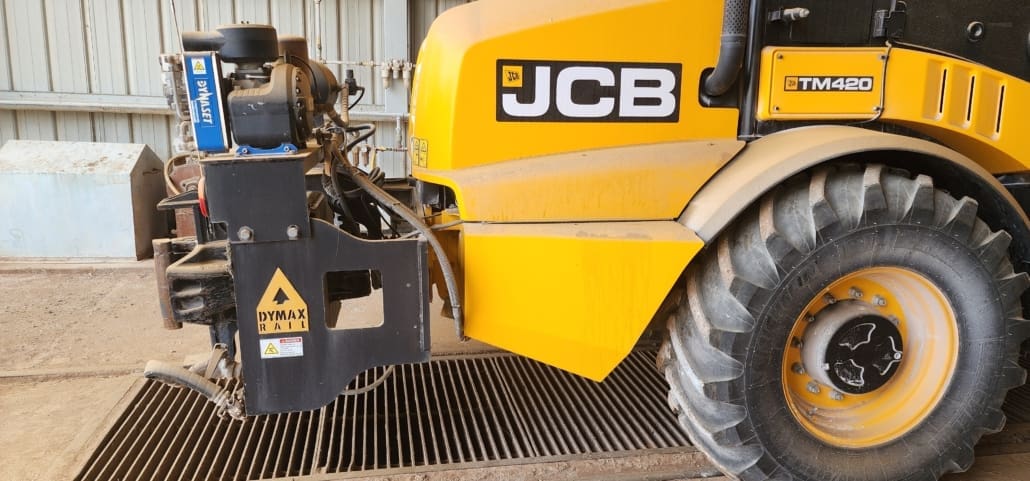

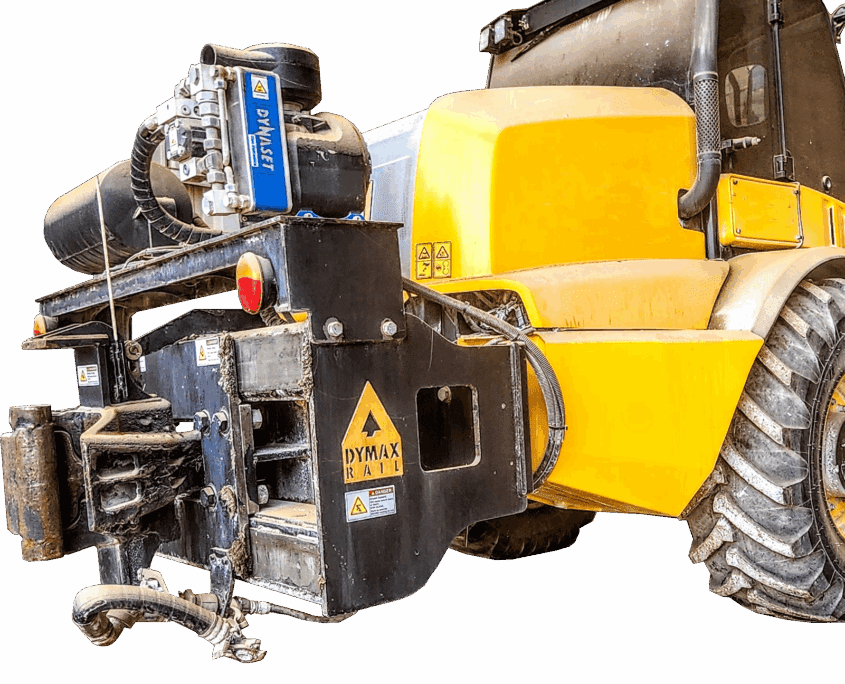

PTO driven train air kit with tank for Tractors
Custom design integration solutions

Specifications

Model ID	Model Code	Description	Features	Weight LBS
101236	DX-RCQ-HY-FFS-WL-50	Rail Car Quick Coupler – Hydraulic – Front Mount Free Slide – Wheel Loader – Class 50	Standard Features: • Includes machine pin or coupler adapter • Fixed Knuckle center mounted with pivot and manual free slide frame • Hydraulic pin	2800
101350	DX-RCQ-HY-RFS-WL-70	Rail Car Quick Coupler – Hydraulic – Rear Mount Free Slide – Wheel Loader – Class 70	Standard Features:• Rear mounted (counterweight) free slide frame with pivot knuckle • Hydraulic pin	3200
101351	DX-RCQ-HY-FFS-WL-70	Rail Car Quick Coupler – Hydraulic – Front Mount Free Slide – Wheel Loader – Class 70	Standard Features: • Includes machine pin or coupler adapter • Fixed Knuckle center mounted with pivot and manual free slide frame • Hydraulic pin	2800
101417	DX-RCQ-HY-FFS-WL-90	Rail Car Quick Coupler – Hydraulic – Front Mount Free Slide – Wheel Loader – Class 90	Standard Features: • Includes machine pin or coupler adapter • Fixed Knuckle center mounted with pivot and manual free slide frame • Hydraulic pin	4500
101418	DX-RCQ-HY-RFS-WL-90	Rail Car Quick Coupler – Hydraulic – Rear Mount Free Slide – Wheel Loader – Class 90	Standard Features:•Rear mounted (counterweight) free slide frame with pivot knuckle • Hydraulic pin	5500
102790	DX-RCQ-HY-FHS-WL-60	Rail Car Quick Coupler – Hydraulic – Front Mount Hydraulic Slide – Wheel Loader – Class 60	Standard Features:• Fixed Knuckle center mounted with pivot; • Hydraulic positioner slide frame with pivot knuckle • Hydraulic pin	2850
102791	DX-RCQ-HY-RHS-TR-3PT	Rail Car Quick Coupler – Hydraulic – Rear Mount Hydraulic Slide – Tractor – 3 Point Hitch	Standard Features: Cat 2 or 3 – Three Point Hitch • Hydraulic positioner slide frame with pivot knuckle • Hydraulic pin	2100
102792	DX-RCQ-HY-RFS-TR-3PT	Rail Car Quick Coupler – Hydraulic – Rear Mount Free Slide – Tractor – 3 Point Hitch	Standard Features: Cat 2 or 3 – Three Point Hitch • Fixed Knuckle center mounted with pivot • rear free slide frame with pivot knuckle • Hydraulic pin	2650
102793	DX-RCQ-HY-FFX-TR-	Rail Car Quick Coupler – Hydraulic – Front Mount Fixed – Tractor –	Standard Features: • Fixed Knuckle center mounted with pivot; • Hydraulic pin	1250
102806	DX-RCQ-HY-FFSBB-WL-70	Rail Car Quick Coupler – Hydraulic – Free Slide Bare Back – Wheel Loader – Class 70	Standard Features: • Bareback (no machine adapter) • Fixed Knuckle center mounted with pivot and manual free slide frame • Hydraulic pin	1400
103086	DX-RCQ-HY-FFSF-WL-70	Rail Car Quick Coupler – Hydraulic – Front Mount Free Slide with Float Knuckle – Wheel Loader – Class 70	Standard Features: • Includes Loader Coupler Hooks • Fixed Knuckle center mounted with pivot and manual free slide frame with VERTICAL float bearings • Hydraulic pin	2850
103087	DX-RCQ-HY-RFSF-WL-90	Rail Car Quick Coupler – Hydraulic – Rear Mount Free Slide with Float Knuckle – Wheel Loader – Class 90	Standard Features: • Rear mounted (counterweight) • Fixed Knuckle center mounted with pivot and manual free slide frame with VERTICAL float • Hydraulic pin	3250

Design and specifications are subject to change without notice

Hydraulic Requirements

Model ID	Model Code	Hydraulic Requirements
		CIR1 (circuit 1) CIR2 (circuit 2) CIR3 (circuit 3)
101236	DX-RCQ-HY-FFS-WL-50	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
101350	DX-RCQ-HY-RFS-WL-70	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
101351	DX-RCQ-HY-FFS-WL-70	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
101417	DX-RCQ-HY-FFS-WL-90	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
101418	DX-RCQ-HY-RFS-WL-90	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
102790	DX-RCQ-HY-FHS-WL-60	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 CIR2 – Side Positioning, Electro-Hyraulic Valve kit – requires installation Not provided with jumper hoses to machine lines
102791	DX-RCQ-HY-RHS-TR-3PT	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 CIR2 – Side Positioning, Electro-Hyraulic Valve kit – requires installation Not provided with jumper hoses to machine lines
102792	DX-RCQ-HY-RFS-TR-3PT	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
102793	DX-RCQ-HY-FFX-TR-	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
102806	DX-RCQ-HY-FFSBB-WL-70	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
103086	DX-RCQ-HY-FFSF-WL-70	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.
103087	DX-RCQ-HY-RFSF-WL-90	CIR1 – Latch Pin, Type Two Way, GPM (min/max) 5-8, PSI (max) 3,000 Not provided with jumper hoses to machine lines.

Design and specifications are subject to change without notice
