RAILWAY TRACK PANEL HANDLER

A BETTER WAY TO GRIP AND SET TRACK PANELS

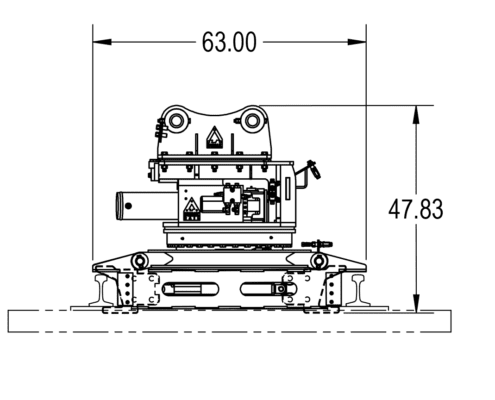

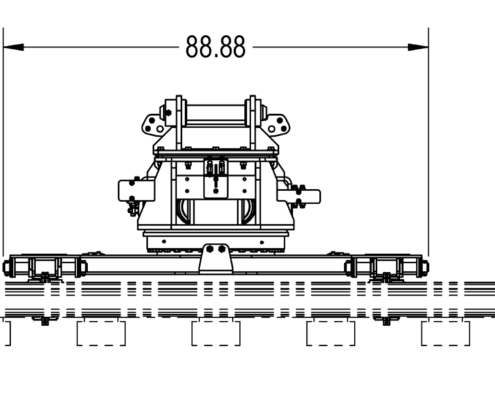

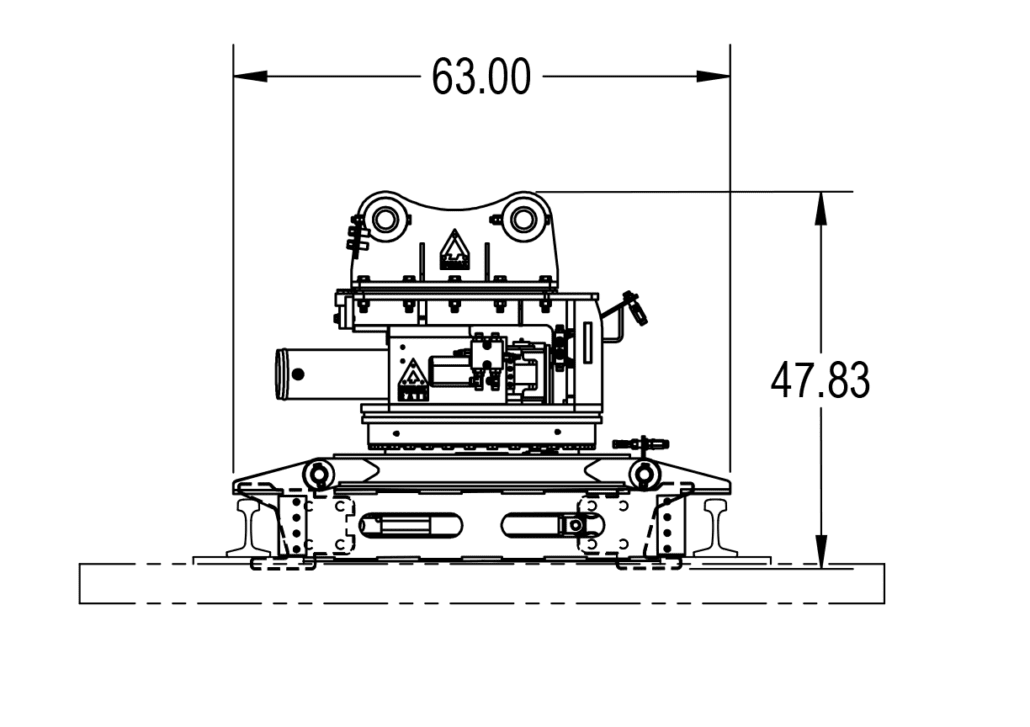

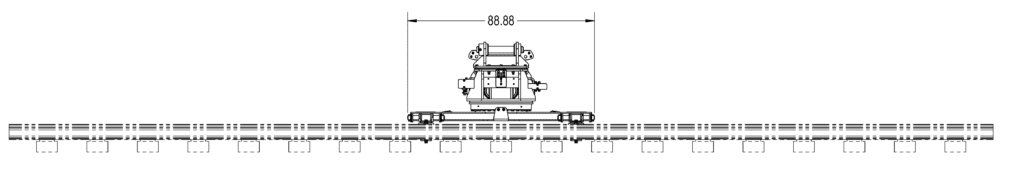

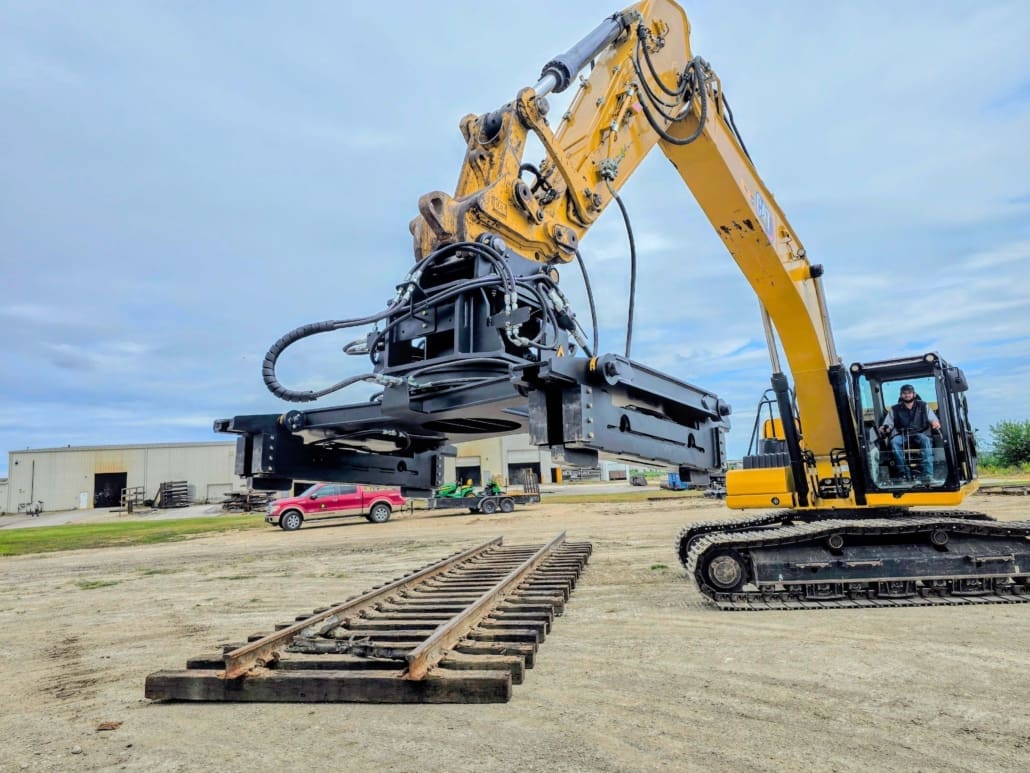

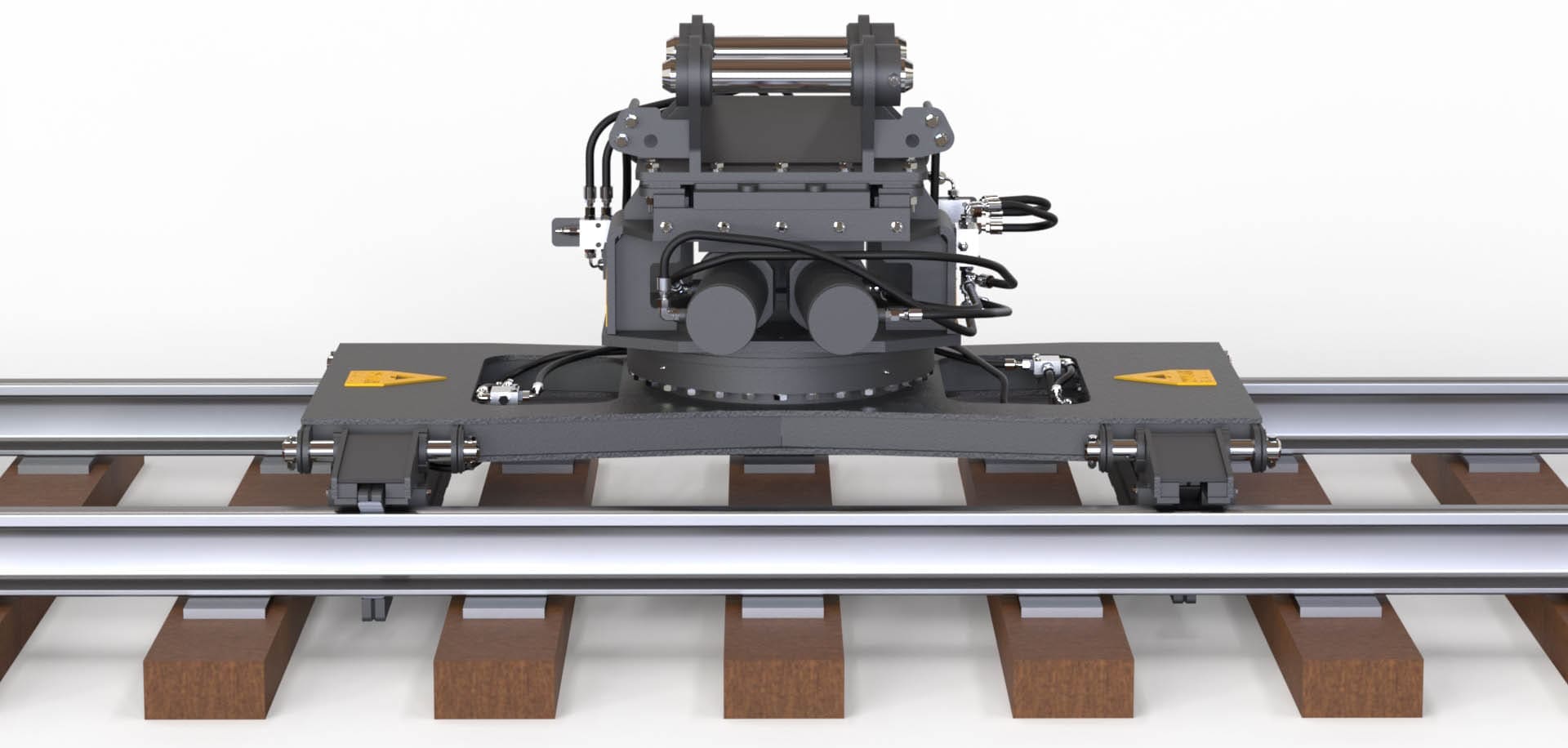

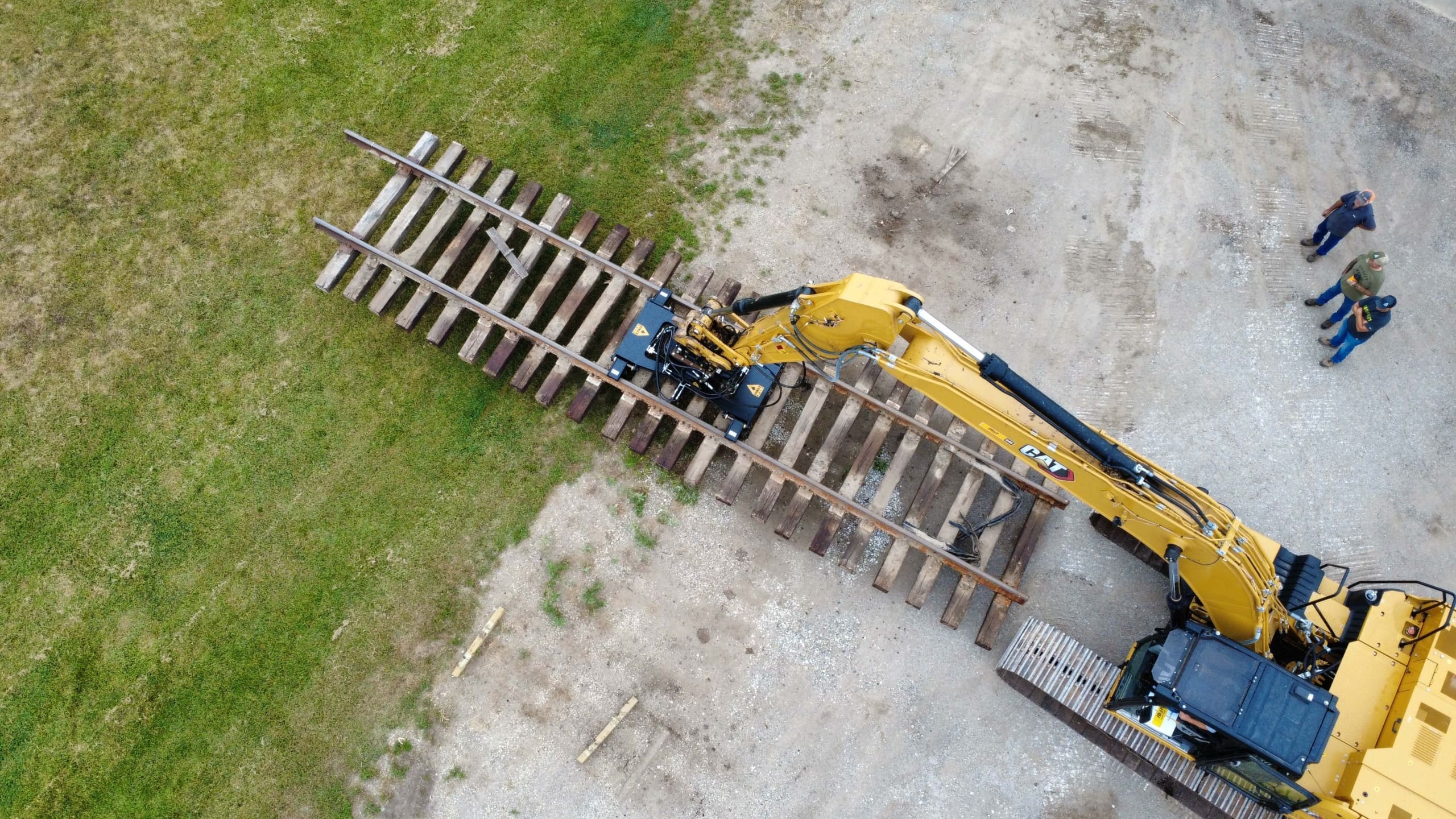

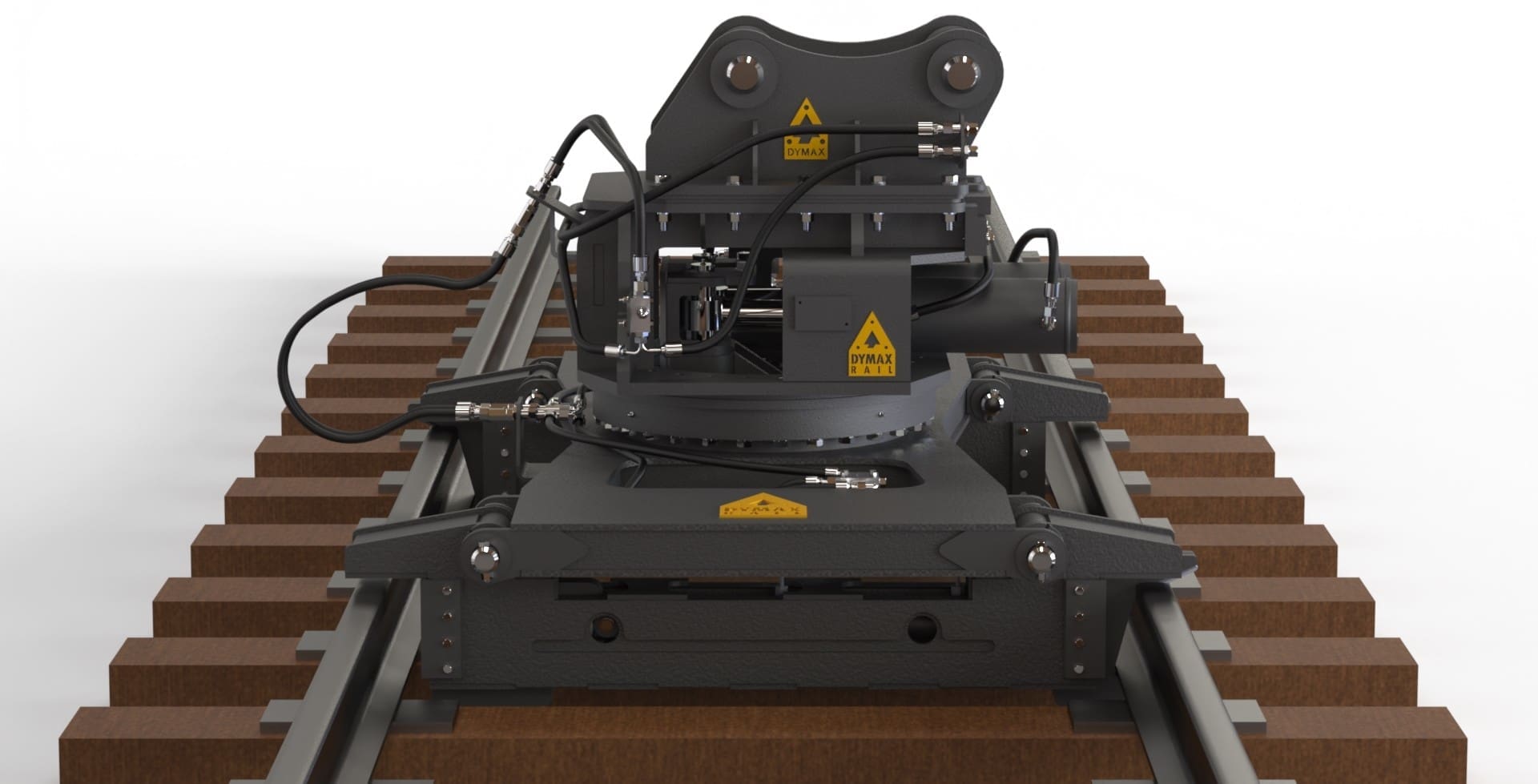

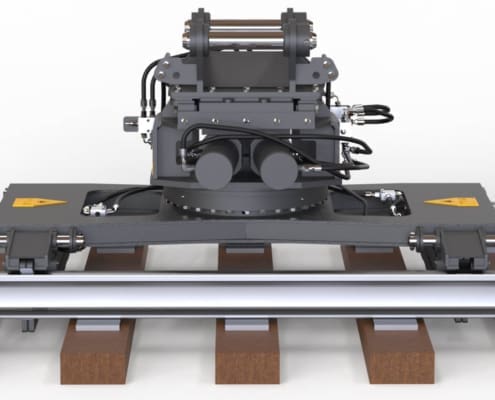

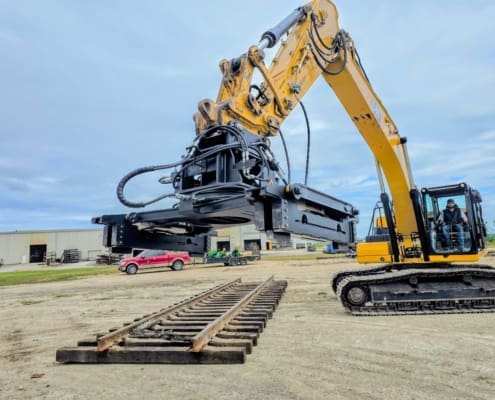

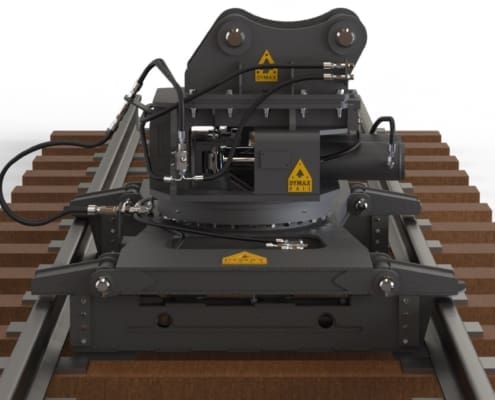

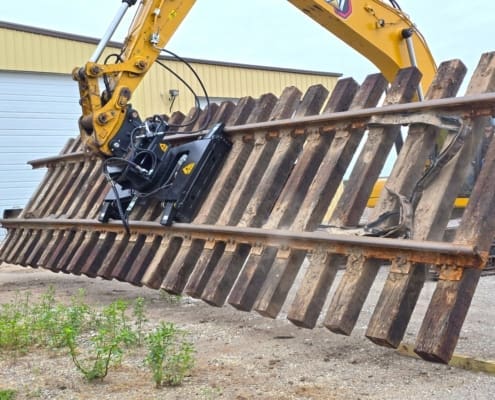

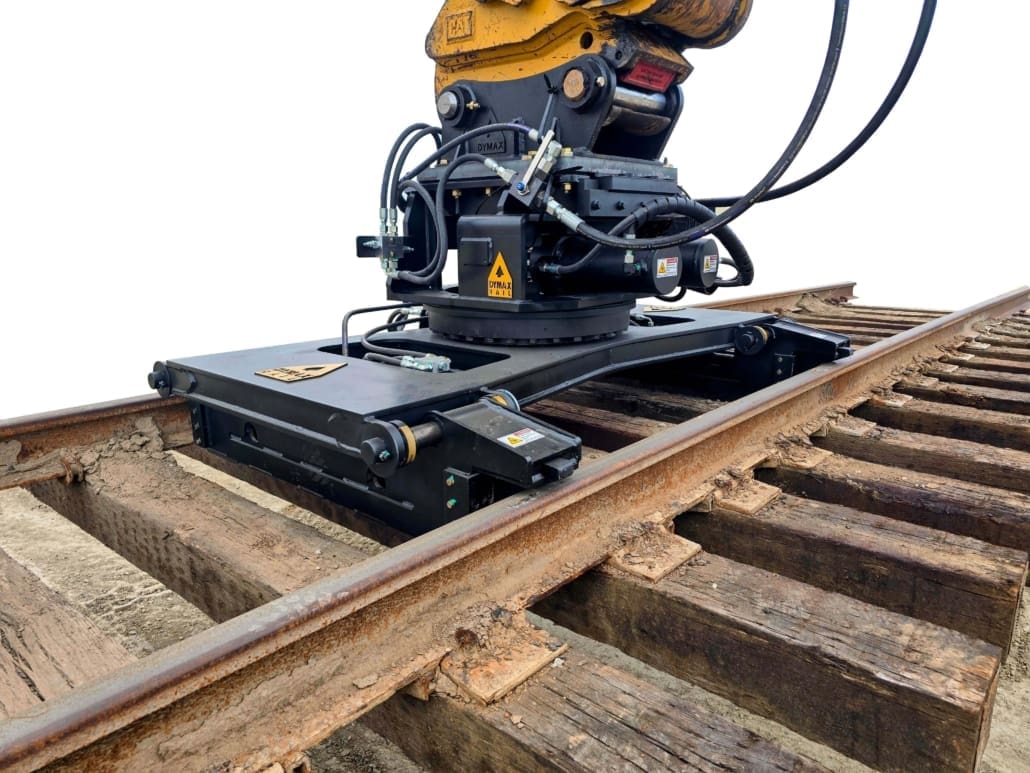

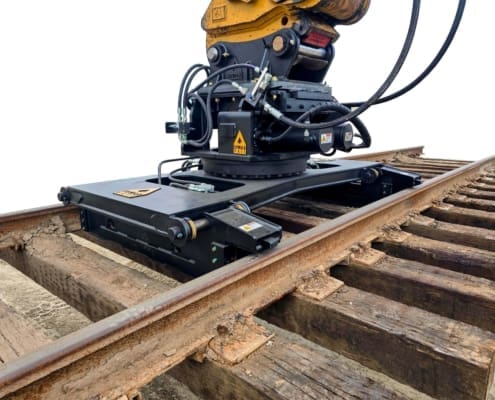

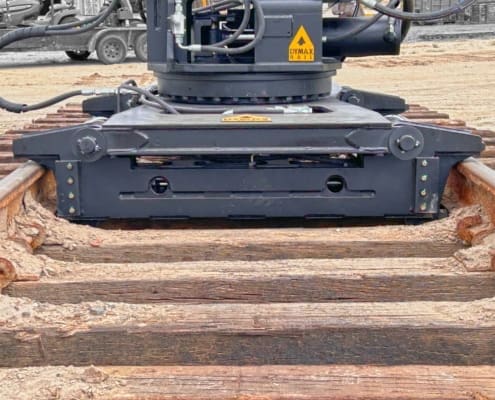

Unlike traditional rail panel handlers that clamp the rail head, risking slippage due to tolerance variations, the DymaxRail design was engineered to lock beneath the flange using a 4-point hydraulic wedgelock system.

VIDEO BROCHURE GET A QUOTE

PRODUCT HIGHLIGHTS

Fits: 25T+ hydraulic excavators
Rotation: 180 degree rotation
Hydraulics: Requires 2 auxiliary circuits

APPLICATIONS

New track construction
Track rehabilitation and maintenance
Transit and light rail infrastructure

KEY FEATURES

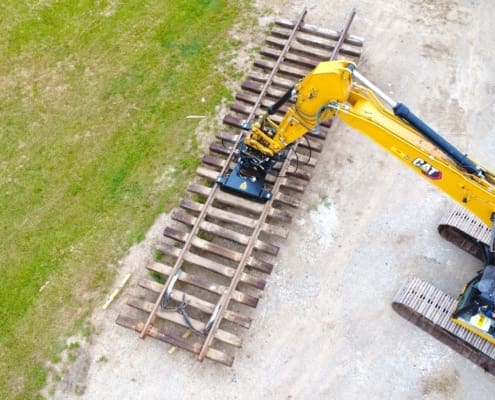

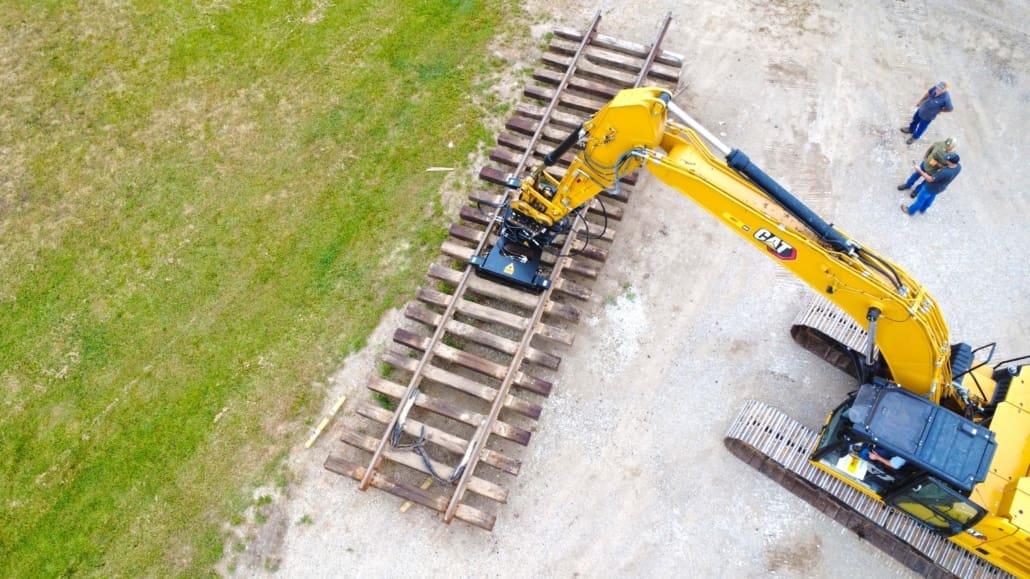

Integrated 180° rotation system
Full-width, 4-point flange lock for secure grip
AR500 wear strips for reduced maintenance
Hydraulic load-hold valves integrated into the locking system
Engineered to fit 25-36T excavators
Improved safety over traditional rail head-clamp designs
Built with Dymax durability for tough rail environments.

SPECIFICATIONS

Model / Group Number
Description
Weight (lbs)

DX-TPH-HY-180R-HX-25T / GN 8333D1a

Track Panel Handler-Hydraulic-180 degrees total rotation-Hydraulic Excavator-25 Ton

STANDARD FEATURES: Heavy-duty rotation drive system – 180 degree total / 90 degree max left and right – Hydraulic wedge-flange lock with integrated load checks for 115 lb, 132 lb, 141lb rail sizes – Designed for handling 39 ft railway track panel sections – Excavator adapter top with pins provided.

OPTIONS: Single-pin crane-mounted adapter

WEIGHT: 3,920 lbs

Design and specifications are subject to change without notice.

HYDRAULIC REQUIREMENTS

HYDRAULIC REQUIREMENTS: This attachment requires (2) circuits. Both are low-flow, medium-pressure, two-way flow valve styles. Rail grapple lock/unlock type: Two-way valve (auxiliary) GPM (min/max) – 10-20 GPM PSI (min/max) – 3,000 PSI. Rotate Positioner type: Two-way valve (auxiliary)GPM (min/max) – 8-12 GPM PSI (min/max) – 3,000 PSI.

NOT SUPPLIED: Jumper hose lines to the machine auxiliary connections.
