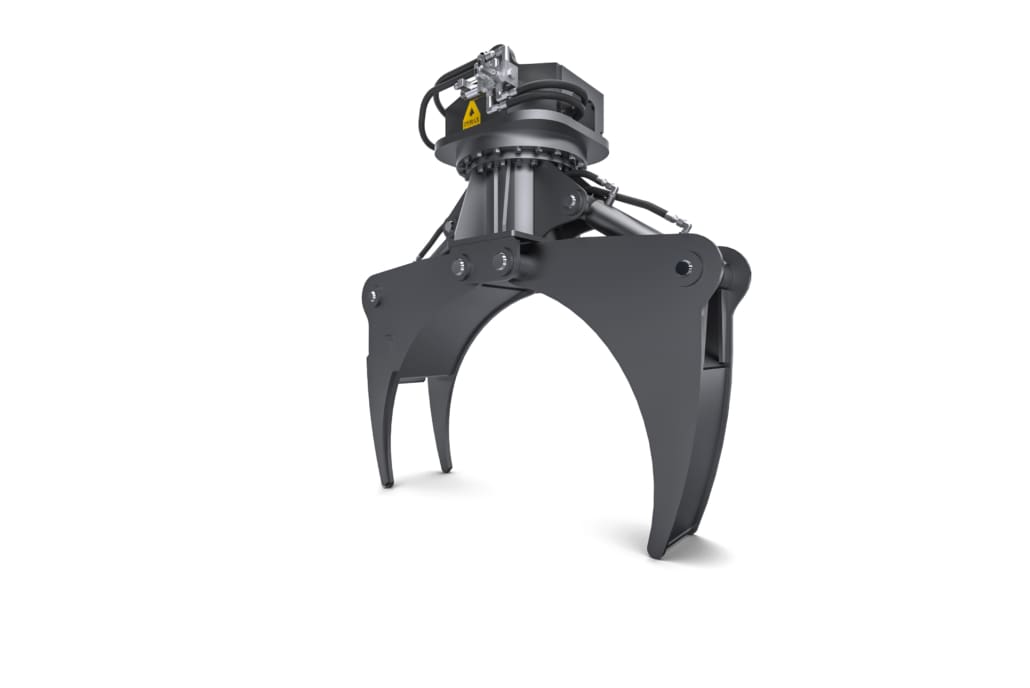

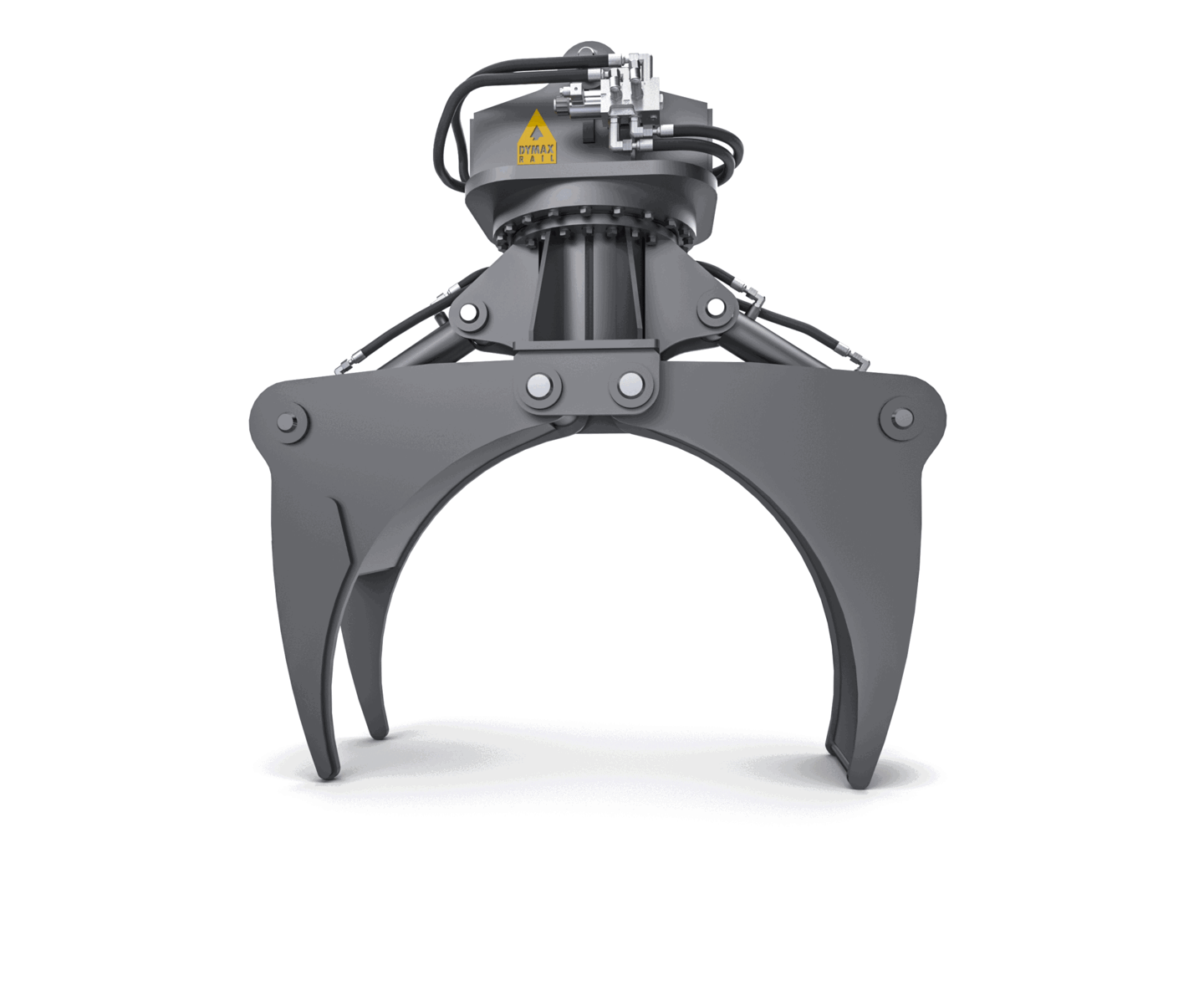

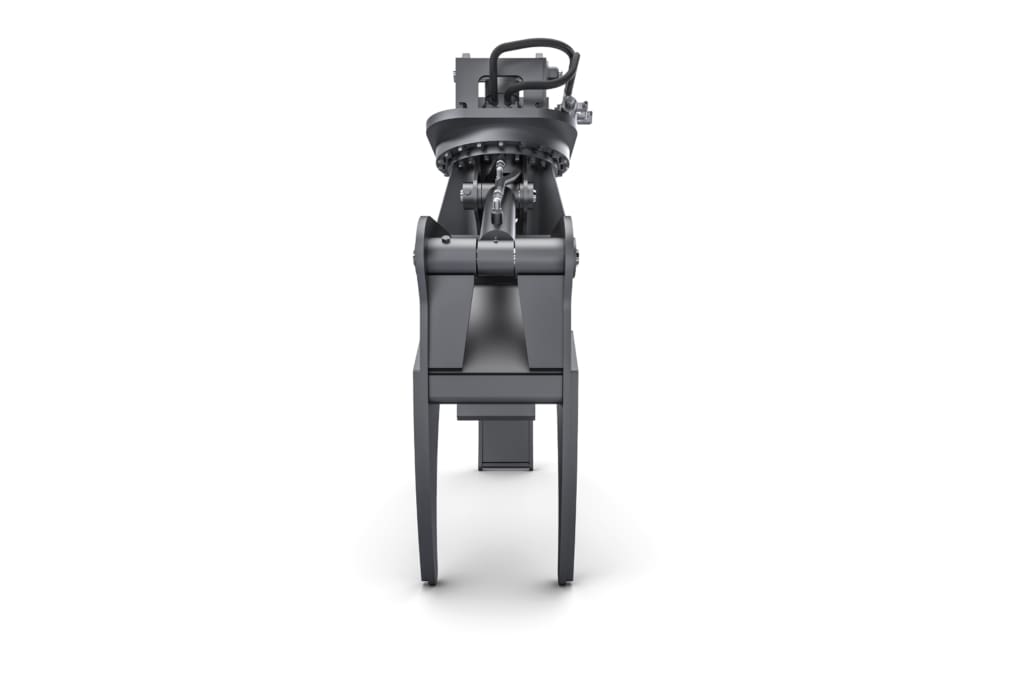

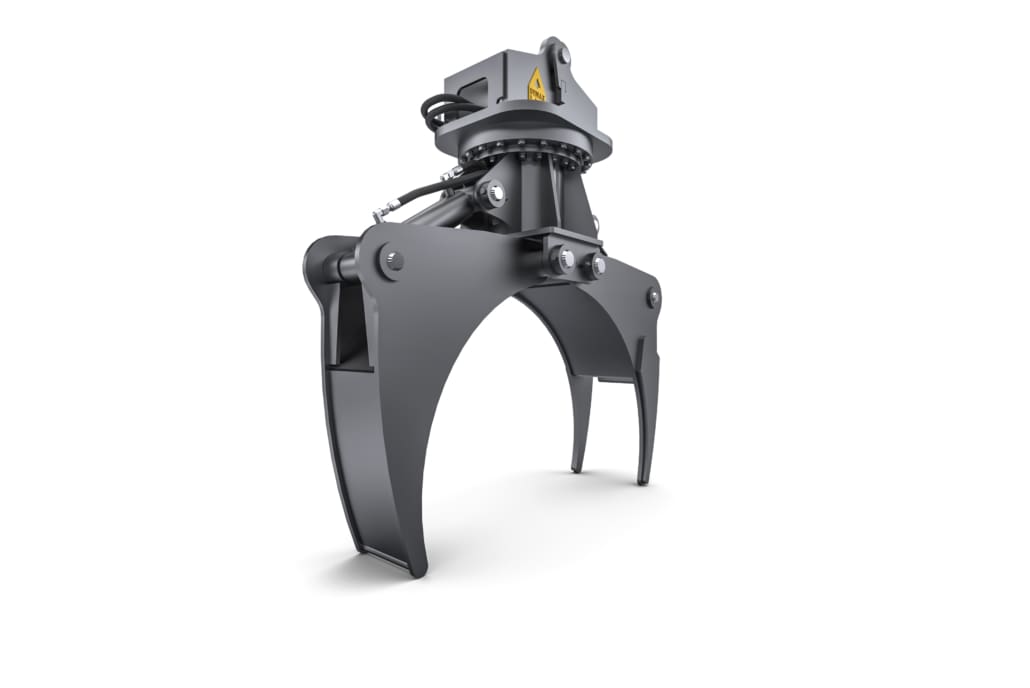

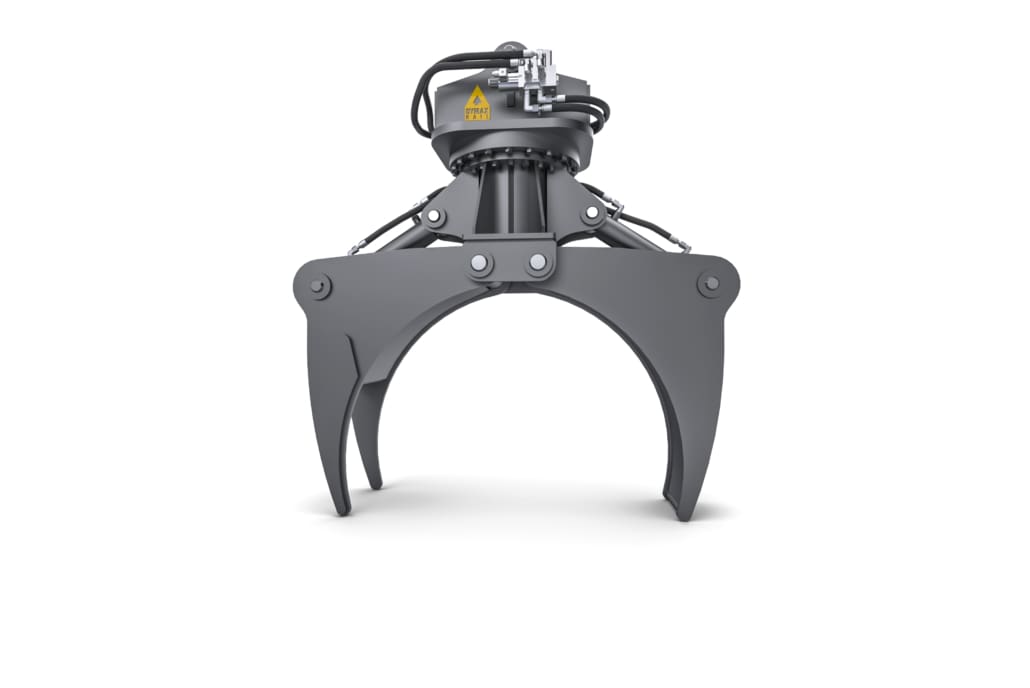

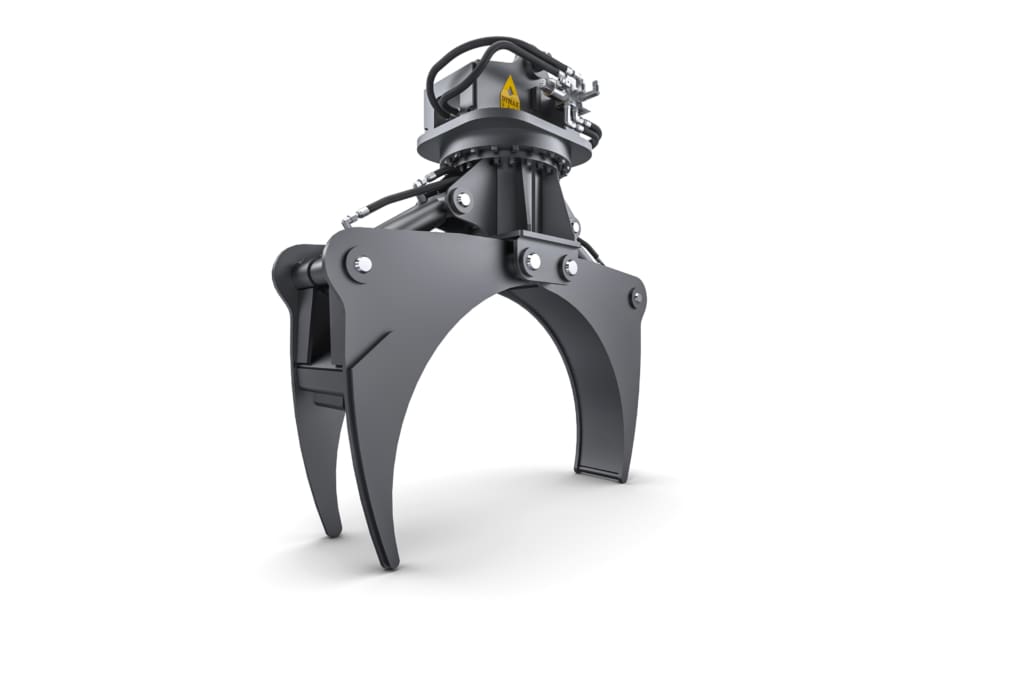

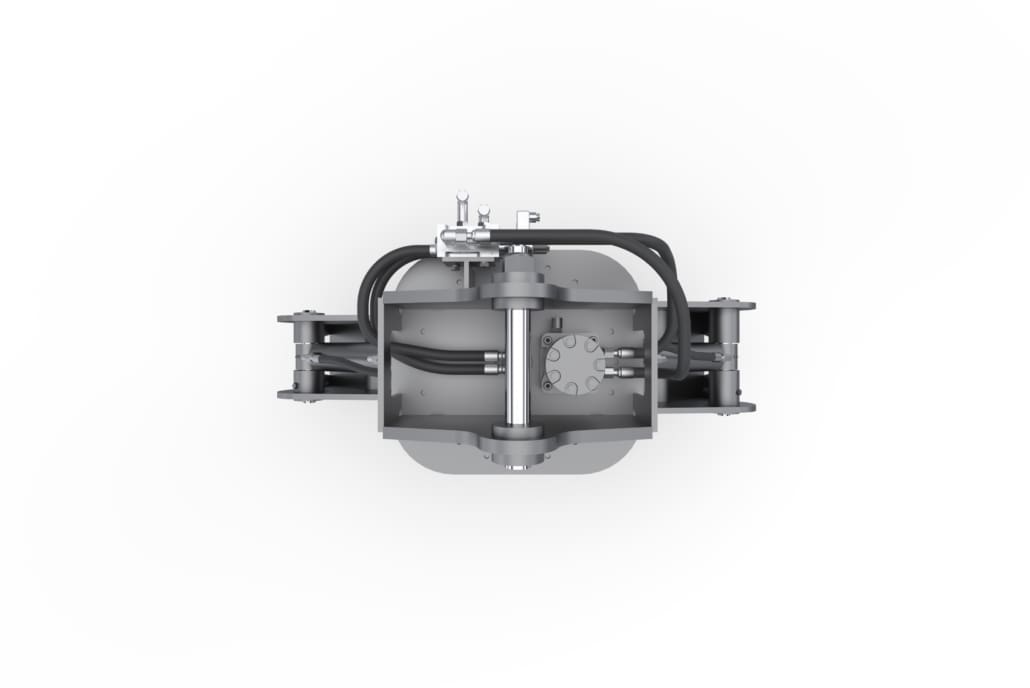

This grapple handles the full mix of railway material work, from tie bundles to brush, logs, and trackside debris. Bypass tines overlap as they close, so mixed and loose loads stay gripped instead of slipping through. High-strength pins and replaceable bushings hold up under demanding conditions.
SPECIFICATIONS
| Model Description Weight (lbs) |
| DX-GL-RMA-360-HX-13T Grapple-Railway Multiapplication-360 degrees rotation-Hydraulic Excavator-13 ton STANDARD FEATURES: – 360 rotation system; single drive motor with pinion – Twin grapples – 11×16 intersect design – Dual cylinders – 3.5×10 size – 24V electro diverter valve included, with wire kit provided – Replaceable bushings and ETD150 high-strength pins – Machine adapter with pins for fitting pin grab coupler or can be set up to pin to railroad cranes WEIGHT: 1880 lbs |
| DX-GL-RMA-360-HX-14T Grapple-Railway Multi Application-360 degrees rotation-Hydraulic Excavator-14 ton STANDARD FEATURES: – 360 rotation system; single drive motor with pinion – Twin grapples – 11×16 intersect design – Dual cylinders – 3.5×10 size – 24V electro diverter valve included with wire kit provided – Replaceable bushings and ETD150 high-strength pins – Machine adapter with pins for fitting pin grab coupler or can be set up to pin to railroad cranes WEIGHT: 1880 lbs |

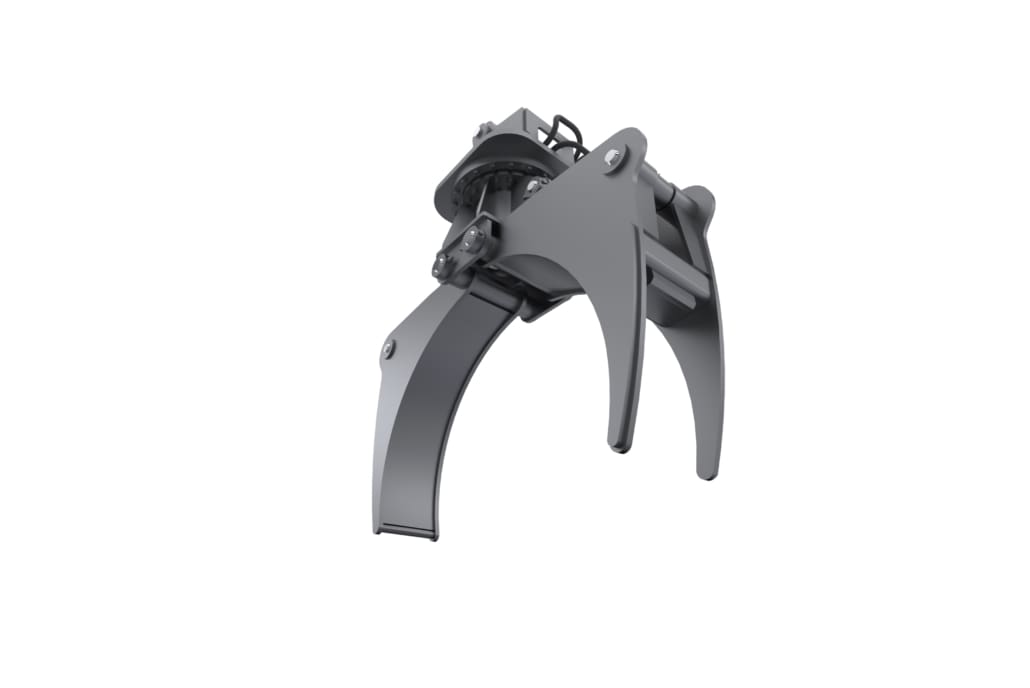

| DX-GL-RMA-TRQ-HX-14T Grapple-Railway Multi Application-Tilt Rotator Coupler-Hydraulic Excavator-14 ton STANDARD FEATURES: – Fits Tiltrotator couplers – Twin grapples – 11×16 intersect design – Dual cylinders – 3.5×10 size – Replaceable bushings and ETD150 high-strength pins – Machine adapter with pins for fitting pin grab coupler or can be set up to pin to railroad cranes WEIGHT: 1600 lbs |
Design and specifications are subject to change without notice.
HYDRAULIC REQUIREMENTS
| MODELS: DX-GL-RMA-360-HX-13T, DX-GL-RMA-360-HX-14T |
|
HYDRAULIC REQUIREMENTS: Your machine requires (1x) bi-directional circuit to operate. This grapple is provided with a 24V electro-hydraulic diverter valve kit. CIRCUIT1 – Grapple open/close CIRCUIT2 – Rotator NOT SUPPLIED: Jumper hose lines to the machine auxiliary lines. |
| MODELS: DX-GL-RMA-TRQ-HX-14T |
|
HYDRAULIC REQUIREMENTS: Your machine will require (1x) circuits for operation of the grapple (open and close) and the rotation system. CIRCUIT 1-Grapple NOT SUPPLIED: Not provided with jumper hose lines to the machine auxiliary lines |
| It handles a range of railway material work with one attachment: bundles of ties, single ties, brush, logs, and trackside debris. The bypass tines close around mixed and irregular loads, so crews move different materials without switching attachments. |
| Bypass tines overlap as the grapple closes, passing each other instead of meeting tip to tip. That leaves no gap for loose material to fall through, which is what lets one grapple hold a tie bundle as securely as a pile of brush. |
| The Rail Tie Crane Grapple is built for precise placement and stacking of one or two ties at a time. The Multi-Application Grapple handles a wider range of tasks – bundles of ties, brush, logs, and debris.
Choose the Tie Crane for tie-setting precision; this one for mixed material handling. |
