Tree shears, limb shears, and brush cutters — DymaxRail builds all three specifically for railroad and transit maintenance. Sized for 5T to 36T excavators and compatible with Rail Rider hi-rail systems.

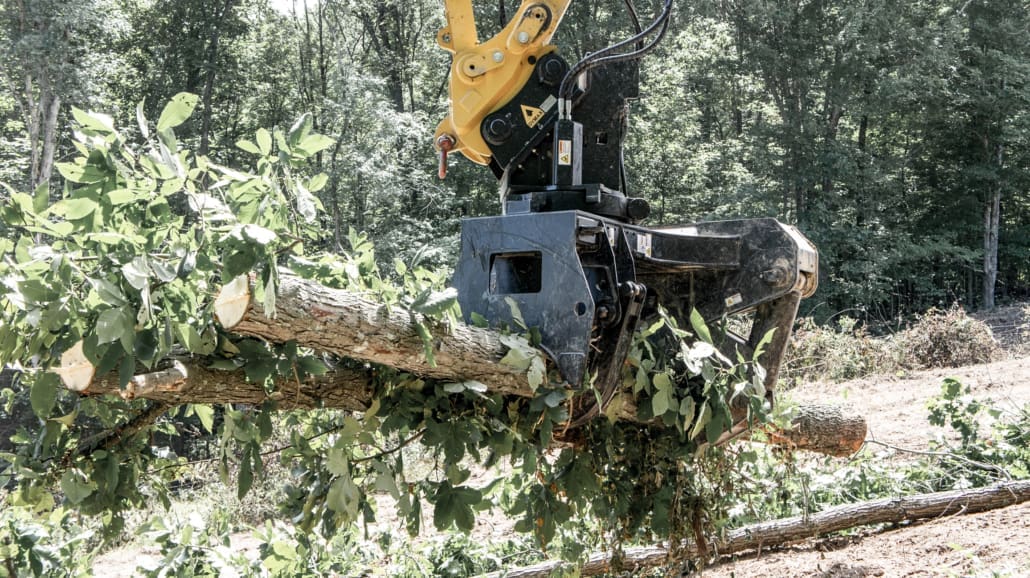

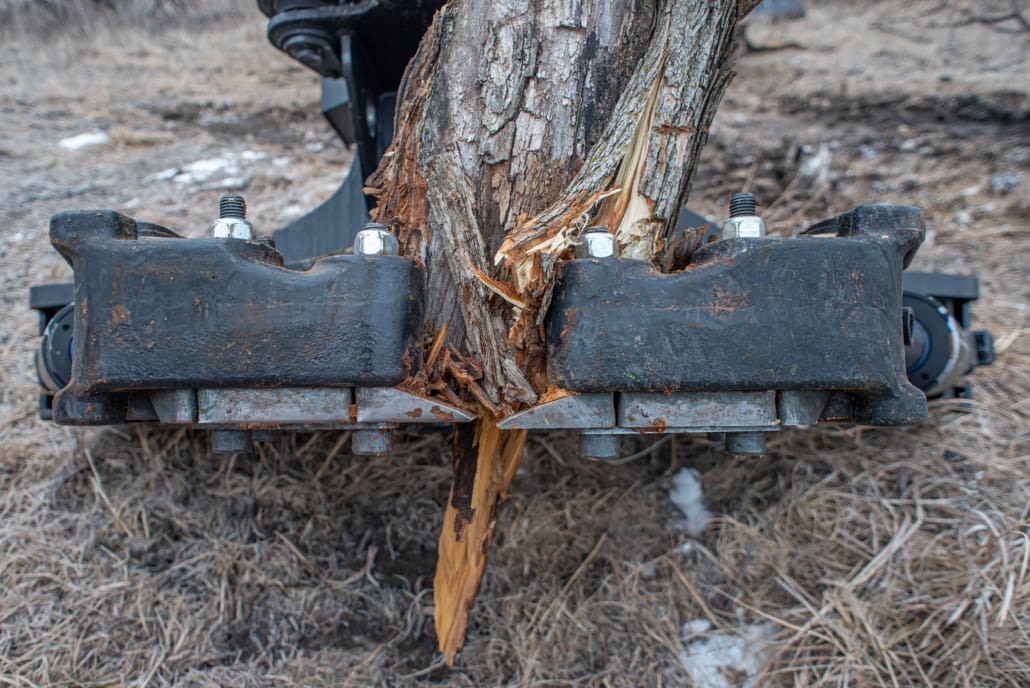

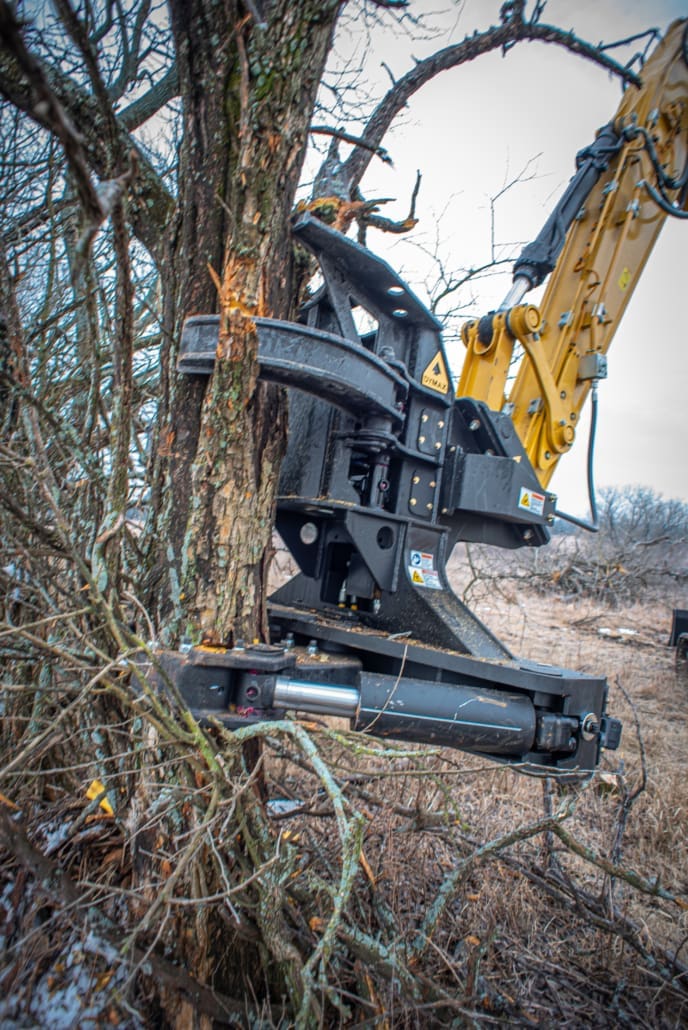

Cut, grab, and stack trees up to 21″ diameter without leaving the cab. Integrated grapples hold the trunk through the cut so the operator controls where it goes. Available with optional rotation for 5T to 36T excavators and backhoe loaders.

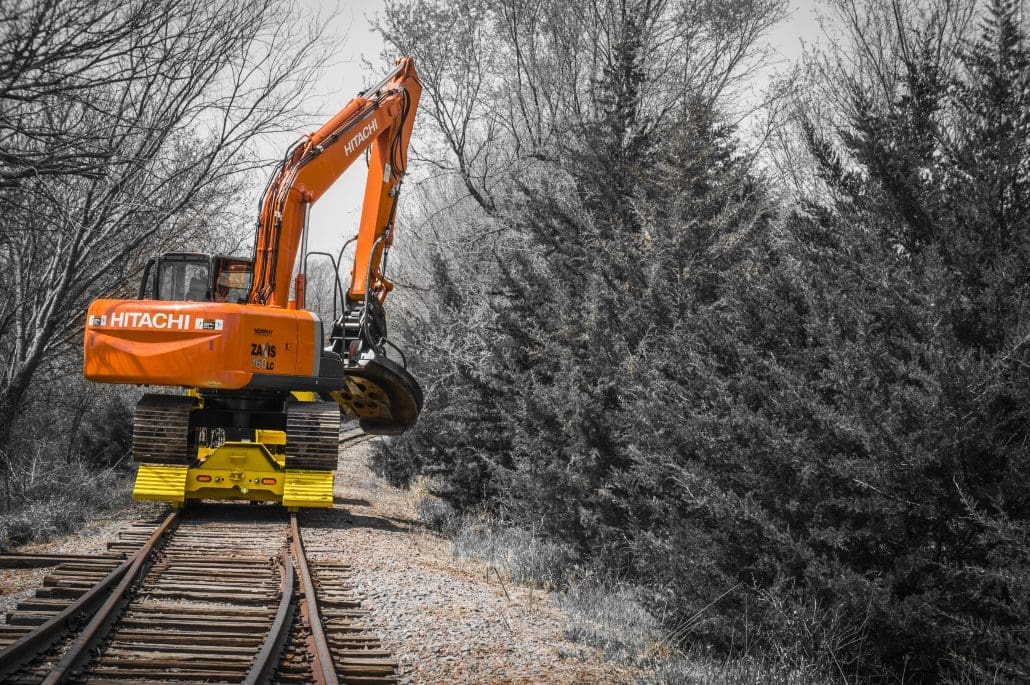

Strip overgrown brush back to the ballast shoulder in a single pass. The 60″ cutting head mulches brush and small trees up to 8″ diameter. 750-lb flywheel, three AR400 blades. Available for 20-30T excavators.
Reach limbs over catenary, along signal lines, and under bridges — all from the boom. 180° hydraulic rotation adjusts the cutting angle without repositioning the machine. Available in 8″ to 24″ capacities for excavators, backhoe loaders, and grapple trucks.
Rail corridors present three distinct vegetation problems, and each one calls for a different cutting tool.
Many MOW vegetation programs deploy two or three of these tools, often on the same excavator fleet equipped with DymaxRail Rail Rider hi-rail systems.
8" HPX TREE SHEAR MODELS
| Model Code Description Weight (lbs) |
| DX-TS-FG-HPX8-HX-5T
Tree Shear-Grapple-HPX Series 8 inch capacity-Hydraulic Excavator-5 Ton STANDARD FEATURES: 8 inch max capacity diameter (20cm), HPX frame group, 1/2 inch AR400 cutting knives 4.0×8.0 cylinder, Twin shear arms with single grapple, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 875 lbs |
| DX-TS-FG-HPX8-HX-6T
Tree Shear-Grapple-HPX Series 8-inch capacity-Hydraulic Excavator-6 Ton STANDARD FEATURES: 8 inch max capacity diameter (20cm), HPX frame group, 1/2 inch AR400 cutting knives, 4.0×8.0 cylinder, Twin shear arms with single grapple, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 875 lbs |
Design and specifications are subject to change without notice.
10" HPX TREE SHEAR MODELS
| Model Code Description Weight (lbs) |
| DX-TS-FG-HPX10-BL-10
Tree Shear-Grapple-HPX Series 10 inch capacity-Backhoe Loader-Class 10 STANDARD FEATURES: 10 inch max capacity diameter (30cm), HPX frame group, 5/8 inch AR400 cutting knives, 4.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Sequence valve standard, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 1565 lbs |
| DX-TS-FG-HPX10-BL-20
Tree Shear-Grapple-HPX Series 10 inch capacity-Backhoe Loader-Class 20 STANDARD FEATURES: 10 inch max capacity diameter (30cm), HPX frame group, 5/8 inch AR400 cutting knives, 4.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Sequence valve standard, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 1600 lbs |
| DX-TS-FG-HPX10-HX-8T
Tree Shear-Grapple-HPX Series 10 inch capacity-Hydraulic Excavator-8 Ton STANDARD FEATURES: 10 inch max capacity diameter (30cm), HPX frame group, 5/8 inch AR400 cutting knives, 4.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Sequence valve standard, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 1600 lbs |
| DX-TS-FG-HPX10-HX-11T
Tree Shear-Grapple-HPX Series 10 inch capacity-Hydraulic Excavator-11 Ton STANDARD FEATURES: 10 inch max capacity diameter (30cm), HPX frame group, 5/8 inch AR400 cutting knives, 4.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Sequence valve standard, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 1635 lbs |
| DX-TS-FG-HPX10-HX-12T
Tree Shear-Grapple-HPX Series 10 inch capacity-Hydraulic Excavator-12 Ton STANDARD FEATURES: 10 inch max capacity diameter (30cm), HPX frame group, 5/8 inch AR400 cutting knives, 4.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Sequence valve standard, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 1660 lbs |
| DX-TS-FGT-HPX10x180-HX-12T
Tree Shear-Grapple + Tilt-HPX Series 10 inch capacity x 180 degrees-Hydraulic Excavator-12 Ton STANDARD FEATURES: 10 inch max capacity diameter (30cm), HPX frame group, 5/8 inch AR400 cutting knives, 4.0×10.0 cylinders, 180 degree rotation system (total), Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Sequence valve standard, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 2210 lbs |
Design and specifications are subject to change without notice.
14" HPX TREE SHEAR MODELS
| Model Code Description Weight (lbs) |
| DX-TS-FG-HPX14-HX-12T
Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-12 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 2970 lbs |
| DX-TS-FGT-HPX14X60-HX-12T
Tree Shear-Grapple + Tilt-HPX Series 14 inch capacity x 60 degrees-Hydraulic Excavator-12 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 60 degree rotator; cylinder driven with slew ring, 3/4 inch AR400 cutting knives, 5.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Electro-hydraulic diverter valve kit for rotation systems operation, Rotator systems, if not quoted, Custom design solutions WEIGHT: 3300 lbs |
| DX-TS-FG-HPX14-HX-13T
Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-13 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 2970 lbs |
| DX-TS-FG-HPX14-HX-14T
Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-14 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 2970 lbs |
| DX-TS-FGT-HPX14x60-HX-14T
Tree Shear-Grapple + Tilt-HPX Series 14 inch capacity x 60 degrees-Hydraulic Excavator-14 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 60 degree rotator; cylinder driven with slew ring, 3/4 inch AR400 cutting knives, 5.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Electro-hydraulic diverter valve kit for rotation systems operation, Rotator systems, if not quoted, Custom design solutions WEIGHT: 3300 lbs |
| DX-TS-FG-HPX14-HX-15T
Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-15 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×10 cylinders Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 2970 lbs |
| DX-TS-FG-HPX14-HX-20T
Tree Shear-Grapple-HPX Series 14 inch capacity-Hydraulic Excavator-20 Ton STANDARD FEATURES: 14 inch max capacity diameter (36cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×10 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 3050 lbs |
Design and specifications are subject to change without notice.
16" HPX TREE SHEAR MODELS
| Model Code Description Weight (lbs) |
| DX-TS-FG-HPX16-HX-16T
Tree Shear-Grapple-HPX Series 16 inch capacity-Hydraulic Excavator-16 Ton STANDARD FEATURES: 16 inch max capacity diameter (41 cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×13 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 3448 lbs |
| DX-TS-FGT-HPX16X60-HX-16T
Tree Shear-Grapple + Tilt-HPX Series 16 inch capacity x 60 degrees-Hydraulic Excavator-16 Ton STANDARD FEATURES: 16 inch max capacity diameter (41cm), HPX frame group, 60 degree rotator; cylinder driven with slew ring, 3/4 inch AR400 cutting knives, 5.0×13 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Electro-hydraulic diverter valve kit for rotation systems operation, Custom design solutions WEIGHT: 4200 lbs |
| DX-TS-FGT-HPX16x97-HX-16T
Tree Shear-Grapple + Tilt-HPX Series 16 inch capacity x 97 degrees-Hydraulic Excavator-16 Ton STANDARD FEATURES: 16 inch max capacity diameter (41cm), HPX frame group, 97 degree rotator; cylinder driven with slew ring, 3/4 inch AR400 cutting knives, 5.0×13 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Electro-hydraulic diverter valve kit for rotation systems operation (DY90299 or DY90300, depends on machine. Also will need wiring kit DY164487), Custom design solutions WEIGHT: 4330 lbs |
| DX-TS-FG-HPX16-HX-18T
Tree Shear-Grapple-HPX Series 16 inch capacity-Hydraulic Excavator-18 Ton STANDARD FEATURES: 16 inch max capacity diameter (41 cm), HPX frame group, 3/4 inch AR400 cutting knives, 5.0×13 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions WEIGHT: 3698 lbs |
Design and specifications are subject to change without notice.

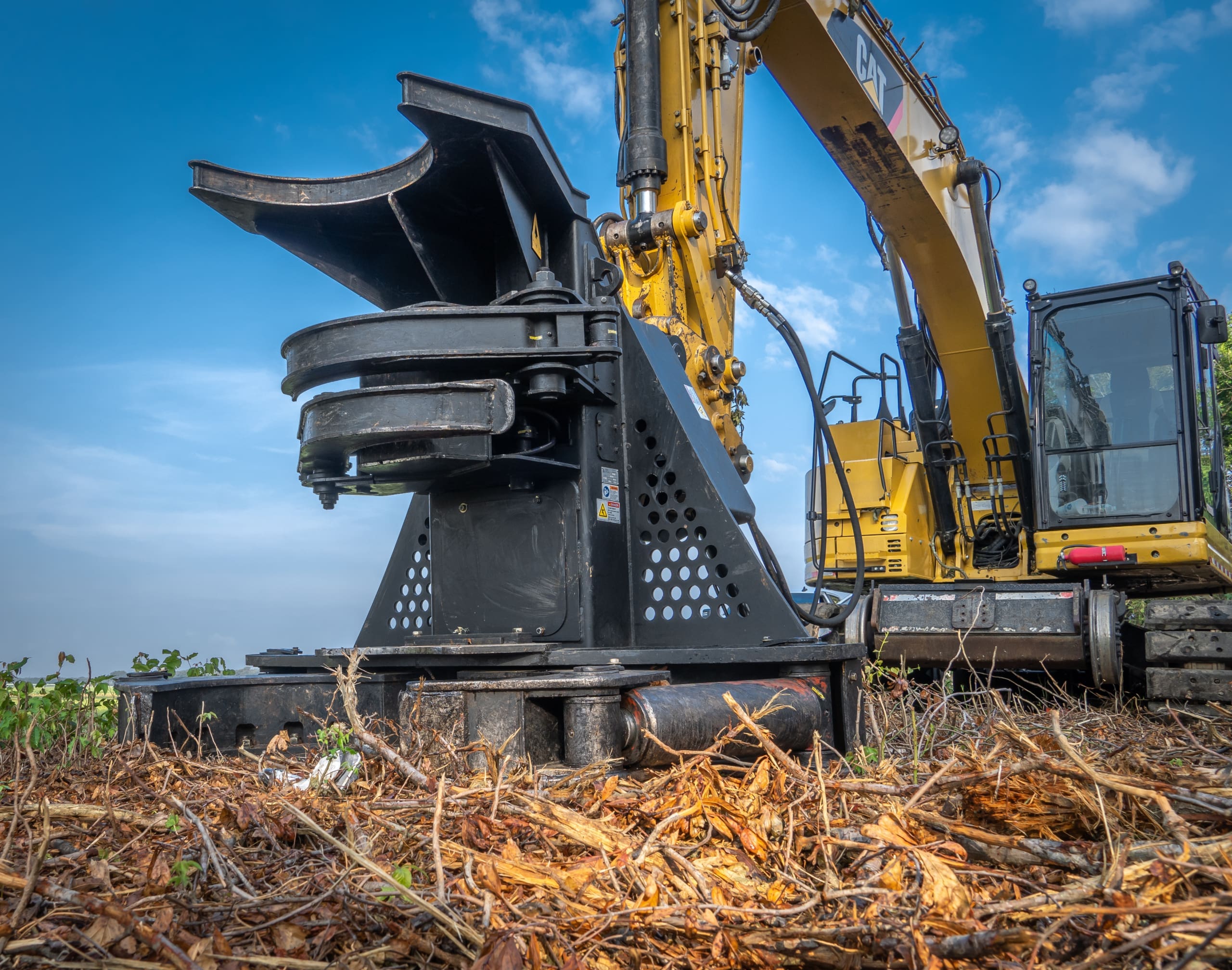

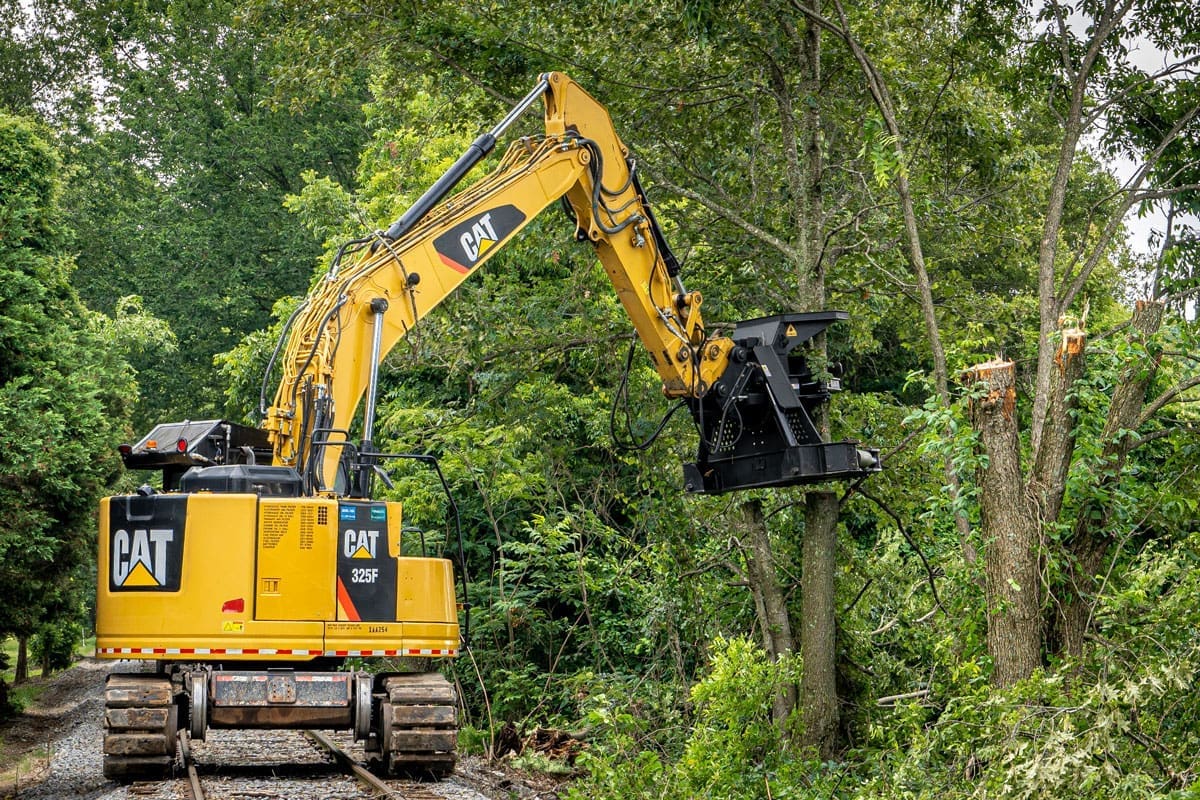

21" HPX TREE SHEAR MODELS
| Model Code Description Weight (lbs) |
| DX-TS-FG-HPX21-HX-25T
Tree Shear-Grapple-HPX Series 21 inch capacity-Hydraulic Excavator-25 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 1.25 inch AR400 cutting knives, 6.0×16 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions, 1.25 in thick cutting knives upgrade WEIGHT: 6280 lbs |
| DX-TS-FGT-HPX21x60-HX-25T
Tree Shear-Grapple + Tilt-HPX Series 21 inch capacity x 60 degrees-Hydraulic Excavator-25 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 60 degree rotator; cylinder driven with slew ring, 1.0 inch AR400 cutting knives, 6.0×16 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Electro-hydraulic diverter valve kit for rotation systems operation, Rotator systems if not quoted, 1.25 inch knife thickness upgrade, Custom design solutions WEIGHT: 6850 lbs |
| DX-TS-FG-HPX21-HX-30T
Tree Shear-Grapple-HPX Series 21 inch capacity-Hydraulic Excavator-30 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 1.00 inch AR400 cutting knives, 6.0×16 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Rotator systems if not quoted, Custom design solutions, 1.25 in thick cutting knives upgrade WEIGHT: 6320 lbs |
| DX-TS-FGT-HPX21x97-HX-30T
Tree Shear-Grapple + Tilt-HPX Series 21 inch cut capacity x 97 degrees total rotation-Hydraulic Excavator-30 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 97 degree rotator; twin cylinder driven with slew ring, Rotates left and right 48.5 degrees, 1.25 inch AR400 cutting knives DY50705, 6.0×16 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Electrohydraulic directional valve (DY25420), Universal Wiring Kit (DY164487) WEIGHT: 7450 lbs |
| DX-TS-FGT-HPX21x180-HX-30T
Tree Shear-Grapple + Tilt-HPX Series 21 inch capacity x 180 degrees-Hydraulic Excavator-30 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 180 degree rotator systems, 1.0 inch AR400 cutting knives, 6.0×16 cylinders, Twin shear arms with dual grapples, Chromed plated pivot pins and bushings, Bolted excavator head plate with adapter and pins OPTIONS: Grapple load check circuit, Electro-hydraulic diverter valve kit for rotation systems operation, Rotator systems if not quoted, Custom design solutions WEIGHT: 6966 lbs |
| DX-TS-FG-HPX21-HX-36T
Tree Shear-Grapple-HPX Series 21 inch capacity-Hydraulic Excavator-36 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 1.25 inch AR400 cutting knives, 6.0×16 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolt 303 excavator head plate with adapter and pins WEIGHT: 6420 lbs |
| DX-TS-FGT-HPX21x97-HX-36T
Tree Shear-Grapple + Tilt-HPX Series 21 inch cut capacity x 97 degrees total rotation-Hydraulic Excavator-36 Ton STANDARD FEATURES: 21 inch max capacity diameter (51cm), HPX frame group, 97 degree rotator; twin cylinder driven with slew ring, Rotates left and right 48.5 degrees, 1.25 inch AR400 cutting knives DY50705, 6.0×16 cylinders, Twin shear arms with dual grapples, Chrome-plated pivot pins and bushings, Bolted excavator head plate with adapter and pins WEIGHT: 7450 lbs |
Design and specifications are subject to change without notice.

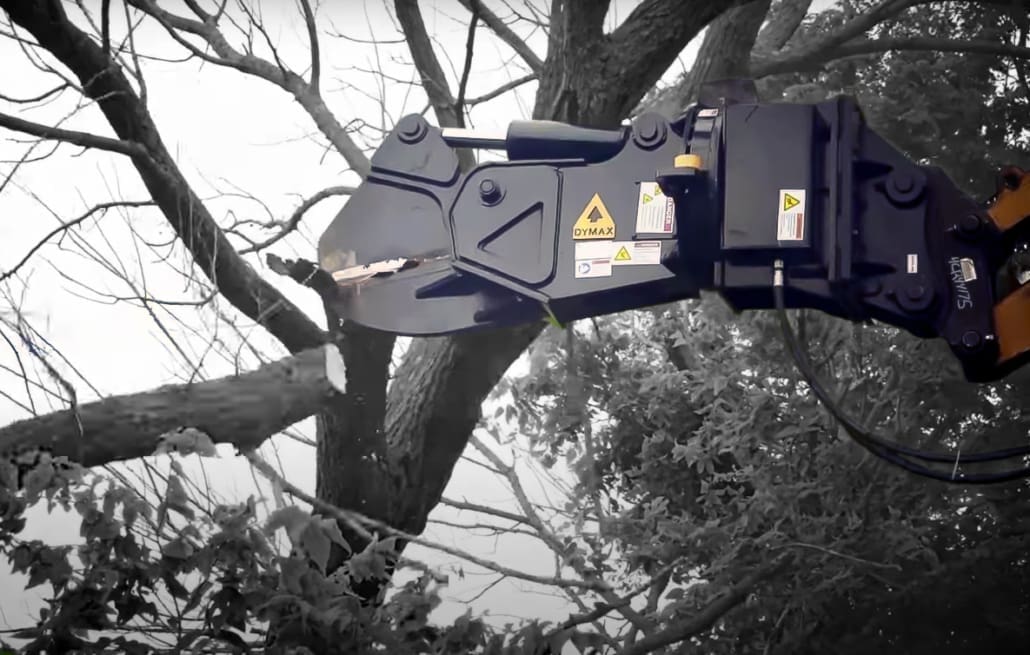

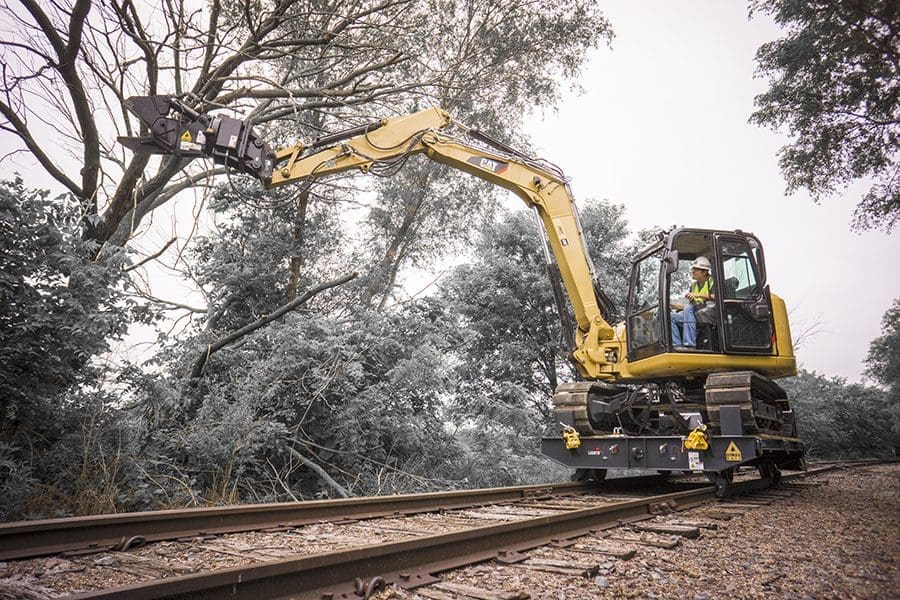

LIMB SHEAR MODELS
| Model Description Weight (lbs) |
| DX-TS-RLS-8in-HX-6TTree Shear-Limb Shear with 180 degrees rotation-8 inch cutting capacity-Hydraulic Excavator-6 Ton
For fitting 5-6T Excavators STANDARD FEATURES: Bolted interface machine adapter with pins, 8 inch max capacity diameter (20cm) Single knife bypass design, 4.0×8.0 hydraulic cylinder, 180° rotator positioner; pinion drive, Electro hydraulic diverter valve kit to power rotator WEIGHT: 785 lbs |
| DX-TS-RLS-10in-BL-10Tree Shear-Limb Shear with 180 degrees rotation-10 inch cutting capacity-Backhoe Loader-Class 10
STANDARD FEATURES: Bolted interface machine adapter with pins, 10 inch max capacity diameter (30cm), Single knife bypass design, 4.5×8 cylinder, 180° rotator positioner; pinion drive, Electro hydraulic diverter valve kit to power rotator WEIGHT: 1600 lbs |
| DX-TS-RLS-10in-HX-8TTree Shear-Limb Shear with 180 degrees rotation-10 inch cutting capacity-Hydraulic Excavator-8 Ton
STANDARD FEATURES: Bolted interface machine adapter with pins, 10 inch max capacity diameter (30cm), Single knife bypass design, 4.5×8 cylinder, 180° rotator positioner; pinion drive, Electro hydraulic diverter valve kit to power rotator WEIGHT: 1600 lbs |
| DX-TS-RLS-10inx360-GT-10Tree Shear-Limb Shear with 180 degrees rotation-10 inches wide x 360 degrees rotation-Grapple Truck-Class 10
STANDARD FEATURES: Single pin crane adapter with Baltrotor 360 Rotator (DY122151 style) for crane dangling applications, 10 inch max capacity diameter (30cm), Single knife bypass design, 4.50×8.00 cylinder WEIGHT: 840 lbs |
| DX-TS-RLS-14in-HX-20TTree Shear-Limb Shear with 180 degrees rotation-14 inch cutting capacity-Hydraulic Excavator-20 Ton
STANDARD FEATURES: Bolted interface machine adapter with pins, 14 inch max capacity diameter (36cm), Single knife bypass design, 6.0×10 cylinder, 180° rotator positioner; pinion drive, Electro hydraulic diverter valve kit to power rotator WEIGHT: 2800 lbs |
| DX-TS-RLS-20in-HX-36TTree Shear-Limb Shear with 180 degrees rotation-20 inch cutting capacity-Hydraulic Excavator-36 Ton
STANDARD FEATURES: Bolted interface machine adapter with pins, 20 inch max capacity diameter (51cm), Single knife bypass design, 8.0×16 cylinder, 180° rotator positioner; twin pinion drive, Electro hydraulic diverter valve kit to power rotator WEIGHT: 5800 lbs |
| DX-TS-RLS-24in-HX-25TTree Shear-Limb Shear with 180 degrees rotation-24 inches wide-Hydraulic Excavator-25 Ton
STANDARD FEATURES: Bolted interface machine adapter with pins, 24 inch max capacity diameter, Single knife bypass design, 8.0×16 cylinder, 180° rotator positioner; twin pinion drive, Electro hydraulic diverter valve kit to power rotator WEIGHT: 6300 lbs |
| DX-TS-LS-10in-BL-10
Tree Shear-Limb Shear without rotation-10 inch cutting capacity-Backhoe Loader-Class 10 STANDARD FEATURES: Welded top assembly supplied with pins, Serrated bypass jaw design, AR400 cutting knife, HD 4.50cyl x 8.00 stroke WEIGHT: 850 lbs |
| DX-TS-LS-10in-HX-8T
Tree Shear-Limb Shear without rotation-10 inch cutting capacity-Hydraulic Excavator-8 Ton STANDARD FEATURES: Welded top assembly supplied with pins, Serrated bypass jaw design, AR400 cutting knife, HD 4.50cyl x 8.00 stroke WEIGHT: 850 lbs |
| DX-TS-LS-14in-HX-14T
Tree Shear-Limb Shear without rotation-14 inch cutting capacity-Hydraulic Excavator-14 Ton STANDARD FEATURES: Welded top assembly supplied with pins, Serrated bypass jaw design, AR400 cutting knife, HD 6.00cyl x 10.00 stroke WEIGHT: 1750 lbs |
| DX-TS-LS-14in-HX-20T
Tree Shear-Limb Shear without rotation-14 inch cutting capacity-Hydraulic Excavator-20 Ton STANDARD FEATURES: Welded top assembly supplied with pins, Serrated bypass jaw design, AR400 cutting knife, HD 6.00cyl x 10.00 stroke WEIGHT: 1850 lbs |
| DX-TS-LS-20in-HX-36T
Tree Shear-Limb Shear without rotation-20 inch cutting capacity-Hydraulic Excavator-36 Ton STANDARD FEATURES: Bolted interface machine adapter with pins, 20 inch max capacity diameter (51cm), serrated bypass jaw design, AR400 cutting knife, 8.0×16 cylinder WEIGHT: 2500 lbs |
Design and specifications are subject to change without notice.

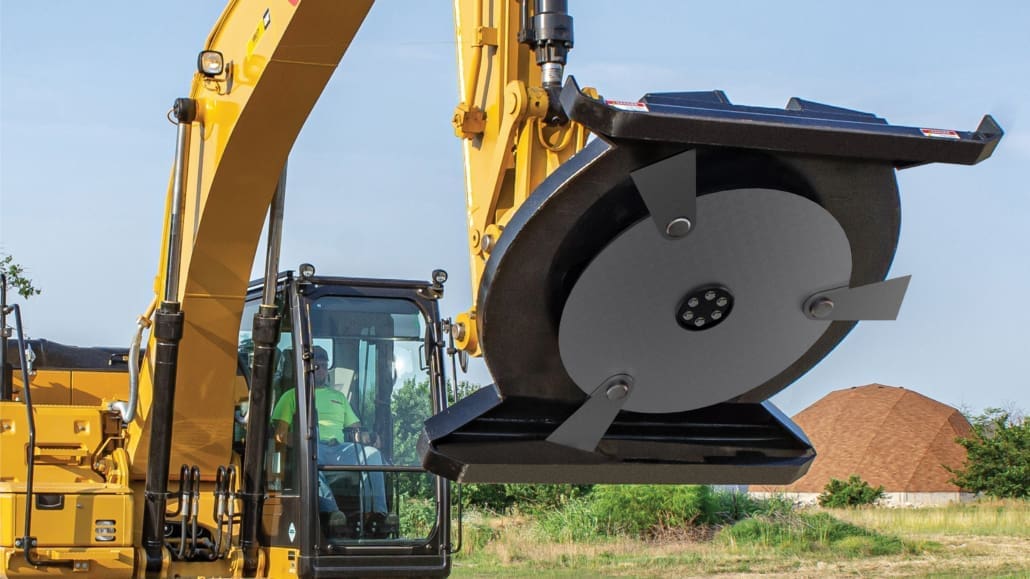

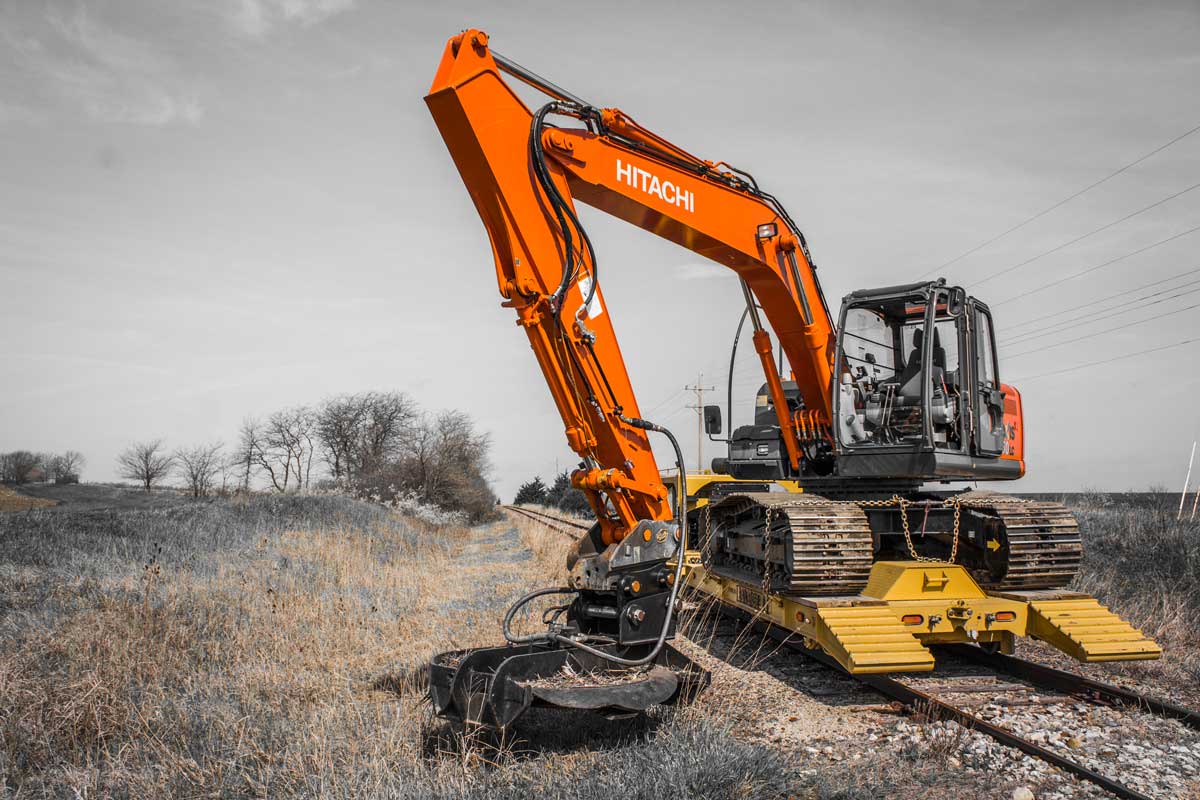

VORTEXMAX BRUSH CUTTER MODELS
| Model Code Description Weight |
|||
| DX-VT-MAX-60in-HX-20T
Vortex – Max – 60 inches wide – Hydraulic Excavator – 20 Ton STANDARD FEATURES: HD flywheel, (3X) AR400 cutting knives, 60 inches cutting width, up to 8 inch diameter capacity + mulching, Dymax Bolt 303 pattern. Machine adapter sold separately. Weight: 2850 lbs |
|||
| DX-VT-MAX-60in-HX-25T
Vortex – Max – 60 inches wide – Hydraulic Excavator – 25 Ton STANDARD FEATURES: HD flywheel, (3X) AR400 cutting knives, 60 inches cutting width, up to 8 inch diameter capacity + mulching, Dymax Bolt 303 pattern, machine adapter and pins. Weight: 2850 lbs |
|||
| DX-VT-MAX-60in-HX-30T
Vortex – Max – 60 inches wide – Hydraulic Excavator – 30 Ton STANDARD FEATURES: HD flywheel, (3X) AR400 cutting knives, 60 inches cutting width, up to 8 inch diameter capacity + mulching, Dymax Bolt 303 pattern, machine adapter and pins. Weight: 2850 lbs |
Design and specifications are subject to change without notice.
HYDRAULIC REQUIREMENTS
| HPX8 TREE SHEAR MODELS: DX-TS-FG-HPX8-HX-5T, DX-TS-FG-HPX8-HX-6T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation:
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 10-20, PSI (max) 3,000 NOT SUPPLIED: Not provided with jumper hose lines |
| HPX10 TREE SHEAR MODELS: DX-TS-FG-HPX10-HX-8T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 15-25, PSI (max) 3,000 NOT SUPPLIED: Not provided with lines to the machine auxiliaries. |
| HPX10 TREE SHEAR MODELS: DX-TS-FG-HPX10-BL-10, DX-TS-FG-HPX10-BL-20, DX-TS-FG-HPX10-HX-11T, DX-TS-FG-HPX10-HX-12T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 15-25, PSI (max) 3,500 NOT SUPPLIED: Not provided with lines to the machine auxiliaries. |
| HPX10 TREE SHEAR MODELS: DX-TS-FGT-HPX10x180-HX-12T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 15-25, PSI (max) 3,500 CIRCUIT 2 – Rotator Gear Drive 180, Type: Two Way + Drain Line Required, GPM (min/max) 8-10, PSI (max) 3,000 NOT SUPPLIED: Not provided with lines to the machine auxiliaries. |
| HPX14TREE SHEAR MODELS: DX-TS-FG-HPX14-HX-12T, DX-TS-FG-HPX14-HX-13T, DX-TS-FG-HPX14-HX-14T, DX-TS-FG-HPX14-HX-15T, DX-TS-FG-HPX14-HX-20T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 15-25, PSI (max) 3,500 NOT SUPPLIED: Not provided with lines to the machine auxiliaries. |
| HPX14TREE SHEAR MODELS: DX-TS-FGT-HPX14X60-HX-12T, DX-TS-FGT-HPX14x60-HX-14T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 20-30, PSI (max) 4,000 CIRCUIT 2 – Rotator, Cylinder Drive 60, Type: Two Way, GPM (min/max) 8-10, PSI (max) 3,000 NOT SUPPLIED: Not provided with jumper hose lines |
| HPX16TREE SHEAR MODELS: DX-TS-FG-HPX16-HX-16T, DX-TS-FG-HPX16-HX-18T |
| HYDRAULIC REQUIREMENTS: Your Machine will require a standard auxiliary for operation.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 20-30, PSI (max) 4,000 NOT SUPPLIED: Not provided with lines to the machine auxiliaries. |
| HPX16 TREE SHEAR MODELS: DX-TS-FGT-HPX16X60-HX-16T, DX-TS-FGT-HPX16x97-HX-16T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 20-30, PSI (max) 4,000 CIRCUIT 2 – Rotator, Cylinder Drive 60, Type: Two Way, GPM (min/max) 8-10, PSI (max) 3,000 NOT SUPPLIED: Not provided with jumper hose lines |
| HPX21 TREE SHEAR MODELS: DX-TS-FG-HPX21-HX-25T, DX-TS-FG-HPX21-HX-30T, DX-TS-FG-HPX21-HX-36T |
| HYDRAULIC REQUIREMENTS: Your Machine will require a standard auxiliary for operation.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 20-30, PSI (max) 4,000 NOT SUPPLIED: Not provided with lines to the machine auxiliaries. |
| HPX21 TREE SHEAR MODELS: DX-TS-FGT-HPX21x60-HX-25T, DX-TS-FGT-HPX21x180-HX-30T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 30-40, PSI (max) 4,000 CIRCUIT 2 – Rotator, Gear Drive 180, Type Two Way + Drain Line Required, GPM (min/max) 8-10, PSI (max) 3,000 NOT SUPPLIED: Not provided with jumper hose lines. |
| HPX21 TREE SHEAR MODELS: DX-TS-FGT-HPX21x97-HX-30T, DX-TS-FGT-HPX21x97-HX-36T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following 2x circuits for operation. If your machine has only 1 auxiliary circuit, please contact Dymax for pricing on electrohydraulic directional valves to power the rotate circuit.
CIRCUIT 1 – Shear/Grapple, Type: Two Way, GPM (min/max) 30-40, PSI (max) 4,000 CIRCUIT 2 – Rotator, Cylinder Drive 60, Type: Two Way, GPM (min/max) 8-10, PSI (max) 3,000 NOT SUPPLIED: Not provided with jumper hose lines. |
| LIMB SHEAR MODELS: DX-TS-RLS-8in-HX-6T, DX-TS-RLS-10in-BL-10, DX-TS-RLS-10in-HX-8T, DX-TS-RLS-14in-HX-20T, DX-TS-RLS-20in-HX-36T, DX-TS-RLS-24in-HX-25T |
| HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.
CIRCUIT 1 – Shear, Type: Two way, GPM (min/max) 15-25, PSI (max) 3,000 CIRCUIT 2 – Rotator 180 degree, Electro-hydraulic valve kit requires installation NOT SUPPLIED: Jumper hose lines |
| LIMB SHEAR MODELS: DX-TS-RLS-10inx360-GT-10 |
| HYDRAULIC REQUIREMENTS: Your machine will require the following circuits for operation.
CIRCUIT 1 – Shear, Type: Two way, GPM (min/max) 15-20, PSI (max) 3,000 CIRCUIT 2 – Rotator 360 degree, Type: Two way, GPM (min/max) 15-20, PSI (max) 3,000 NOT SUPPLIED: Jumper hose lines SPECIAL NOTE: If your machine only has 1 auxiliary circuit we can quote and provide a secondary solution, which is an electro-hydraulic valve to divert oil from the primary auxiliary function to power the rotator. |
| LIMB SHEAR MODELS: DX-TS-LS-10in-BL-10, DX-TS-LS-10in-HX-8T, DX-TS-LS-14in-HX-14T, DX-TS-LS-14in-HX-20T, DX-TS-LS-20in-HX-36T |
| HYDRAULIC REQUIREMENTS: Your machine will require a single auxiliary, bidirectional circuit.
CIRCUIT 1 – Shear / Flow, Type: Two Way, GPM (min/max) 15-25, PSI (max) 3,000 NOT SUPPLIED: Not provided with hose lines to machine. |
| VORTEXMAX BRUSH CUTTER MODELS: DX-VT-MAX-60in-HX-20T, DX-VT-MAX-60in-HX-25T, DX-VT-MAX-60in-HX-30T |
| HYDRAULIC REQUIREMENTS:
CIRCUIT 1 – Motor, Type One Way, GPM (min/max) 34-41, PSI (max) 3,500 NOT SUPPLIED: Not provided with jumper hoses or disconnects. |
Specifications are subject to change without notice.
| Yes. Tree shears mount to the boom using standard pin-on or coupler interfaces — the same way they’d mount to any excavator. Pair the excavator with a detachable hi-rail system like the DymaxRail Rail Rider and the machine travels on rail to the work site, clears vegetation from the track, and returns — no dedicated vegetation machine needed. DymaxRail builds both the hi-rail systems and the cutting attachments, so fitment and hydraulic compatibility are engineered together. Contact DymaxRail for a machine-specific recommendation. |
| Match the shear to the diameter of the trees you’re cutting and the size of your excavator. DymaxRail HPX tree shears cover five capacities: 8″ (5–6T excavators), 10″ (8–14T), 14″ (12–20T), 16″ (16–23T), and 21″ (25–36T). For mixed vegetation that includes brush alongside larger trees, many rail crews pair a tree shear with a VortexMax brush cutter on the same machine or a second machine in the same possession. Contact DymaxRail for sizing guidance based on your machine and corridor conditions. |
| Each tool handles a different tier of the vegetation problem. Tree shears cut, grab, and stack full-diameter trees (8″–21″). Rotating limb shears reach overhanging limbs in tight clearance zones — canopy clearing, along signal lines, under bridges — with 180° hydraulic rotation. Brush cutters (VortexMax) mulch undergrowth, saplings, and brush up to 8″ across a 60″ cutting width. Most rail vegetation programs use at least two of the three. Contact DymaxRail to match a lineup to your corridor conditions. |
| All DymaxRail HPX tree shears use AR400 abrasion-resistant cutting knives. Blade thickness scales with shear size: 1/2″ on the HPX8, 5/8″ on the HPX10, 3/4″ on the HPX14 and HPX16, and 1.0″ to 1.25″ on the HPX21. Blades are replaceable in the field. Contact DymaxRail for replacement blade pricing and lead times. |
| DymaxRail HPX tree shears are available with 60°, 97°, or 180° rotation, depending on model and excavator size. Rotation lets operators adjust the cutting angle without repositioning the machine — critical in rail work where track time is limited. Rotation models require a second hydraulic circuit; if your machine has only one auxiliary circuit, DymaxRail can quote an electro-hydraulic diverter valve solution. Contact DymaxRail with your machine make and model for a compatible configuration. |
