LOWBED EQUIPMENT MOVER

Go Anywhere. Haul Everything. Cranes, Excavators, Cement Trucks & More

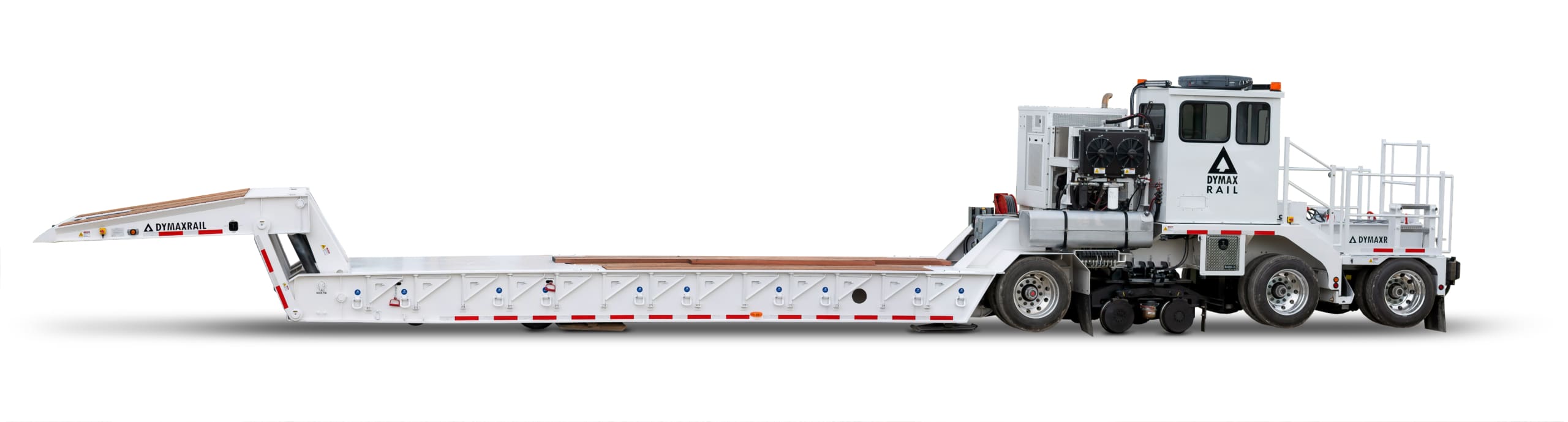

The DymaxRail Lowbed Equipment Mover is the ultimate solution for moving heavy machinery, track equipment and oversized loads. Haul up to 90 tons by road and rail.

1
2
3
4
5
6
7
1

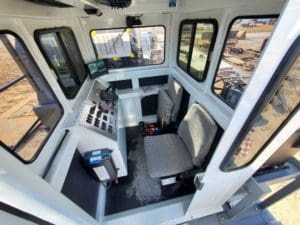

2 man climate controlled cab

2

Hydraulic drive railgear with rear lift and rotate bogie

3

26 ft. well.  90-ton on rail capacity.

4

Multi-position folding gooseneck ramp

5

Platform stabilizers

6

Heavy duty bogie with air brakes

7

Tag axle

Hover over the hot spots to learn about Lowbed features.

DEMONSTRATION VIDEO BROCHURE PRICING

SPECIFICATIONS

Group Number: 7333D2

Model Number: DX-TRLB-US2L-53x140HP-DMX-90TC

Description: Lowbed Transporter-US Hwy Spread Tandem Axle-53 feet long x 140  horsepower-DymaxRail-90 ton capacity

Weight: 55,500 lbs
STANDARD TRAILER GROUP: DY151280

  • On-rail capacity: 90 tons, 180,000 lbs
  • Main frame assembly features heavy-duty beam construction (DY151281)
  • (2x) DY129163 wheel assy; 255/70R 22.5 tires and aluminum rims
  • Rear tandem axle spread: 11 feet 6 inches
  • Folding hydraulic gooseneck (DY151279)
  • Overall length: 53 feet / 16.2m
  • Well length for equipment: 24 feet / 7.32m
  • Deck width: 8 feet 6 inches / 2.59m roading
  • Deck width rail: available with 8, 10, or 12 inch swing-out side outrigger choice (included)
  • Deck height off rail: 28 inches / 0.71m
  • Platform stabilizers: 4x hydraulic stabilizer legs for maximum stability on rail

CAB GROUP: DY151922

  • Cabin heater, air conditioner, and sliding window assembly
  • Standard wipers
  • Light bar group front and rear
  • Operator seats

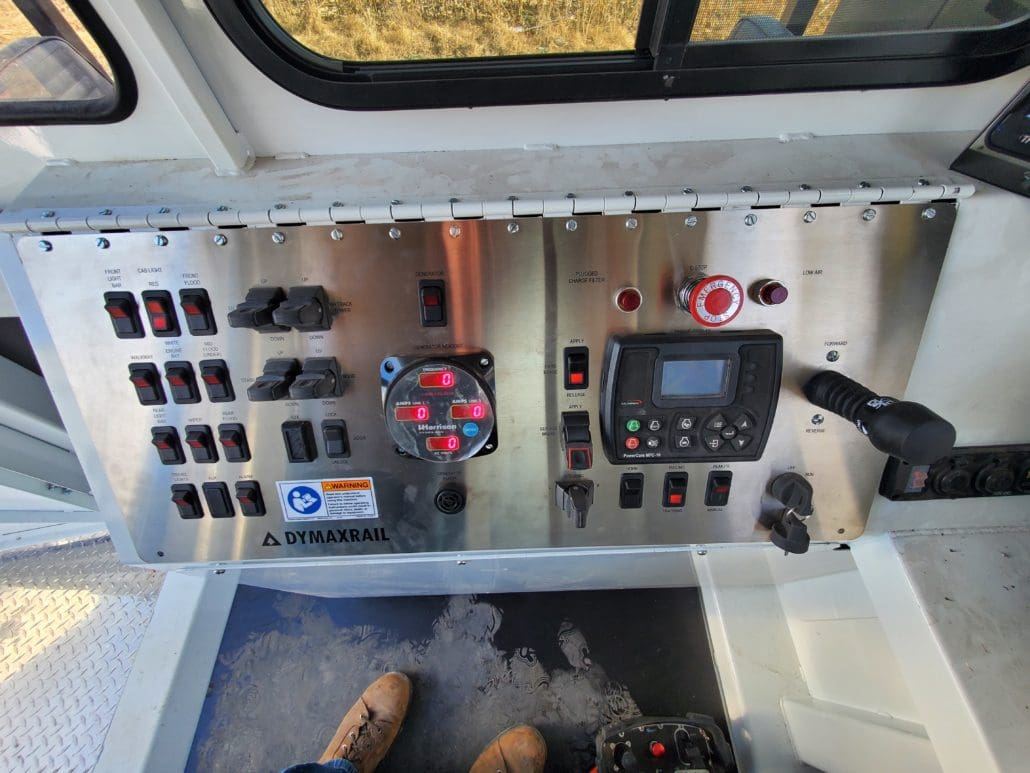

  • Built-in cab machine control panel

REMOTE CONTROL PACKAGE:

  • Includes 2 remotes with spare pelican-style case

POWER UNIT: DY150185

  • JCB 140-174HP power unit – T4F OR STAGE 5 (DY147217)
  • 00CC hydrostatic pump with secondary pump
  • Oil tank
  • Fuel tank 75 gallon
  • Hand tool hydraulic circuit with hose reel (50ft)
  • 4 camera system with cab display
  • Backup power unit for auxiliary power supply included

ACCESSORIES AND ADDITIONAL ITEMS:

  • Directional lighting package: red/white with LED spot lamps
  • Under frame curtain lighting package around both sides
  • Travel alarm
  • Rear pintle hitch / stowable design to fit in 53ft length
  • D-ring tie downs
  • Beacon lighting on cab
  • Fire extinguisher on outside frame near cab
  • E-stop button on ramp side
  • Air horn
  • Gladhands at both ends of trailer
  • 2 toolboxes on rear behind cab and engine
  • Hand tool hydraulic circuit with hose reel (50ft)
  • 4 camera system with cab display
  • Backup power unit for auxiliary power supply included
OPTIONS:

  • 55-ton capacity model for smaller machinery
  • Tag Axle Model (DX-TRLB-OPT-TAGAXLE-DMX-90TC)
  • Winch
  • 115-inch frame width
  • Auxiliary power unit
  • Work Crane
  • Paint Colors: Red, White, Black
  • Train Car Knuckle and air brake kit for towing traditional railcars

Design and specifications are subject to change without notice. Contact DymaxRail for more information.

GALLERY

PreviousNext
12345678910

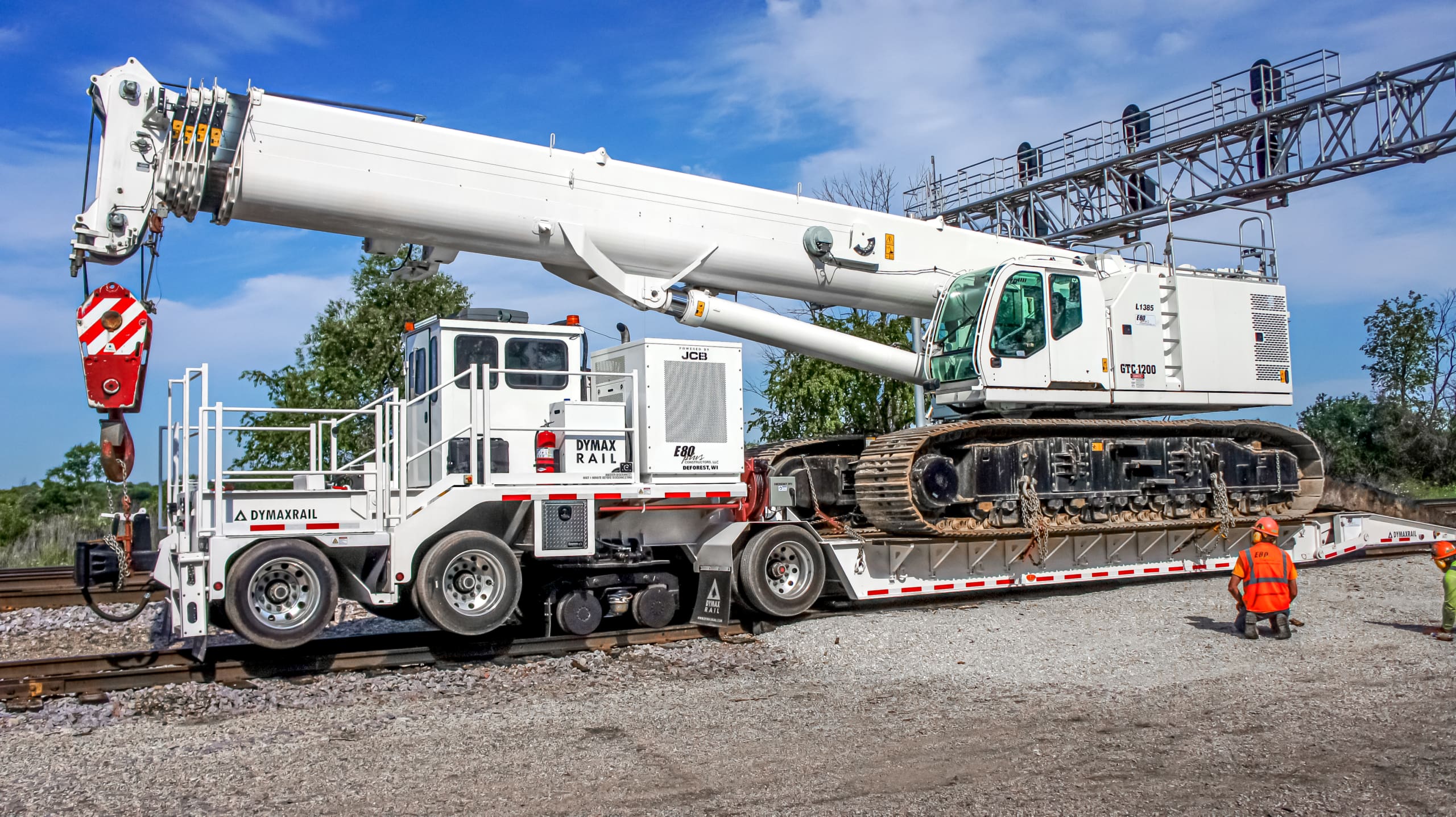

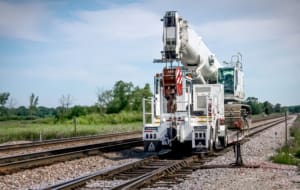

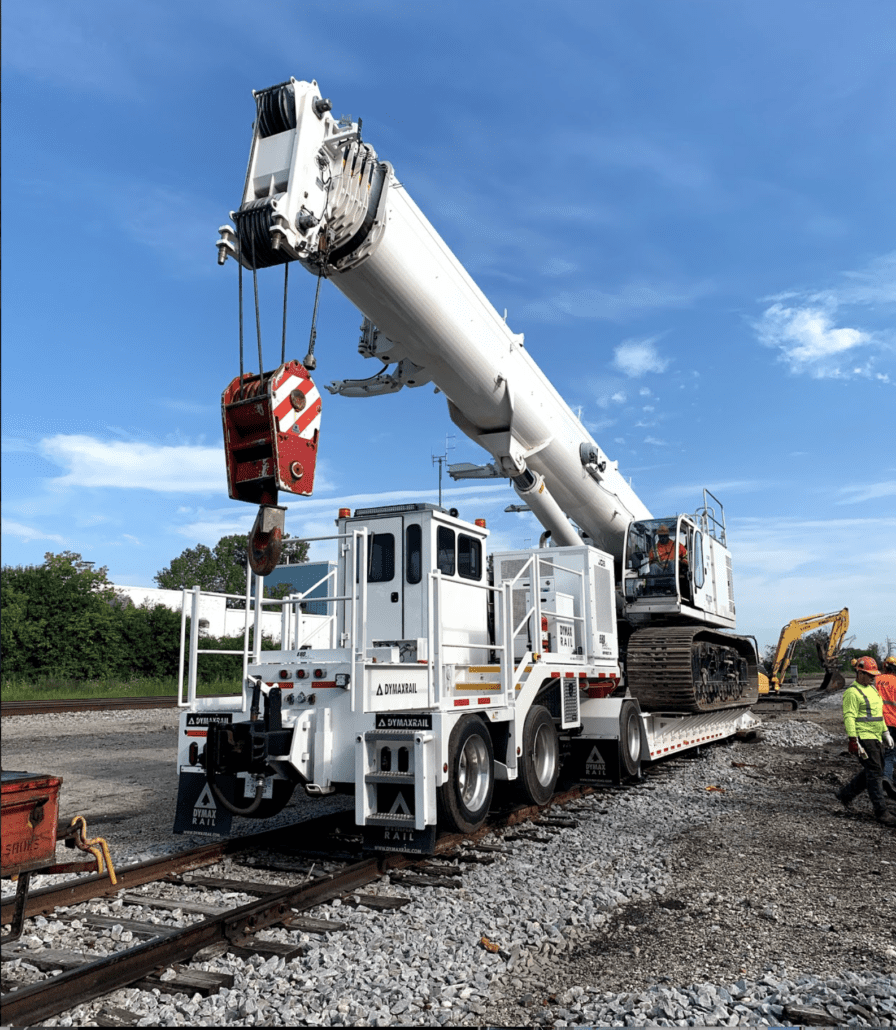

DymaxRail 90-ton lowbed equipment mover transporting crane on railroad track
