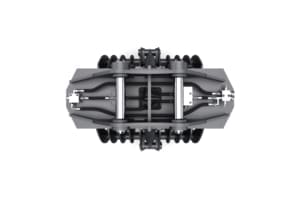

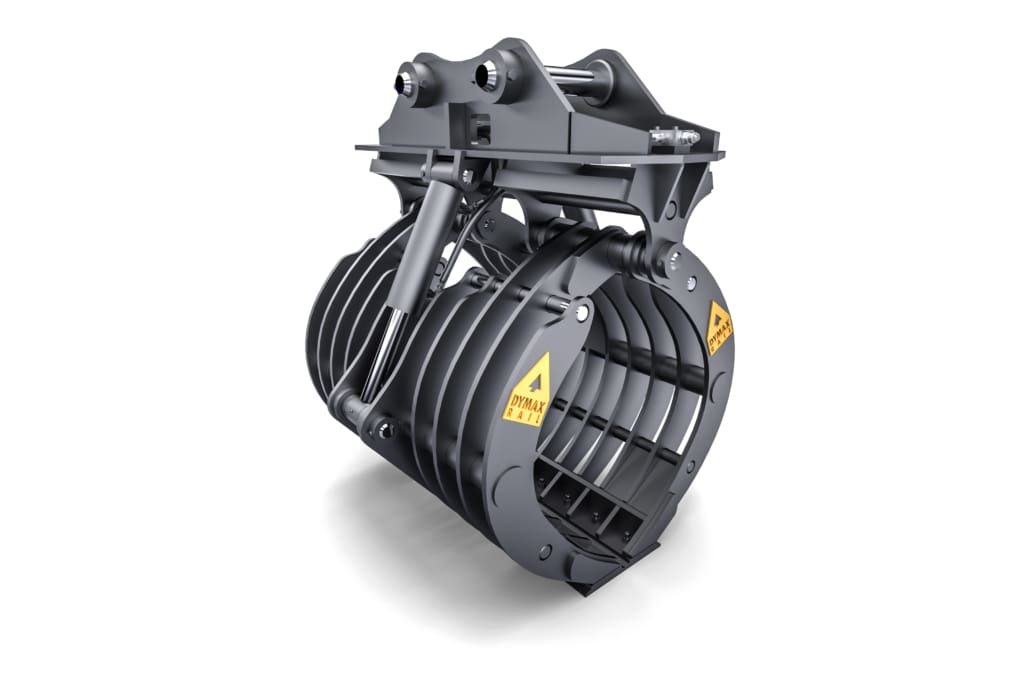

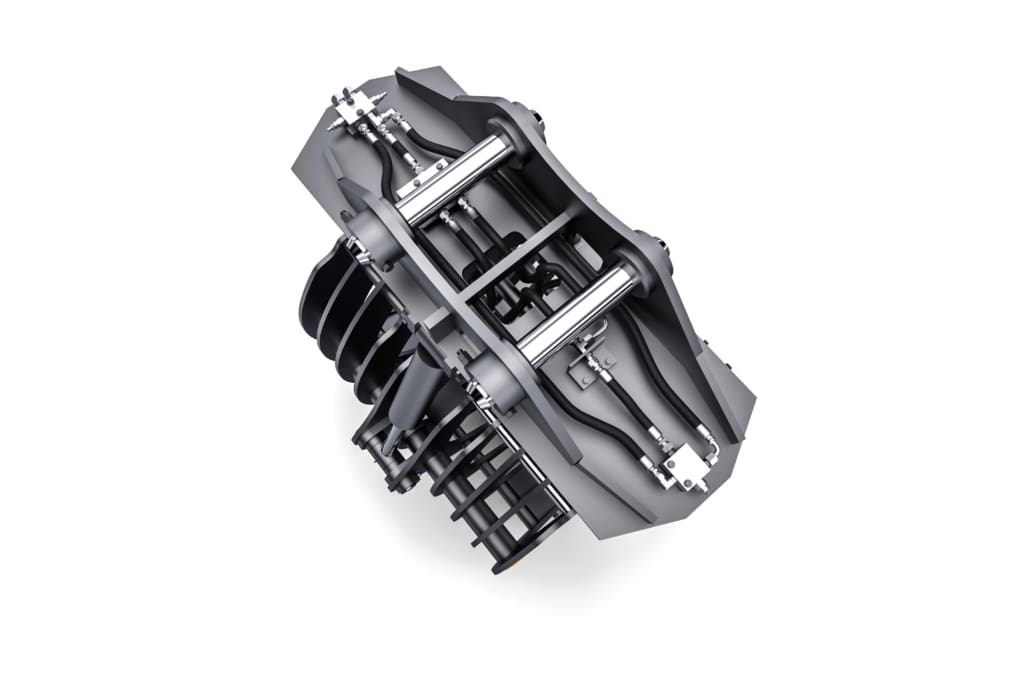

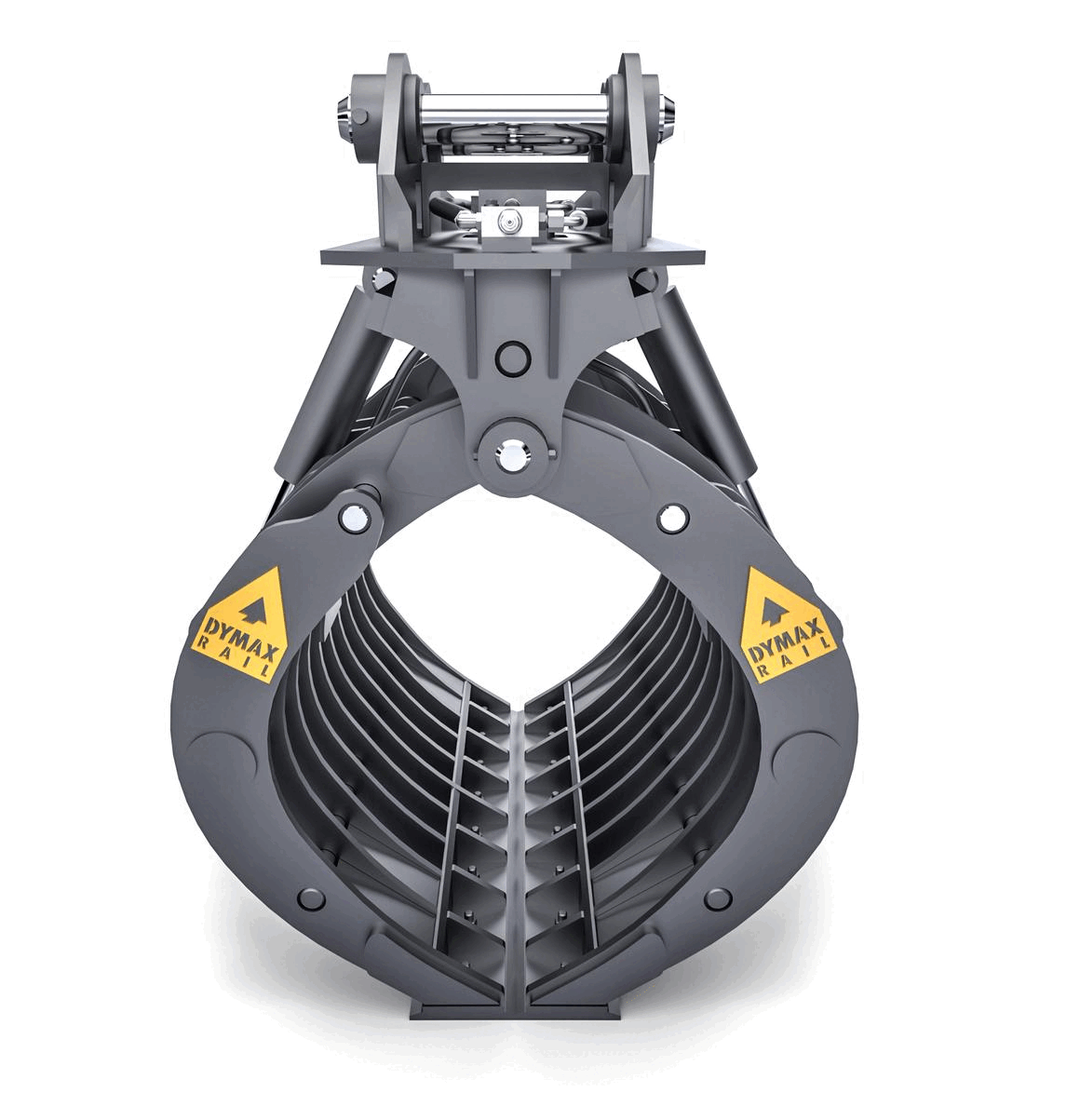

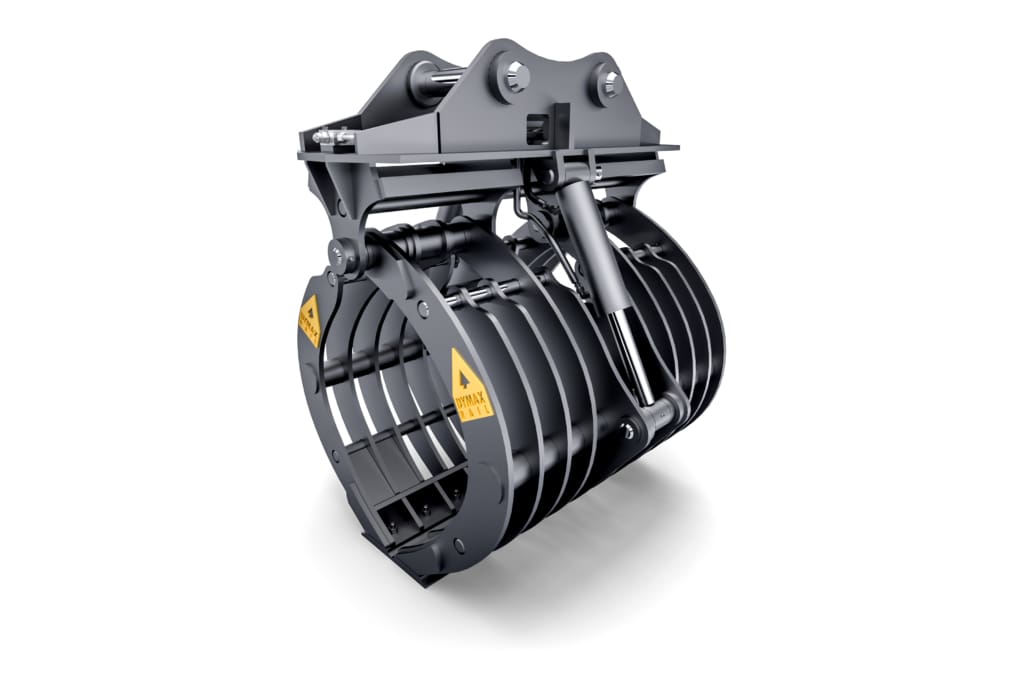

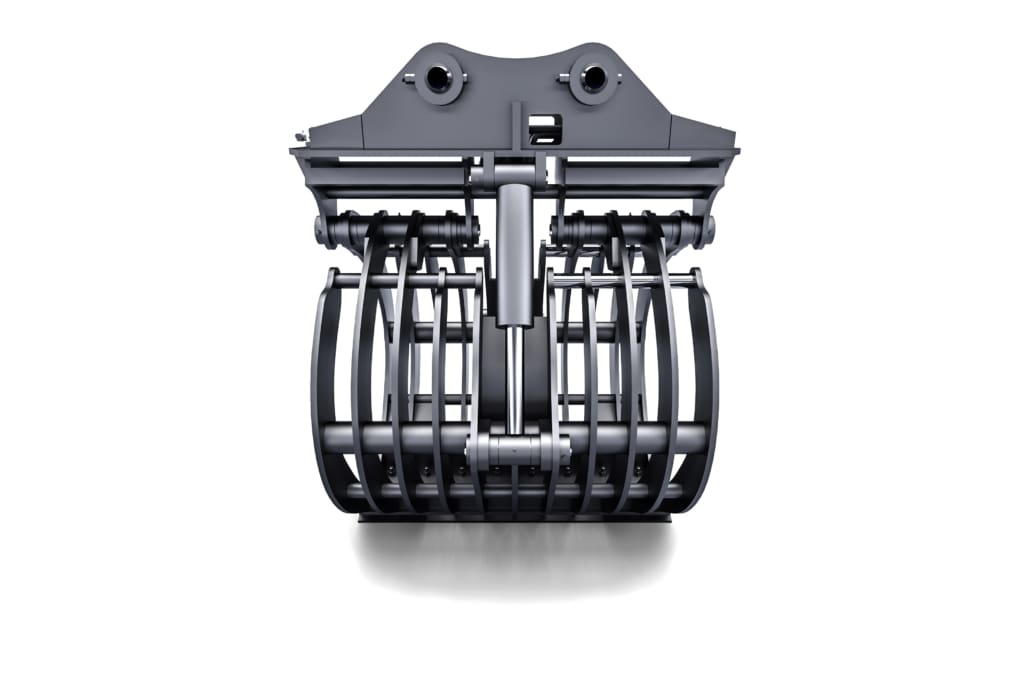

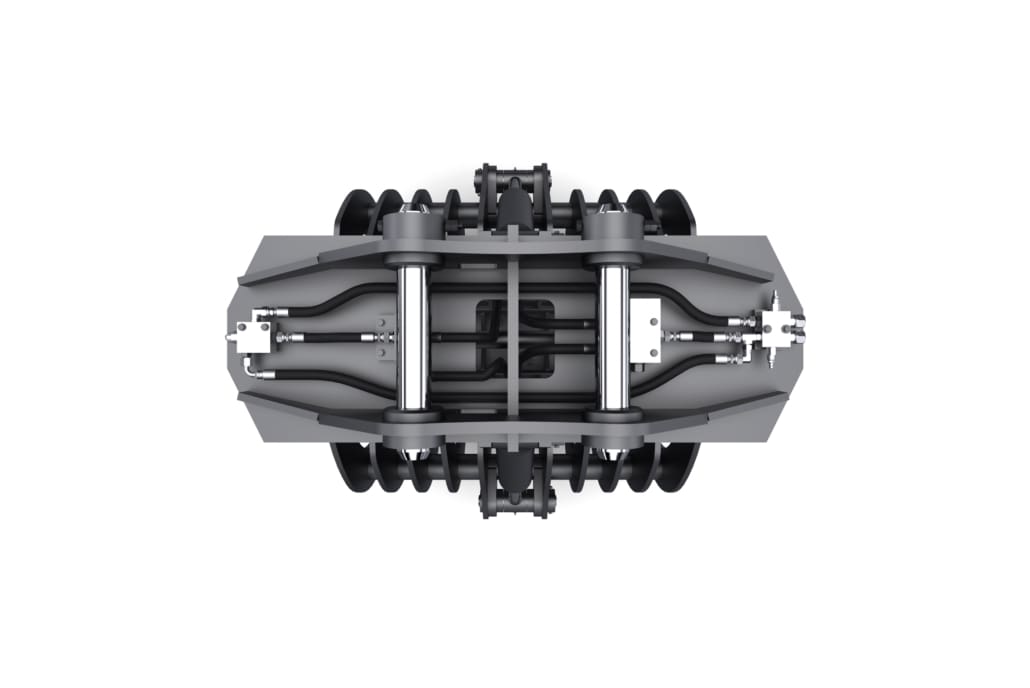

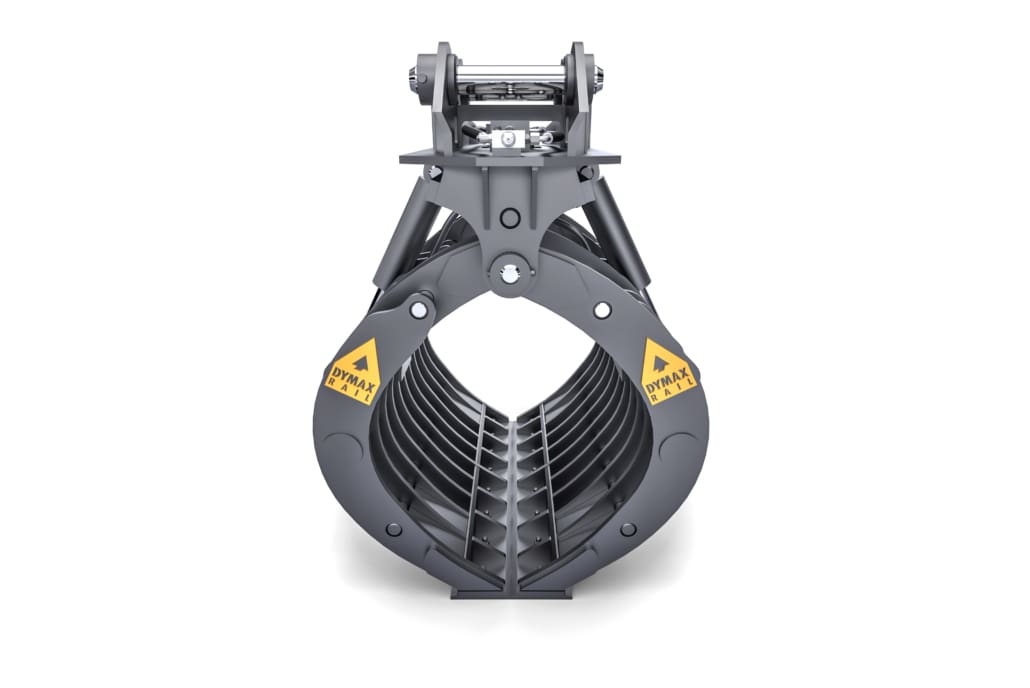

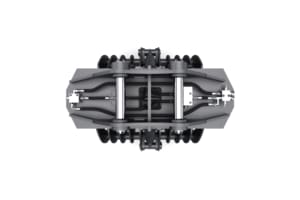

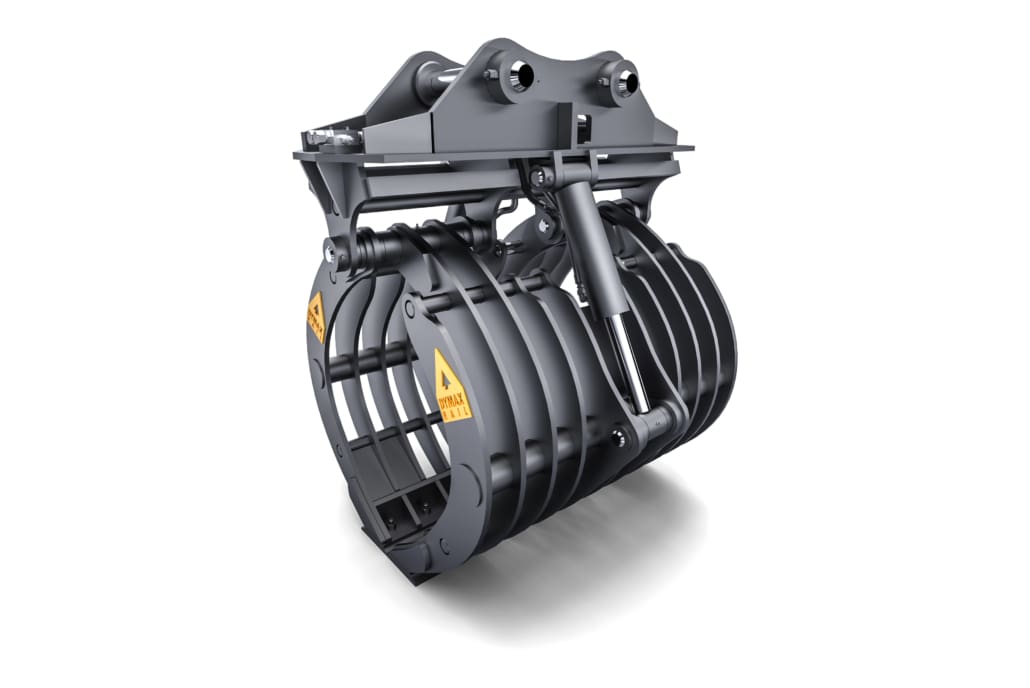

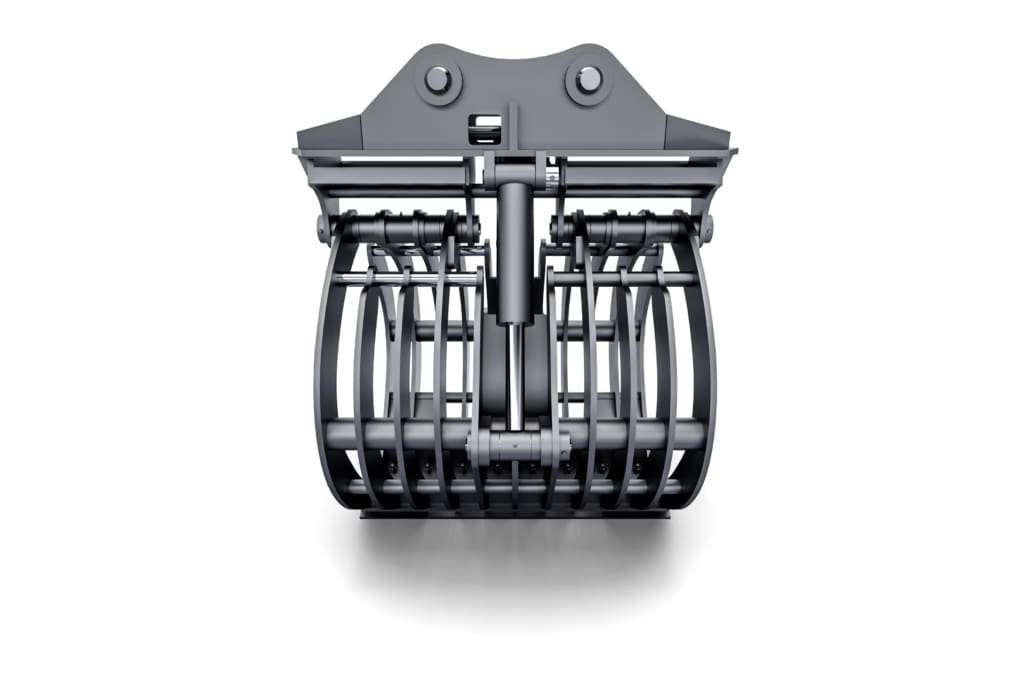

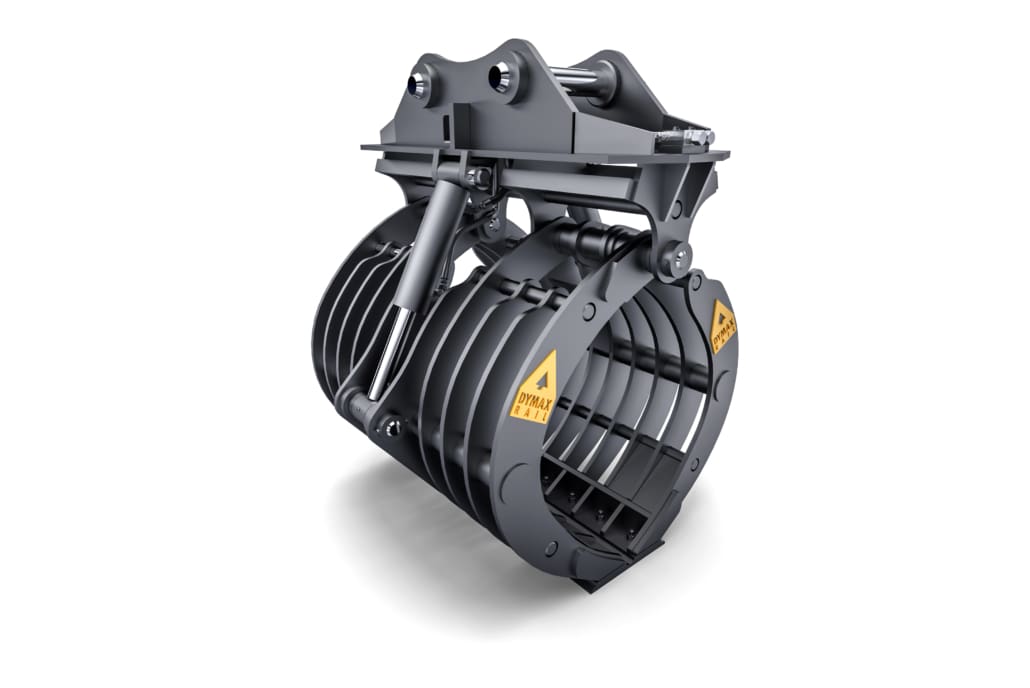

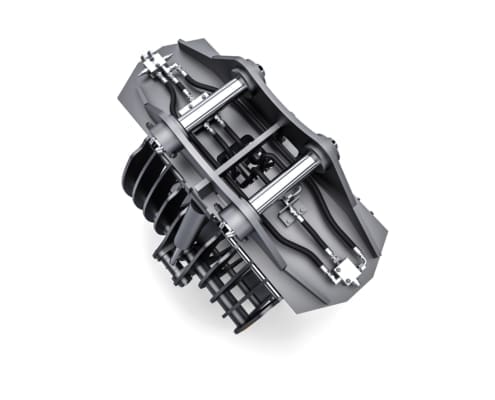

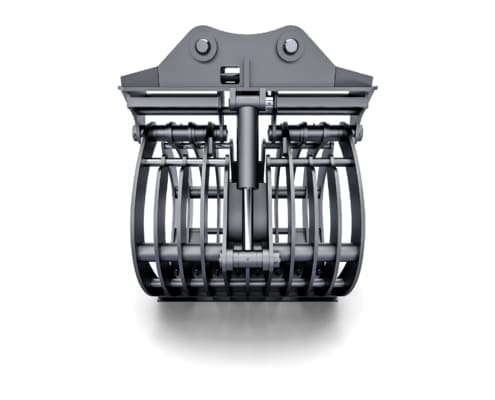

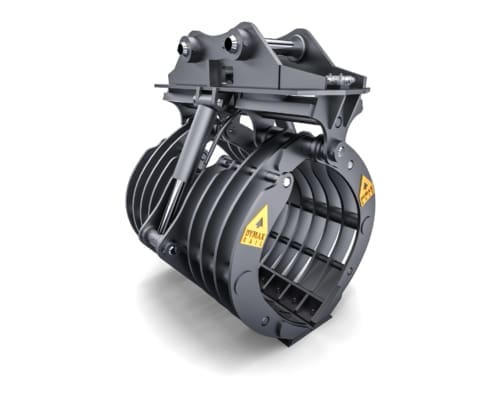

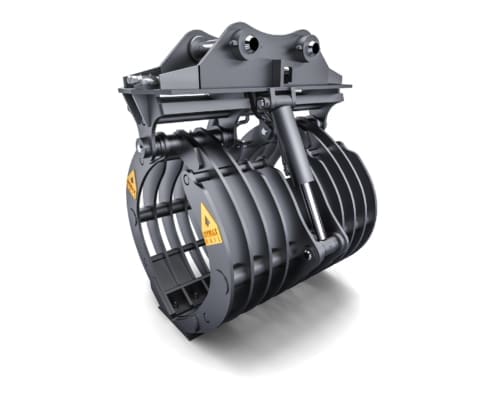

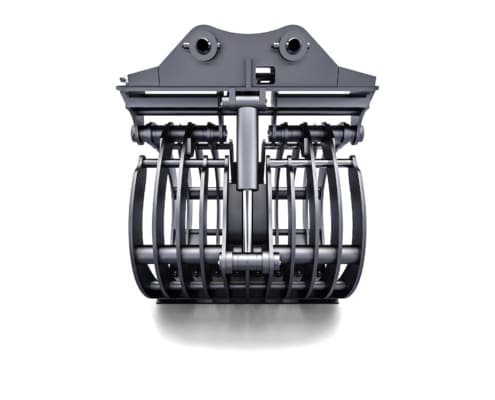

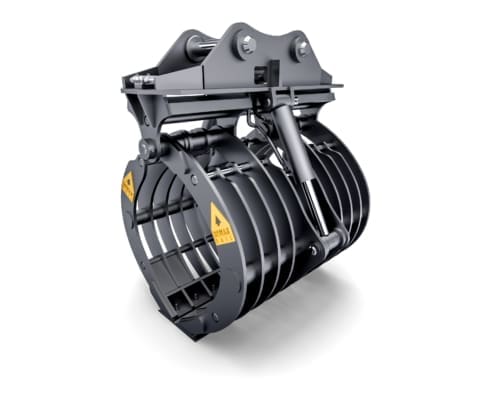

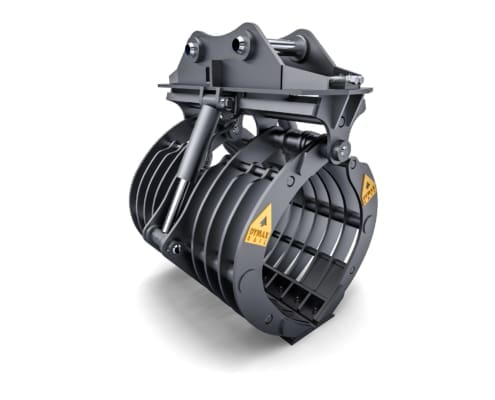

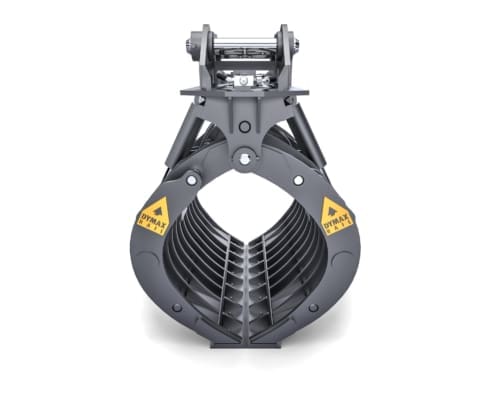

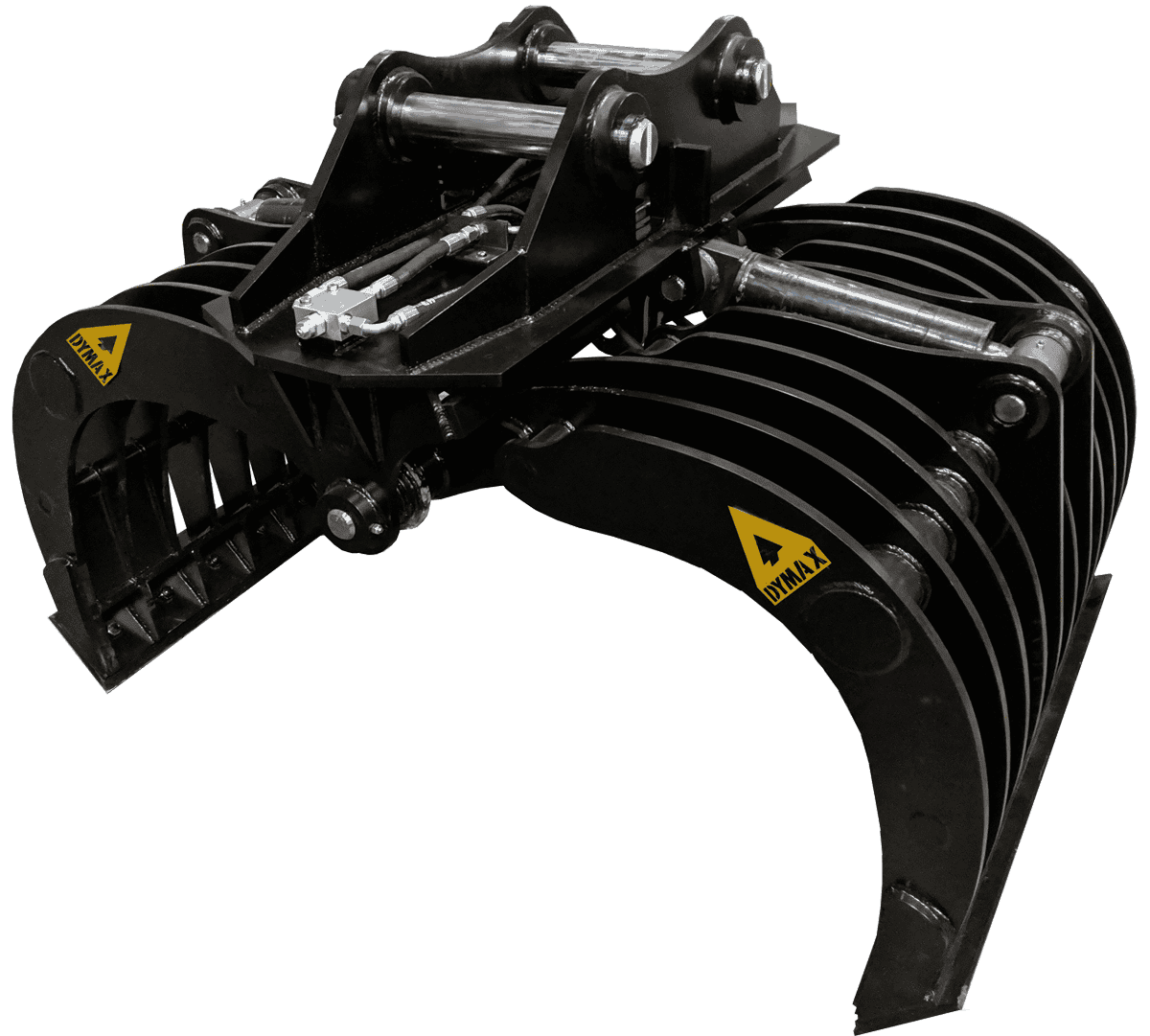

The DymaxRail Basket Tine Grapple separates debris from dirt as you load. The tines close around ties, rail, and broken concrete while loose dirt and fines drop through the gaps.
This grapple fits 15- and 20-ton hi-rail excavators and mounts on your existing coupler. Put it to work on undercutting spoil, tie-renewal cleanup, and debris from storms or derailments.
BASKET TINE GRAPPLE MODELS
| Model Code Description Weight |
| DX-GL-BSKT-360x48in-HX-15T
Grapple-Basket Tine-360 degree rotation x 48 inches wide-Hydraulic Excavator-15 Ton STANDARD FEATURES: 360 rotation system – twin pinion drive, 2x skeleton tine basket assemblies with replaceable bolt-on cutting edge, tine spacing: 4 inch (11 total tines per side), dual cylinder 3.5 x 10.0, bolt-on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3750 lbs |
| DX-GL-BSKT-360x48in-HX-20T
Grapple-Basket Tine-360 degree rotation x 48 inches wide-Hydraulic Excavator-20 Ton STANDARD FEATURES: 360 rotation system – twin pinion drive, 2x skeleton tine basket assemblies with replaceable bolt-on cutting edge, tine spacing: 4 inch (11 total tines per side), dual cylinder 3.5 x 10.0, bolt-on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3800 lbs |
| DX-GL-BSKT-TRQx48-HX-15T
Grapple-Basket Tine-Tiltrotator Hookup x 48 inches wide-Hydraulic Excavator-15 Ton STANDARD FEATURES: fits tiltrotator coupler – includes machine adapter with pins, 2x skeleton tine basket assemblies with replaceable bolt-on cutting edge, tine spacing: 4 inch (11 total tines per side), dual cylinder 3.5 x 10.0, bolt-on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3100 lbs |
| DX-GL-BSKT-TRQx48-HX-20T
Grapple-Basket Tine-Tiltrotator Hookup x 48 inches wide-Hydraulic Excavator-20 Ton STANDARD FEATURES: fits tiltrotator couplers – includes machine adapter with pins, 2x skeleton tine basket assemblies with replaceable bolt-on cutting edge, tine spacing: 4 inch (11 total tines per side), dual cylinder 3.5 x 10.0, bolt-on replaceable cutting edges, flow divider valve for balanced closing + relief valve, max grapple opening between edges: 64.2 inches. Weight: 3180 lbs |
| Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407. |
HYDRAULIC REQUIREMENTS
| MODELS: DX-GL-BSKT-360x48in-HX-15T, DX-GL-BSKT-360x48in-HX-20T
HYDRAULIC REQUIREMENTS: Your machine will require (2x) circuits for operation of the grapple (open and close) and the rotation system. CIRCUIT 1 – Grapple Type: Two Way Flow: Max GPM / PSI – 15-20 / 3,000 CIRCUIT 2 – Rotator Type: Two-Way Flow: Max GPM / PSI = 8 GPM / 3,000 ALTERNATE CIRCUIT – If your machine does not have enough circuits, an Electro-Hydraulic Valve Kit + needle valves can be ordered. Requires installation on the cable harness. These are offered for 12 or 24-volt machines. Kits are set up on grapples before shipping. NOT SUPPLIED: Not provided with jumper hose lines to the machine auxiliary lines. |
| MODELS: DX-GL-BSKT-TRQx48-HX-20T, DX-GL-BSKT-TRQx48-HX-15T
Your machine will require (1x) circuits for operation of the grapple (open and close) and the rotation system. CIRCUIT 1 – Grapple Type: Two Way Flow: Max GPM / PSI – 15-20 / 3,000 NOT SUPPLIED: Not provided with jumper hose lines to the machine auxiliary lines. |
It sorts and loads debris on the railway right-of-way — spoil from undercutting and cribbing, old ties after renewal, and storm or derailment cleanup. The skeletal jaws retain the large material and let dirt and fines fall through, so you load clean debris in one pass.

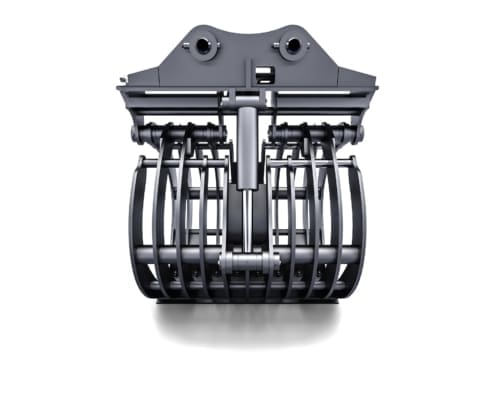

The tines (11 per side on 4-inch spacing) hold ties, rail, and rubble while smaller material sifts through the gaps. There’s no second step to separate spoil from debris.
It’s built for 15- and 20-ton hydraulic excavators, including hi-rail machines. Need it on another class? Contact DymaxRail — the grapple can be built to your machine.
Optional Electro-Hydraulic Valve Kit and needle valves are available for models with 360° rotation.
