DRIVE TYPE: RUBBER TIRE ON RAIL
HI RAIL ATTACHMENT FOR BACKHOE LOADERS
Your efficient guide from road to rail and back again

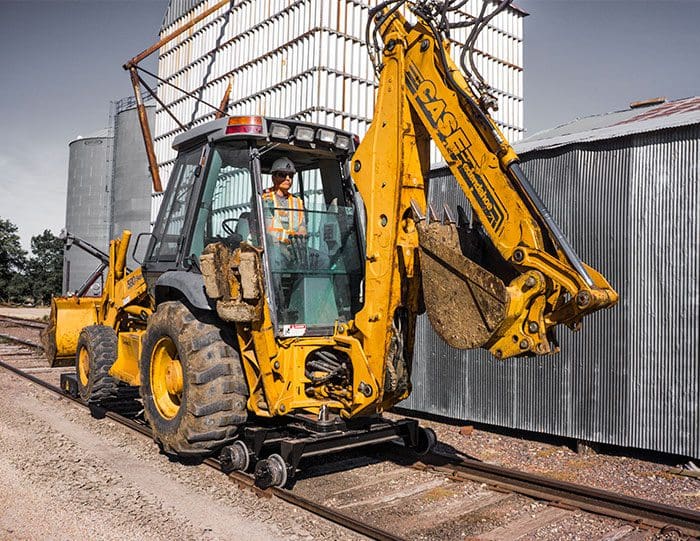

With hundreds of units working in the field, it’s quick to see why the Dymax Rail Rider G-BL Hi-Rail system is the popular choice for many contractors, railroads, short lines and transit operators. Available to fit Case, Caterpillar, John Deere and JCB models of backhoe loaders. It’s hi-rail simplified at its core.
Easy to install and you’ll save thousands
Unlike dedicated permanent mounted railgear, the Rail Rider G Hi-Rail solution provides the flexibility and versatility you need. Simply remove the system for use in non-rail applications or to work in off-track conditions more efficiently.
RAIL RIDER G-BL – LBW SERIES

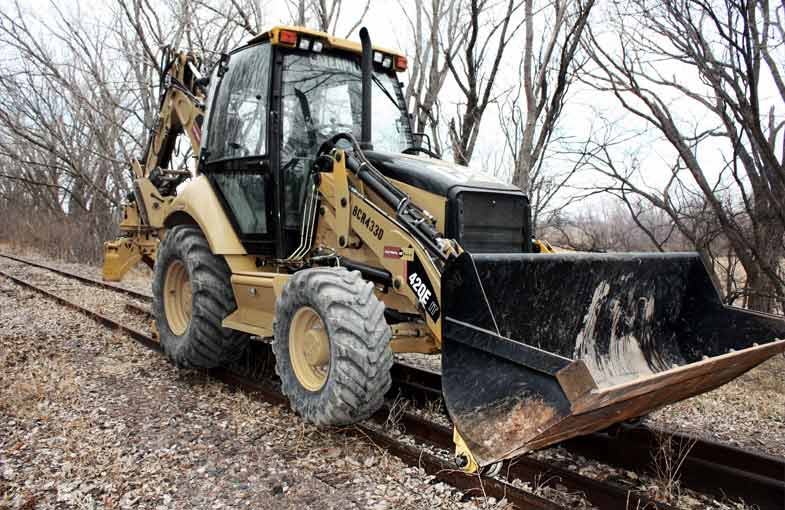

Rear dolly with front loader bucket mounted railgear
- Package includes rear 4-wheel dolly + set of railgear for welding to loader bucket.
- Dolly features new and improved flush mount pins to allow for maximum boom rotation of 180 degrees.
- Easily adapts in 8-12 hours depending on skill level.
- Available for all brands, including Cat, Case, John Deere, JCB
- Available with optional upgrades. Contact sales 1-800-530-5407 for more information.
Loader bucket mounted railgear
Machine adapter

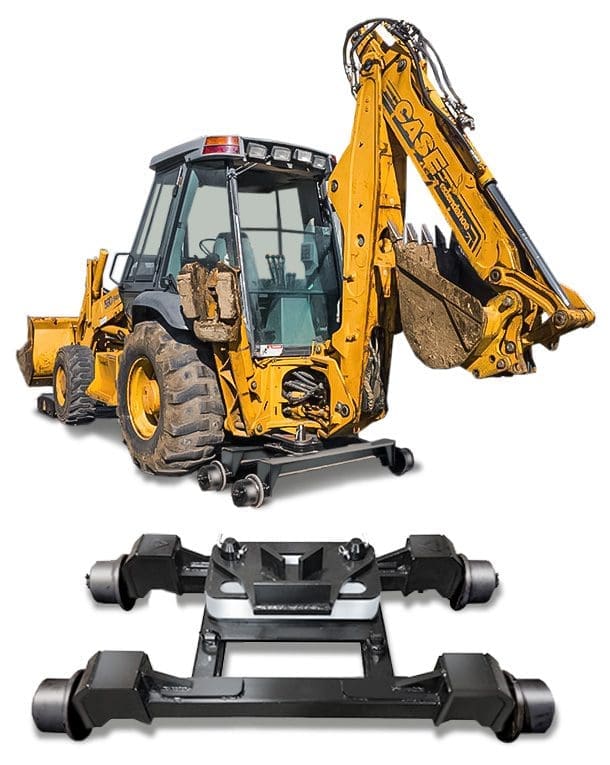

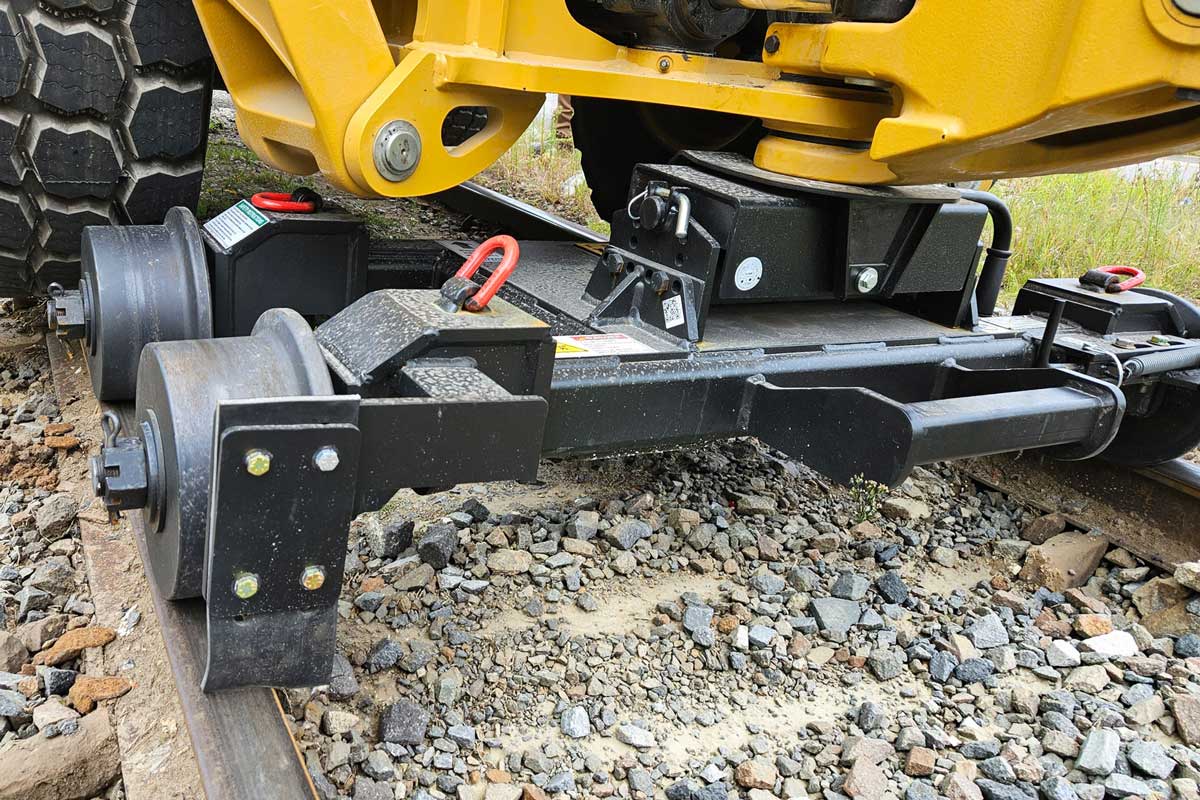

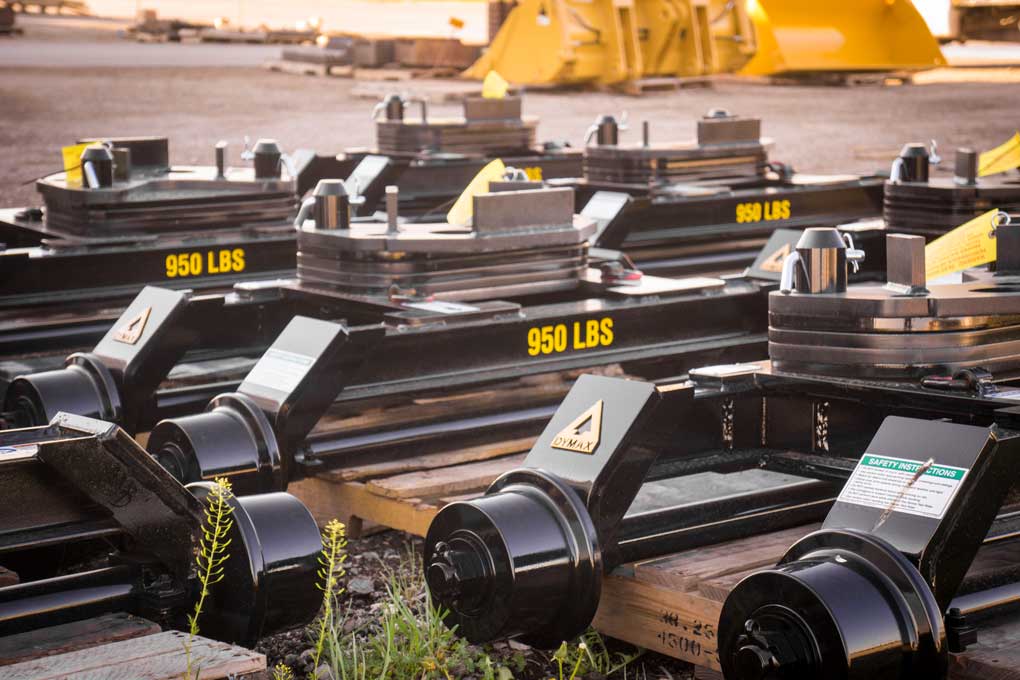

4-wheel dolly with 7 inch diameter rail wheels
RAIL RIDER G-BL – DQ SERIES
Rear dolly with front loader coupler with integrated railgear
- Models for Caterpillar feature Cat IT coupler with manual railgear.
- Models for Case feature FFC-compatible coupler manual railgear.
- Models for John Deere feature JRB-compatible coupler interface with railgear.
- Dolly features new and improved flush mount pins to allow for maximum boom rotation of 180 degrees.
- Easily adapts in 12-16 hours depending on skill level.
- Available with optional upgrades. Contact sales 1-800-530-5407 for more information.
- Please note that specific machine series can affect availability for DQ series models.
4-wheel dolly with machine interface
Front loader coupler avialable in Cat IT, FFC or JRB compatible
Integrated rail gear in manual folding design or optional hydraulic lift
Limited options shown.
- 9″ rail wheels. (All machines)
- Insulated railgear. (All machines)
- Non-welded interface available for new machines. (Cat, Deere, Case, JCB)
- Hydraulic lift railgear for fitting OEM Cat IT coupler. (For Cat only)
- Weld-on railgear kit for fitting OEM factory couplers. (For Cat and JCB only)
ACCESSORIES AVAILABLE AS UNPACKAGED SOLUTIONS
- Loader bucket mounted railgear (flip down) DY102460 RH / DY102461 LH reference
- Railgear kit to fit to attachments (slider type) 7441D reference
- Rear dolly group only – Call for details 1-800-530-5407 as dollies and machine adapters are packaged per brand/series.

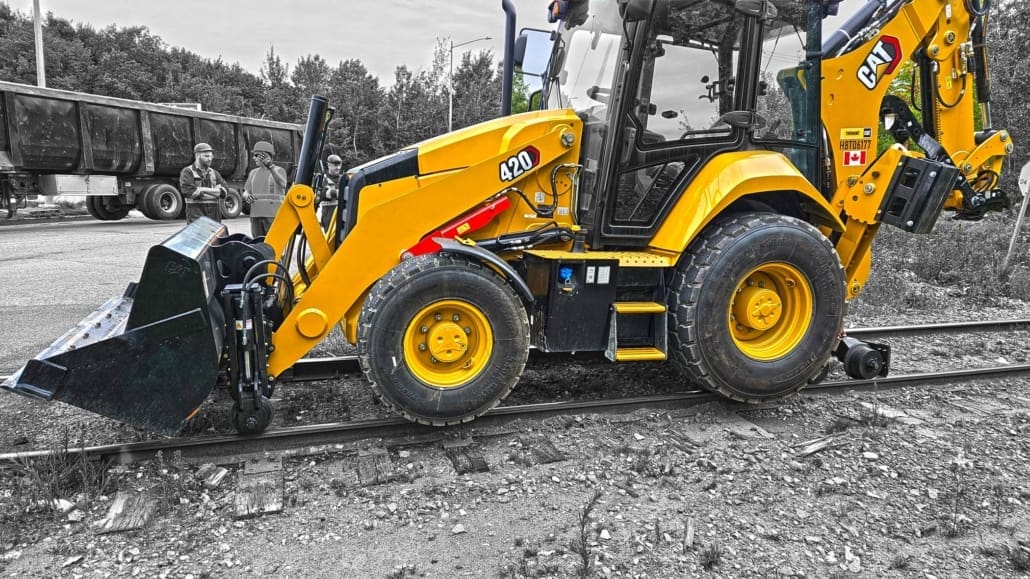

CATERPILLAR 416, 420, 430, 440, 450
| MODEL
DESCRIPTION WEIGHT lbs |
| RRDG-LBW7-CAT416-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Caterpillar 416-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-CAT420-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Caterpillar 420-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-CAT430-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Caterpillar 430-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-CAT440-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Caterpillar 440-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-CAT450F-BL-20
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Caterpillar 450F-Backhoe Loader-Class 20 1450 |
| RRDG-LBW7-CAT450-BL-20
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Caterpillar 450-Backhoe Loader-Class 20 1450 |
| RRDG-DQW7-CAT420-BL-20
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-Caterpillar 420-Backhoe Loader-Class 20 CATIT 1850 |
| RRDG-DQW7-CAT430-BL-20
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-Caterpillar 430-Backhoe Loader-Class 20 CATIT 1850 |
| RRDG-DQW9-CAT450F-BL-20
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 9in wheel diameter-Caterpillar 450F-Backhoe Loader-Class 20 CATIT 1850 |
Design specifications are subject to change without notice. Contact DymaxRail sales for models not listed 1-800-530-5407.

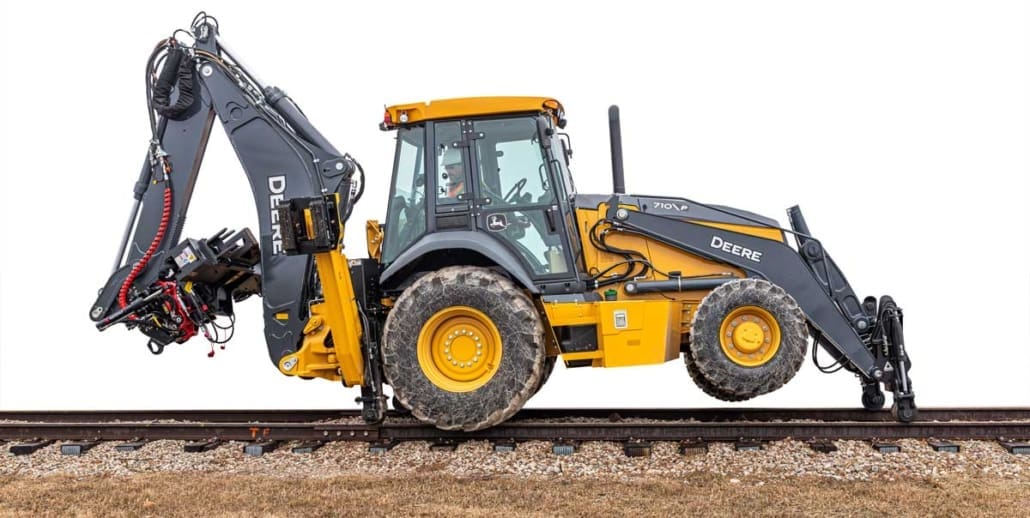

JOHN DEERE 310, 410, 710
| MODEL
DESCRIPTION WEIGHT lbs |
| RRDG-LBW7-JD310-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-John Deere 310-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-JD410-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-John Deere 410-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-JD710-BL-20
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-John Deere 710-Backhoe Loader-Class 20 1450 |
| RRDG-DQW7-JD310-BL-10
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-John Deere 310-Backhoe Loader-Class 10 JRB 1850 |
| RRDG-DQW7-JD410-BL-10
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-John Deere 410-Backhoe Loader-Class 10 JRB 1850 |
| RRDG-DQW7-JD710-BL-20
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-John Deere 710-Backhoe Loader-Class 20 JRB 1850 |
Design specifications are subject to change without notice. Contact DymaxRail sales for models not listed 1-800-530-5407.
CASE 580, 590
| MODEL
DESCRIPTION WEIGHT lbs |
| RRDG-LBW7-CE580SN-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Case 580SN-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-CE590SN-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-Case 590SN-Backhoe Loader-Class 10 1450 |
| RRDG-DQW7-CE580SN-BL-10
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-Case 580SN-Backhoe Loader-Class 10 FFC quick coupler style 1850 |
| RRDG-DQW7-CE590SN-BL-10
Rail Rider Guide-Rear Dolly with Dymax Front Coupler with Weld On Railgear Kit, 7in wheel diameter-Case 590SN-Backhoe Loader-Class 10 FFC quick coupler style 1850 |
Design specifications are subject to change without notice. Contact DymaxRail sales for models not listed 1-800-530-5407.

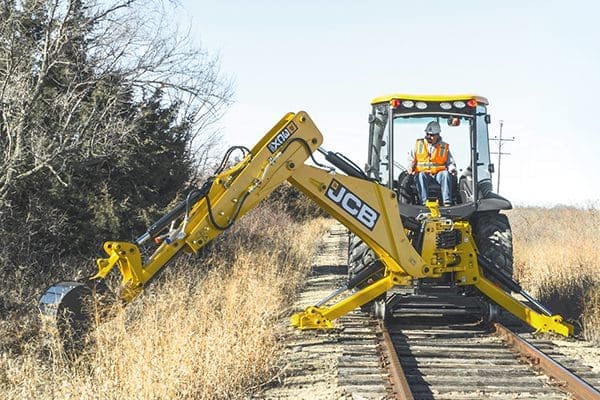

JCB 3CX 4CX
| MODEL
DESCRIPTION WEIGHT lbs |
| RRDG-LBW7-JCB 3CX-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-JCB 3CX-Backhoe Loader-Class 10 1450 |
| RRDG-LBW7-JCB 4CX-BL-10
Rail Rider Guide-Rear Dolly with Loader Bucket Weld On Railgear Kit, 7in wheel diameter-JCB 4CX-Backhoe Loader-Class 10 1450 |
Design specifications are subject to change without notice. Contact DymaxRail sales for models not listed 1-800-530-5407.
