One cart, two jobs.
The DymaxRail Side Dump Rail Cart places ballast or rip rap on either side of the track. When the material work is done, the tubs bolt off, and the same cart can haul machinery and supplies. Both models (8×24 – 25 ton and 8×40 – 35 ton) have hydraulic stabilizers with bolt-on derail guides to keep the cart planted while dumping.
Key Features
- High Performance Machinery Cart: Available in 8×24 (25T) or 8×40 (40T) capacities, featuring advanced stabilization, machinery loading ramps, and side dump attachment to maximize your operational capabilities.
- Advanced Railgear: DymaxRail high-performance railgear with specialized bogie design for smooth curve navigation on 8×40 models.
- Air Brake Systems: Designed for seamless integration with hi-rail trucks and railcar movers.

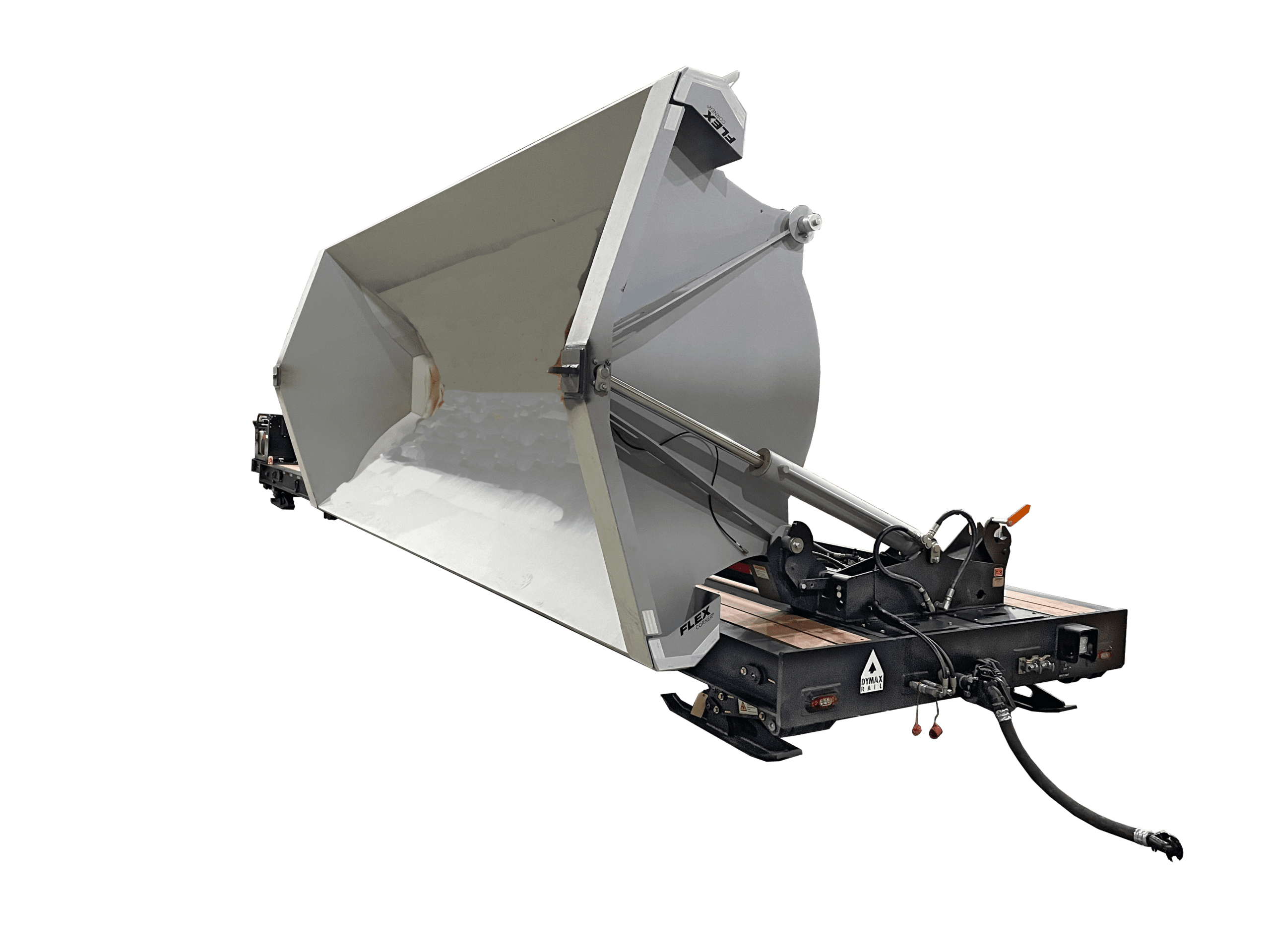

- Side Dump Attachments:
- 8×24 – Select (1) 16 to 21 foot side dump box
- 8×40 – Select (1) 21 foot or (2) 16 foot side dump boxes for max capacity.
- Hydraulic Power Unit: High performance power unit with variable pump for reduced dumping cycle time. Operate ramps, side dump attachment and stabilizers.
1
2
3
4
1
Hydraulic power unit
2
Removable side dump attachment
3
Stabilizers
4

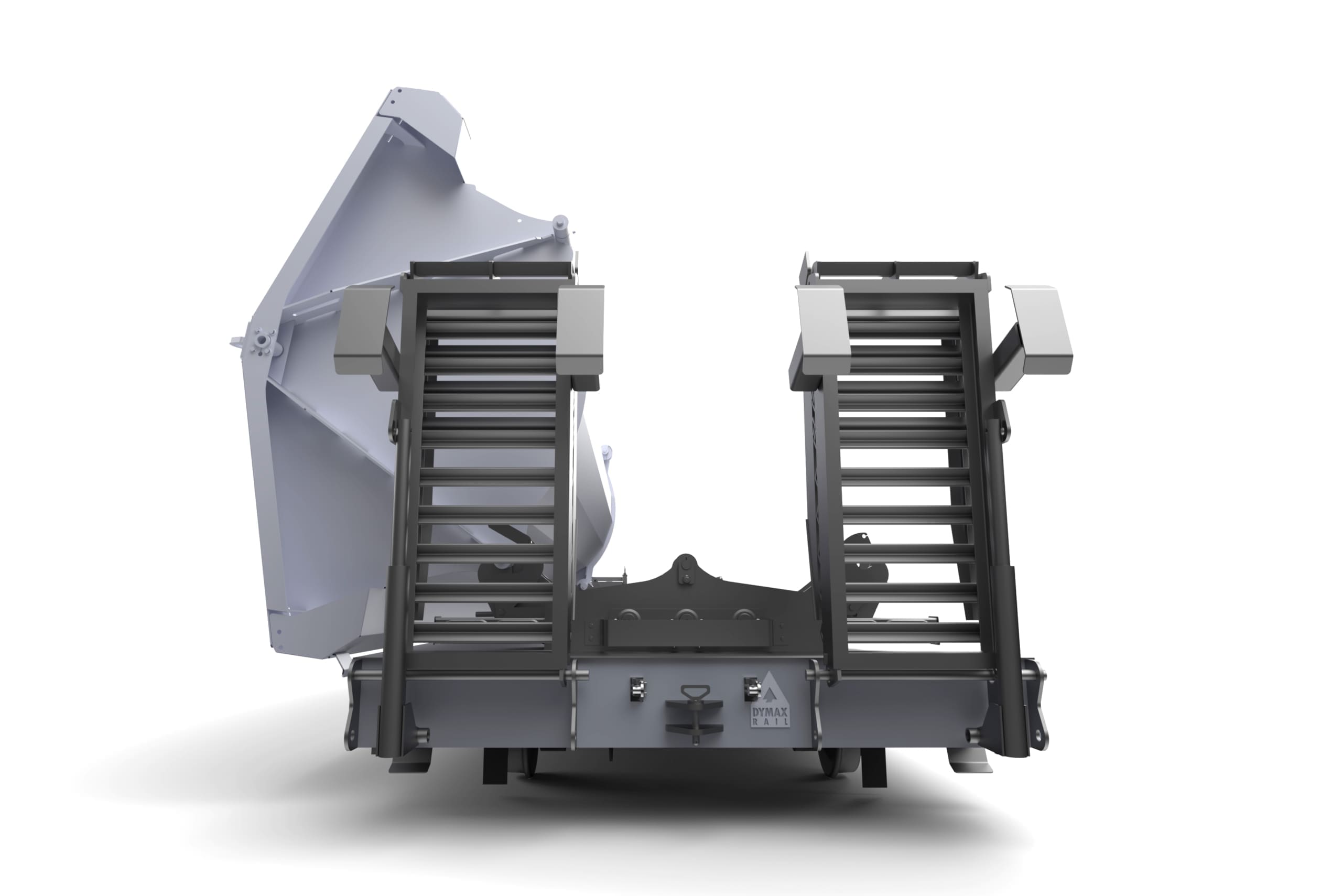

Ramps

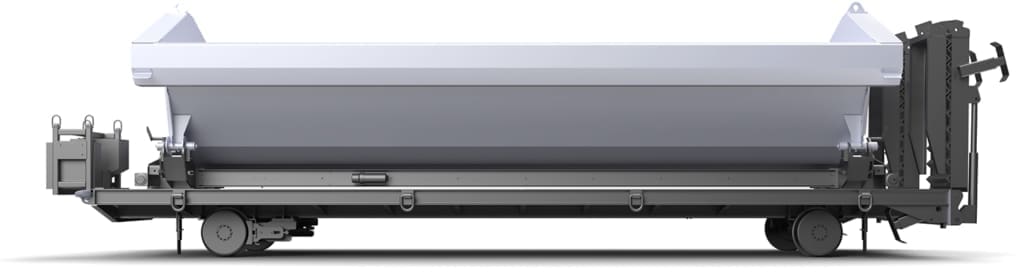

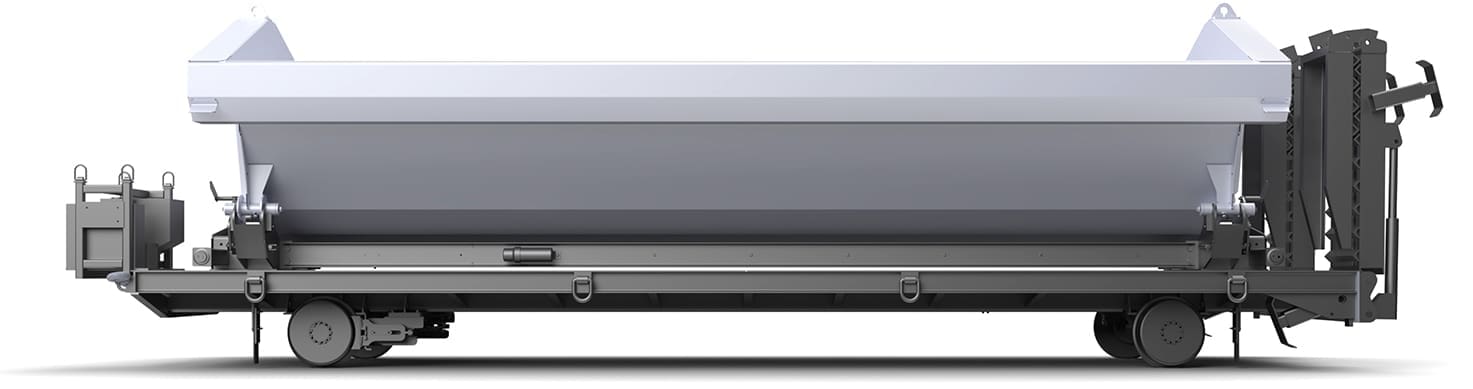

SIDE DUMP RAIL CART 8X24 – 25 TON
1
2
3
4
5
6
1
Electrical control panel
2
Hydraulic power unit
3
4 hydraulic stabilizers with bolt-on derail bars
4
Apitong wood deck
5
1 or 2 removable side dump boxes
6
Rear bogie with oscillation joint

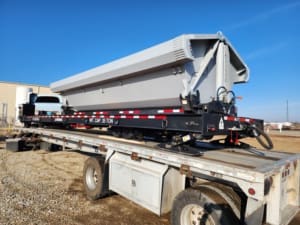

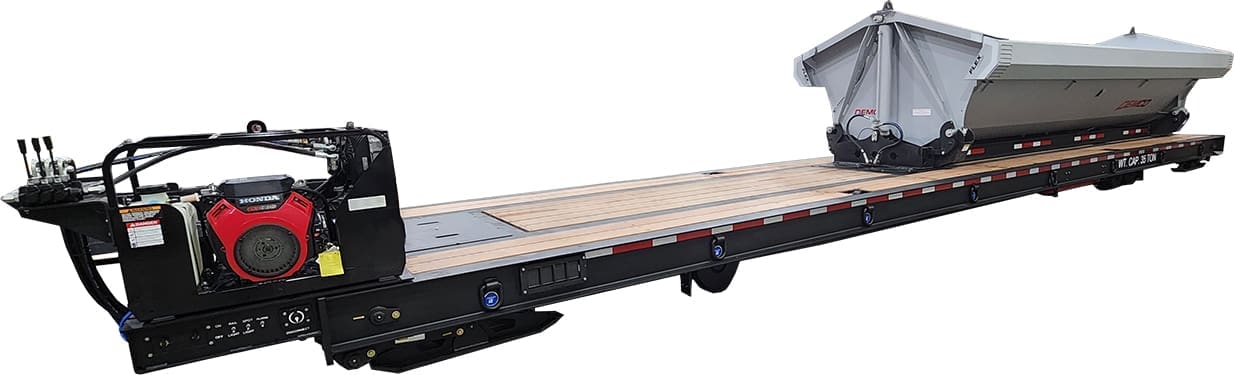

SIDE DUMP RAIL CART 8X40 – 35 TON
Specifications
HI-RAIL SIDE DUMP CART MODELS
| Group Number: Model Description Weight |
| 8451D1: DX-RC-MACSD-8ftx24ft-DMX-25TC
Side Dump Machinery Cart TRANSPORT SIZE: Width: 8 feet 4 inches / Length: 24 feet STANDARD FEATURES: Track Gauge: Standard 1435mm / 56.50 inches • 8 feet wide x 24 feet long • 25 ton uniform load rating • Two axle design; 16” Dymax Rail wheels • Non insulated railgear design • Heavy duty frame low profile • (4x) D rings tie down locations on each side • Air brakes with gladhand connections • Towing hitch on each end • Lift rings • (1x) 8 foot towbar with chain hook location • Rail sweeps • Solar powered directional lighting package with travel alarm and LED spot lamps • Gas power unit with variable speed pump • Standard machinery loading ramps • Steel deck plate • Hydraulic platform stabilizers with bolt-on derail guide • (1x) Side Dump Tub appx 21ft x 13.20 yd³ capacity – dual direction dump capable. Max Load Rating (US Tons): 25 Deck Height Off Rail (inches): 22.50 Weight (lbs): 16,500 with side dump installed |
| 7633D2: DX-RC-MACSD-8ft6x43-DMX-35TC
Side Dump Machinery Cart (Single Tub Mount) TRANSPORT SIZE: Width: 8 feet 6 inches / Length: 25 feet STANDARD FEATURES: Track Gauge: Standard 1435mm / 56.50 inches • 8 feet wide x 40 feet long; overall length 43 feet with power unit installed • 35 ton uniform load rating • DymaxRail rear navigation bogie with replaceable wheels + single axle • Non insulated railgear design • Heavy duty frame low profile • (8x) D rings tie down locations on each side • Air brakes with gladhand connections • Train air systems with railcar hitch and coupling (mechanical latch) • Towing hitch on each end • Lift rings • (1x) 8ft towbar with chain hook location • Rail sweeps • Solar powered directional lighting package with travel alarm and LED spot lamps • Gas power unit with variable speed pump for attachment applications • Control kit • Standard machinery loading ramps • Apitong Hardwood Decking • Hydraulic platform stabilizers with bolt-on derail guide. Max Load Rating (US Tons): 35 Deck Height Off Rail (inches): 23.35 Weight (lbs): 26,500 with side dump installed |
| 8452D1: DX-RC-MACSD-8ft6x43-DMX-35TC
Side Dump Machinery Cart (Twin Tub Mount) TRANSPORT SIZE: Width: 8 feet 6 inches / Length: 25 feet STANDARD FEATURES – SAME BASE TRAILER AS ABOVE (7633D2) – INCLUDES (2) 16FT SIDE DUMP ATTACHMENTS INSTALLED. Max Load Rating (US Tons): 35 Deck Height Off Rail (inches): 23.35 Weight (lbs): 32,000 with 2 side dumps installed |
Design and specifications are subject to change without notice.
All carts listed feature non-insulated railgear and are suited for standard gauge track 56.50 inches (1435mm). Custom solutions are available for narrow and wide track gauges. Contact DymaxRail Sales 1-800-530-5407 for special applications and options.
FAQ
WHAT IS A SIDE DUMP RAIL CART?
| A side dump rail cart is the on-track equivalent of a dump truck: it carries ballast, rip rap, or fill along the rail and unloads it to either side of the track. DymaxRail’s version adds removable tubs, so the same cart converts to haul machinery and supplies. |
CAN IT DUMP ON BOTH SIDES OF THE TRACK?
| Yes. The side dump tubs discharge in either direction, so one cart places material on the left or right of the rail. |
WHAT CAN IT CARRY BESIDES BALLAST AND RIP RAP?
| With the tubs bolted off, the cart becomes an open deck for machinery, tools, and supplies. |
WHAT’S THE DIFFERENCE BETWEEN THE 8×24 AND 8×40 MODELS?
| The 8×24 carries 25 tons on a two-axle frame. The 8×40 carries 35 tons and rides on a DymaxRail navigation bogie plus single axle for smoother tracking through curves. Both accept removable side dump tubs; tub sizes and counts vary by configuration. |
DOES IT NEED A LOCOMOTIVE TO OPERATE?

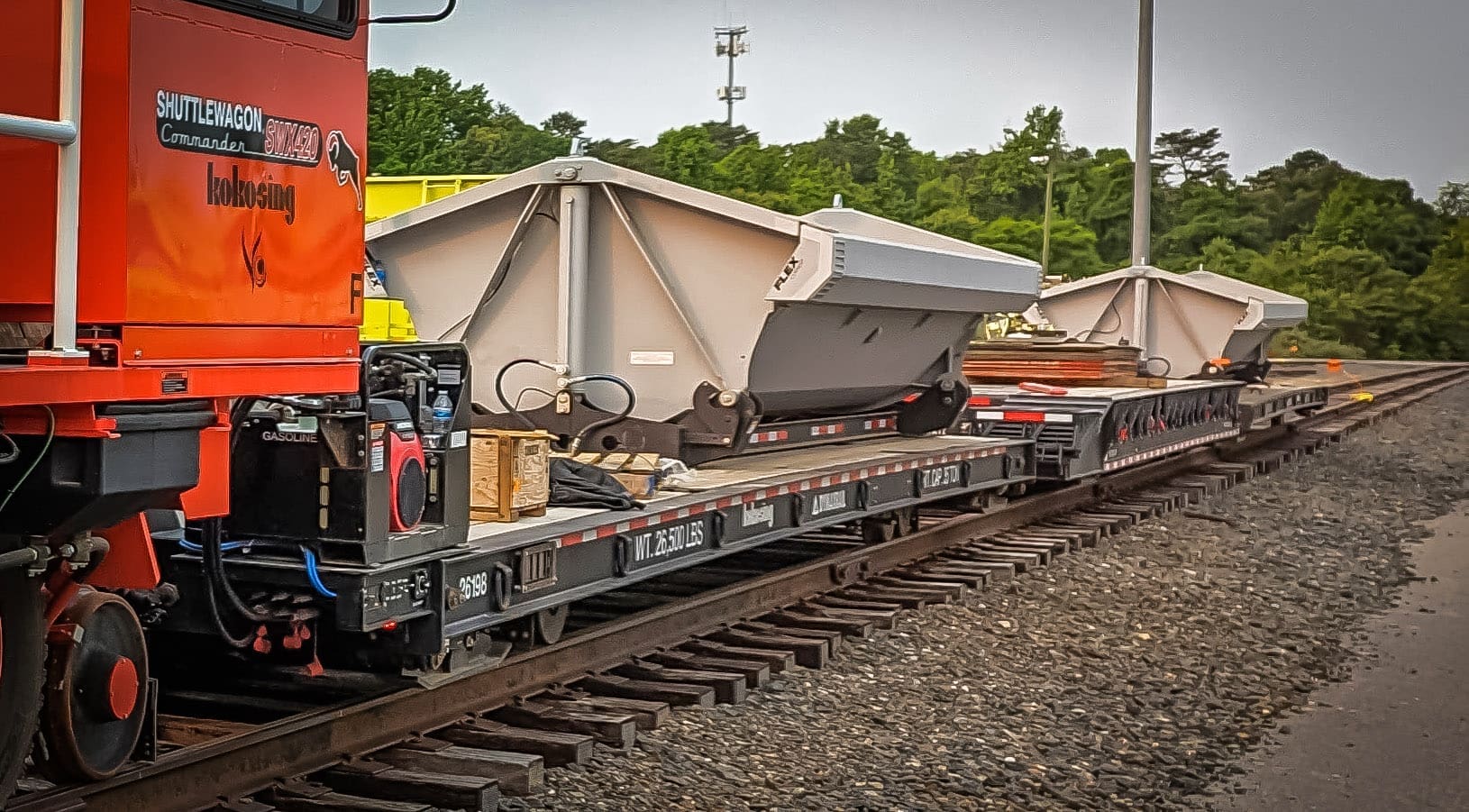

| No. The cart is towed by a hi-rail truck or railcar mover and connects through standard air brakes with gladhand fittings. An onboard gas hydraulic power unit with a variable-speed pump drives the dumping, loading ramps, and stabilizers — so unloading doesn’t rely on the tow vehicle’s hydraulics. |
HOW DOES IT STAY STABLE WHILE DUMPING?
| Four hydraulic platform stabilizers with bolt-on derail guides plant the cart before the tub tips, keeping the unload controlled and on the rail. |
WHAT TRACK GAUGE DOES IT FIT?
| Standard gauge — 56.5 in / 1435 mm — with non-insulated railgear. Custom builds are available for narrow and wide gauges; contact DymaxRail Sales at 1-800-530-5407. |
