UNDERCUTTING WITH EXCAVATORS AND BACKHOES

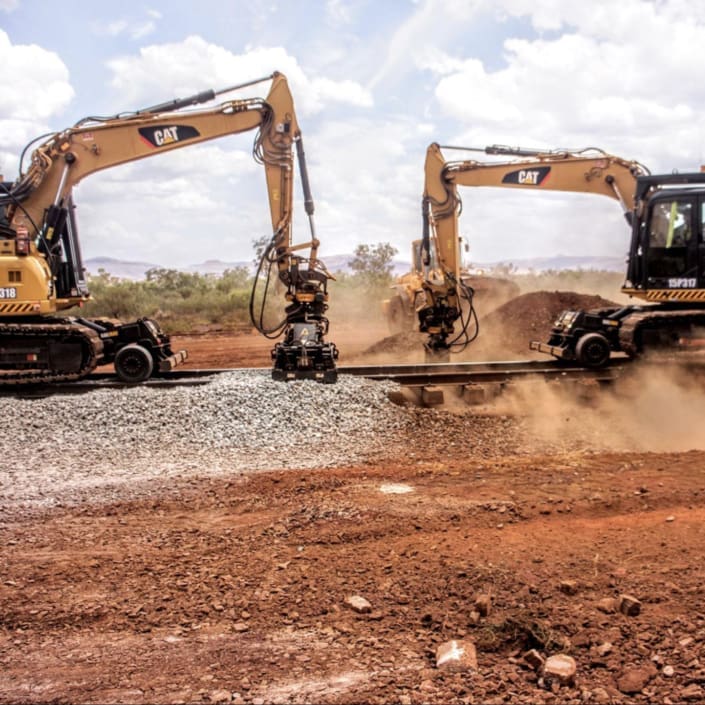

The DymaxRail Ballast Blaster for pin grab quick couplers is an undercutter attachment that features advanced patented design and durability. A DymaxRail Ballast Blaster Undercutter efficiently removes fouled ballast rock and mud by cutting and pulling the material out from beneath the railway tracks. This attachment adapts to Railway Excavators and Backhoe Loaders equipped with a traditional pin-grab type coupler system and feature built-in rotation and tilt for positioning.
FASTER AND MORE EFFICIENT
Rail networks prefer using DymaxRail Ballast Blasters over conventional on-track ballast cleaners, as they are more efficient and easier to get on and off track, especially congested networks with severe time restraints.
BLASTER WEAR PLATES
Our patented Ballast Blaster Undercutter features bolt on indexable wear plates with full carbide protection that surrounds all sides of the cutter bar and includes a 2 year warranty.
BI-DIRECTIONAL CUTTING
A DymaxRail Ballast Blaster cuts and removes ballast faster with it’s innovative chain design. The Dymax Carbide Tooth (DCT) features two-sided protection allowing operators to cut in both directions.
1
1
All mid-large excavator models feature automatic chain tensioning and replaceable carbide wear plates. The most durable solution.
B180 – Ballast Blaster
- 20-36 ton excavators
- 180 degree rotation thru innovative hydraulic cylinders
- 10ft, 12ft and 15ft bar cutting length
- 30 degree bar tilt
- Powerful drive motor
- Replaceable carbide wear plates
- Automatic chain tensioner
- Optional spoilmaster wheel
B360RB – Ballast Blaster
- 13-18T Excavators
- 360 degree rotation box for compact slim design
- Available only in 10ft cut length models for 13-18t excavators
- 10ft bar cutting length
- 30 degree bar tilt
- Powerful drive motor
- Replaceable carbide wear plates
- Automatic chain tensioner
- Optional spoilmaster wheel
B360-Twin Drive Ballast Blaster
- 25-36 ton excavators
- 360 degree rotation twin drive with built in brake
- 12ft and 15ft bar cutting length
- 30 degree bar tilt
- Powerful drive motor
- Replaceable carbide wear plates
- Automatic chain tensioner
- Optional spoilmaster wheel
B360-SMALL BALLAST BLASTER
- Suited for Backhoe and 8-11 ton excavators
- 360 degree rotation (compact)
- 6ft and 8ft bar cutting length option
- 30 degree bar tilt
- Powerful drive motor
- Replaceable carbide wear plates
- Manual chain tensioner
1
2
1
Replaceable bolt on carbide wear plates
2
Quickly attach to backhoe loaders and small 8 to 11 ton excavators
AUTOMATIC CHAIN TENSION
- For 13-36T models including 10, 12 and 15 foot cutter bar lengths.
- Provides shock absorbing performance to increase chain life and reduce chain breaks.
- Includes tensioner gauge for visual recognition of chain tension pressure.
DRIVE MOTOR PROTECTION
- Full shroud protection around drive sprocket.
- Reduces seal contamination by keeping unwanted debris out.
- AR400 Wear plates provide additional wear protection.
SERVICE. SIMPLIFIED.
When its time to service it’s quick and easy with removable top adapter.
TECHNICAL INFORMATION
CUTTING CHAIN AND TOOTH OPTIONS
- All models feature standard DymaxRail two-way carbide forged cutting teeth (DCT Model designations)
- For customers who prefer rotating carbide bits we offer Kennemetal cutting solutions.
- Rotating carbide bit models are designated as (RCB) in the models listing.
- Chain sizes are matched to horsepower requirements.
- For custom OEM Solutions contact DymaxRail.
EXCAVATOR AND BACKHOE MODELS
| Model ID | Model Code | Description | Weight (lbs) |
| For Backhoe Loader and 8-11Ton Excavators Standard Features: 4.1in ( 104mm) cut width • Patented Bar with replacable carbide wear plates • Mechanical Chain Adjuster Sample Machine Sizes: Deere 710, 85 & Caterpillar 440, 450, 308, 309, 310, 311 & Komatsu PC78, PC88, PC110. |
|||
| 2338 | DX-UC-B360-6ftxADCT-HX-8T | Undercutter-Ballast Blaster 360 degree rotation-6 feet cutting length x Size “A” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-8 Ton | 1850 |
| 2339 | DX-UC-B360-8ftxADCT-HX-8T | Undercutter-Ballast Blaster 360 degree rotation-8 feet cutting length x Size “A” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-8 Ton | 2200 |
| 2340 | DX-UC-B360-8ftxADCT-BL-20 | Undercutter-Ballast Blaster 360 degree rotation-8 feet cutting length x Size “A” chain with DymaxRail Carbide Teeth-Backhoe Loader-Class 20 | 2200 |
| 2341 | DX-UC-B360-8ftxADCT-HX-11T | Undercutter-Ballast Blaster 360 degree rotation-8 feet cutting length x Size “A” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-11 Ton | 2280 |
| For Excavators 13-18 Ton Excavators Standard Features: • 6.1in ( 155mm) cut width • Patented Bar with replacable carbide wear plates • Auto chain adjuster Sample Machines Sizes: Caterpillar-313,M313,314,315,M316,M318 & John Deere-160,190 & Komatsu-PC130, PC138, PC160 |
|||
| 2329 | DX-UC-B360-10ftxCDCT-HX-14T | Undercutter-Ballast Blaster 360 degree rotation-10 feet cutting length x Size “C” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-14 Ton | 5300 |
| For Excavators 20-36 Ton Excavators: 6.1in Cut Width Standard Features: 6.1in ( 155mm) cut width • Patented Bar with replacable carbide wear plates • Auto chain adjuster Sample Machine Sizes: Caterpillar 319, 320, 321,323, 324, 325, 326, 328, 329, 330,336 & John Deere 190, 200, 210, 245, 300, 350 |
|||
| 2330 | DX-UC-B360-12ftxBRCB-HX-25T | Undercutter-Ballast Blaster 360 degree rotation-12 feet cutting length x Size “B” chain with Rotate Carbide Bits-Hydraulic Excavator-25 Ton | 6700 |
| 2334 | DX-UC-B360-12ftxBDCT-HX-30T | Undercutter-Ballast Blaster 360 degree rotation-12 feet cutting length x Size “B” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-30 Ton | 6800 |
| 2335 | DX-UC-B360-12ftxCDCT-HX-30T | Undercutter-Ballast Blaster 360 degree rotation-12 feet cutting length x Size “C” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-30 Ton | 6800 |
| 2336 | DX-UC-B360-15ftxCRCB-HX-30T | Undercutter-Ballast Blaster 360 degree rotation-15 feet cutting length x Size “C” chain with Rotate Carbide Bits-Hydraulic Excavator-30 Ton | 7400 |
| 2337 | DX-UC-B360-15ftxCDCT-HX-30T | Undercutter-Ballast Blaster 360 degree rotation-15 feet cutting length x Size “C” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-30 Ton | 7400 |
| Models below are 180 degrees rotation options | |||
| 2328 | DX-UC-B180-10ftxCDCT-HX-20T | Undercutter-Ballast Blaster Tiltrotator-15 feet cutting length x Size “C” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-25 Ton | 5500 |
| 2333 | DX-UC-B180-12ftxCDCT-HX-25T | Undercutter-Ballast Blaster 180 degree rotation-12 feet cutting length x Size “C” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-20 Ton | 6000 |
| 2382 | DX-UC-B180-15ftxCDCT-HX-30T | Undercutter-Ballast Blaster 180 degree rotation-15 feet cutting length x Size “C” chain with DymaxRail Carbide Teeth-Hydraulic Excavator-30 Ton | 6600 |
| Design and specifications are subject to change without notice: DCT = DymaxRail Carbide Teeth; RCB = Rotate Carbide Bits | |||
HYDRAULIC REQUIREMENTS
| Hydraulic Requirements | Motor/Chain Drive | Rotator | Bar Tilt |
| Model ID # | Type: Two-way flow + drain | Type: Two-way flow | Electro-hydraulic |
| 2338, 2339, 2340, 2341 (6-8ft models) | 26-32 GPM / 4200 psi | 8 GPM / 3000 psi |
Valve on tool: Requires installation of service cable kit.
|
| 2328, 2329 (10ft models) | 36-40 GPM / 4500 psi | 8 GPM / 3000 psi | |
| 2330,2333,2334,2335 (12ft models) | 40-42 GPM / 4500 psi | 8 GPM / 3000 psi | |
| 2336, 2337, 2382 (15ft models) | 45-50 GPM / 4500 psi | 8 GPM / 3000 psi |
