Powered steerable tracks for fast on/off access

2

Innovative hydraulic drive railgear with rear bogie featuring rotation and lift.

3

Haul specialized equipment including aerial lifts

4

2 man cabin with 2 spare rider seats and canopy.

5

3 sizes of articulating cranes for front or rear mounted applications

6

Hydraulic stabilizers for optimum performance and safety

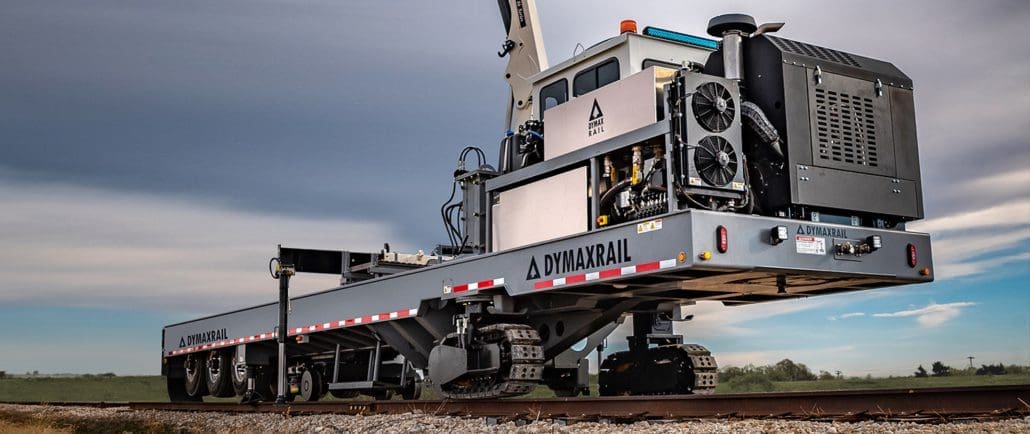

RAILWAY MATERIAL HANDLER

THE MULTIPURPOSE PLATFORM YOU CAN BUILD ON

R-Trax isn’t just another railway material handler—it’s a heavy-duty, self-propelled flatcar built for the rail industry’s toughest jobs.

Whether you’re moving bulk materials, supporting bridge and tunnel work, or running specialized equipment like welders or hydrovacs, R-Trax adapts to your needs. An all-in-one, powerful, highway-legal machine.

When downtime isn’t an option, R-Trax gets you in, gets the job done, and gets you out fast and safe.

HIGHLIGHTS

  • Heavy-Duty Construction – Haul up to 50 tons, with continuous welded beams for maximum strength. Available in 48- and 53-foot trailer lengths.
  • Quick Rail Access – Powered steerable crawler tracks ensure fast, controlled transitions on and off the rail, even in tight or uneven work zones.
  • Hydraulic Ramp Option – Easily load aerial lift equipment and other machinery.
  • Articulating Material Handling Crane – Lift, place, and install various materials and supplies.

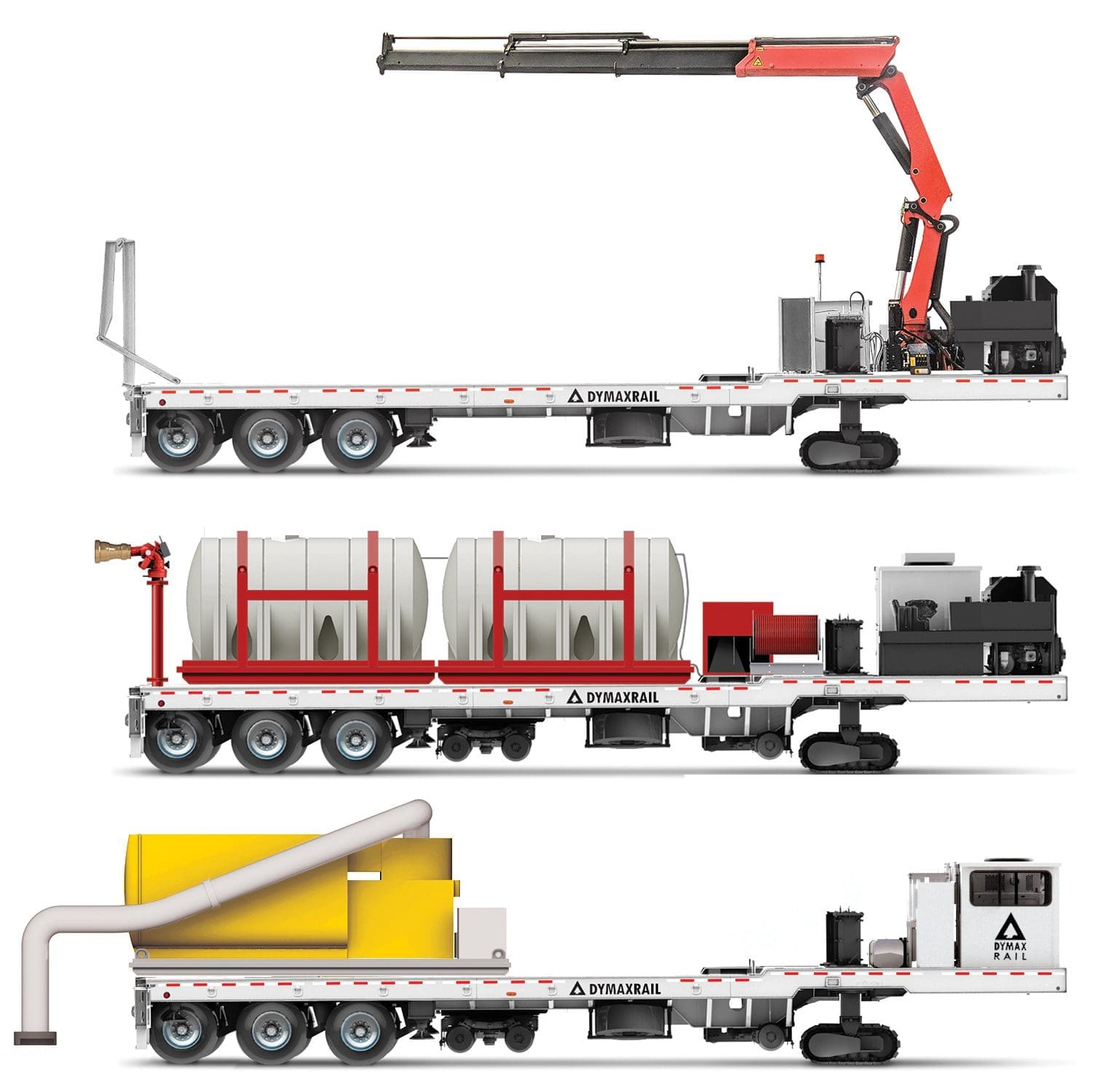

  • Customize your R-Trax – Add a larger crane, vacuums, water support, and other specialized tools to meet the demands of the job.
DX-TRRX-US3-48x275HP-DMX-50TC
7382D2
Transporter RailTrax-US Hwy TriAxle 9ft spread-48 feet long x 275 horsepower-DymaxRail-50 ton capacity

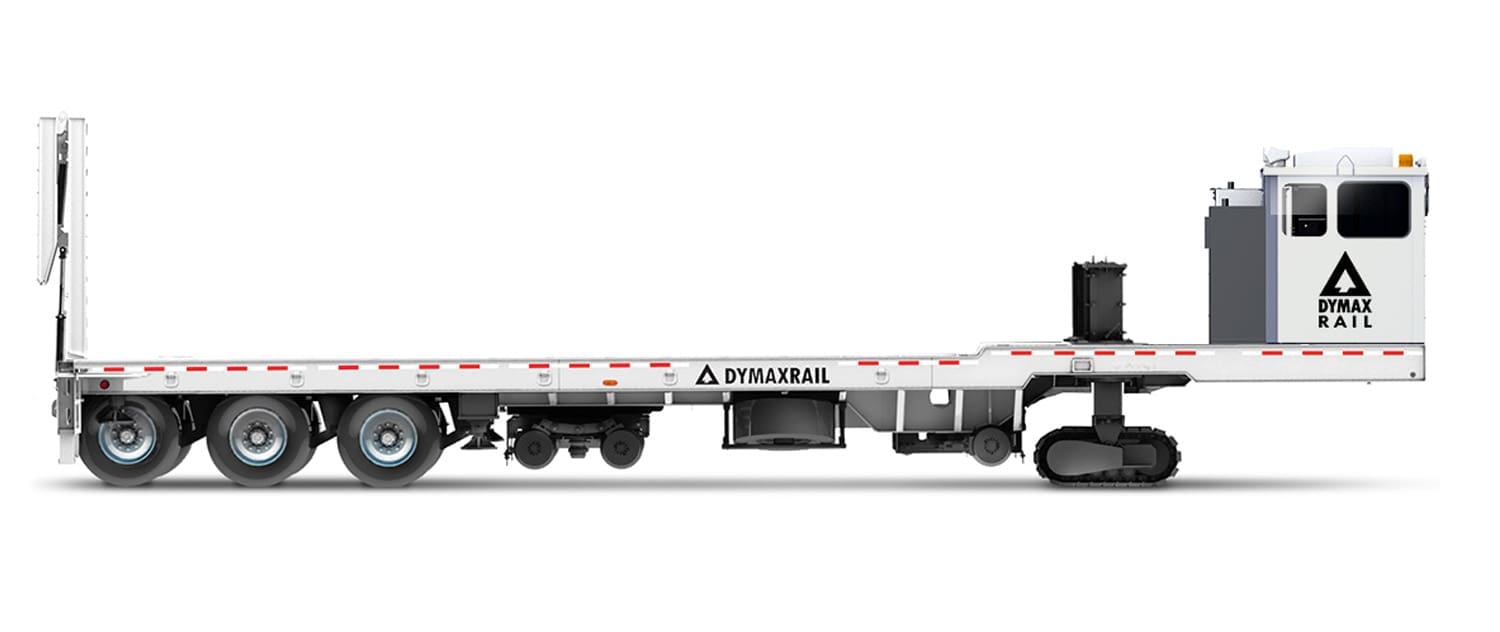

STANDARD FEATURES

  • 31ft deck & cargo space
  • 50T chassis straight frame with tri-axle roadway gear with powered steerable tracks
  • Usable deck length: 31ft 6in / Deck height off rail: 46 inches
  • Innovative railgear systems with hydraulic drive + rear bogie with integrated lift
  • Air suspension package with super singles and aluminum rims; 3 x 17,000lb capacity axles
  • 275HP power unit
  • Includes rear loading ramp & hydraulic platform stabilizers for secure operation
  • Cabin enclosure with operating console and remote control systems; light bars, beacon lighting, inverter, spare rider seats, canopy, fire extinguisher; includes catwalk and railing system

STANDARD CRANE PACKAGE:

  • IMT1286K4 with telescopic stabilizers (11.6 ton meter)
  • Max horizontal reach: 41ft 7in
  • Max vertical reach: 49ft 4in
  • Stabilizer span: 15ft 2in
  • Max lift capacity: 5930 lbs
  • Max lift capacity at full reach: 2,271 lbs

WEIGHT: 52,810 lbs / 23,954 kg
Frame Options Available

  • Drop center frame with rear tandem
  • Straight Frame: 53 foot length with spread axle.
  • (Increases deck to 36 feet of usable space.)
Attachment & Crane Options Available

  • Water support: firefighting up to 12,000 gallons
  • Vacuum attachment
  • Backup power unit: never go down.
  • Railcar knuckle towing package with train car brake control

CRANE UPGRADE FOR LARGER CAPACITY: IMT2820K4 with telescopic stabilizers (24.7 ton meter) • Max horizontal reach: 41ft • Max vertical reach: 49ft 2in • Stabilizer span: 21ft 1in • Max lift capacity: 12,172 lbs • Max capacity at full reach: 4,013 lbs

Design and specifications are subject to change without notice.  Contact DymaxRail for custom solutions 1-800-530-5407.
