1

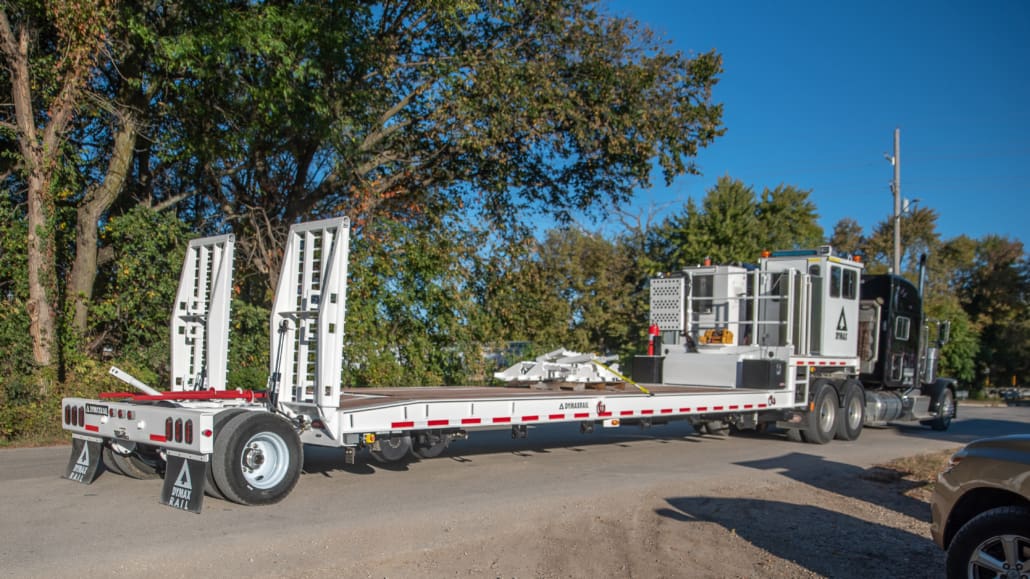

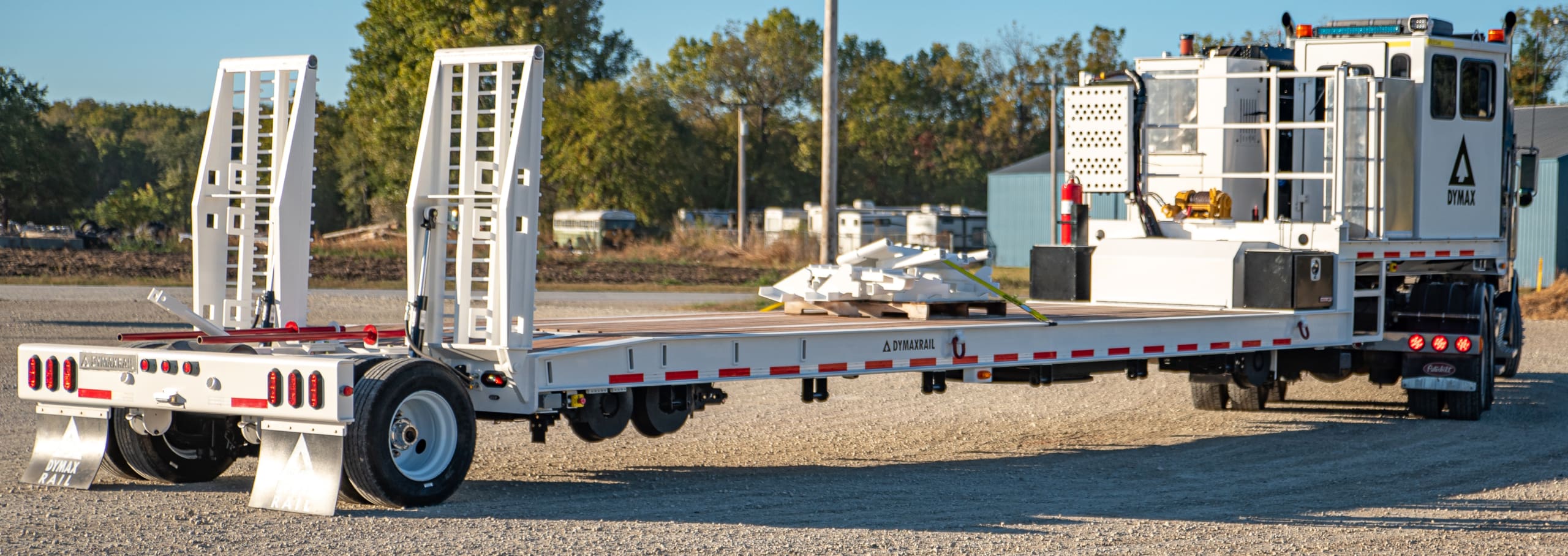

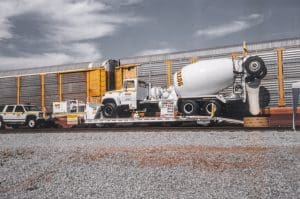

35-Ton Capacity. Heavy-duty welded step deck style frame. 44 feet overall length.

2

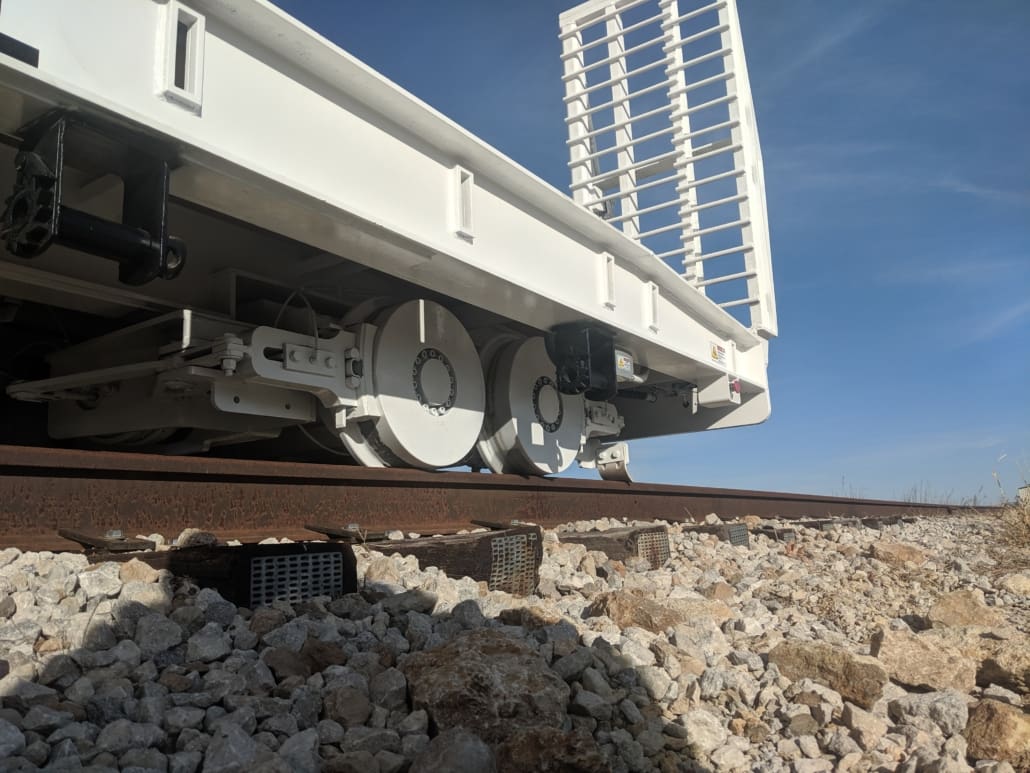

Rear oscillating bogie group enhances navigation in urban environments with superior stability and air brake control.

3

Hydraulic drive railgear provides excellent power and torque.

4

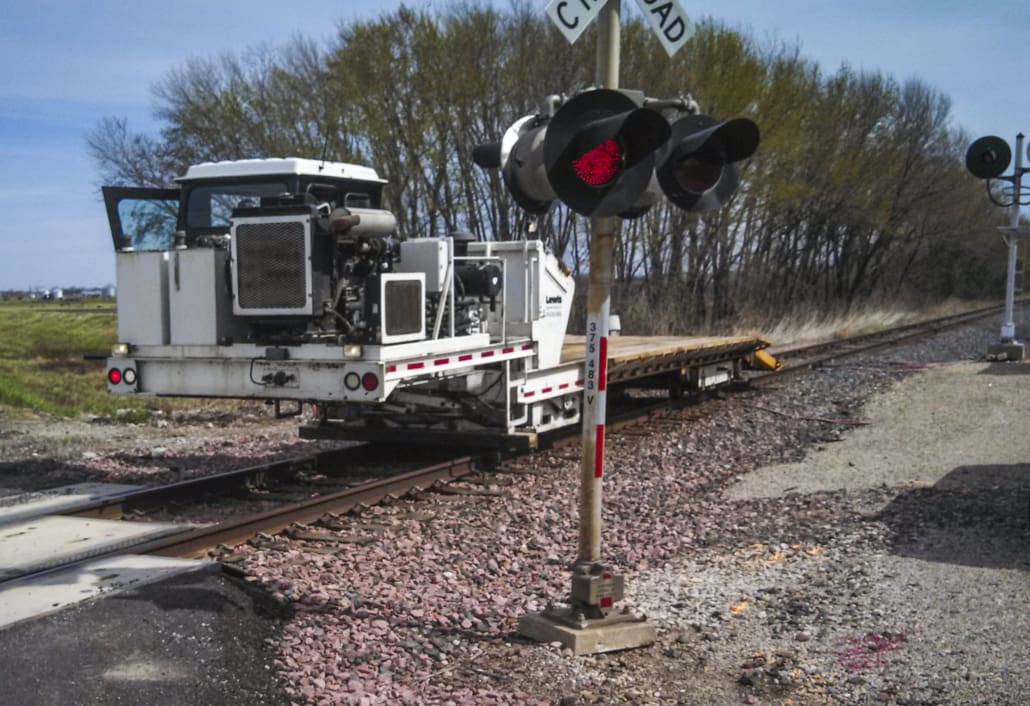

Turntable design enables fast loading and unloading at railway crossings in just 15-20 minutes

5

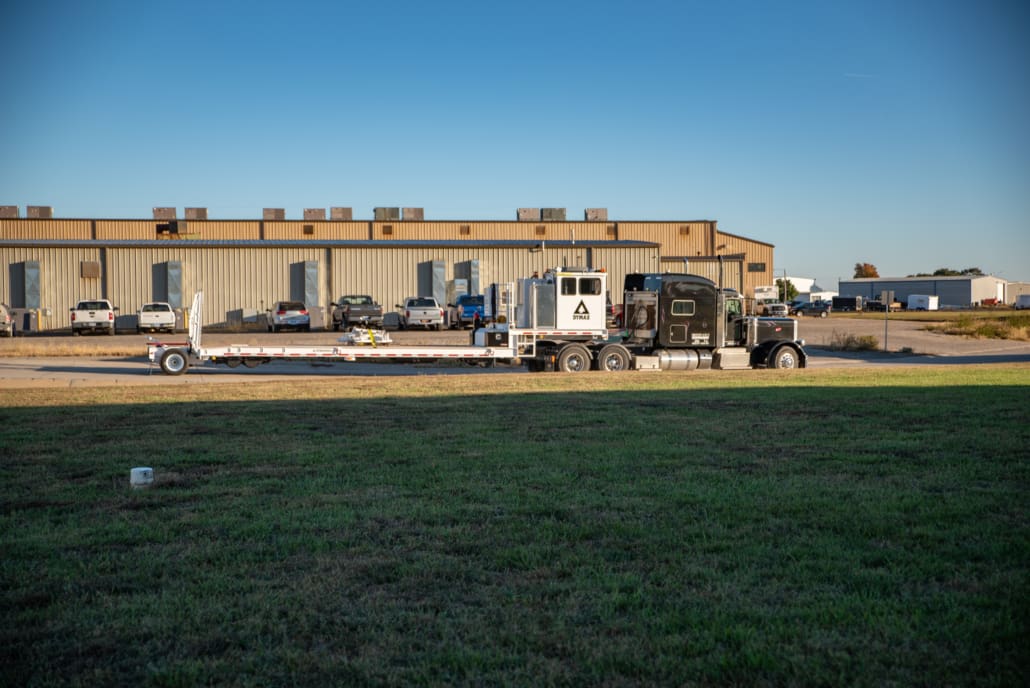

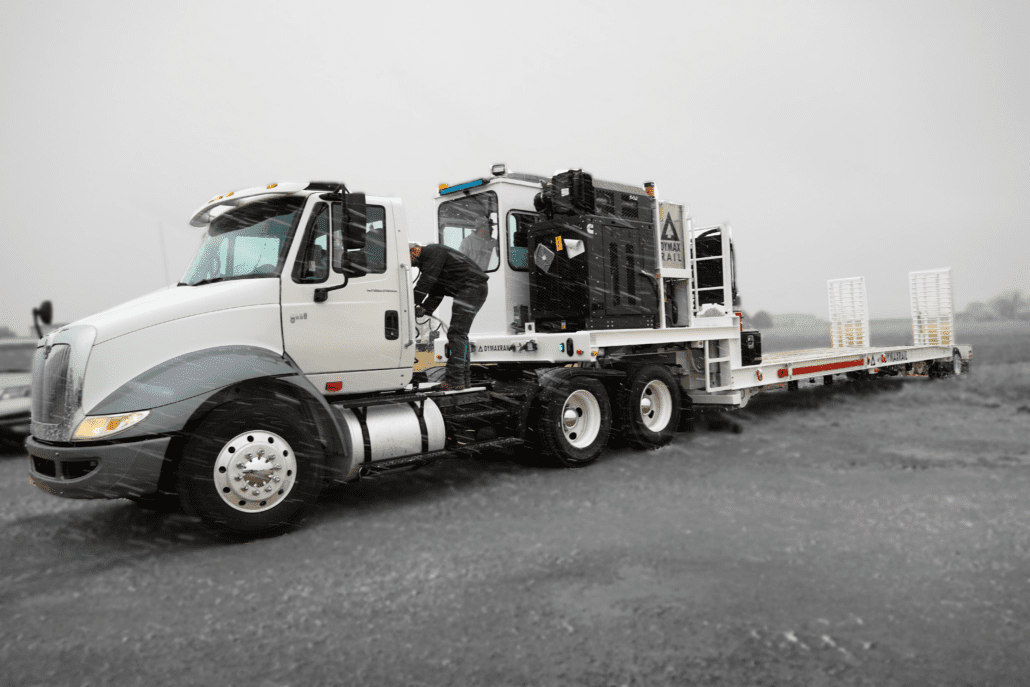

Removable highway dolly enables quick transition between rail and road for maximum accessibility.

6

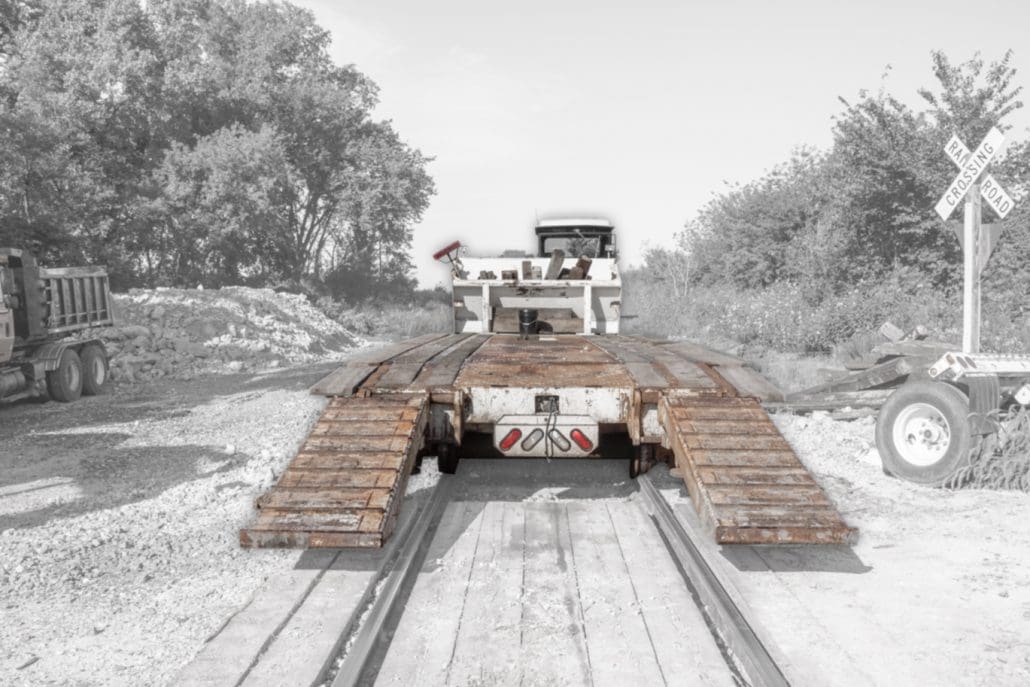

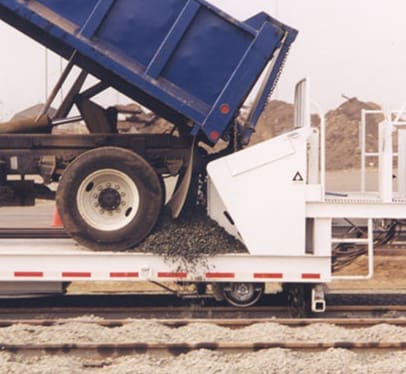

Hydraulic ramps allow easy loading of ballast trucks and various machinery.

7

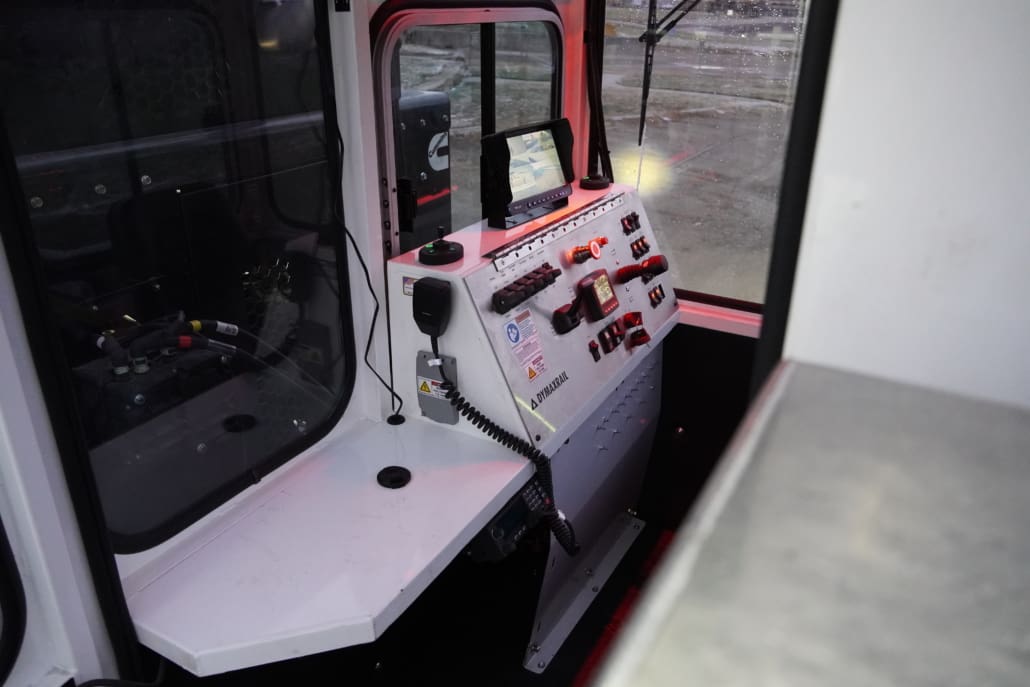

2-man climate-controlled cab: keep operators comfortable and focused in any conditions.

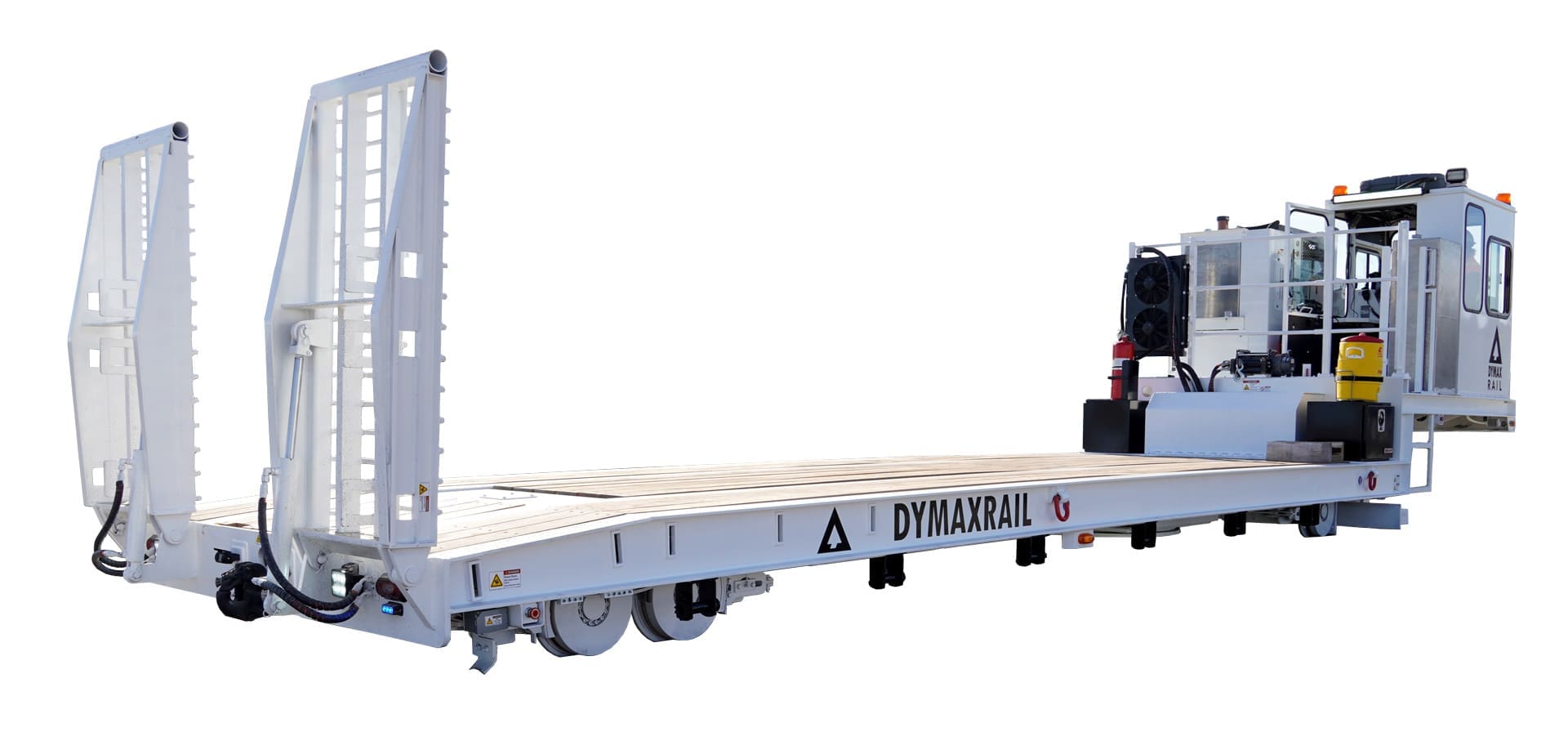

LO-RAILER UTILITY FLATCAR

Fast, Reliable Transport

The Lo-Railer Utility Flatcar moves smaller machinery and materials quickly and efficiently. With fast loading, smooth road-to-rail transitions and enhanced stability, it’s the go-to solution for heavy-duty ballast work and specialized rail transport.

Features & Benefits

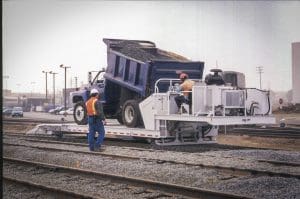

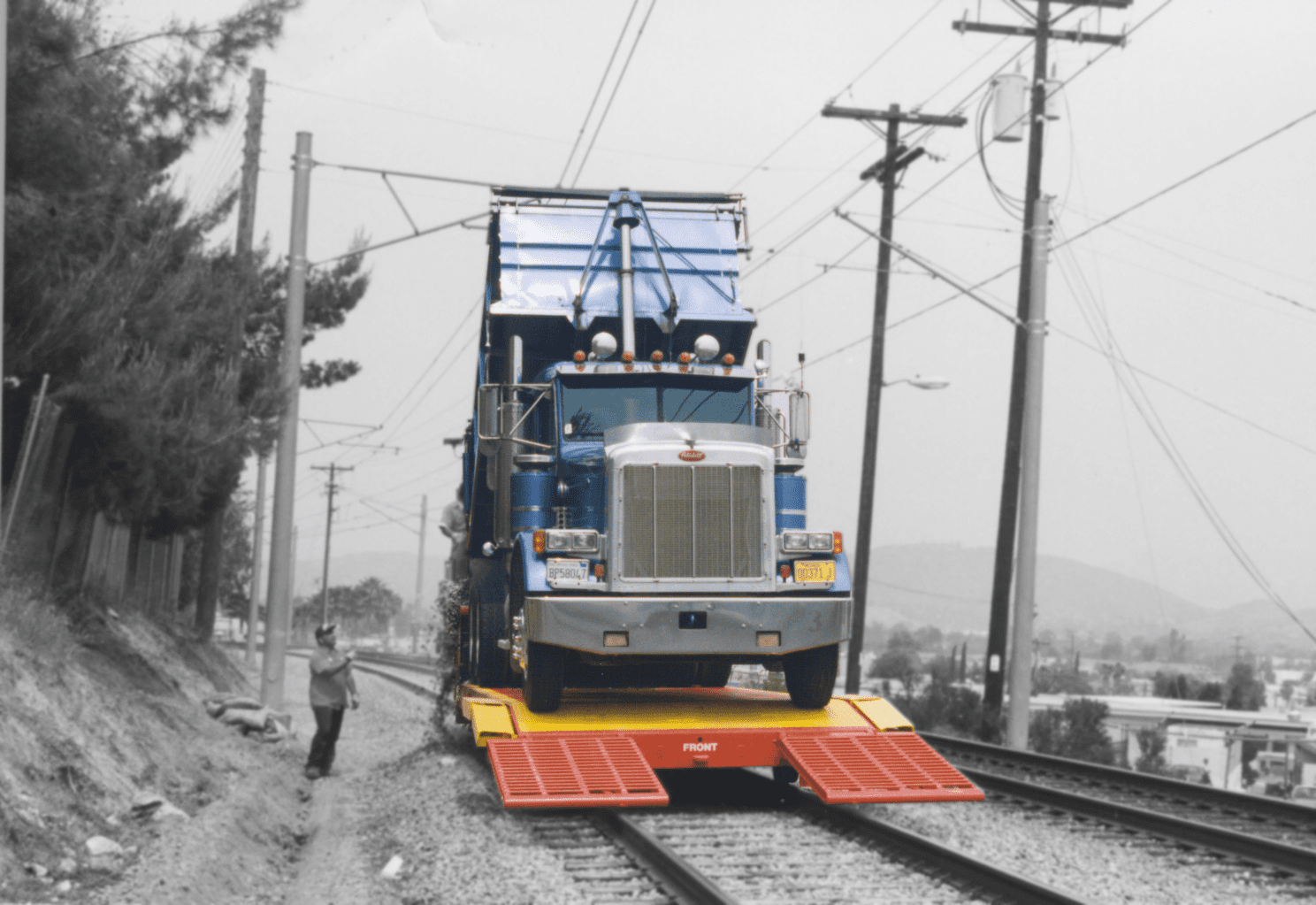

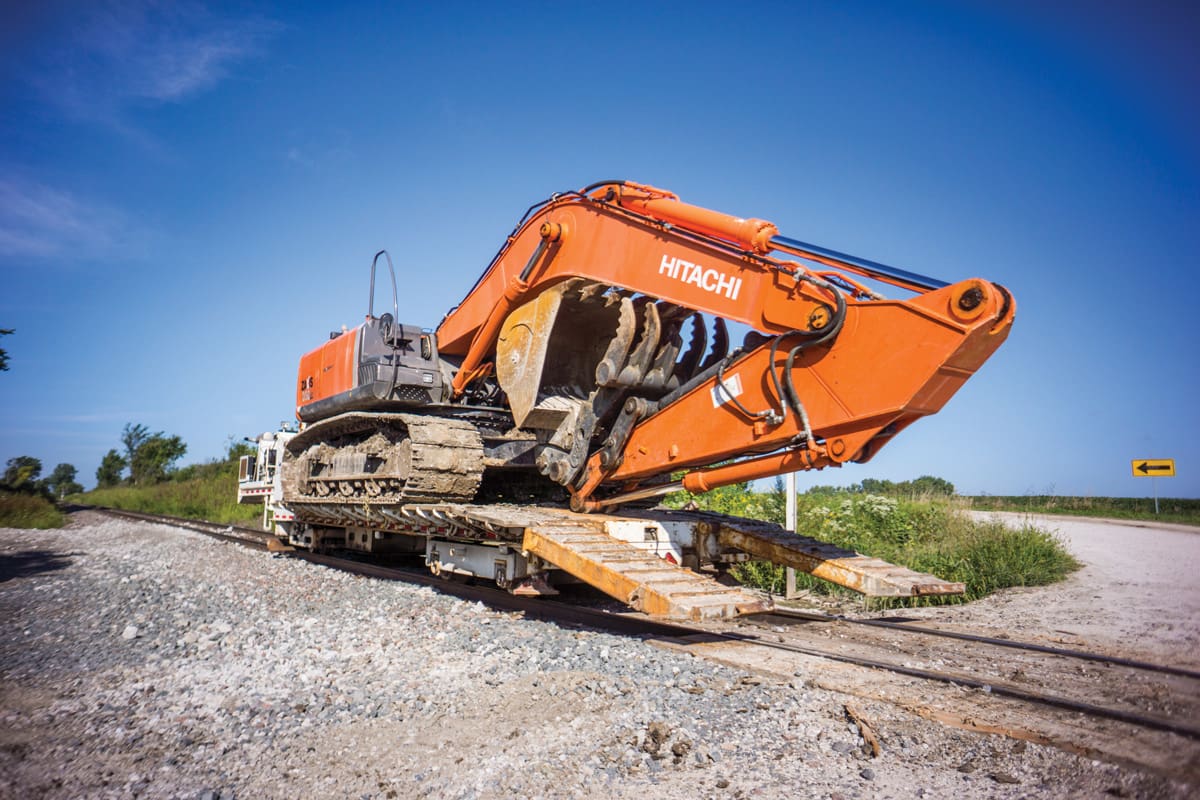

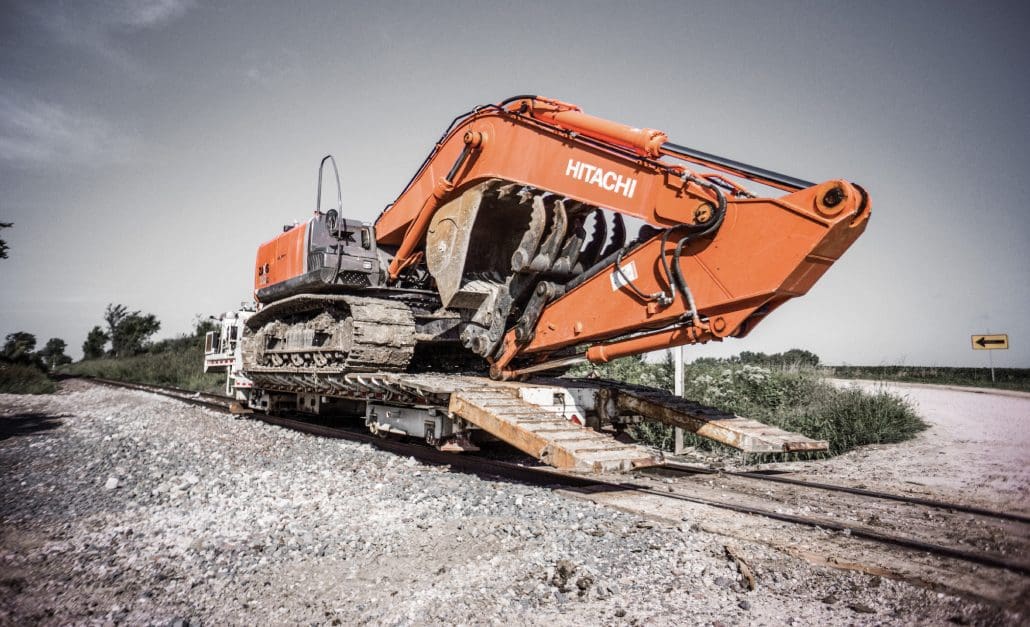

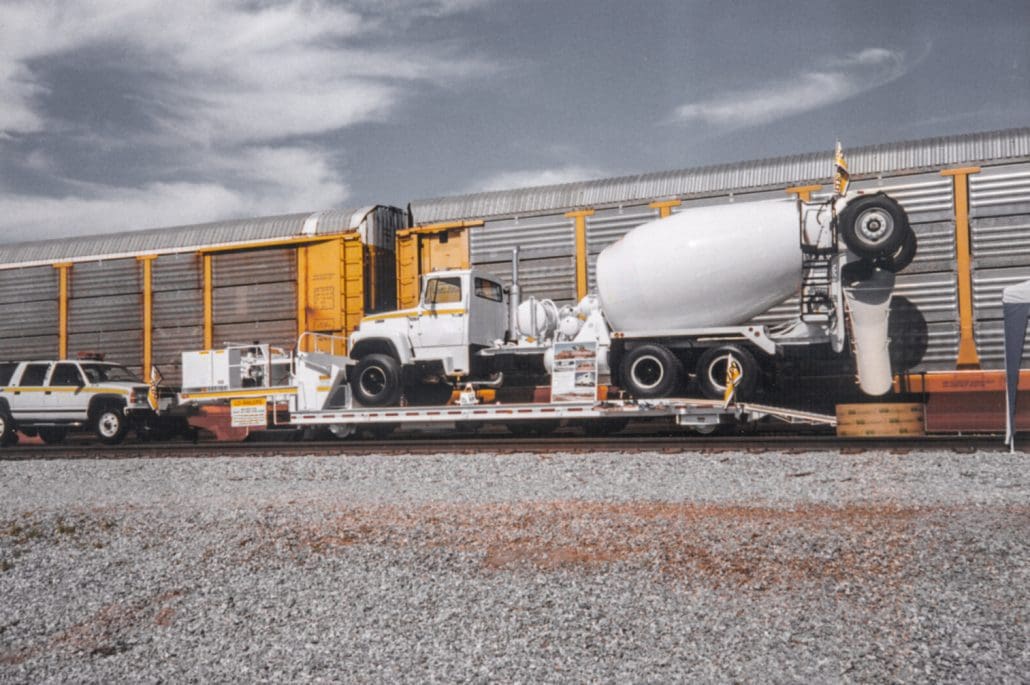

  • Haul cement trucks, ballast trucks, midsize excavators. (Up to 35T)
  • 20-minute road-rail load time with integrated turntable.
  • Safe & legal transport on federal roads.

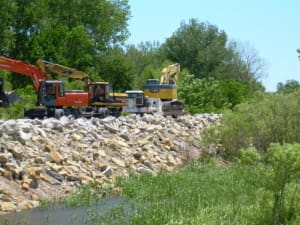

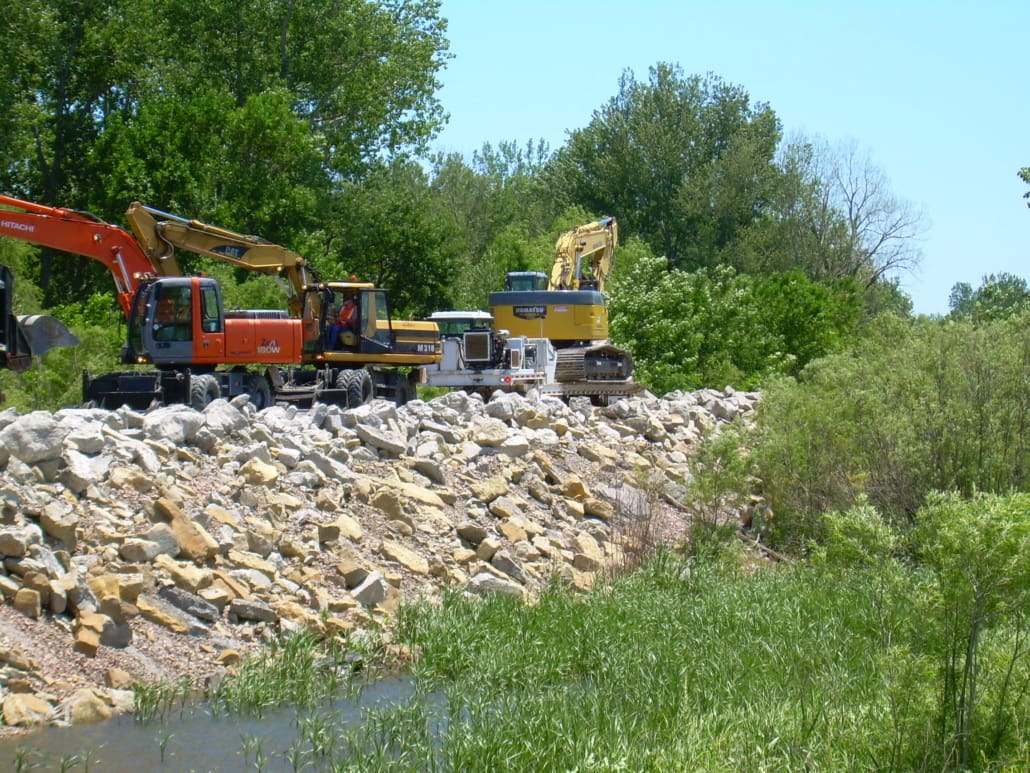

  • Ideal for railway bridge construction and emergency response applications.
  • Also suited for material supply and delivery.
  • 44’ long / 8’6” wide on rail
  • Self propelled diesel power
Model

Group No

Description

Weight (lbs / kg)
DX-TRLO-US1-44x140HP-DMX-35TC

(ref 7216D2)

Transporter LoRailer-US Hwy with single road axle-44 feet long x 140 horsepower-DymaxRail-35 ton capacity

STANDARD FEATURES:

• Dimensions on rail: 40 feet overall length x 8ft 6in wide
• Dimensions on road with roading axle installed: 44 feet overall length x 8ft 6in wide
• Effective deck length for use on rail: 26 feet
• 35 ton uniform load rating made with DymaxRail high tensile strength steel beams
• Replaceable wood decking
• Hydrostatic single drive axle; twin axle navigation bogie, rail sweeps, replaceable 16 inch wheels
• Max speed capable:18-20 mph
• Standard air brakes on all wheels with replaceable friction pads
• 140 horsepower diesel power unit with hydrostatic pump with 2 spare pumps
• 75 gallon fuel tank, oil tank, oil cooler, 150AMP12v alternator

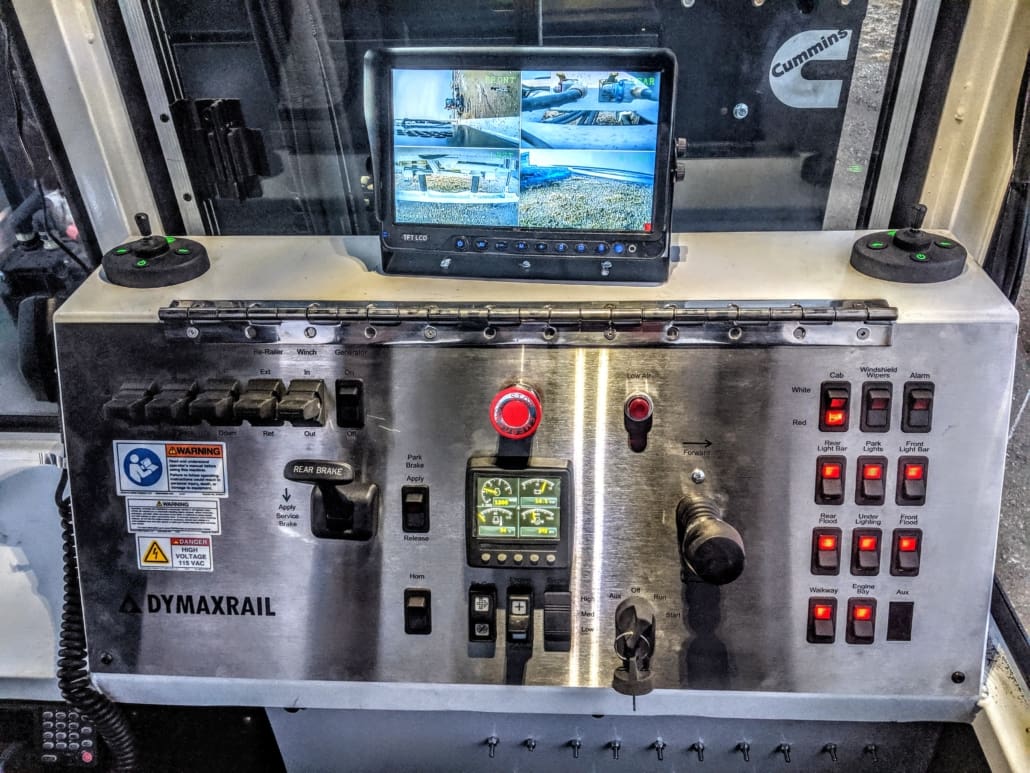

• Operator cabin, sliding window, AC, heat, 110V USB outlet, control console, camera system, window wipers, 2x spot lamps, white and red interior lighting
• Camera system 4 position screen / two cameras on end of the trailer / 2 cameras under platform showing functions / position

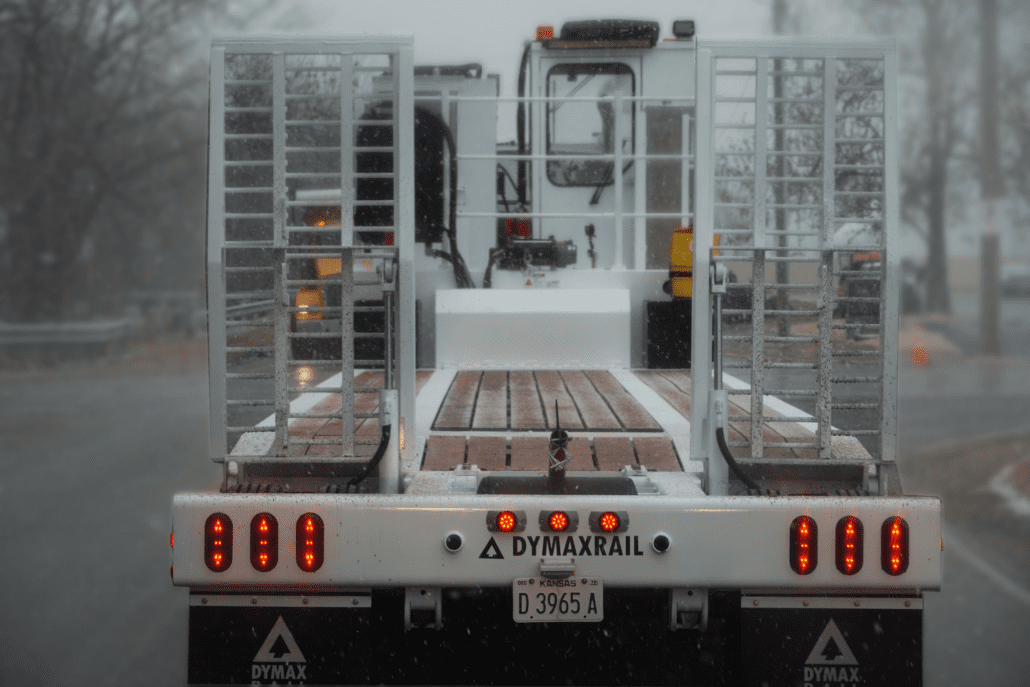

• Hydraulic loading ramps
• On rail lighting package: directional lighting, spot lamps, beacon lighting, engine bay and under platform lights

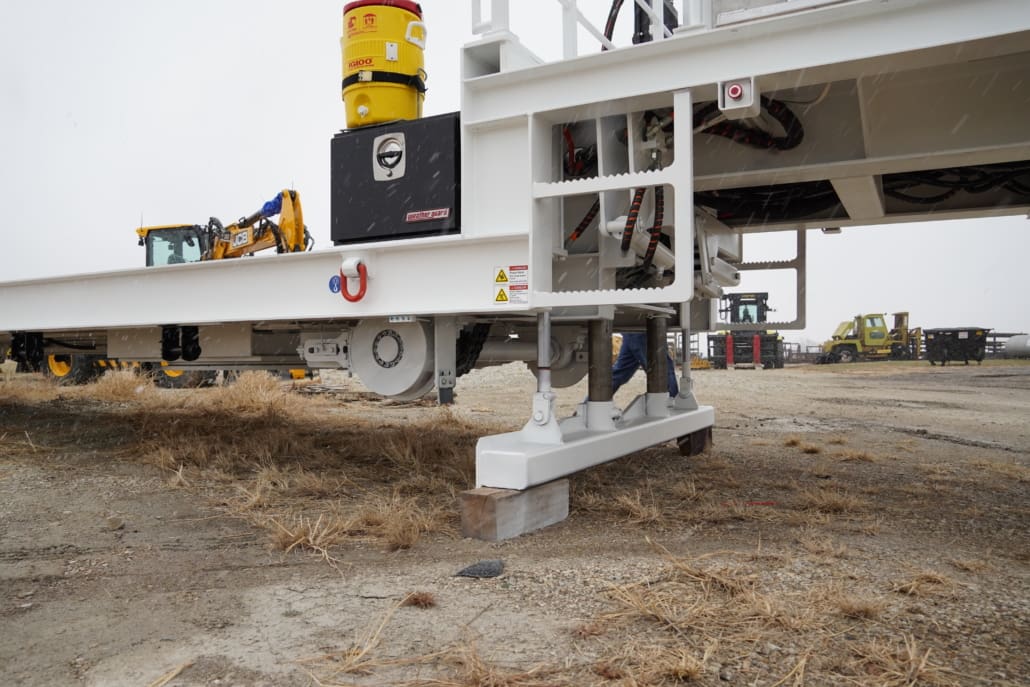

• Manual rotating turntable with hydraulic slide
• Single road dolly (tag axle) provided and VIN registered

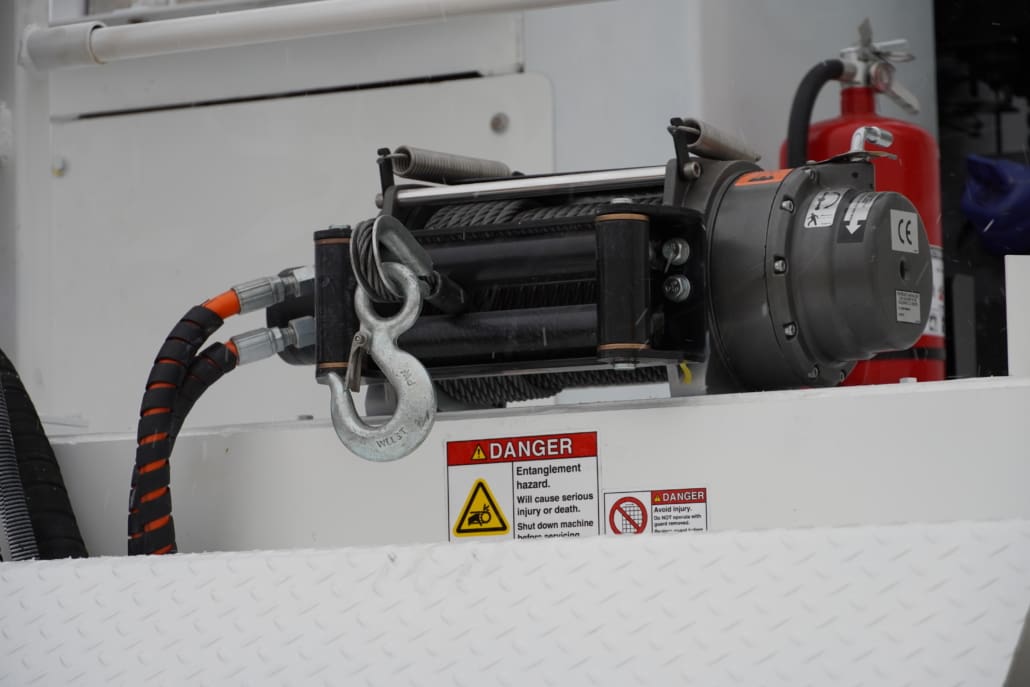

• Hydraulic winch with fairlead and cable
• 3.5KW generator with outlets
• Ratchet tie downs with straps
• 50 ton pintle eye on ramp end
• 10 foot long pintle eye towbar with stow rack
• Air brake systems
• Apitong wood decking / steel deck plate combination
• D ring tie downs on side frame

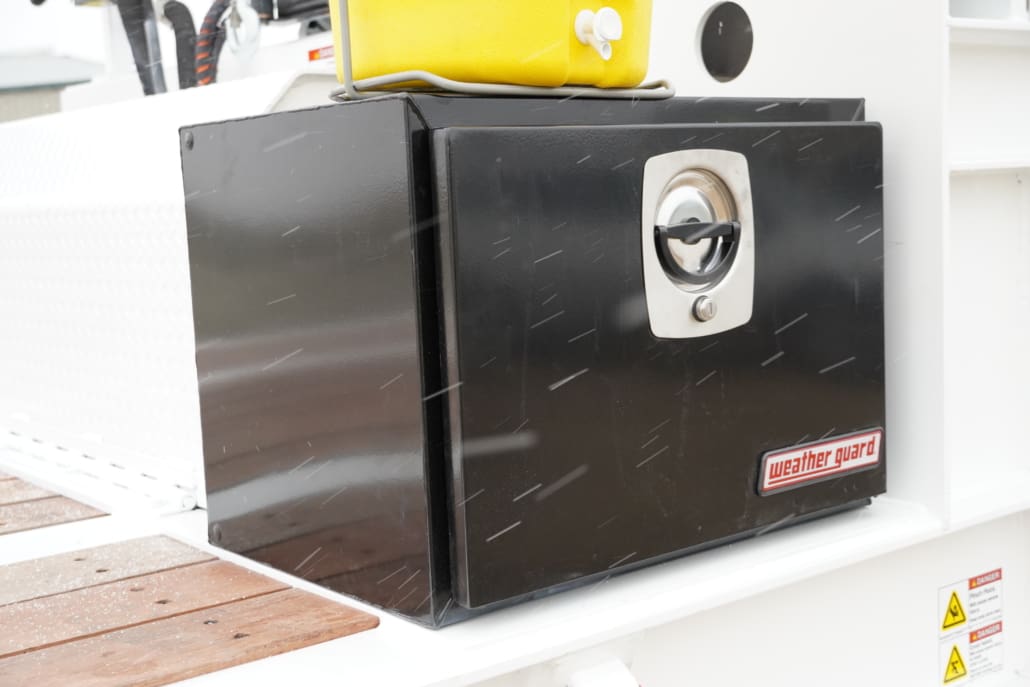

• 2 tool boxes
• 2 fire extinguishers
• Gladhand air line connections on ramp side for connecting to spare trailers

33,820lbs / 15,340kg
Options Below
DX-TRLO-OPT-HOPPER-DMX-35TC

Transporter Lo-Railer-Option-BALLAST HOPPER BOX-Dymax-35 ton capacity

STANDARD FEATURES:

• Bolt on ballast hopper box for dumping ballast through use of rear unloading dump trucks

Design and specifications are subject to change without notice. Contact DymaxRail sales for options or custom solutions not listed.
