LO-RAILER UTILITY FLATCAR

Fast, Reliable Transport

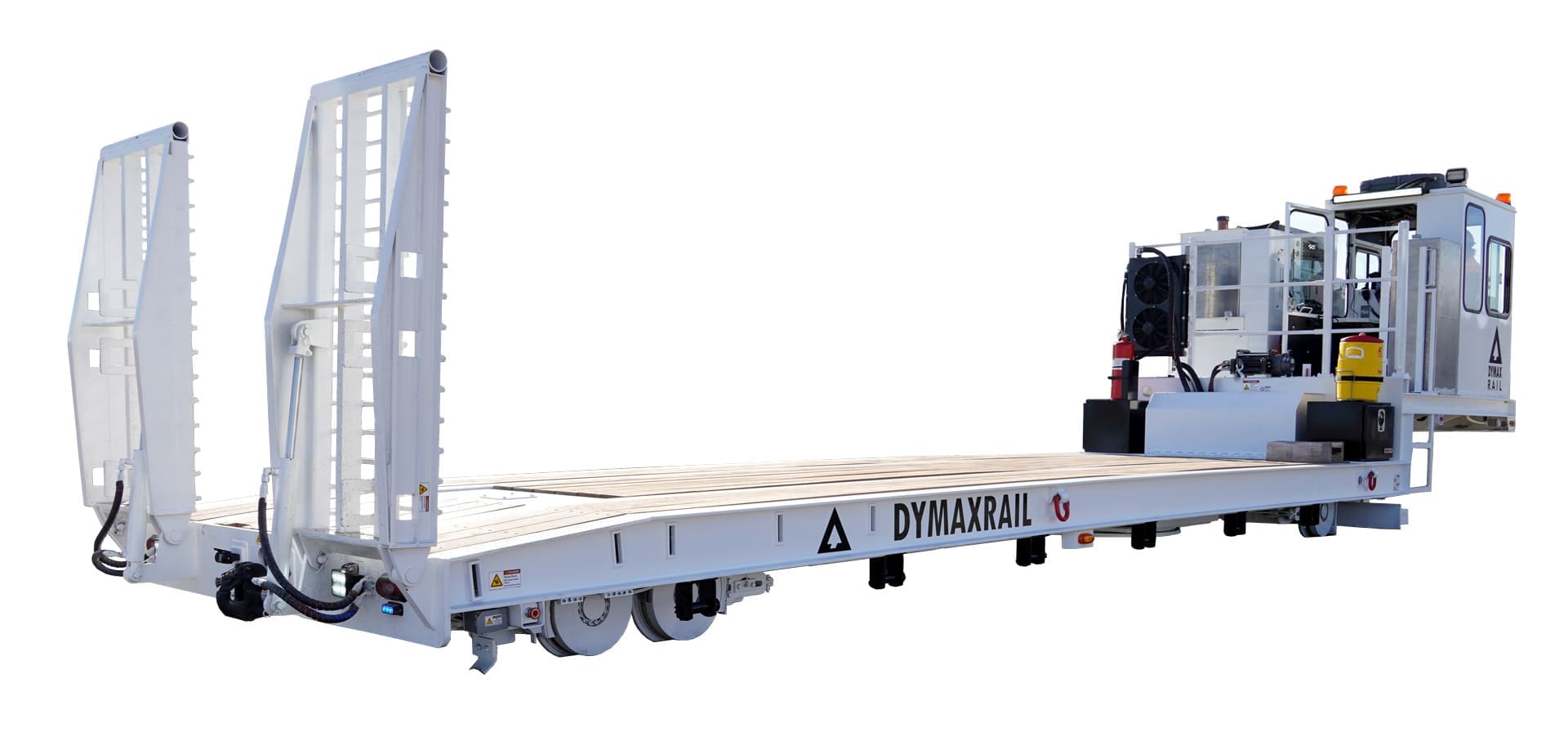

The Lo-Railer 2.0 Utility Flatcar moves machinery and materials quickly and efficiently. With fast loading, smooth road-to-rail transitions, and enhanced stability, it’s the go-to solution for heavy-duty ballast work and specialized rail transport — now available in higher load capacities up to 45 tons.

VIDEO BROCHURE GET A QUOTE

1

2

3

4

Features & Benefits

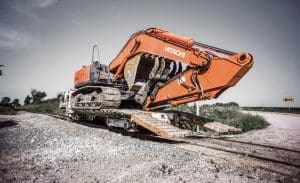

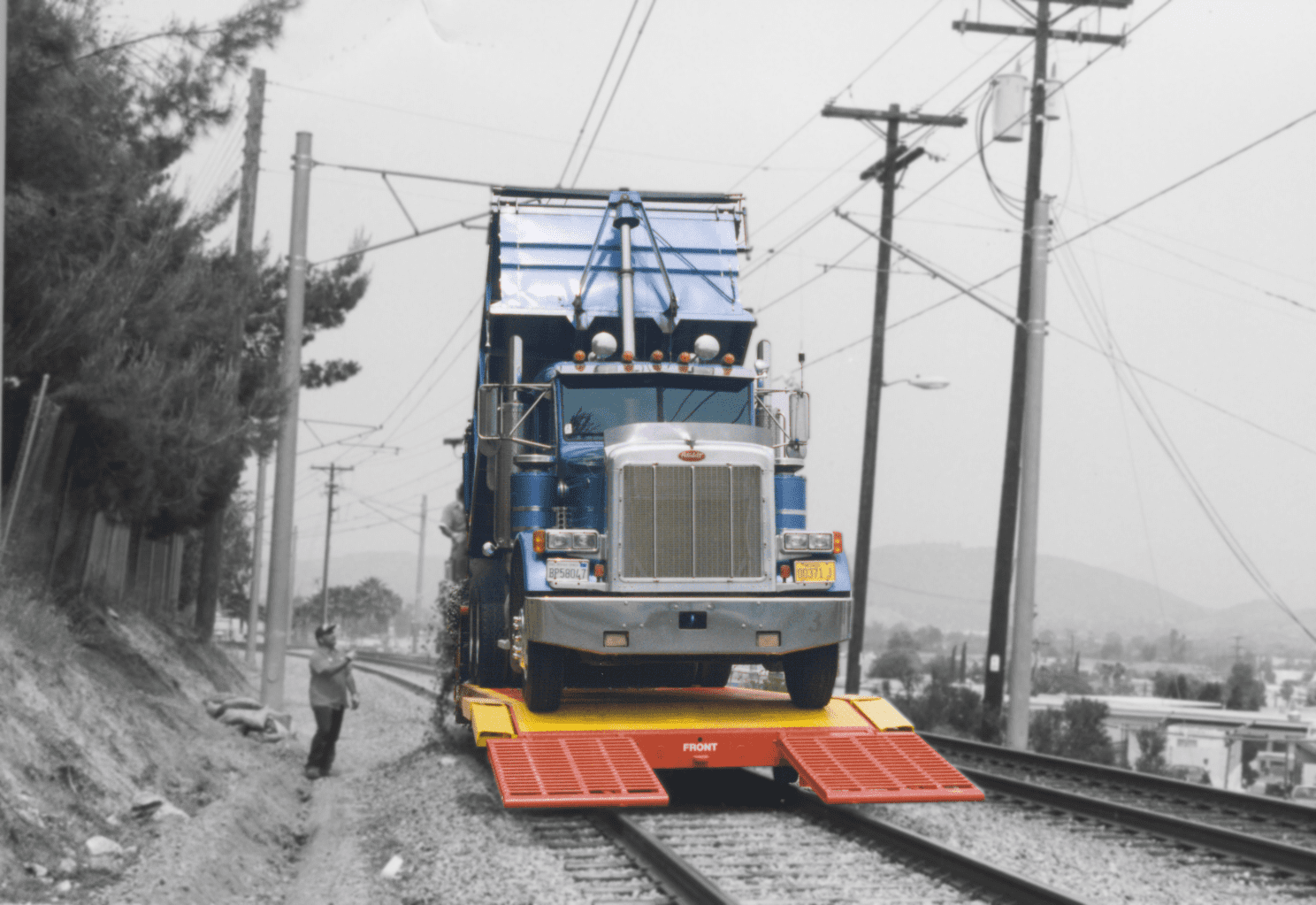

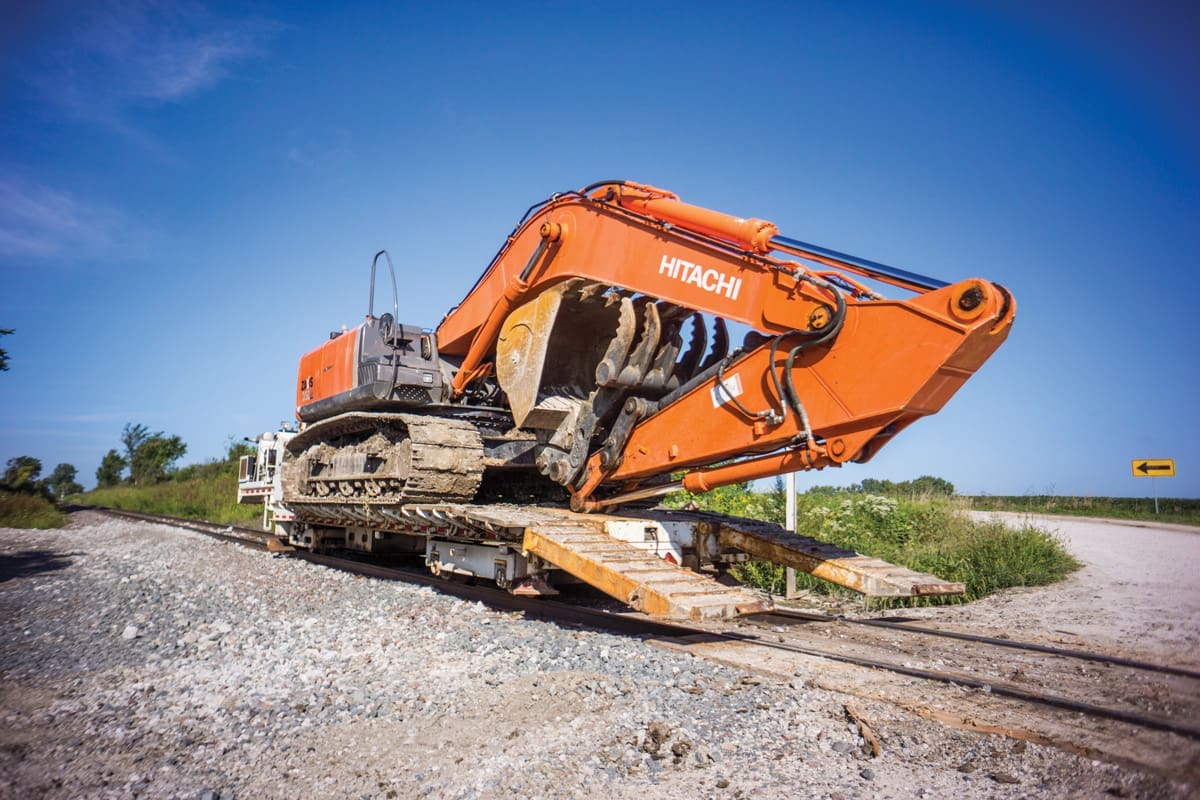

Haul cement trucks, ballast trucks, midsize excavators. (45 ton models)
20-minute road-rail load time with integrated turntable.
Safe & legal transport on federal roads.
Ideal for railway bridge construction and emergency response applications.
Also suited for material supply and delivery.
44’ long / 8’6” wide on rail
Self-propelled diesel power

Highway-Ready Rear Dolly quickly attaches to the rear of a trailer, enabling safe and legal transport on federal roads.

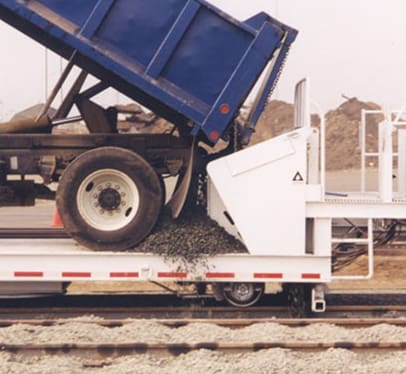

An optional ballast-spreading hopper box adapts to Lo-Railers, allowing standard dump trucks to efficiently unload and distribute ballast.

SPECIFICATIONS

LORAILER UTILITY FLATCAR

Model
Group Number
Description
Weight

Group No. 8594D1

Model: DX-TRLO-US1-44x140HP-DMX-45TC

Description: Transporter Lo-Railer 2.0-US Hwy with single road axle-44 feet long x 140 horsepower-DymaxRail-45 ton capacity

OVERVIEW:

Dimensions on rail: 40 feet overall length x 8ft 6in wide
Dimensions on road with roading axle installed: 44 feet overall length x 8ft 6in wide
Track Gauge: Standard Rail Gauge 56.5/1435mm
Effective deck length for use on rail: 26 feet
Load Capacity: 45 ton
Hydraulic System Capacity: Hydrostat = Max Flow 55 GPM, Max Pressure 5,510 psi @ 2,200 engine RPM
Aux Pump = Max Flow 33 GPM, Max Pressure 3,045 psi @ 2,200 engine RPM

STANDARD FEATURES:

Hydrostatic single drive axle
Twin axle navigation bogie
Rail sweeps
Replaceable 16 inch wheels
Max speed capable 18-20mph
Standard air brakes on all wheels with replaceable friction pads
140 horsepower diesel power unit with hydrostatic pump with 2 spare pumps
75 gallon fuel tank, oil tank, oil cooler, 150AMP12v alternator
Operator cabin, sliding window, AC, heat, 110V USB outlet, control console, camera system, window wipers
2x spot lamps, white and red interior lighting
Camera system 4 position screen / two cameras on end of the trailer / 2 cameras under platform showing functions / position Hydraulic loading ramps
On rail lighting package: directional lighting, spot lamps, beacon lighting, engine bay and under platform lights
Manual rotating turntable with hydraulic slide
Single road dolly (tag axle) provided and VIN registered
Hydraulic winch with fairlead and cable
3.5KW generator with outlets
Ratchet tie downs with straps
50 ton pintle eye on ramp end
10 foot long pintle eye towbar with stow rack
Air brake systems
Apitong wood decking / steel deck plate combination
D ring tie downs on side frame
2 tool boxes & 2 fire extinguishers
Gladhand air line connections on ramp side for connecting to spare trailers

OPTIONS:

Ballast Hopper Attachment (Group No. 8595D1)
Used for dump truck and ballast spreading operations in urban applications. Add 2,000 lbs to the overall weight when installed.

WEIGHT: 33,840 lbs without hopper

Design and specifications are subject to change without notice.
