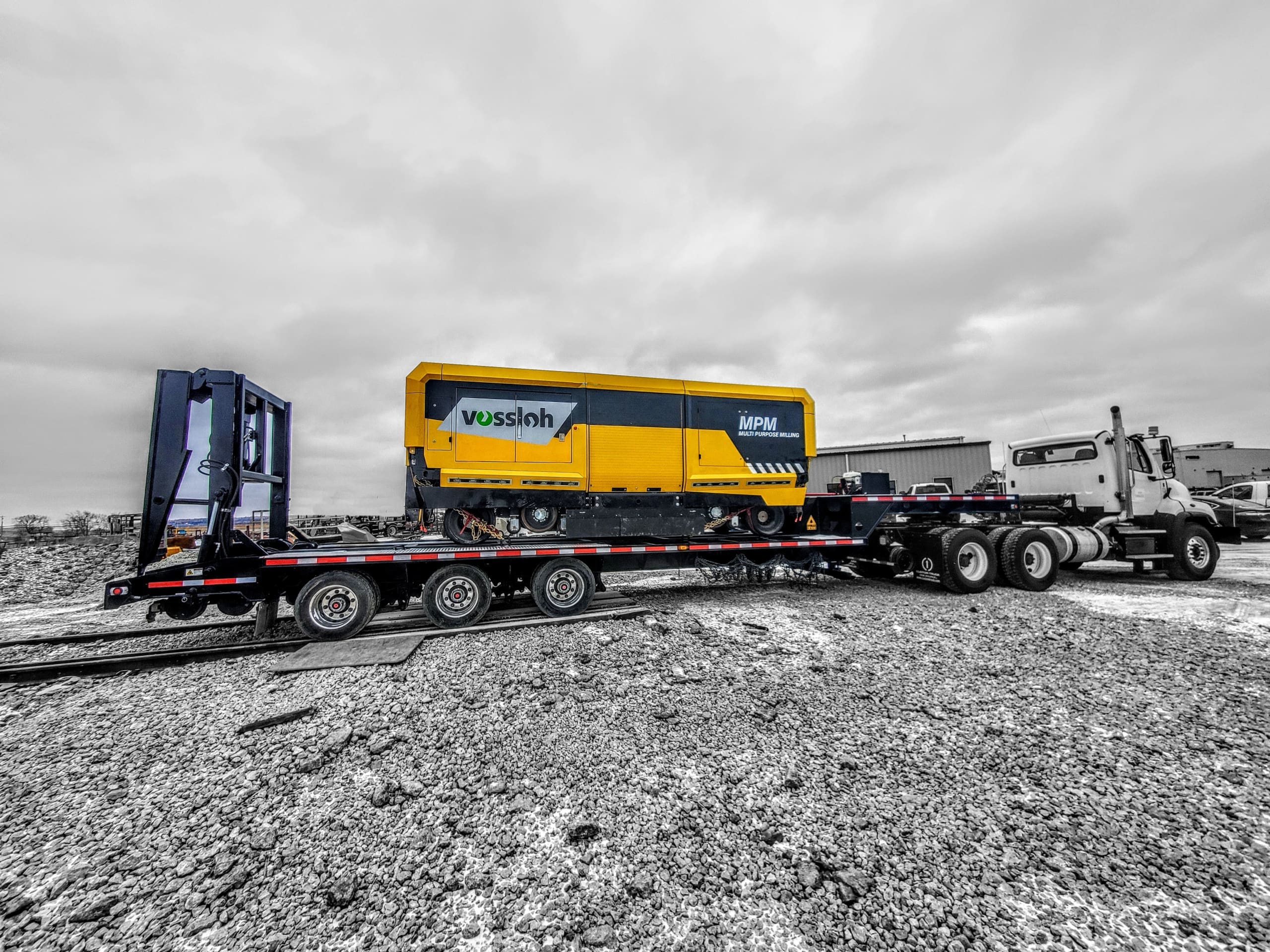

Hi rail truck pulling a Road Rail Drop Deck Equipment Recovery Trailer and Vossloh milling machine

ROAD RAIL DROP DECK HI RAIL TRAILER

The DymaxRail Drop Deck Road-Rail Recovery Trailer is a versatile, high-capacity transport solution designed for railway operations, maintenance and recovery applications. Engineered to work in conjunction with hi-railed trucks, this hi rail trailer offers seamless on-and-off-track mobility, maximizing efficiency for railway contractors, transit authorities and maintenance teams.

Models Available: 42 or 48 feet with GVWR 60,000 lbs

1
2
3
4
5
6
7
8
9
1

Hydraulic power unit – gasoline fuel

2

Fairlead winch

3

Dexter axles with 17.5 tires

4

Winch roller cable guide

5

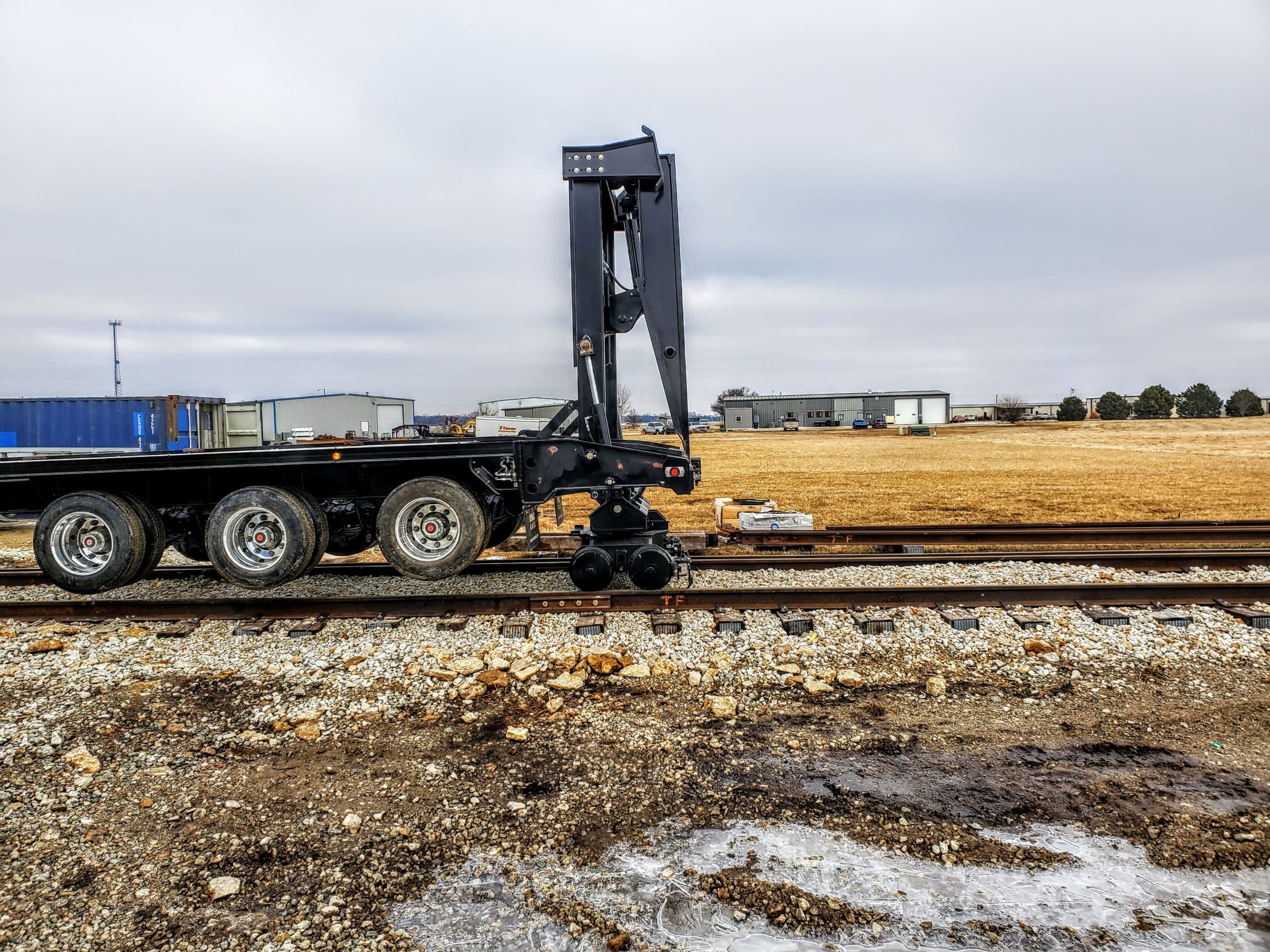

Rear railway bogie with rotating turntable

6

Rear rail ramp – hydraulic bi-folding design with center adjustable support

7

Air brakes

8

Control panel

9

Hydraulic stabilizer bar

Newspaper Newspaper Brochure Youtube-play Youtube-play Contact Us

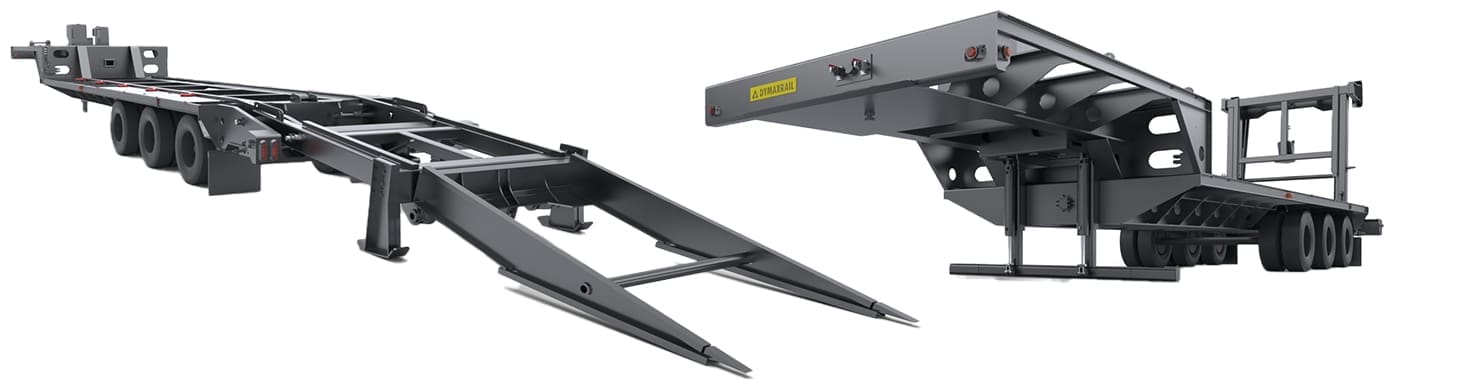

  • High Strength Frame & Deck: Reinforced steel frame with twin-beam construction for enhanced durability. Open deck with cover plates over tire wells.
  • Specialized Rear Rotating Railway Bogie: Innovative rear rotational bogie smoothly guides trailer on rail at crossing locations and enables operators to drive to remote locations to unload or recover equipment.
  • Hydraulic Power Unit with Winch: Gas powered hydraulic power unit with lever controls. High capacity winch with 15T of pull force. Includes fairlead and cable.
  • Rail Ramp and Built-In Floor: A bi-fold hydraulic ramp lowers to the rails, ensuring a smooth transition for railway equipment moving between the rails and the trailer deck.
  • Options: Customized solutions available upon request.

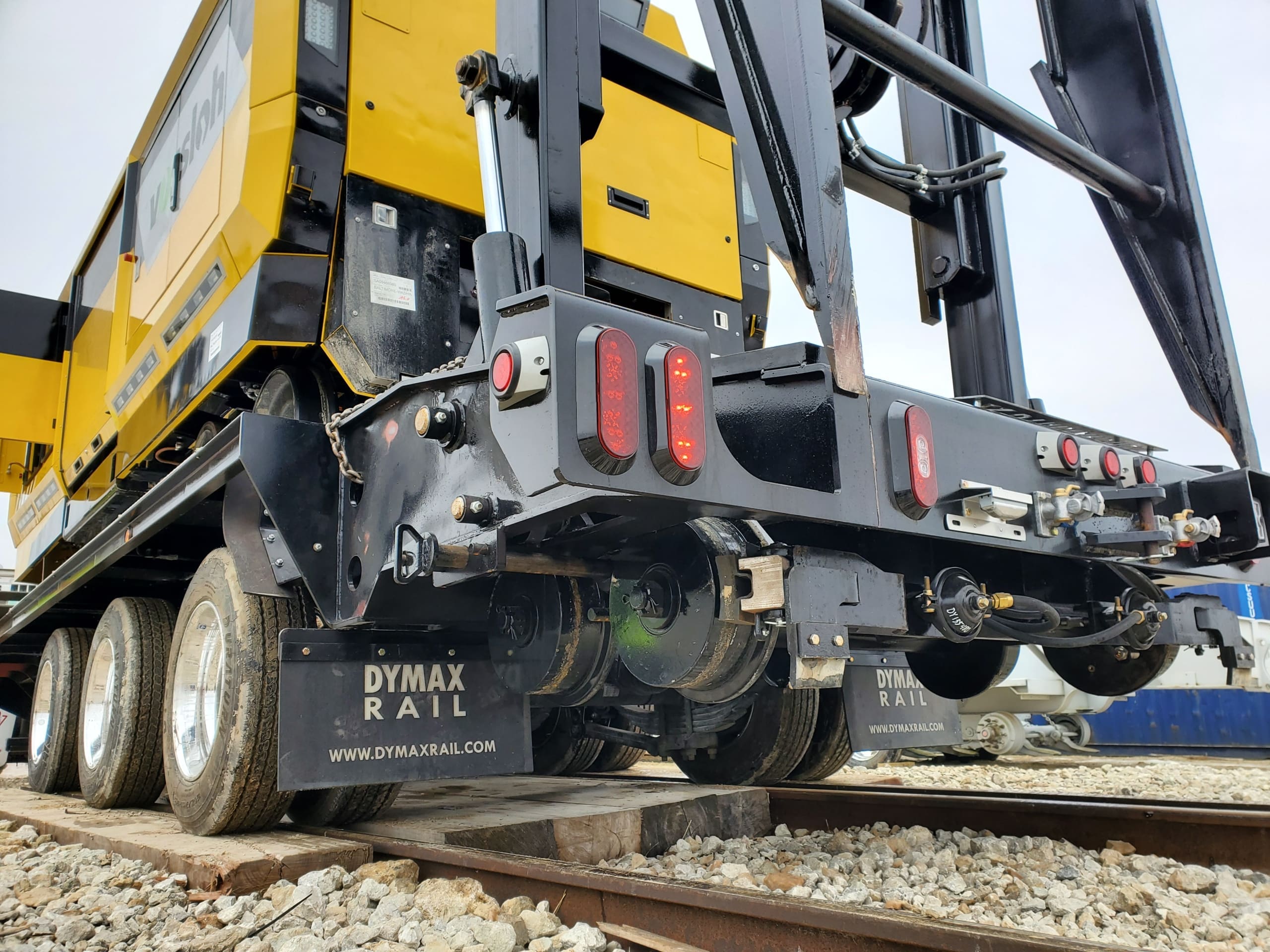

Rear Rotating Railgear

DymaxRail innovative design for fast track access.

Powerful Winching

Built-in hydraulic winch with fairlead for smooth control. Cable included.

Easy to Use Controls

Located on side of trailer. Remote available upon request.

Group Number: Model
Description
Weight (lbs)
7203D2: DX-RRT-SD3-W102x42ft-DMX-30TC

Product works with Hi-Railed Heavy Duty Truck GVWR Rating 60,000 lbs

STANDARD FEATURES & SPECIFICATIONS:

  • Load capacity max: 30 tons
  • Overall Length (Ramps Up) Road Position: 42ft
  • Overall Length (Ramps Down) Rail Position: 49ft-6
  • Overall Width: 101.00 inches / 8ft-5
  • Deck Length (Usable):  283.54 / 23ft-6
  • Deck Width (Usable): 101.00 inches / 8ft-5
  • Deck Height off Rail: 38.3 inches
  • Road Axles: Dexter heavy duty with 17.5 tires
  • Road & Rail Axle Brakes: Standard air brakes
  • Front Stabilizer: Heavy duty hydraulic stabilizer bar
  • Rear Railgear: DymaxRail twin-axle rotating bogie with hydraulic lift, non-insulated railgear with front and rear sweeps and air brakes with cobra style friction pad.

WEIGHT: 20,550 lbs
8454D1: DX-RRT-SD3-W102x48ft-DMX-30TC

Product works with Hi-Railed Heavy Duty Truck GVWR Rating 60,000 lbs

STANDARD FEATURES & SPECIFICATIONS:

  • Load capacity max: 30 tons
  • Overall Length (Ramps up) Road Position:  48ft
  • Overall Length (Ramps Down) Rail Position: 56ft-6
  • Overall Width: 101.00 inches / 8ft-5
  • Deck Length (Usable):  354.54 / 29ft-6
  • Deck Width (Usable): 101.00 inches / 8ft-5
  • Deck Height Off Rail: 38.3 inches
  • Road Axles: Dexter heavy duty with 17.5 tires
  • Road & Rail Axle Brakes: Standard air brakes
  • Front Stabilizer: Heavy duty hydraulic stabilizer bar
  • Rear Railgear: DymaxRail twin-axle rotating bogie with hydraulic lift, non-insulated railgear with front and rear sweeps and air brakes with cobra style friction pad.

WEIGHT: 23,000 lbs
Design and specifications are subject to change without notice. Trailers listed feature non-insulated railgear and are suited for standard gauge track 56.50 inches (1435mm). Contact DymaxRail Sales 1-800-530-5407 to learn more or to customize your next drop deck trailer.
