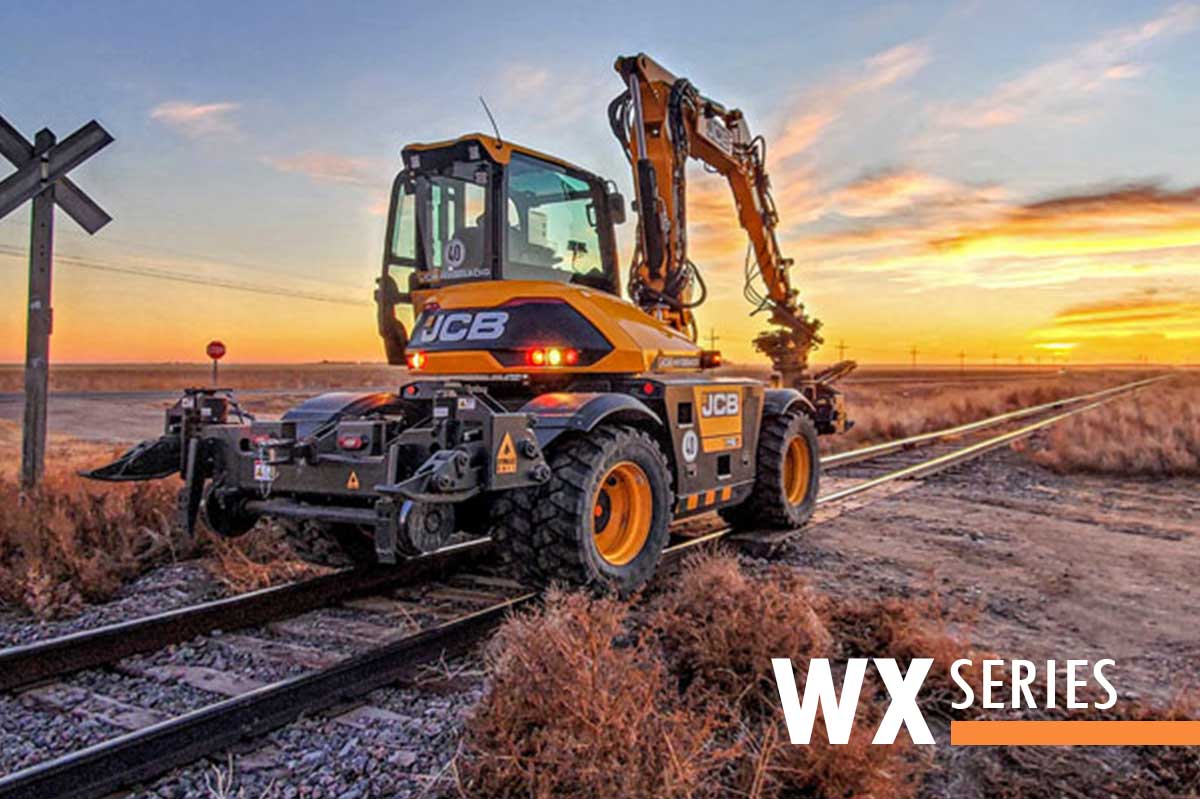

HI RAIL ATTACHMENT FOR WHEEL EXCAVATORS (GUIDE SYSTEM)

DYMAX RAIL RIDER G-WX SERIES

ELEVATE YOUR PERFORMANCE ON RAIL

The Rail Rider G-WX hi-rail attachment systems are engineered to work with wheel excavators that use their rubber tires to drive on the rails. Each model features the latest hi-rail technology, including operator indicators, slew and boom lockouts, spring axle design, non-modified excavator adapters, and enhanced machine stability.

Adaptable to Caterpillar, Case, Doosan or Develon, John Deere, JCB, Sennebogen, and Volvo.

Brochure Video Get a Quote

Rail-Rider-HX-W1-With-7650D2-Front-Cat-M320 -railgear-down copy

Model WX1B

WX1B is suited for wheel excavators equipped with a front dozer blade and rear factory stabilizers.

Model WX2B

WX2B is suited for wheel excavators equipped with front and rear dozer blades.

Model WX4S

WX4S is suited for wheel excavators equipped with four stabilizers.

KEY FEATURES

Exceptional track mobility – navigates railway with ease featuring special engineered rail axle and lift group.
Enhanced safety features – For better performance on rail, our safety control group includes slew and boom lockouts, operator indication of railgear position, enhanced stabilizer solutions and braking systems.
Made for 3rd rail networks – Optional specialized rail clamps and stabilizers to suit 3rd rail applications are available upon request.
Self-contained directional lighting systems – delivers automatic lighting change for Red and White directional lights with no plugs to connect to your excavator.
Free installation at DymaxRail.

OPTIONS

OPTIONS for Rail Rider G-WX Series

Insulated railgear
Axle gauge for standard or broad gauge; subject to tire spreads.
DymaxRail enhanced stabilizer arms for factory OEM stabilizers. Increase depth below tie by up to 10 inches to provide added stability on slopes.
3rd rail stabilizer systems; close to the tie and do not swing down like conventional stabilizer arms.
Hydraulic rail clamps

SPECIFICATIONS

WX1B SERIES - FOR MACHINES WITH 1 BLADE AND 2 STABILIZERS

Model
Description
Weight

DX-RRDG-WX1B-TAKTB395W-HX-12T
Rail Rider Guide Solution-WX Series Single Blade-Takeuchi TB395W (Wheeled)-Hydraulic Excavator-12 Ton

Available for only dual-blade or dual-blade and rear stabilizer-equipped machines.

NOTE: OEM BLADE AND REAR STABILIZERS ARE REMOVED BUT ALL MOUNTS ARE PRESERVED FOR REUSE IN NON-RAIL APPLICATIONS.

Guide solution keeps the machine centered on track while the rubber tires drive

STANDARD FEATURES:
Front axle group:
– Standard gauge 56.5 / 1435mm
– Fits OEM lift arms for blade mount
– Rail axle group, spring tension adjuster
– Hydraulic release, spring-applied brake shoes
– Rail clamps with side stabilizers

Rear Axle Group:
– Standard gauge 56.5 / 1435mm
– Fits OEM lift arms for blade mount
– Rail axle group, spring tension adjuster
– Hydraulic release, spring-applied brake shoes
– Rail clamps with side stabilizers

Controls:
– Steering shut-off for on-rail modes
– Directional red/white lighting on lower railgear
– Top beacon light
– Fire extinguisher mount with fire extinguisher
– Emergency brake release pump

CONTROL GROUP
– Remote control group provided

WEIGHT: 7000 lbs

DX-RRDG-WX1BBASE-CATM314-HX-14T
Rail Rider Guide-WX series 1 blade base kit-Caterpillar M314-Wheel Excavator-14 ton

This package is for machines fitted with 1 blade and 2 stabilizers.

STANDARD FEATURES:
– All railgear is set to standard gauge rail (1435mm / 56.5 inches)

BLADE SIDE
– Blade stays on machine.
– Rail gear for blade includes weld-on mount brackets to attach the hooked axle assembly to the blade.

STABILIZER SIDE
– Bolt-on machine adapter with lift group
– Full-length rail axle with spring suspension
– Tow hitch on both sides
– Rail sweeps
– Automatic wheel braking (2 wheels) with release pump

CONTROL GROUP
– Manual valve functions.
– Utilizes blade lift circuit and stabilizer for raising and lowering of railgear

OPTIONS
– Insulated railwheels
– Premium and enhanced stability packages

WEIGHT: 5500 lbs

DX-RRDG-WX1BPREM-CATM314-HX-14T
Rail Rider Guide-WX series 1 blade Premium kit-Caterpillar M314-Wheel Excavator-14 ton

This package is for machines fitted with 1 blade and 2 stabilizers.

STANDARD FEATURES:
– All railgear is set to standard gauge rail (1435mm / 56.5 inches)

BLADE SIDE
– Blade removed from the machine
– New pin-on full-length rail axle with spring suspension
– Includes two 3rd rail stabilizers
– Rail sweeps integrated
– Tow hitch
– Automatic wheel braking (2 wheels) with release pump

STABILIZER SIDE
– Bolt-on machine adapter with lift group
– Split box slide style railgear
– Tow hitch
– Rail sweeps
– Automatic wheel braking (2 wheels) with release pump

STABILIZER ARMS
– 2 new improved stabilizer arms for increased on-rail performance. Enhanced stability.

CONTROL GROUP
– Manual valve functions.
– Integrated load checks
– Utilize blade lift circuit and stabilizer for raising and lowering of railgear

OPTIONS
– Insulated railwheels

WEIGHT: 8500 lbs

DX-RRDG-WX1B-DO140W-HX-14T
Rail Rider Guide-WX series 1B-Doosan/Develon 140W-Wheel Excavator-14 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9500 lbs

DX-RRDG-WX1B-JCB145W-HX-14T
Rail Rider Guide-WX series 1B-JCB 145W-Wheel Excavator-14 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 8400 lbs

DX-RRDG-WX1B-VOLEW140-HX-14T
Rail Rider Guide-WX series 1B-Volvo EW140-Wheel Excavator-14 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES:
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 8400 lbs

DX-RRDG-WX1BBASE-CATM315-HX-15T
Rail Rider Guide-WX series 1 blade base kit-Caterpillar M315-Wheel Excavator-15 ton

This package is for machines fitted with 1 blade and 2 stabilizers.

STANDARD FEATURES:
– All railgear is set to standard gauge rail (1435mm / 56.5 inches)

BLADE SIDE
– Blade stays on machine.
– Rail gear for blade includes weld-on mount brackets to attach the hooked axle assembly to blade.

STABILIZER SIDE
– Bolt-on machine adapter with lift group
– Full-length rail axle with spring suspension
– Tow hitch on both sides
– Rail sweeps
– Automatic wheel braking (2 wheels) with release pump

CONTROL GROUP
– Manual valve functions.
– Utilize blade lift circuit and stabilizer for raising and lowering of railgear

OPTIONS
– Insulated rail wheels
– Premium and enhanced stability packages

WEIGHT: 5500 lbs

DX-RRDG-WX1B-CATM316-HX-16T
Rail Rider Guide-WX series 1B-Caterpillar M316-Wheel Excavator-16 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES:
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, includin split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 8800 lbs

DX-RRDG-WX1BBASE-VOLEW160-HX-16T
Rail Rider Guide-WX series 1 blade base kit-Volvo EW160-Wheel Excavator-16 ton

This package is for machines fitted with 1 blade and 2 stabilizers.

STANDARD FEATURES
– All railgear is set to standard gauge rail (1435mm / 56.5 inches)

BLADE SIDE
– Blade stays on machine.
– Rail gear for blade includes weld-on mount brackets to attach the hooked axle assembly to blade.

STABILIZER SIDE
– Bolt-on machine adapter with lift group
– Full-length rail axle with spring suspension
– Tow hitch on both sides
– Rail sweeps
– Automatic wheel braking (2 wheels) with release pump

CONTROL GROUP
– Manual valve functions.
– Utilize the blade lift circuit and stabilizer for raising and lowering of railgear

OPTIONS
– Insulated rail wheels
– Premium and enhanced stability packages

WEIGHT: 6000 lbs

DX-RRDG-WX1B-JCB160W-HX-16T
Rail Rider Guide-WX series 1B-JCB 160W-Wheel Excavator-19 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, includin split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 8800 lbs

DX-RRDG-WX1B-VOLEW160-HX-16T
Rail Rider Guide-WX series 1B-Volvo EW160-Wheel Excavator-16 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge/)

CONTROL GROUP
– Excavator control group

WEIGHT: 8800 lbs

DX-RRDG-WX1BBASE-CATM318-HX-18T
Rail Rider Guide-WX series 1 blade base kit-Caterpillar M318-Wheel Excavator-18 ton

This package is for machines fitted with 1 blade and 2 stabilizers.

STANDARD FEATURES:
– All railgear is set to standard gauge rail (1435mm / 56.5 inches)

BLADE SIDE
– Blade stays on machine.
– Rail gear for blade includes weld-on mount brackets to attach hooked axle assembly to blade.

STABILIZER SIDE
– Bolt-on machine adapter with lift group
– Full-length rail axle with spring suspension
– Tow hitch on both sides
– Rail sweeps
– Automatic wheel braking (2 wheels) with release pump

CONTROL GROUP
– Manual valve functions.
– Utilizes blade lift circuit and stabilizer for raising and lowering of railgear

OPTIONS
– Insulated rail wheels
– Premium and enhanced stability packages

WEIGHT: 6000 lbs

DX-RRDG-WX1B-CATM318-HX-18T
Rail Rider Guide-WX series 1B-Caterpillar M318-Wheel Excavator-18 ton

This package is for machines fitted with 1 blade and 2 stabilizers.

STANDARD FEATURES:
– All railgear is set to standard gauge rail (1435mm / 56.5 inches)

BLADE SIDE
– Blade stays on machine.
– Rail gear for blade includes weld-on mount brackets to attach hooked axle assembly to blade.

STABILIZER SIDE
– Bolt-on machine adapter with lift group
– Full-length rail axle with spring suspension
– Tow hitch on both sides
– Rail sweeps
– Automatic wheel braking (2 wheels) with release pump

CONTROL GROUP
– Manual valve functions.
– Utilizes blade lift circuit and stabilizer for raising and lowering of railgear

OPTIONS
– Insulated rail wheels
– Premium and enhanced stability packages

WEIGHT: 9500 lbs

DX-RRDG-WX1B-JCB175W-HX-18T
Rail Rider Guide-WX series 1B-JCB 175W-Wheel Excavator-19 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine which includes split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9500 lbs

DX-RRDG-WX1B-VOLEW180-HX-18T
Rail Rider Guide-WX series 1B-Volvo EW180-Wheel Excavator-18 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage (foam fill offered at additional charge)

CONTROL GROUP
– Excavator control group

WEIGHT: 9500 lbs

DX-RRDG-WX1B-DO190W-HX-19T
Rail Rider Guide-WX series 1B-Doosan/Develon 190W-Wheel Excavator-19 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9500 lbs

DX-RRDG-WX1B-JD190W-HX-19T
Rail Rider Guide-WX series 1B-John Deere 190W-Wheel Excavator-19 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9500 lbs

DX-RRDG-WX1B-CATM320-HX-20T
Rail Rider Guide Solution-WX Series Single Blade-Caterpillar M320-Hydraulic Excavator-20 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

Drive Type: Machine’s rubber tires on rail

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package with auto-change control
– Steering lockout
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers. New arms replace original arms and pads.
– 2x rear stabilizers that close down to the ties.
– Delcora super single tire package with offset rim for maximum railhead coverage. Tires are foam filled.

CONTROL GROUP
– Excavator control group

WEIGHT: 11000 lbs

DX-RRDG-WX1B-VOEW205-HX-20T
Rail Rider Guide Solution-WX Series Single Blade-Volvo EW205-Hydraulic Excavator-20 ton

This package is for machines fitted with 1 blade and 2 stabilizers. Please note that the blade is removed. The blade will be returned with the machine at hi-rail installation.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Machine adapter for stabilizer side of the machine, including split box slider railgear systems
– Full axle group installed in place of blade and outfitted with 3rd rail style stabilizer arms
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– 2x stabilizer arm package with new pads for fitting OEM stabilizers
– Delcora tire packages with offset rim for maximum railhead coverage. Foam fill offered at additional charge.

CONTROL GROUP
– Excavator control group

WEIGHT: 7500 lbs

Design and specifications are subject to change without notice. For custom solutions, contact DymaxRail. 1-800-530-5407

WX2B SERIES - FOR MACHINES WITH 2 BLADES

Model
Description
Weight

DX-RRDG-WX2B-JCB110W-HX-11T
Rail Rider Guide-WX series Dual Blade with 3rd rail stabilizers-JCB 110W Hydradig-Excavator-11 ton

Available for only dual-blade-equipped machines. (Order machine with special configuration for rail.)

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Two rail axle systems integrated to factory lift group mounts
– Single side spring suspension with stops
– Directional lighting package + control
– Auto steering shutoff, slew lockout installed
– Automatic rail wheel braking system
– Tow hitch on both ends

ENHANCED FEATURES
– (4x) 3rd rail style hydraulic stabilizers close outside of rails
– Wheel position sensor

CONTROL GROUP
– Remote control group provided

WEIGHT: 6000 lbs

DX-RRDG-WX2B-VOLVOEW130E-HX-13T
Rail Rider Guide-WX2 Series B-Volvo EW130E-Hydraulic Excavator-13 ton

VOLVO MACHINE to be configured with rear stabilizers and front blade.

Note: The front blade and rear stabilizers are removed and returned to the customer upon delivery. All upfits are non-permanent and classified as bolt-on attachments — no cutting or welding is performed to the base machine. Hydraulic integration is completed using existing machine circuits, with optional remote interface connections where required.

STANDARD FEATURES:
– Standard gauge 56.5 / 1435mm
– Two rail axles, configured similar to 7073D style design, featuring single side spring suspension with stops and insulated rail wheels
– 3rd rail style hydraulic stabilizers
– Solar powered directional lighting package
– Auto steering shutoff, slew lockout installed
– Rail wheel braking system
– Wheel position sensor; indicator light
– Tow hitch on both ends
– Standard control (may require charging)

WEIGHT: 6000 lbs

Design and specifications are subject to change without notice. For custom solutions, contact DymaxRail. 1-800-530-5407

WX4S SERIES - FOR MACHINES WITH 4 STABILIZERS / NO BLADE

Model
Description
Weight

DX-RRDG-WX4S-CATM314-HX-14T
Rail Rider Guide-WX series 4S-Caterpillar M314-Wheel Excavator-14 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9950 lbs

DX-RRDG-WX4S-JCB145W-HX-14T
Rail Rider Guide-WX series 4S-JCB 145W-Wheel Excavator-14 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9950 lbs

DX-RRDG-WX4S-VOLEW140-HX-14T
Rail Rider Guide-WX series 4S-Volvo EW140-Wheel Excavator-14 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 9950 lbs

DX-RRDG-WX4S-CATM316-HX-16T
Rail Rider Guide-WX series 4S-Caterpillar M316-Wheel Excavator-16 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,450 lbs

DX-RRDG-WX4S-VOLEW160-HX-16T
Rail Rider Guide-WX series 4S-Volvo EW160-Wheel Excavator-16 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,450 lbs

DX-RRDG-WX4S-JCB160W-HX-16T
Rail Rider Guide-WX series 4S-JCB 160W-Wheel Excavator-19 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,450 lbs

DX-RRDG-WX4S-CATM318-HX-18T
Rail Rider Guide-WX series 4S-Caterpillar M318-Wheel Excavator-18 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split sox slider railgear wystems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,950 lbs

DX-RRDG-WX4S-JCB175W-HX-18T
Rail Rider Guide-WX series 4S-JCB 175W-Wheel Excavator-19 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,950 lbs

DX-RRDG-WX4S-VOLEW180-HX-18T
Rail Rider Guide-WX series 4S-Volvo EW180-Wheel Excavator-18 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,950 lbs

DX-RRDG-WX4S-DO190W-HX-19T
Rail Rider Guide-WX series 4S-Doosan/Develon 190W-Wheel Excavator-19 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,950 lbs

DX-RRDG-WX4S-JD190W-HX-19T
Rail Rider Guide-WX series 4S-John Deere 190W-Wheel Excavator-19 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 10,950 lbs

DX-RRDG-WX4SB-CASEWX210-HX-20T
Rail Rider Guide-WX series 4S Bolt On-Case WX210-Wheel Excavator-20 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Bolt-on machine mount for fitting undercarriage
– Front and rear axle group supplied
– Full manual valve controls for raising and lowering railgear to position.
– Tow hitch on both sides
– Rail sweeps
– Directional lighting systems
– Enhanced on rail stabilizer arm package for reaching ballast shoulder

DOES NOT INCLUDE
– Boom or slew shut-off (required)

CONTROL GROUP
– Manual valve control group

WEIGHT: 10,000 lbs

DX-RRDG-WX4SW-CASEWX210-HX-20T
Rail Rider Guide-WX series 4S Weld On-Case WX210-Wheel Excavator-20 ton

This solution fits machines set up with 4 stabilizers and no blades. This is a customer-installed solution.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Weld-on machine mount for fitting undercarriage
– Front and rear axle group
– Full manual valve controls for raising and lowering railgear to position.
– Tow hitch on both sides
– Rail sweeps

DOES NOT INCLUDE
– Directional lighting systems
– Boom or slew shut-off (required)
– Enhanced on-rail stabilizer arm package for reaching ballast shoulder

CONTROL GROUP
– Manual valve control group

WEIGHT: 8500 lbs

DX-RRDG-WX4S-CATM320-HX-20T
Rail Rider Guide Solution-WX Series Four Stabilizer-Caterpillar M320-Hydraulic Excavator-20 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

DX-RRDG-WX4SBASE-JD190GW-HX-20T
Rail Rider Guide-WX4 Base Weld-on Railgear kit-John Deere 190GW-Wheel Excavator-20 ton

STANDARD FEATURES
– All railgear is set to standard gauge rail (56.5 in)
– Insulated rail wheels
– Weld-on bracket group requiring welding to each side of the machine for proper railgear mounting
– Railgear raises and lowers through manual hydraulic diversion using existing machine functions
– Tow hitch provided on both ends
– Rail sweeps

CONTROL GROUP
– Manual valve kit (hydraulic lines not included)

Installing dealer will be responsible for fabricating hydraulic lines to connect between the supplied ball valves and the railgear functions.

OPTIONS
– Hydraulic brake system. If required, OEM brake system pressure range must be verified prior to quoting to ensure proper brake function compatibility.
– Enhanced stabilizer arms. Available for customers requiring additional machine stability during heavy side-load applications.

WEIGHT: 6500

DX-RRDG-WX4S-CATM322NXG-HX-22T
Rail Rider Guide Solution-WX Series Four Stabilizer-Caterpillar M322 NexGen Excavator-Hydraulic Excavator-22 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)

CONTROL GROUP
– Excavator control group

WEIGHT: 13,000 lbs

DX-RRDG-WX4S-SEN718E-HX-25T
Rail Rider Guide Solution-WX Series Four Stabilizer-Sennebogen 718E-Hydraulic Excavator-25 ton

This solution fits machines set up with 4 stabilizers and no blades.

STANDARD FEATURES
– Standard gauge 56.5 / 1435mm
– Front and rear machine adapters
– Full axle group + split box slider railgear systems
– Directional lighting package + control
– Boom and slew shutoff integrated for travel modes
– Automatic wheel braking with release pump
– Tow hitch on both sides
– Rail sweeps

ENHANCED FEATURES
– Stabilizer arm package with new pads
– Delcora tire packages with offset rim for maximum railhead coverage. (Foam fill offered at additional charge.)
– Hydraulic rail clamps

CONTROL GROUP
– Excavator control group

WEIGHT: 10,950 lbs

Design and specifications are subject to change without notice. For custom solutions, contact DymaxRail. 1-800-530-5407
