The DymaxRail Low Profile Tunnel Machinery Cart is an innovative rail equipment transport solution designed specifically for moving aerial lift equipment and compact machinery across rail networks with seamless side unloading. Built to meet the needs of transit authorities and maintenance crews, this cart enhances operational efficiency with its custom off-track wheel system, allowing quick removal from rail lines via truck transport. Also works with hi-rail excavators.

1
2
3
4
5
6

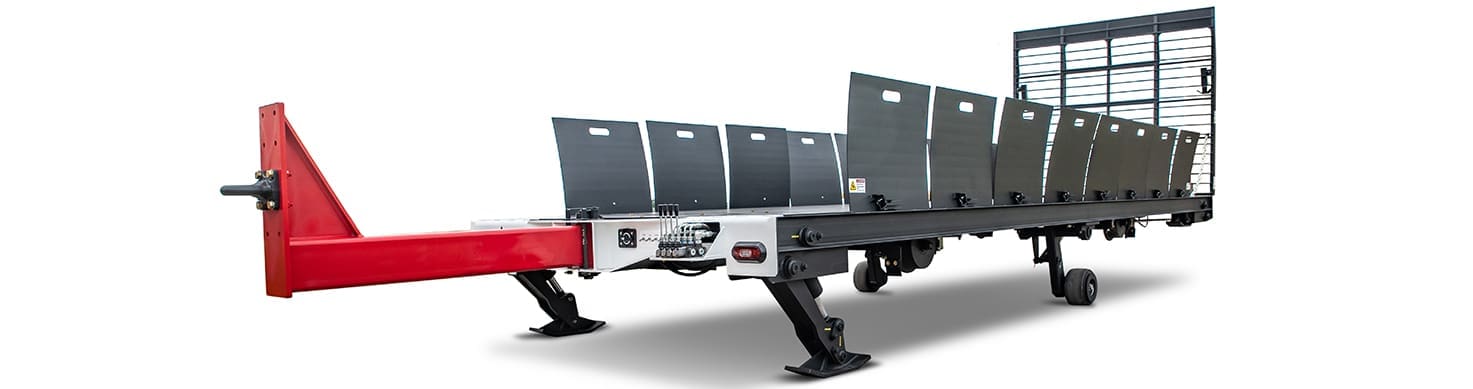

1

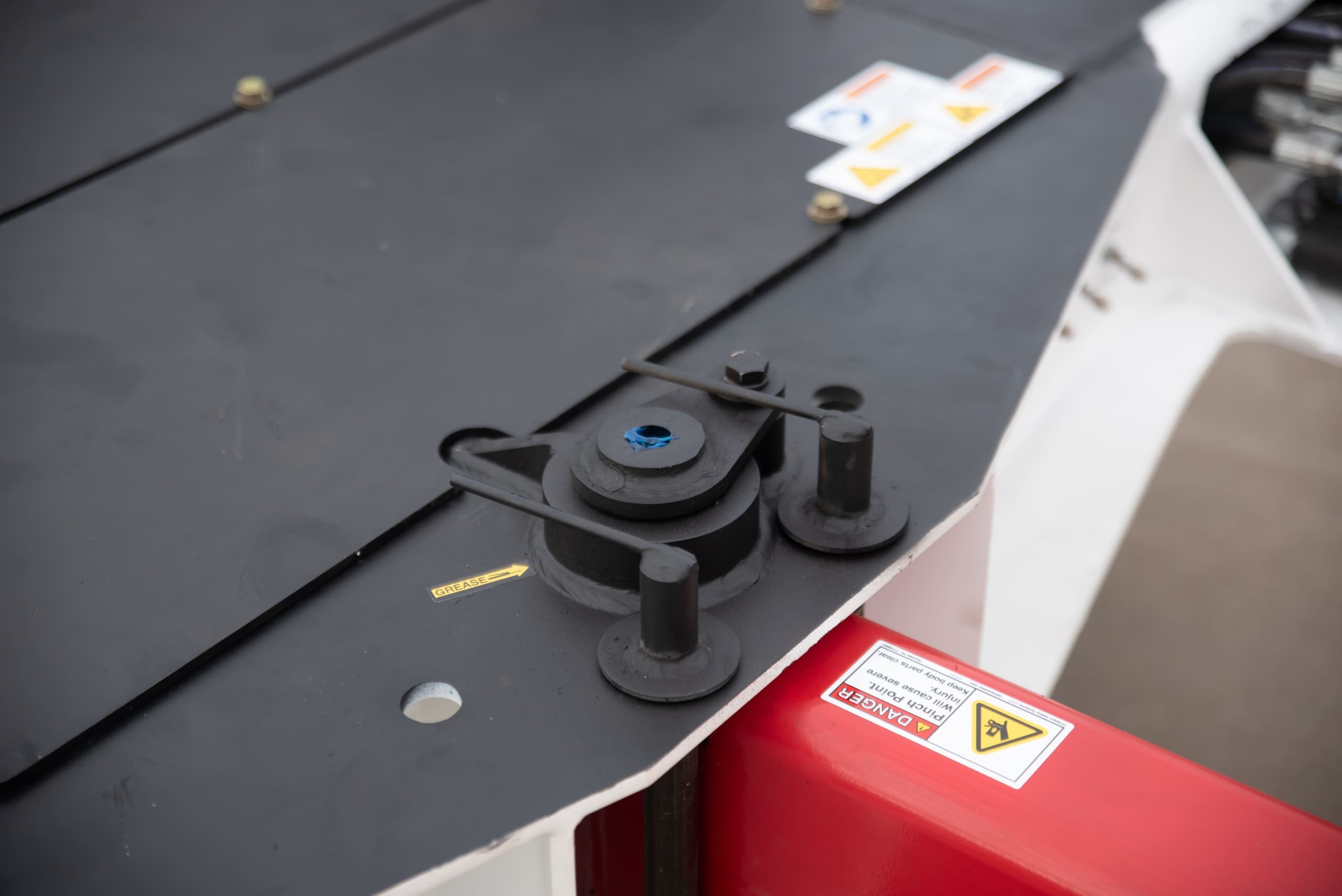

Tow bar with adjustable hitch height and pivot arm

2

12V Hydraulic Power Unit with Controls

3

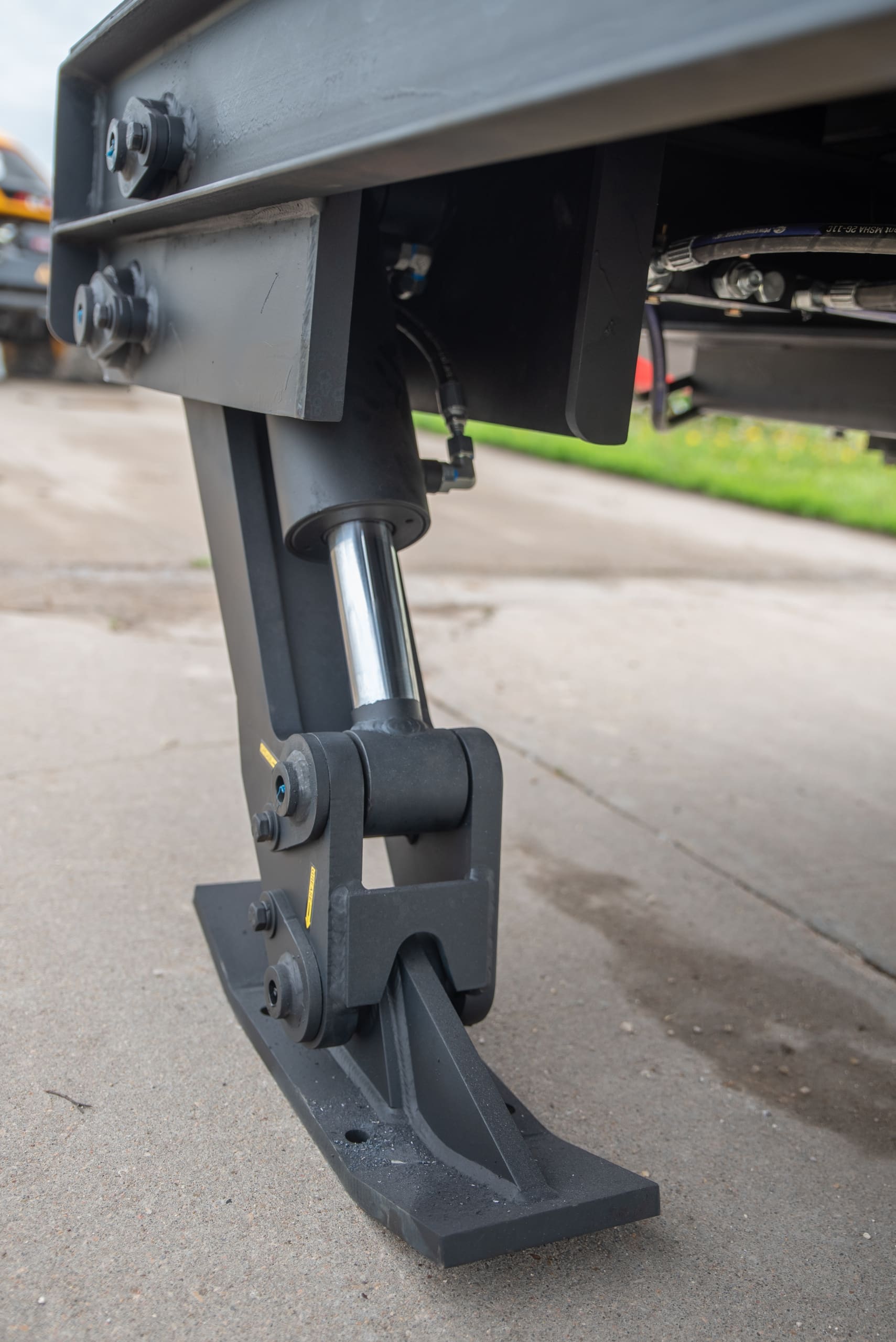

Hydraulic Platform Stabilizers – 4 places

4

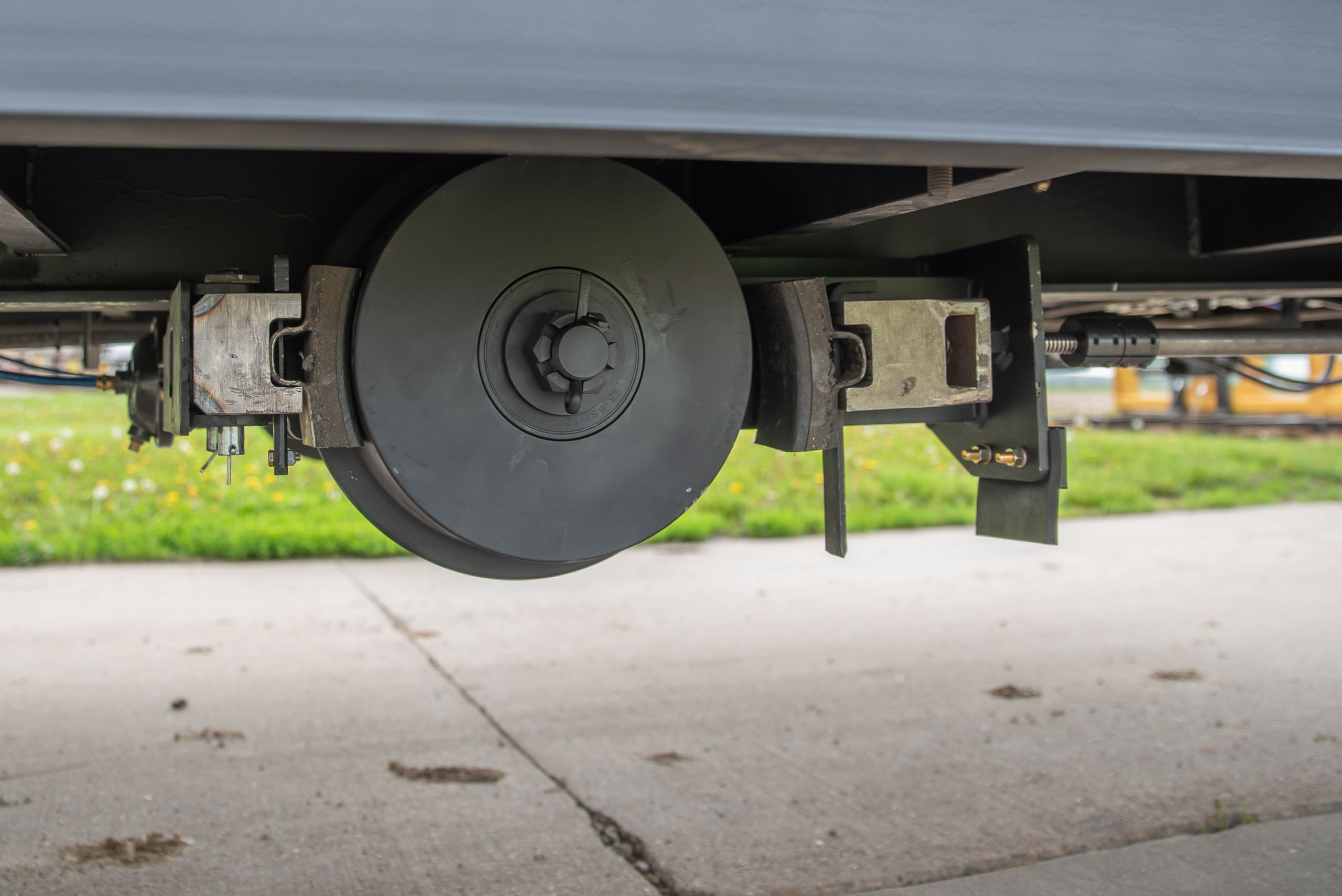

Integrated railgear – front and rear

5

Side Platform Loading Ramps

6

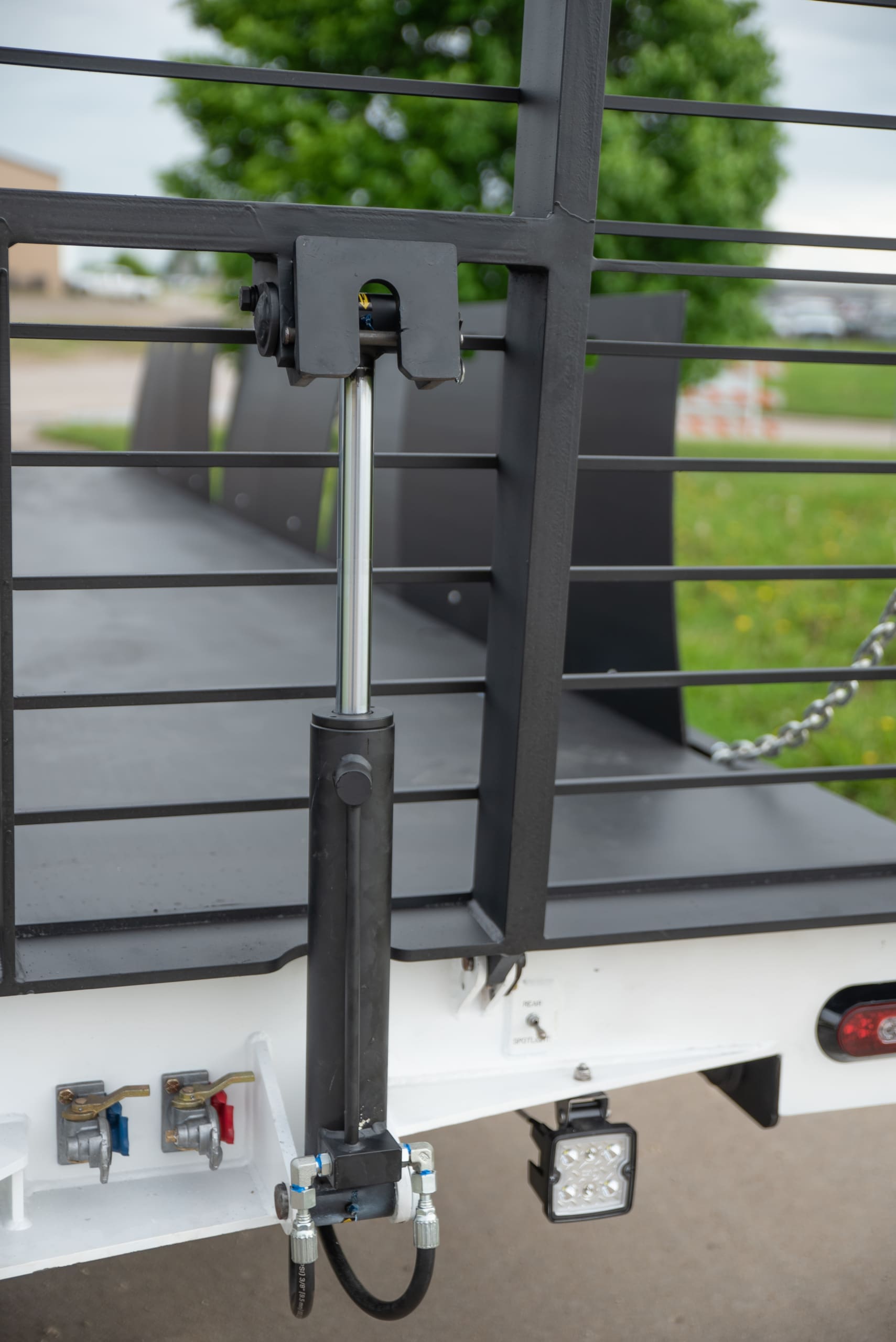

Rear Platform Loading Ramps

Brochure Contact Us
  • High Strength Frame & Deck: Reinforced steel frame with twin-beam construction for enhanced durability. Designed to withstand heavy-duty transit applications with long-lasting performance. Available in 10-ton and 20-ton capacity models.
  • Off-Track Landing Gear for FAST TRACK Access: Innovative rubber wheels allow for quick unloading from the rail. No lifting required – operators can easily roll the cart off the track and park it overnight. Equipment must be unloaded before removal.
  • Adjustable Pivoting Tow Bar: Designed for easy loading and unloading of the cart onto rails. Compatible with trucks and towing vehicles for seamless transport.
  • Side Platforms & Rear Ramps: Manual side ramps lower to transit platforms for smooth equipment & material off-loading. Rear hydraulic ramp ensures effortless loading and unloading.
Versatile Solution

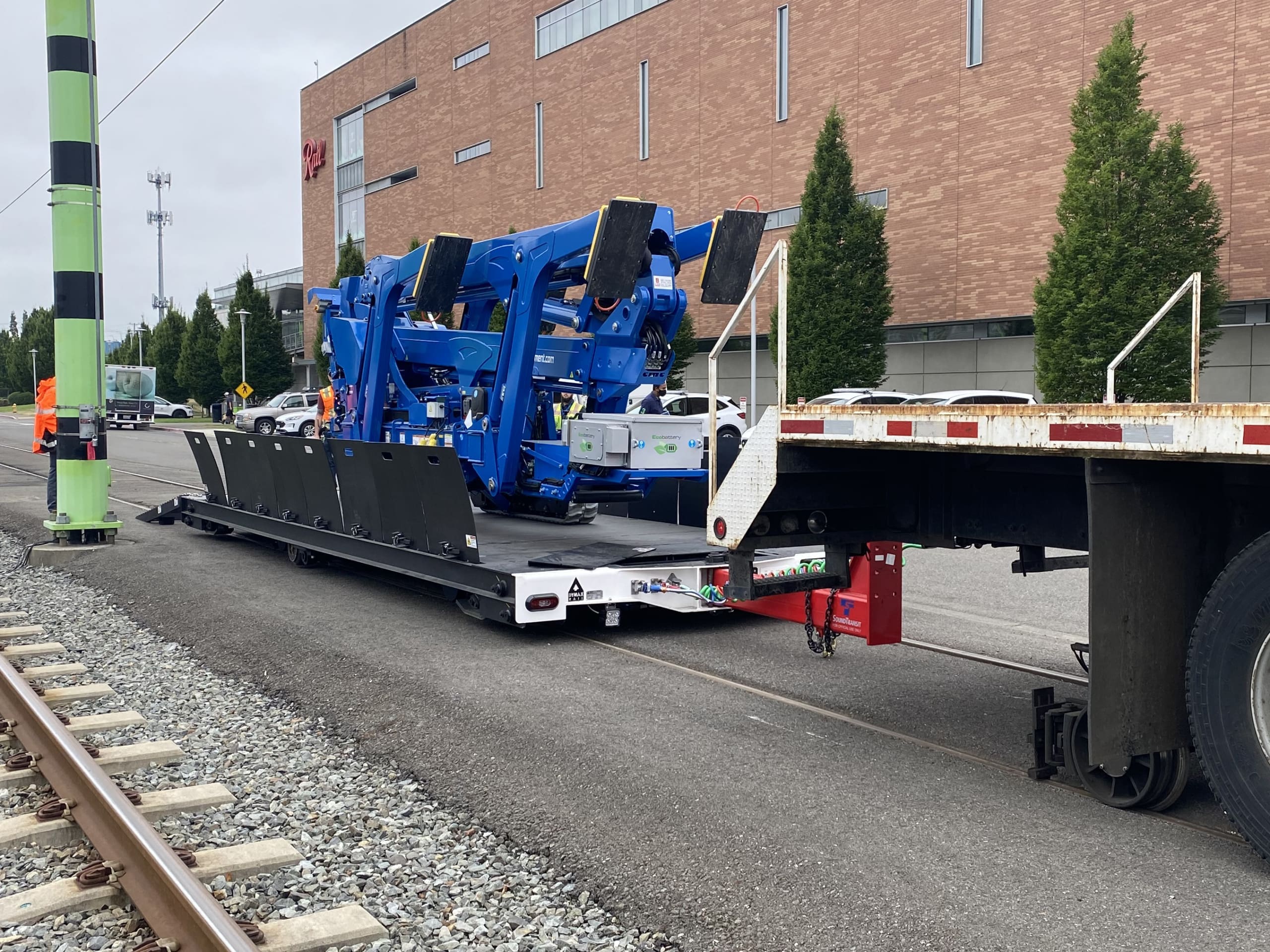

Works with trucks or hi-rail excavators.

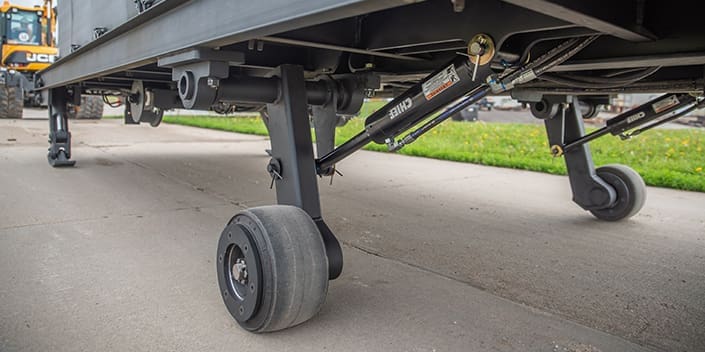

Landing Gear

Faster track access with no lifting.

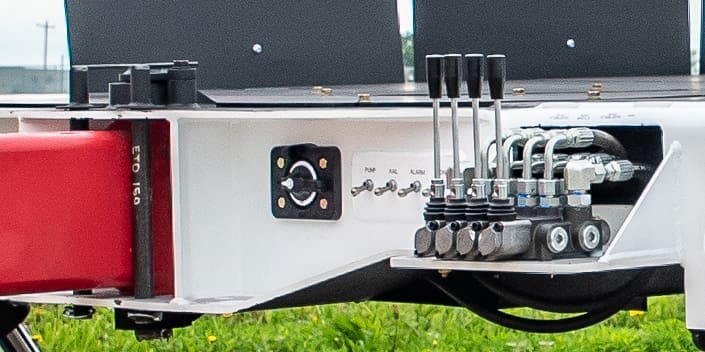

Hydraulic Controls

With 12V power unit.

Group Number: Model
Description
Weight (lbs)
7436D2: DX-RC-MACT-8×25-DMX-10TC

Tunnel Machinery Cart with Off-Track Landing Gear

  • TRANSPORT SIZE: Width: 8 feet 6 inches / Length: 31 feet
  • Deck Width: 96 inches
  • Usable Deck Length: 25 feet
  • Max Load Rating: 10 US Tons

WEIGHT: 10,050 lbs
8454D2: DX-RC-MACT-8×25-DMX-20TC

Tunnel Machinery Cart with Off-Track Landing Gear

  • TRANSPORT SIZE: Width: 8 feet 6 inches / Length: 31 feet
  • Deck Width: 96 inches
  • Usable Deck Length: 25 feet
  • Max Load Rating: 20 US Tons

WEIGHT: 13,500 lbs
Design and specifications are subject to change without notice.

All carts listed feature non-insulated railgear and are suited for standard gauge track 56.50 inches (1435mm). Custom solutions are available for narrow and wide track gauges. Contact DymaxRail Sales 1-800-530-5407 for special applications and options.
