1

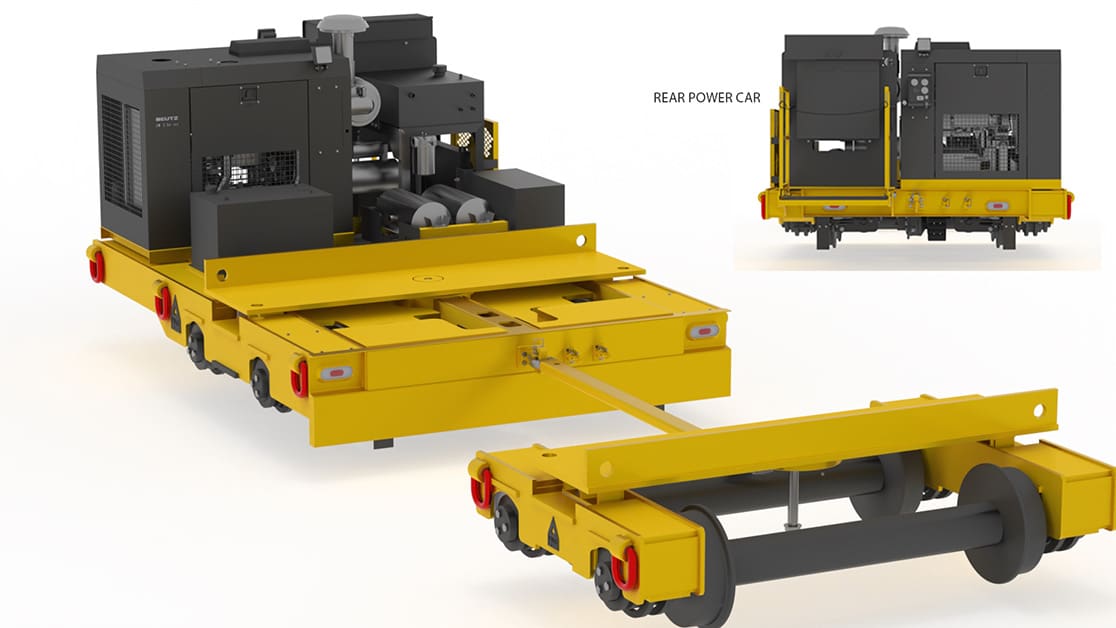

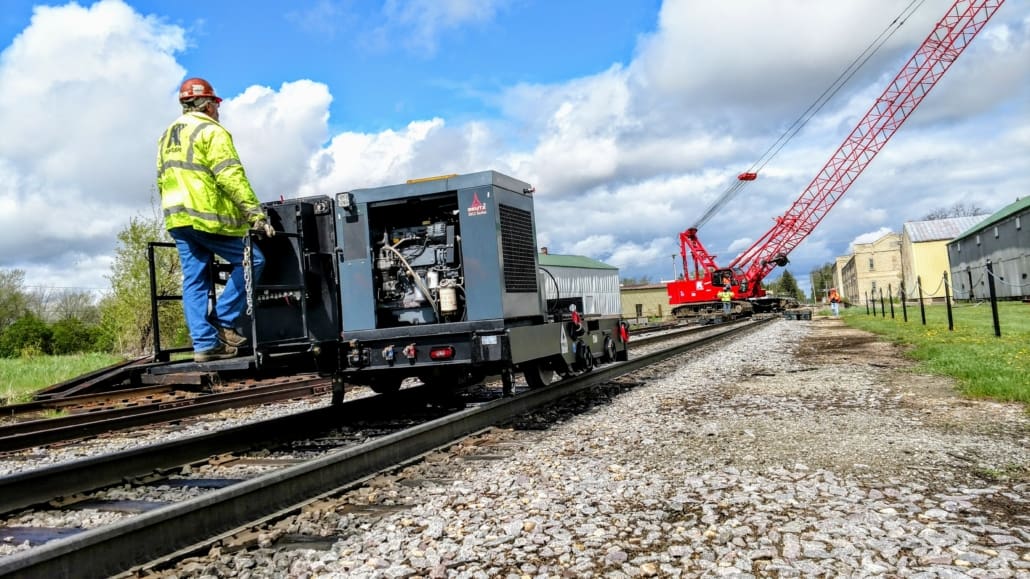

Powered shuttle car with twin hydraulic drive rail axles, a swiveling undercarriage plate, air brakes, remote control, and an operator stand for smooth, efficient equipment transport.

2

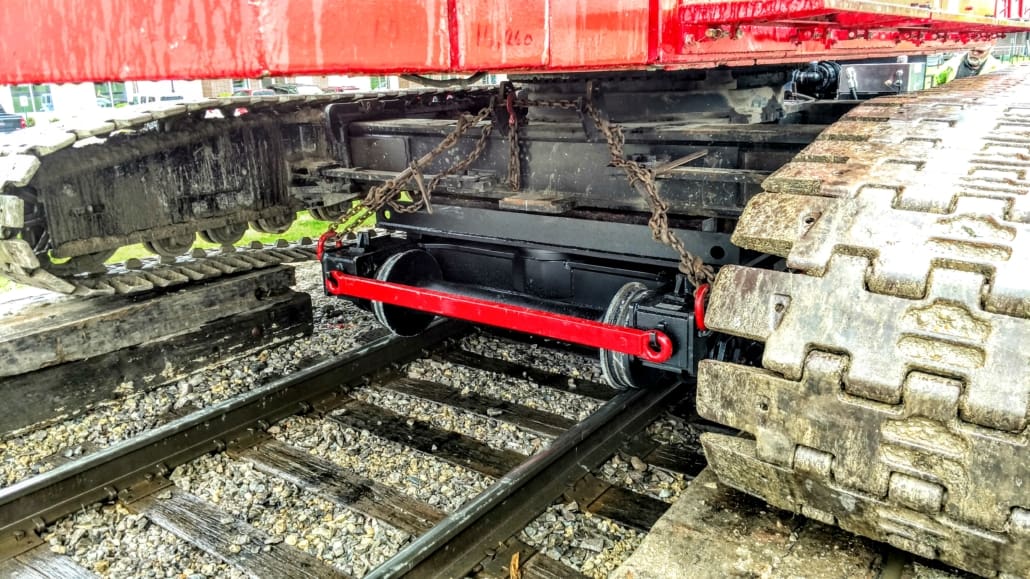

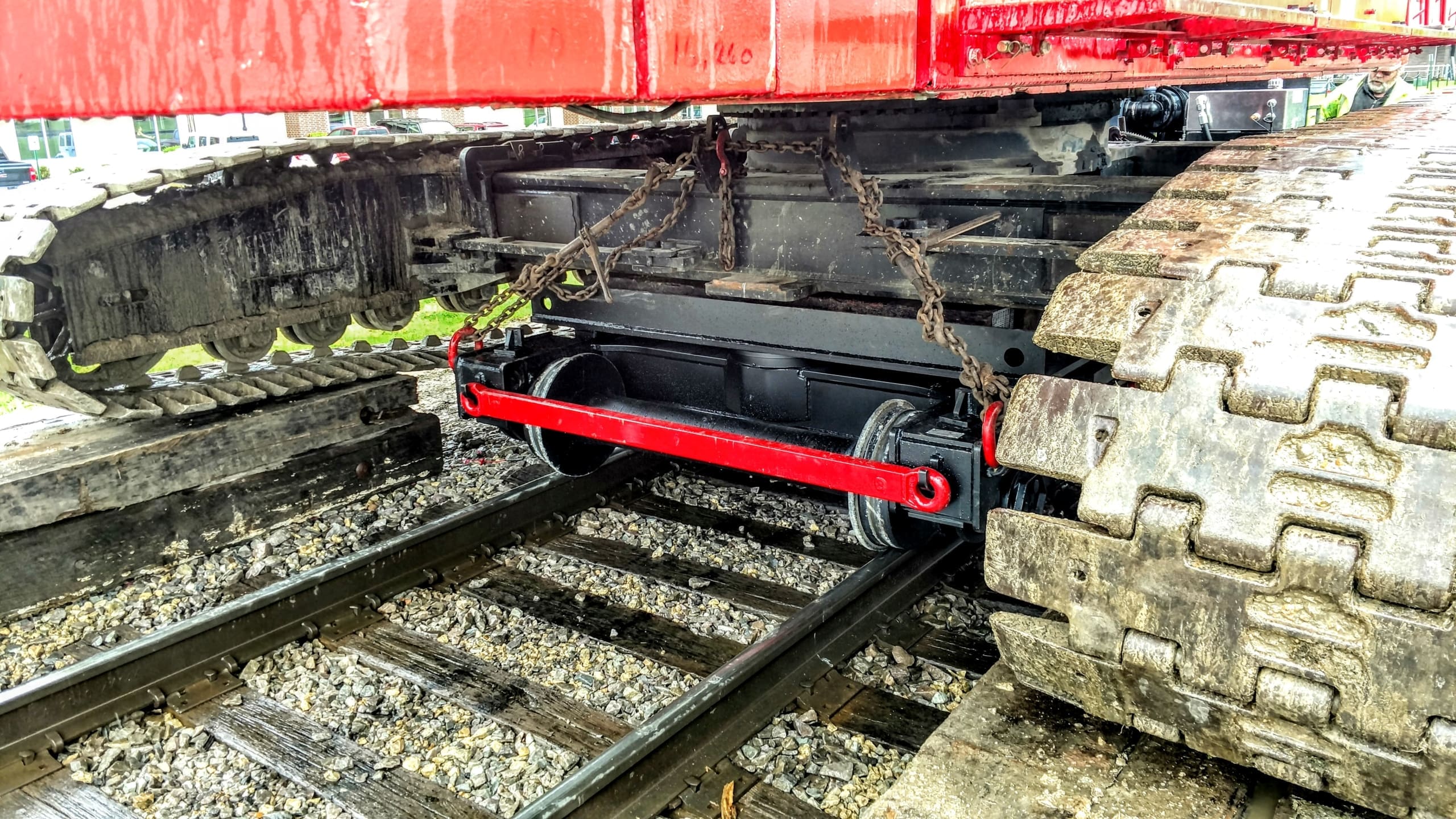

Heavy-duty 2-axle rear dolly slides under machines with a 90-ton capacity for secure, stable transport.

3

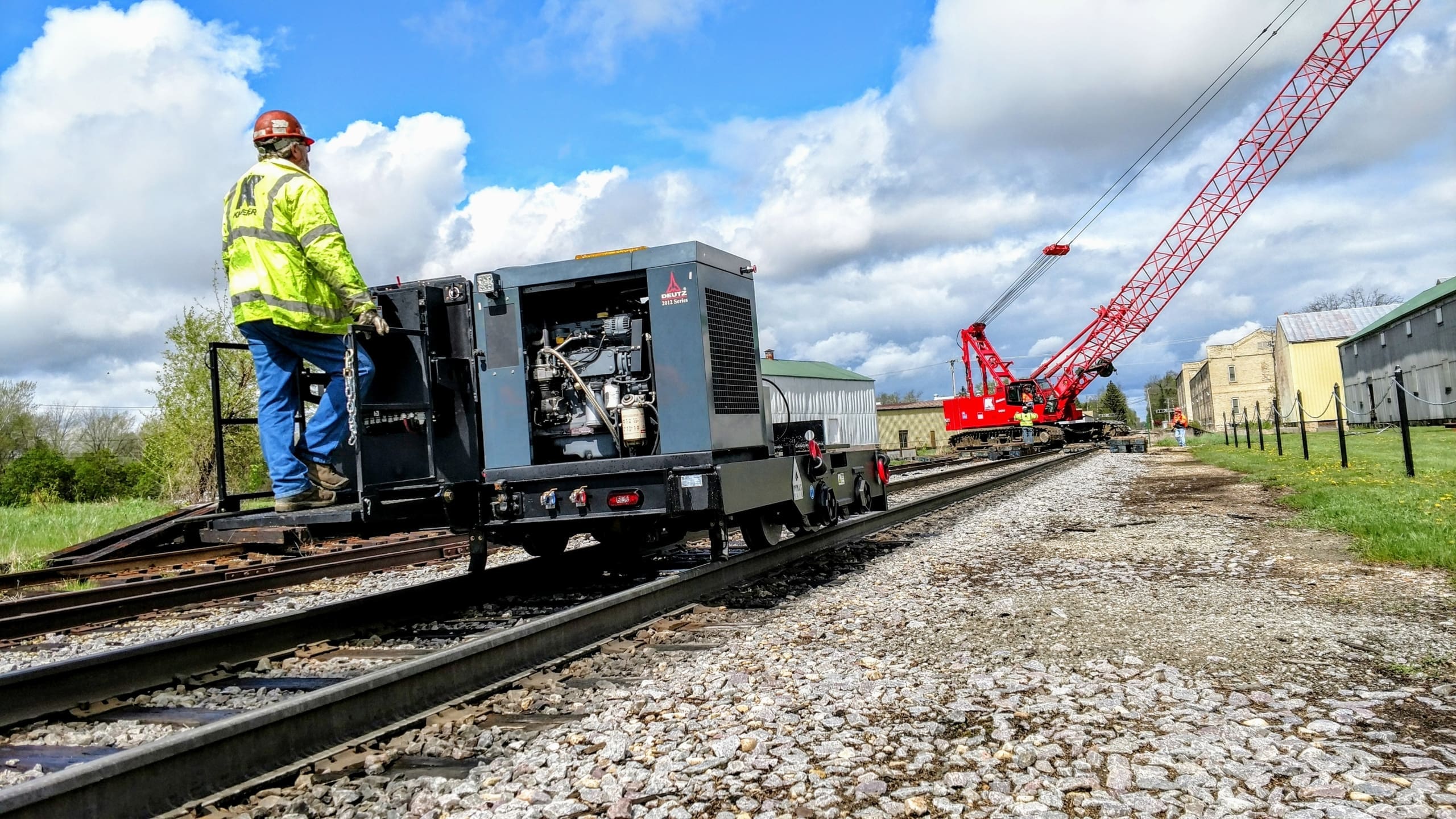

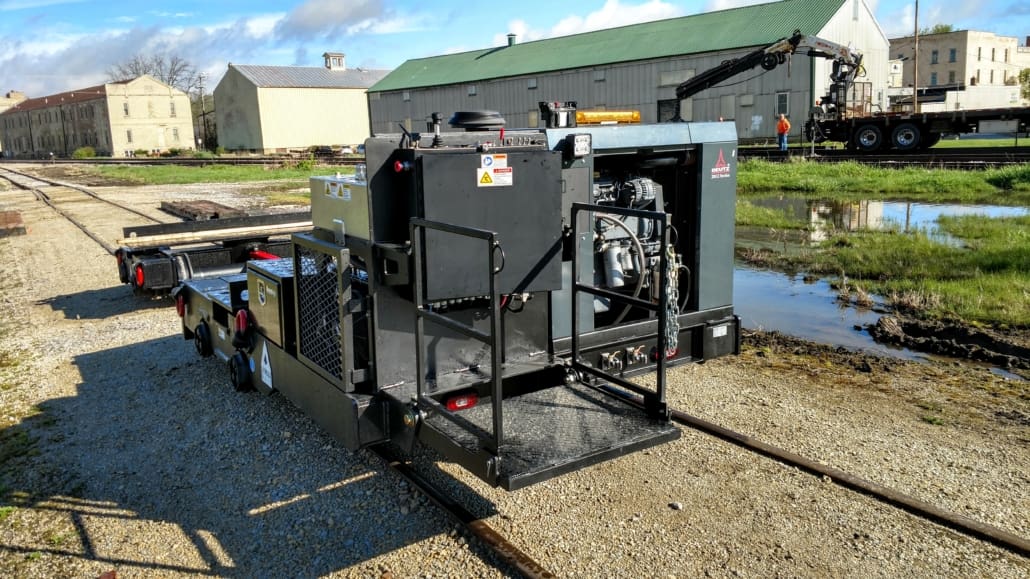

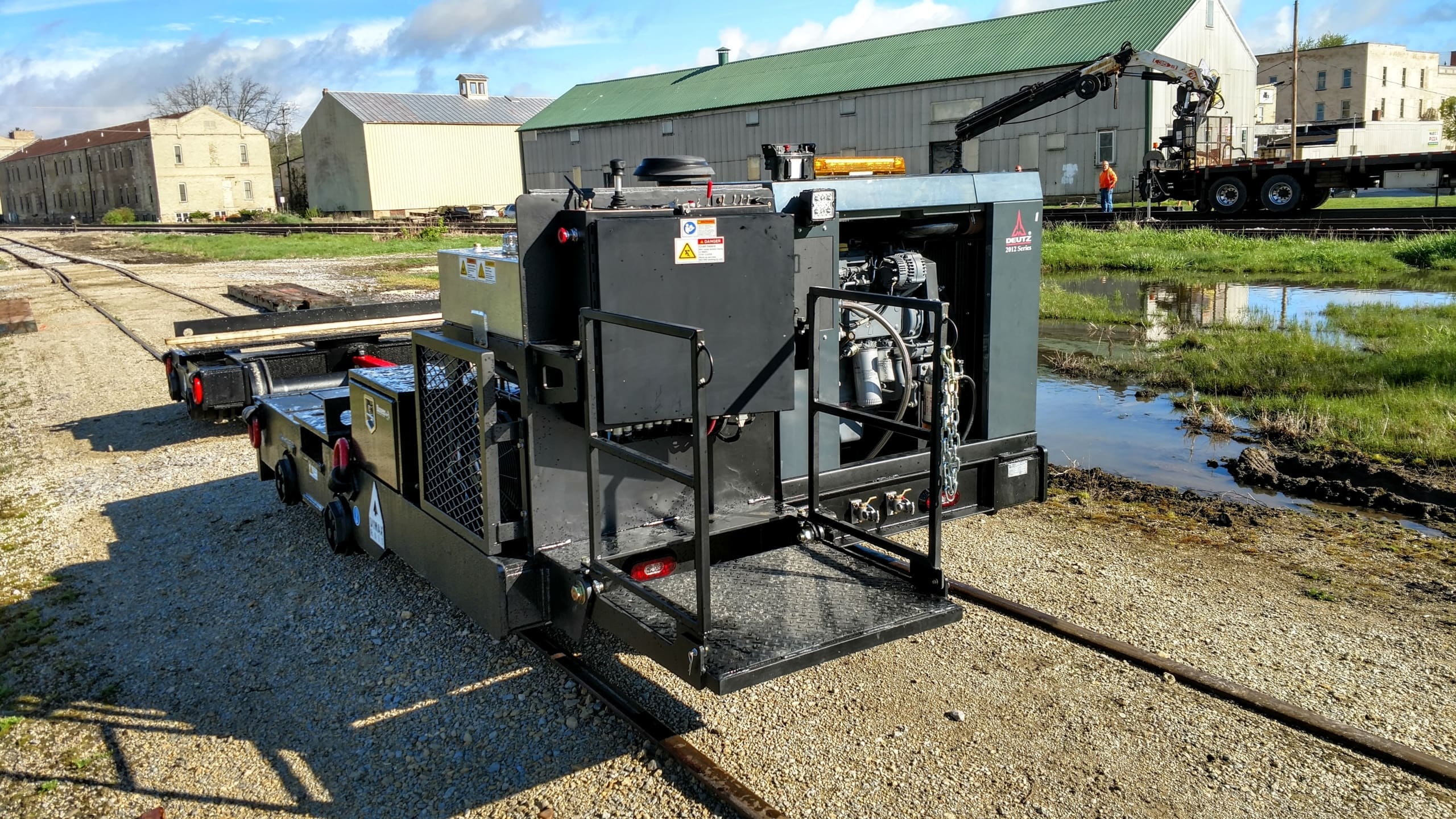

Diesel-powered hydraulic system ensures reliable performance for transporting equipment to and from remote railway worksites.

4

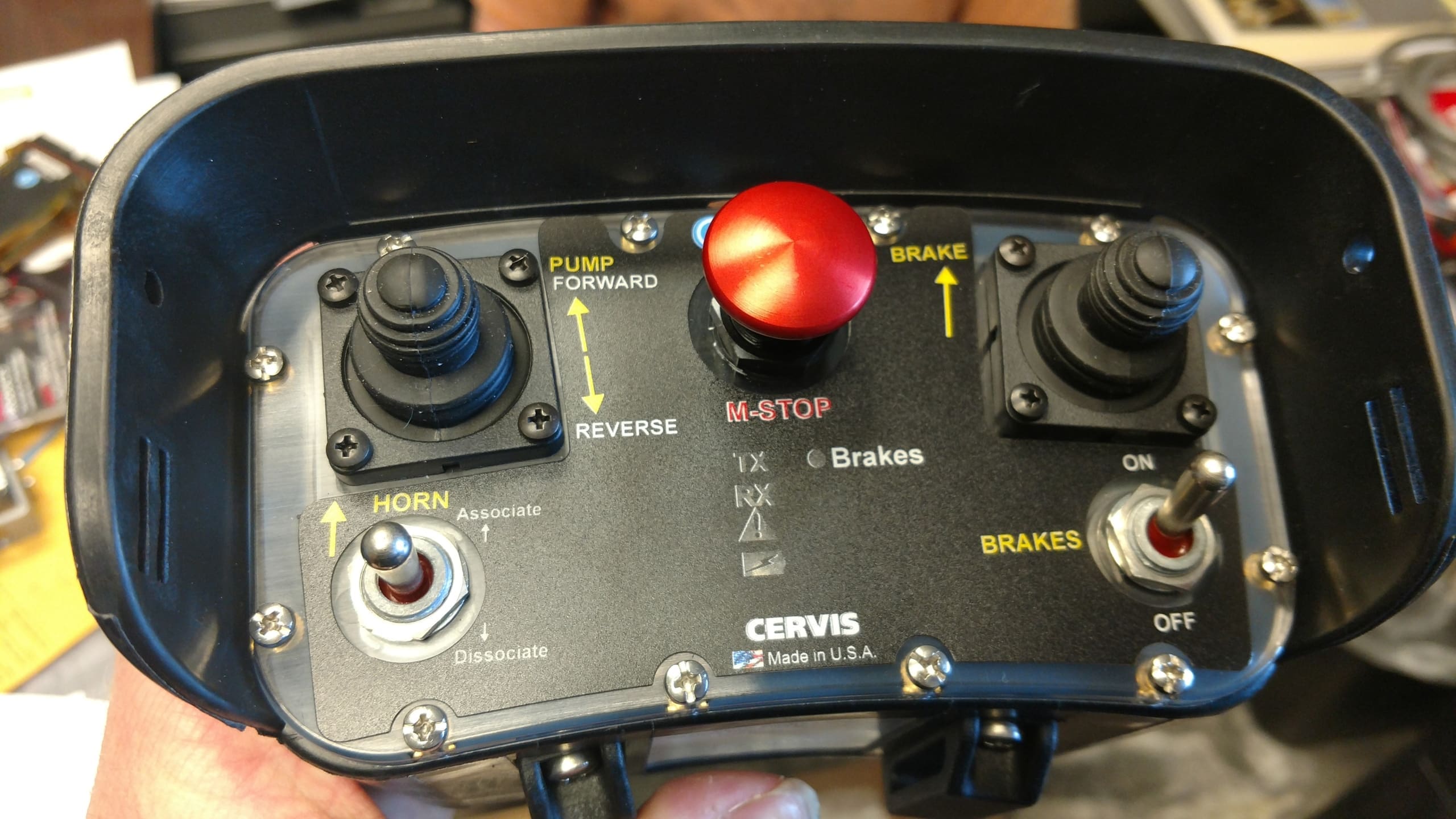

Advanced controls with remote operation for precise and effortless equipment transport.

5

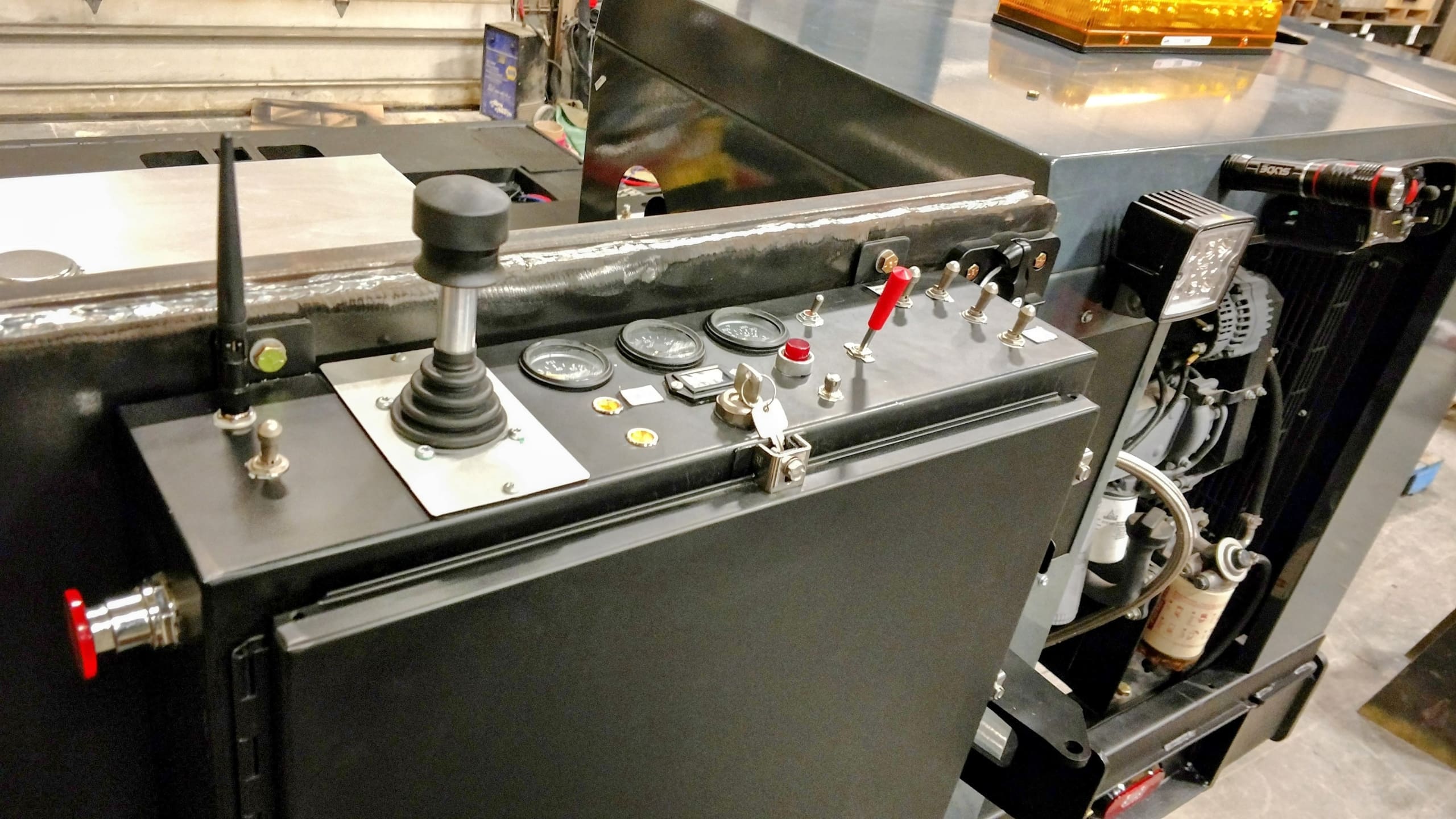

Single operator stand for easy manual control and operation.

6

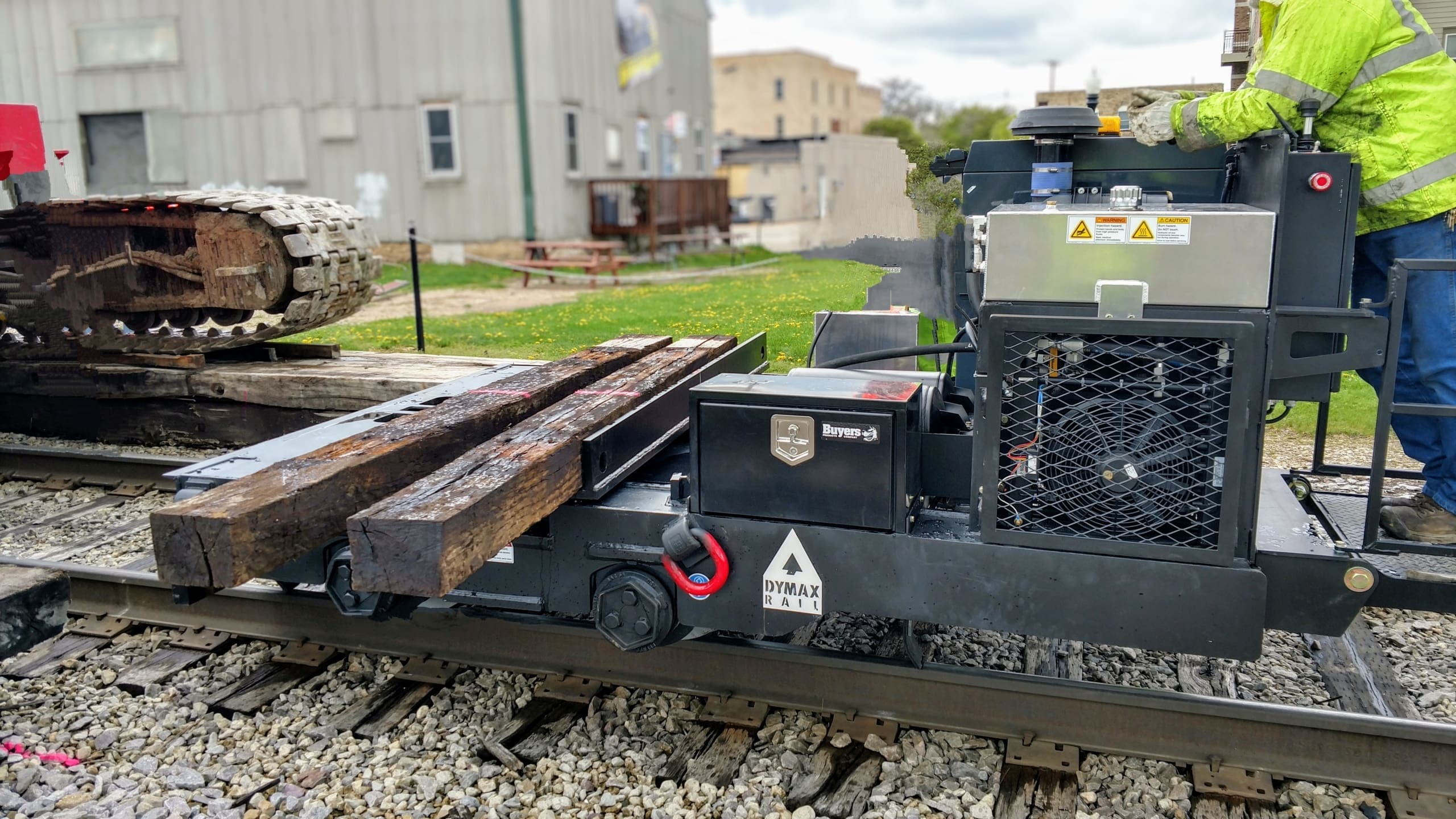

Swiveling plates adapt to undercarriages for precise rail navigation, with wood blocking for secure machine placement.

INFRASTRUCTURE MOBILITY:

Less teardown. No extra roads. More efficiency.

Move massive machinery faster and easier with the Crane Shuttle Dolly Car — a powerful rail-based transport system designed for bridge builders, rail projects, and heavy infrastructure jobs.

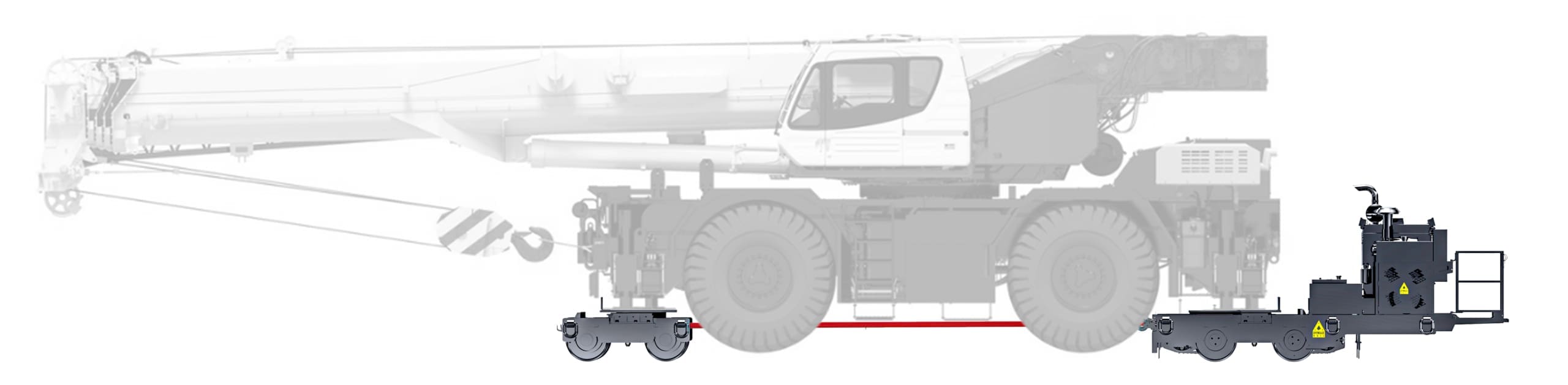

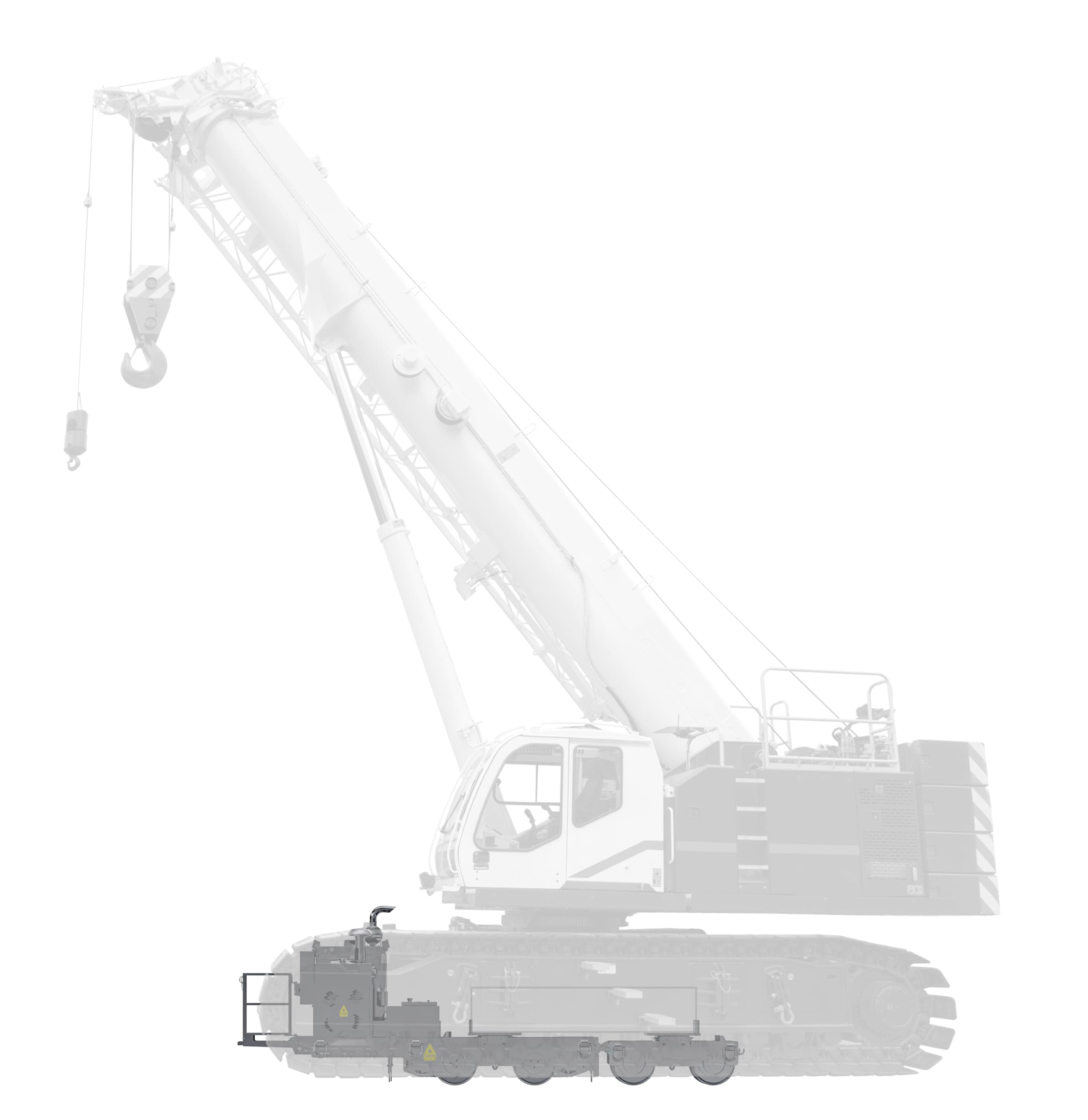

This hydraulic-driven shuttle car features a dolly that slides underneath wheel or track-type crawler cranes and excavators. The machines lift themselves up, and the dolly securely moves them along the railway, just like a heavy-duty moving cart.

Instead of tearing down equipment or building access roads, crews can now transport heavy machinery efficiently, saving time, cost, and effort. Remote or operator-controlled, the Crane Shuttle Dolly Car simplifies mobilization for the toughest job sites.

HIGHLIGHTS

  • Move 180 tons of equipment with ease.
  • Ideal for bridge work, moving heavy equipment, and material and supply delivery.
  • Navigate tight or difficult work areas with the compact, 4-axle power unit and dolly.
  • Swiveling undercarriage plates adapt quickly to different machines.
  • Full air brake system with Cobra friction pads and gladhand connections – safe, reliable stopping power.
Model

Group No.

Description

Weight (lbs/kg)

DX-TRSL-CDX-74HP-DMX-180TC

6720D2

Transporter Shuttle-Crane Dolly & Excavator-74 Horsepower-DymaxRail-180 ton capacity

STANDARD FEATURES

  • Engine: 74HP power systems with hydrostatic pump
  • Operator stand with controls
  • Remote control equipped
  • Directional lighting package – red white with LED spot lamps on end
  • Amber beacon strobe
  • Train horn
  • Bolster design with heavy duty drive system – two speed motor package, 3mph / 7mph max
  • 6×12 axle groups with replaceable wheels
  • Toolbox
  • Rail sweeps
  • Tie down locations and lift locations
  • Air brakes
  • Tag dolly with swivel plate and park brake
  • Towbar – 4 foot
  • Pin eye hitch design
  • Hydraulic pump with controller and protected box

WEIGHT: 17,000 lbs / 7,938  g

Design and specifications are subject to change without notice.  Contact DymaxRail for custom solutions 1-800-530-5407 or sales@dymaxrail.com to learn more.
