Haul Scrap, Ballast and Other Materials

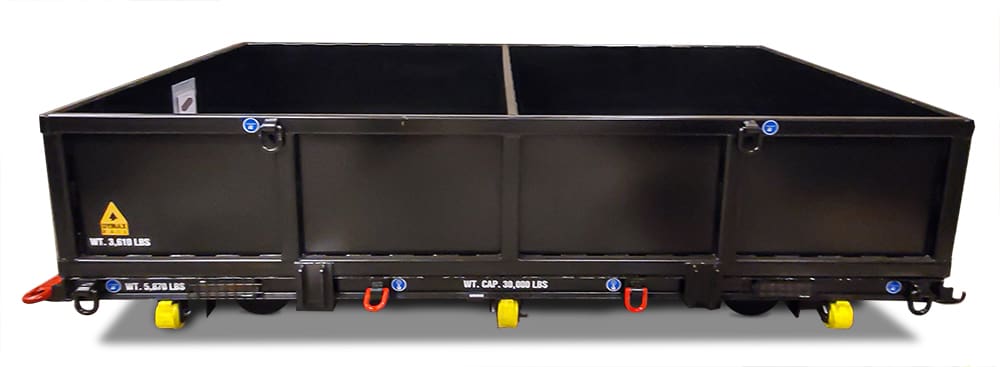

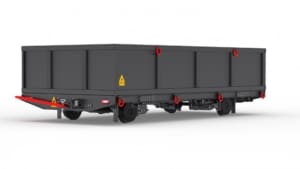

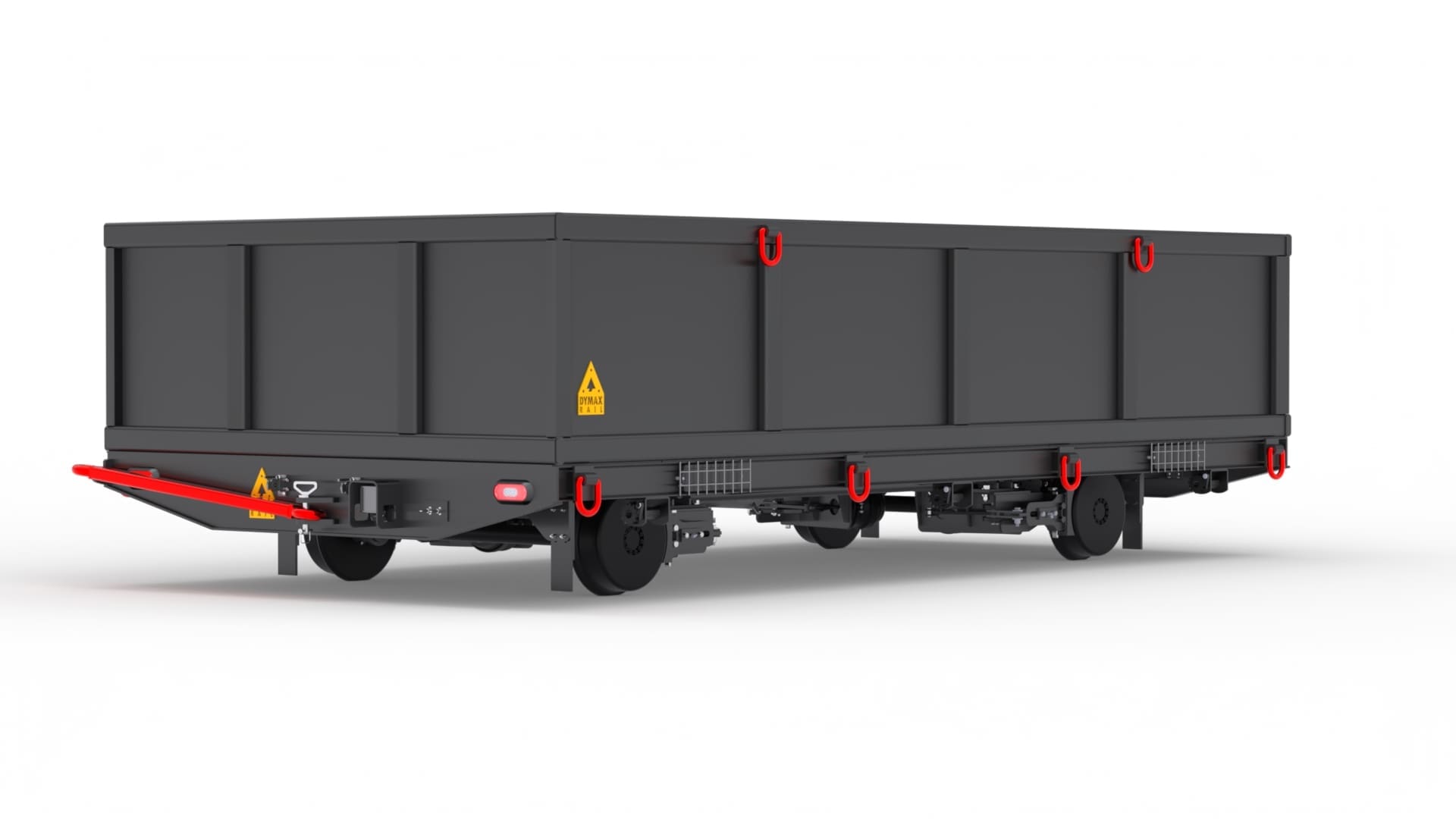

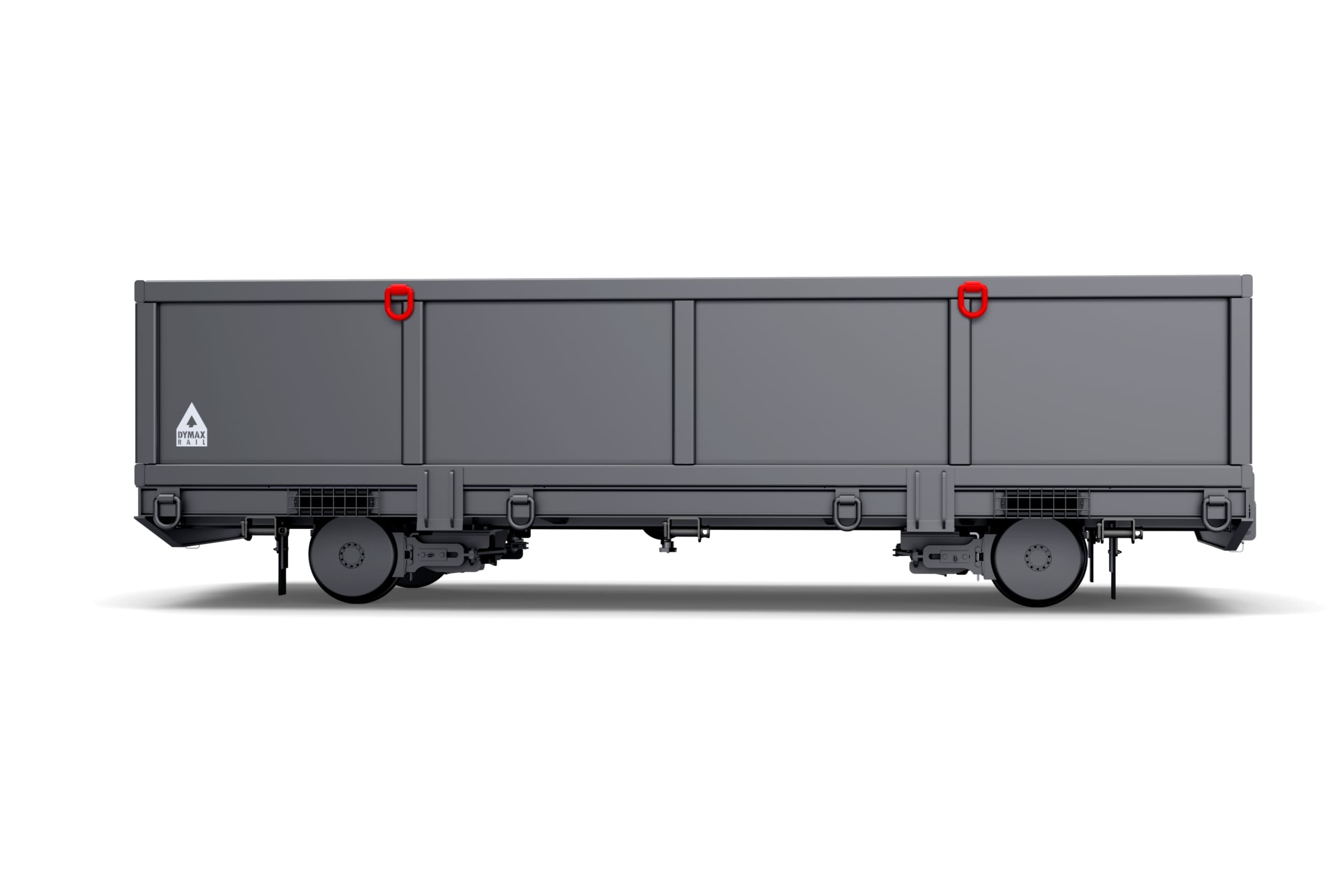

The Box Wagon Track Cart is a durable, highly versatile solution for hauling critical railway materials such as tie plates, spikes and ballast. Designed with two bins and heavy duty construction, this cart ensures efficient and reliable transport for a variety of rail-based projects.

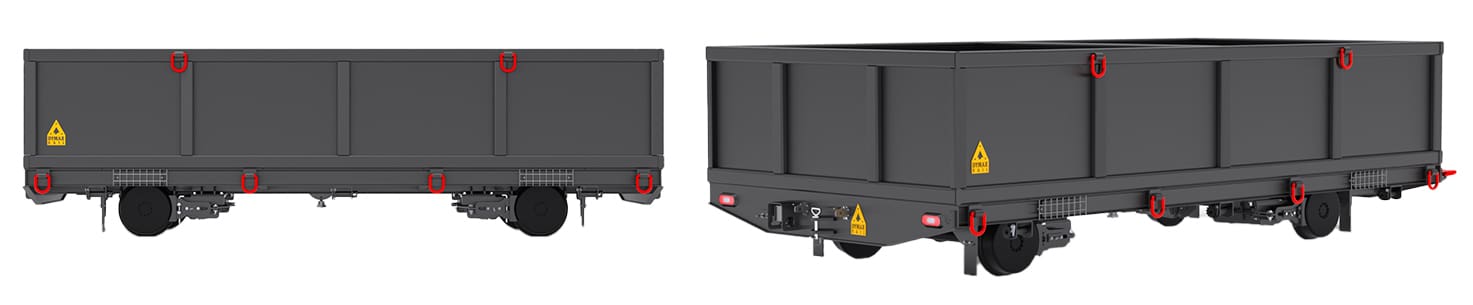

1
2
3
4
5
1

Lift Rings. Easily lift to and from the tracks using cranes or excavators. Optional fork pockets available upon request

2

HD DymaxRail Axles and Wheels.
Optional: Track gauge, Insulated Railgear.

3

Towbar & Hitch. Standard towbar (4ft) with welded pin type hitch. Optional: Custom Tow Bar Length; Rockinger or HD Pintle Hitches.

4

Solar Powered Lighting Systems. Automatic red & white directional lights and LED spot lamps included.

5

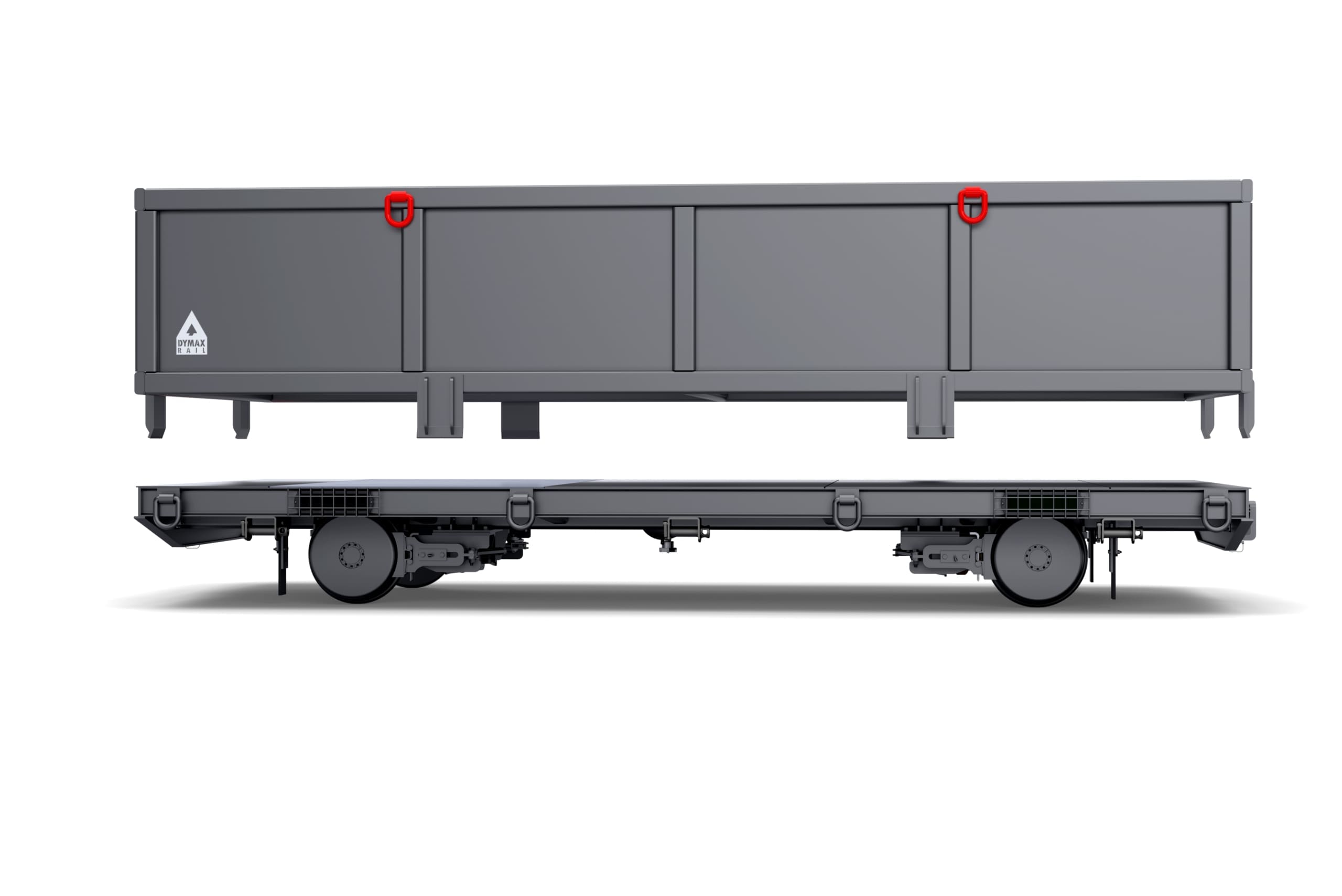

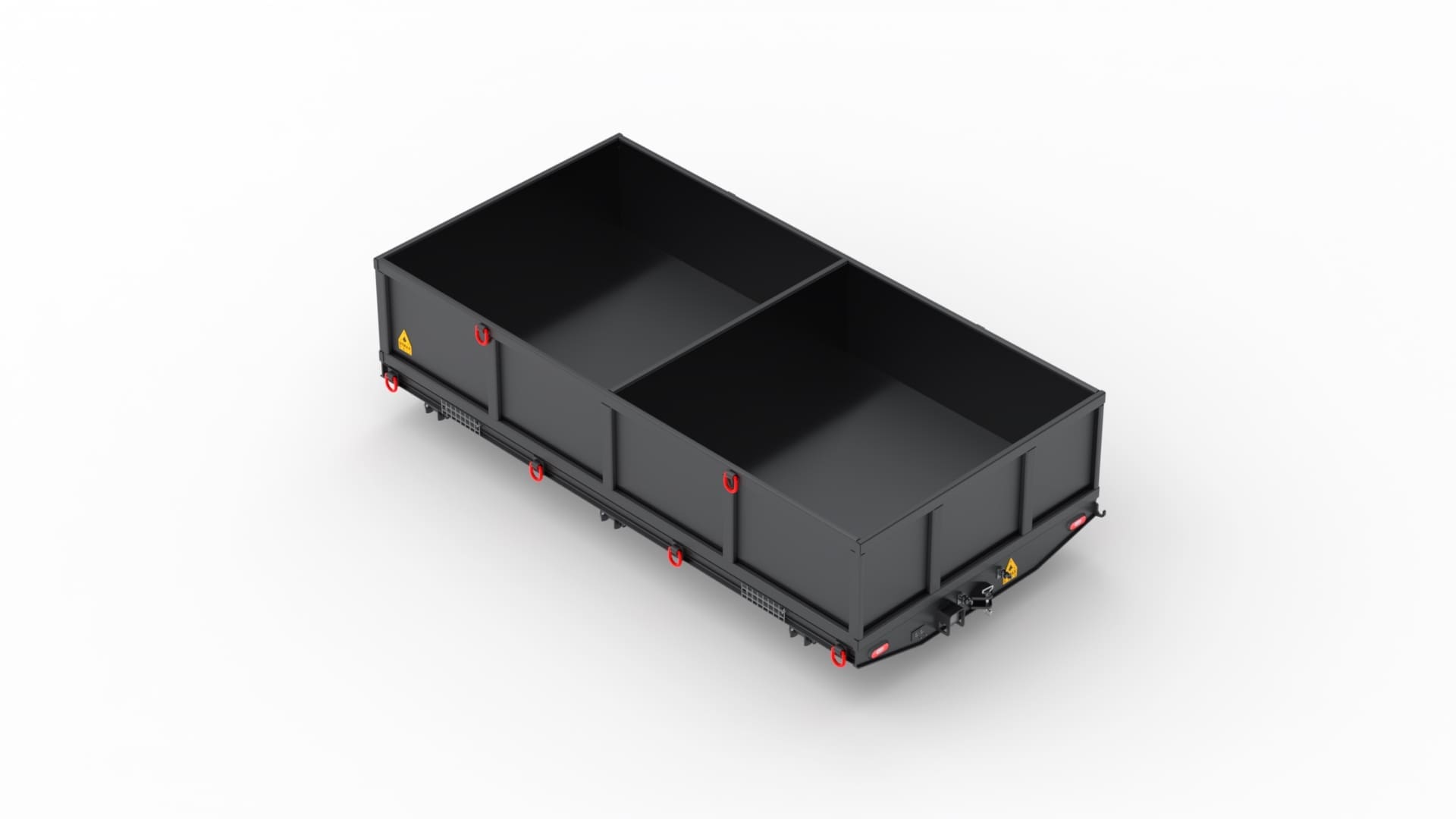

High Tensile Strength Two-Bin Box. Built using T1 side walls and AR400 floor plating for long lasting durability.

Brochure Contact Us
  • Heavy Duty Design: High strength twin rectangular beam frame construction. Wagon floor and sides constructed with high tensile strength steels, including AR400 wear plate used on all floors.
  • Directional lighting systems: Self contained and requires no plugs for operation. Simply flip on the switches and go to work. Includes red and white directional lights and LED spot lamp on both ends.
  • Brake Systems: Equipped with air, hydraulic and manual park brakes.
  • Box Capacity: 2 bin design available in 10 or 13 yard capacity, depending on cart size.
  • Special Track Gauges: Available for all track gauges.
Group Number

Model

Description

Weight (lbs)
8437D1

DX-RC-GD10-8X16HAP-DMX-15TC

Rail Cart-Gondola 10 yard capacity @ 3000lb max per yard material-Hydraulic and Air Brake combo WITH Park Brake, 8 feet wide x 16 feet length-DymaxRail-15 ton capacity

STANDARD FEATURES:

  • Standard Track Gauge: 56.50 in / 1435 mm
  • Deck Width: 96 in / 8 ft
  • Deck Length: 192 in / 16 ft
  • Overall Width: 100 in / 8 ft 4 in
  • Overall Length: 200 in / 16 ft 8in
  • Rail Axles: DymaxRail HD Axles, 16 inch diameter replaceable wheels
  • Capacity: 15 tons uniform load cart rating with 10 cubic yard capacity of volume
  • Deck & Floor: Heavy Duty 3/8in thick AR400 steel plate with 16in on center beams
  • SideWalls: Reinforced 3/8 in A514 steel plate with perimeter tube construction; fully welded box assembly/cart.
  • Tie Downs: D-ring tie down locations on each side
  • Brake 1: Manual screw adjuster park brake
  • Hitch: Jost type EU spec with manual release
  • Rail sweeps
  • Lift rings with 1 set lift chains
  • (1x) 6ft towbar with chain hook location and Jost Hitch weld-in eyelets

UPGRADES INCLUDED:

AIR BRAKES ON ALL WHEELS:

  • All 4 wheels setup with air brake and 4 lock pod chambers.
  • Includes glad hand connections at both ends of the trailer/cart
  • Includes supply lines (coiled blue/red) hoses for max 10 ft tow bar length applications

HYDRAULIC DISC BRAKE WITH HYD HAND PUMP FOR RELEASE:

  • Spring set hydraulic release brake with friction shoes

12V DIRECTIONAL LIGHTING PACKAGE:

  • Red and white directional lighting with auto-direction change
  • LED spot lamp on both ends
  • Travel alarm
  • Switchable bulkhead

INSULATED AXLES:

  • Insulated railgear system

NOT SUPPLIED

  • Air lines and hydraulic lines are not supplied for connections between the vehicle and the cart.

WEIGHT: 10,500 lbs
8438D1

DX-RC-GD13-8X20HAP-DMX-25TC

Rail Cart-Gondola 13 yard capacity @ 3800lb max per yard material-Hydraulic and Air Brake combo WITH Park Brake, 8 feet wide x 20 feet length-DymaxRail-25 ton capacity

STANDARD FEATURES:

  • Standard Track Gauge: 56.50 in / 1435 mm
  • Deck Width: 96 in / 8 ft
  • Deck Length: 240 in / 20 ft
  • Overall Width:  100 in /  8ft 4
  • Overall Length: 248 in / 20 ft 8in
  • Rail Axles: DymaxRail HD Axles, 16 inch diameter replaceable wheels
  • Capacity: 25 tons uniform load cart rating with 13 cubic yard capacity of volume
  • Deck & Floor: Heavy duty 3/8 inch thick AR400 steel plate with 16 inch on center beams
  • SideWalls: Reinforced 3/8 inch A514 steel plate with perimeter tube construction; fully welded box assembly/cart.
  • Tie Downs: d-ring tie down locations on each side
  • Brake 1: Manual screw adjuster park brake
  • Hitch: Jost type EU spec with manual release
  • Rail sweeps
  • Lift rings with 1 set lift chains
  • (1x) 6ft towbar with chain hook location and Jost Hitch weld-in eyelets

UPGRADES INCLUDED:

AIR BRAKES ON ALL WHEELS:

  • All 4 wheels setup with air brake and 4 lock pod chambers
  • Includes glad hand connections at both ends of the trailer/cart
  • Includes supply lines (coiled blue/red) hoses for max 10 ft tow bar length applications

HYDRAULIC BRAKE WITH HYD HAND PUMP FOR RELEASE:

  • Spring set hydraulic release brake with friction shoes

12V DIRECTIONAL LIGHTING PACKAGE:

  • Red and white directional lighting with auto-direction change
  • LED spot lamp on both ends
  • Travel alarm
  • Switchable bulkhead

INSULATED AXLES:

  • Insulated railgear system

NOT SUPPLIED:

  • Air lines and hydraulic lines are not supplied for connections between the vehicle and the cart.

WEIGHT: 11,800 lbs
Design and specifications are subject to change without notice. Please contact DymaxRail sales for custom solutions: 1-800-530-5407.
