DYMAXRAIL QUICK COUPLER FOR GRADALL EXCAVATORS WITH 360 ROTATION

The DymaxRail Rotating Quick Coupler adds full 360° rotation to Gradall Excavators, working seamlessly with the machine’s built-in 220° boom tilt. No tilt is required in the coupler itself, so you can get more done with fewer adjustments.

Brochure Contact Us

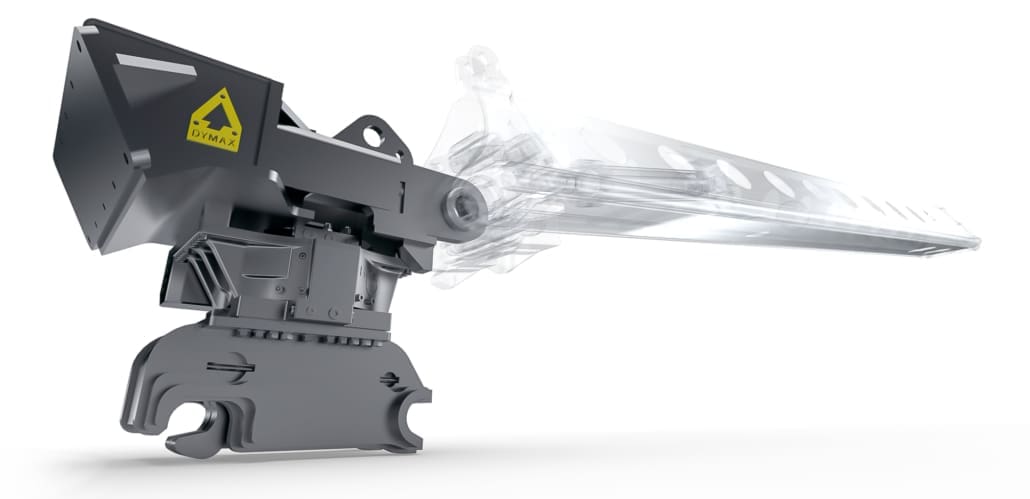

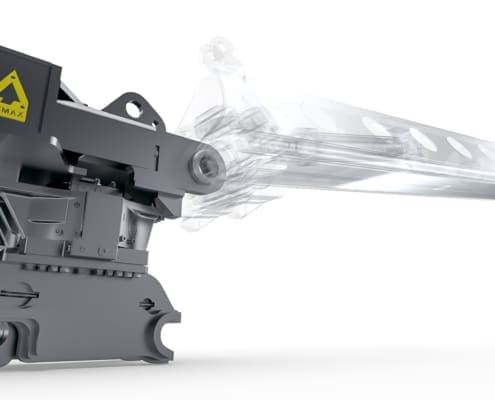

Illustration showing a 360 rotating coupler for a Gradall excavator

PRODUCT OVERVIEW

Fits: Gradall excavators
Rotation: 360° continuous
Tilt: None
Hydraulics: Requires only 1 auxiliary circuit
Coupler Lock: Hydraulic or Manual
Functions: 1 or 2 circuits (5 lines) below, subject to coupler lock
Installation: Wire cable kit + drain & jump lines

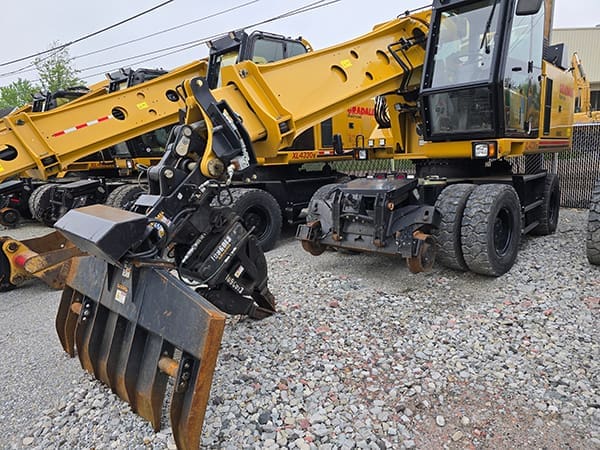

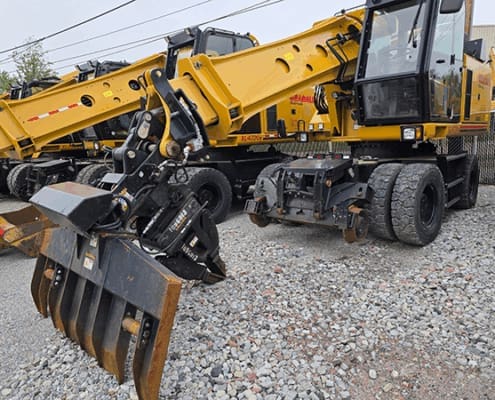

Gradall excavator with a 360 rotating quick coupler and a ballast blade attached to coupler

Ideal for railway maintenance applications. Handle tools and attachments on or off track.
High strength 360° continuous rotation.
Pin grab quick coupler.
Uses factory auxiliary hydraulics.

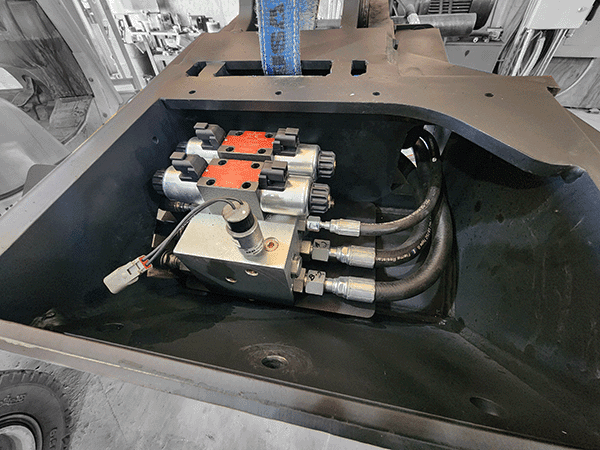

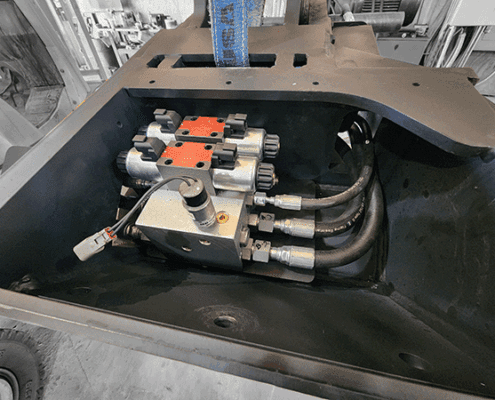

Custom Dymax valve for secure locking and proportional control.
No tilt needed – Gradall handles that.
Simple bolt-on toolbar attachments for odd jobs.

SPECIFICATIONS

Model / Group Number
Description
Weight

DX-QC-PGH-360GRADALL-HX-14/18T / 7210D2

Quick Coupler-Pin Grab Hydraulic-360 rotator Gradall compatible

STANDARD FEATURES: Full 360° continuous rotation system • Hydraulic camlock pin grab coupler compatible with Gradall standard attachments • Proportional multifunction control valve with control group • Toolbar interface (toolbar attachments sold separately)

INSTALLATION REQUIREMENTS: Dealer to install control group from coupler to cab.

OPTIONS: Manual locking coupler, Cat A Link (65MM) compatible

TOOLBAR ATTACHMENTS: Ballast rake, ballast blade, lift hook

WEIGHT: 1,470 lbs

Design and specifications are subject to change without notice.
