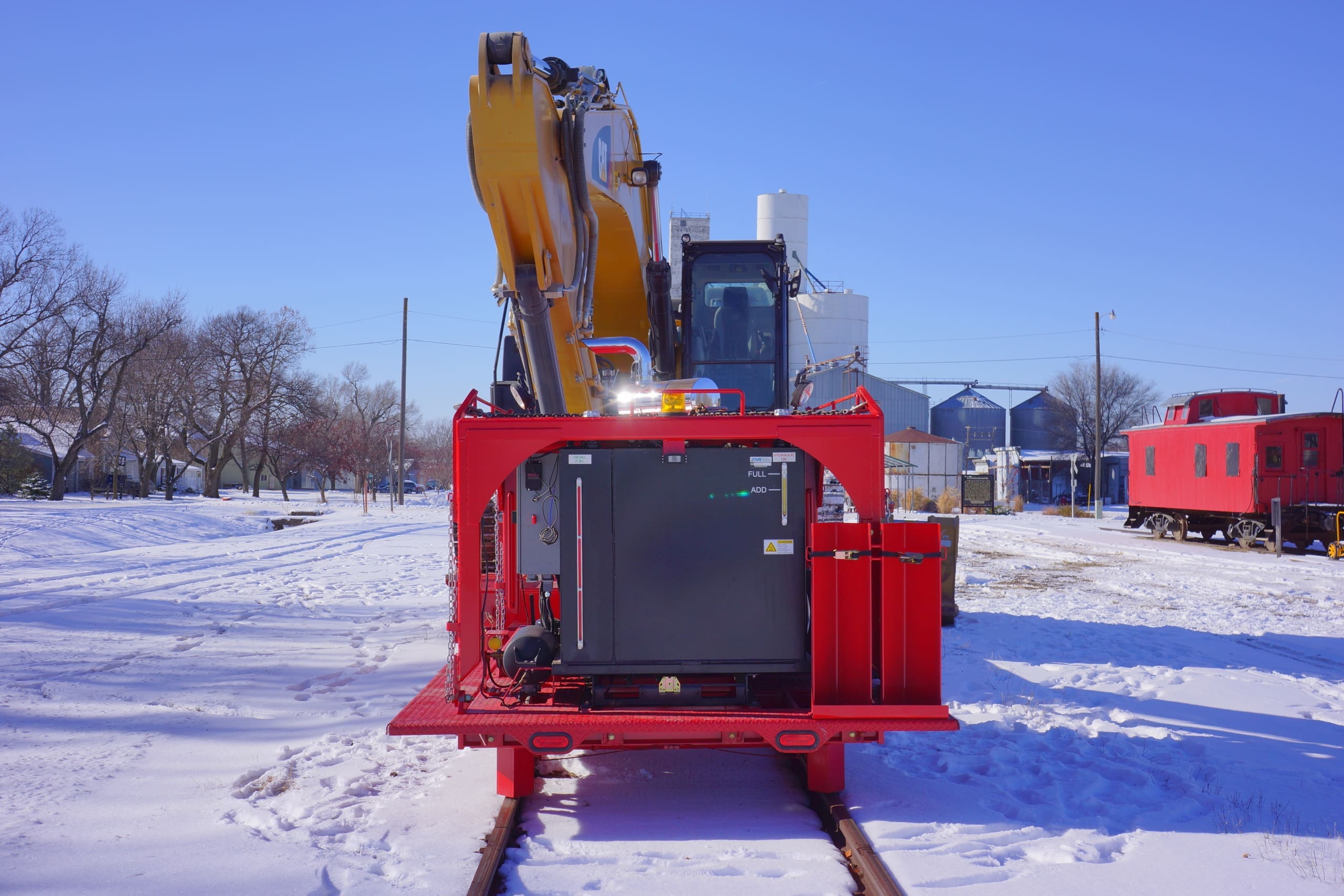

Stand-alone power system integrates with the work car, providing full remote operation. A single operator can control it directly from the machine’s cab.

2

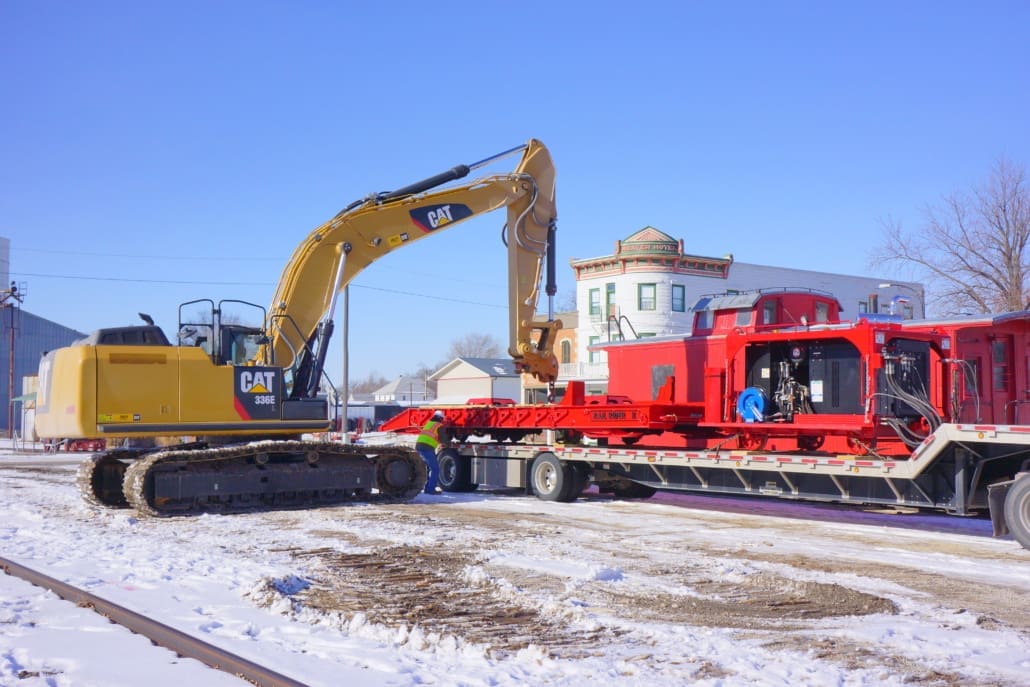

Excavator end-load work car moves equipment quickly with no machine modifications, maximizing fleet flexibility.

3

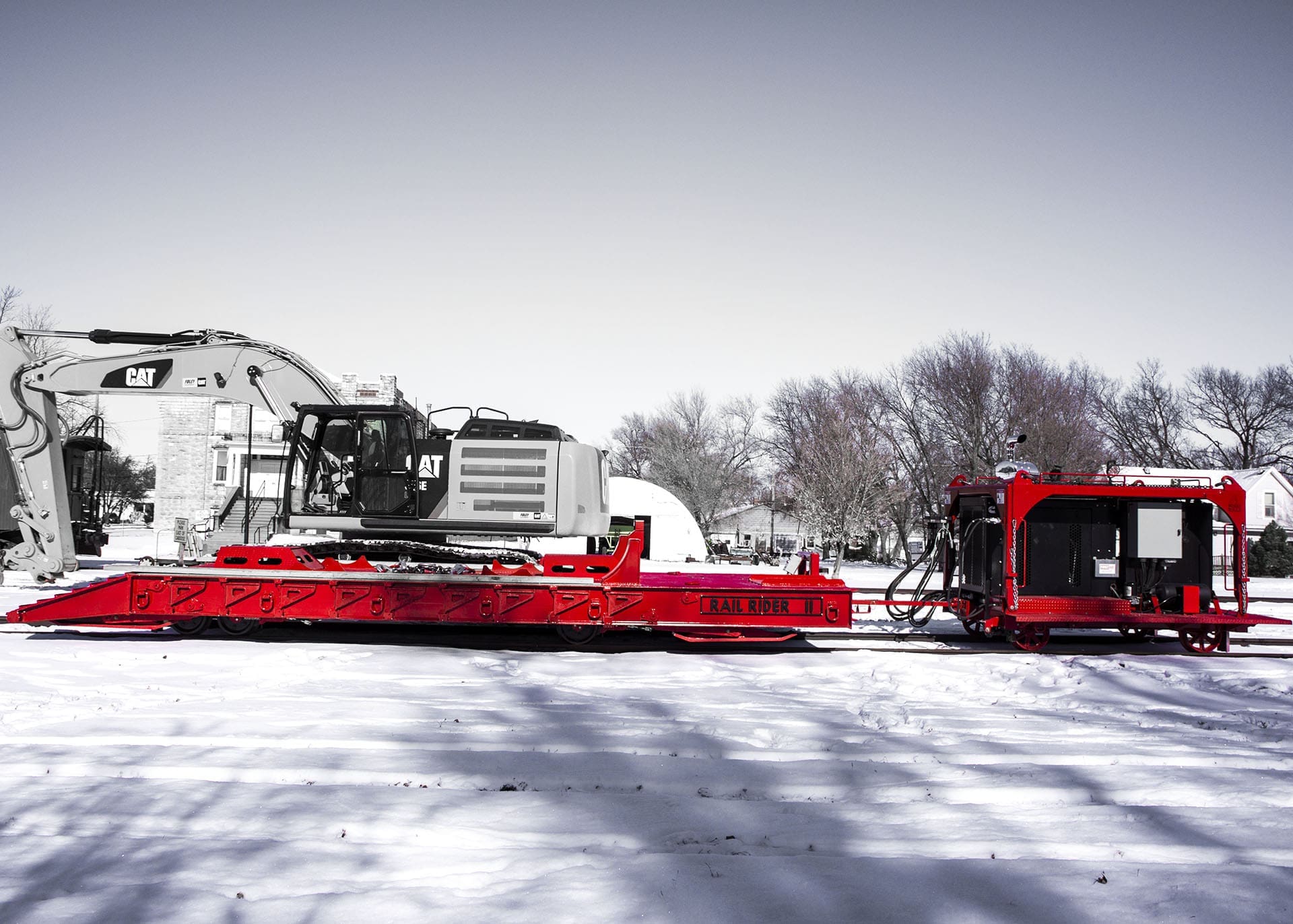

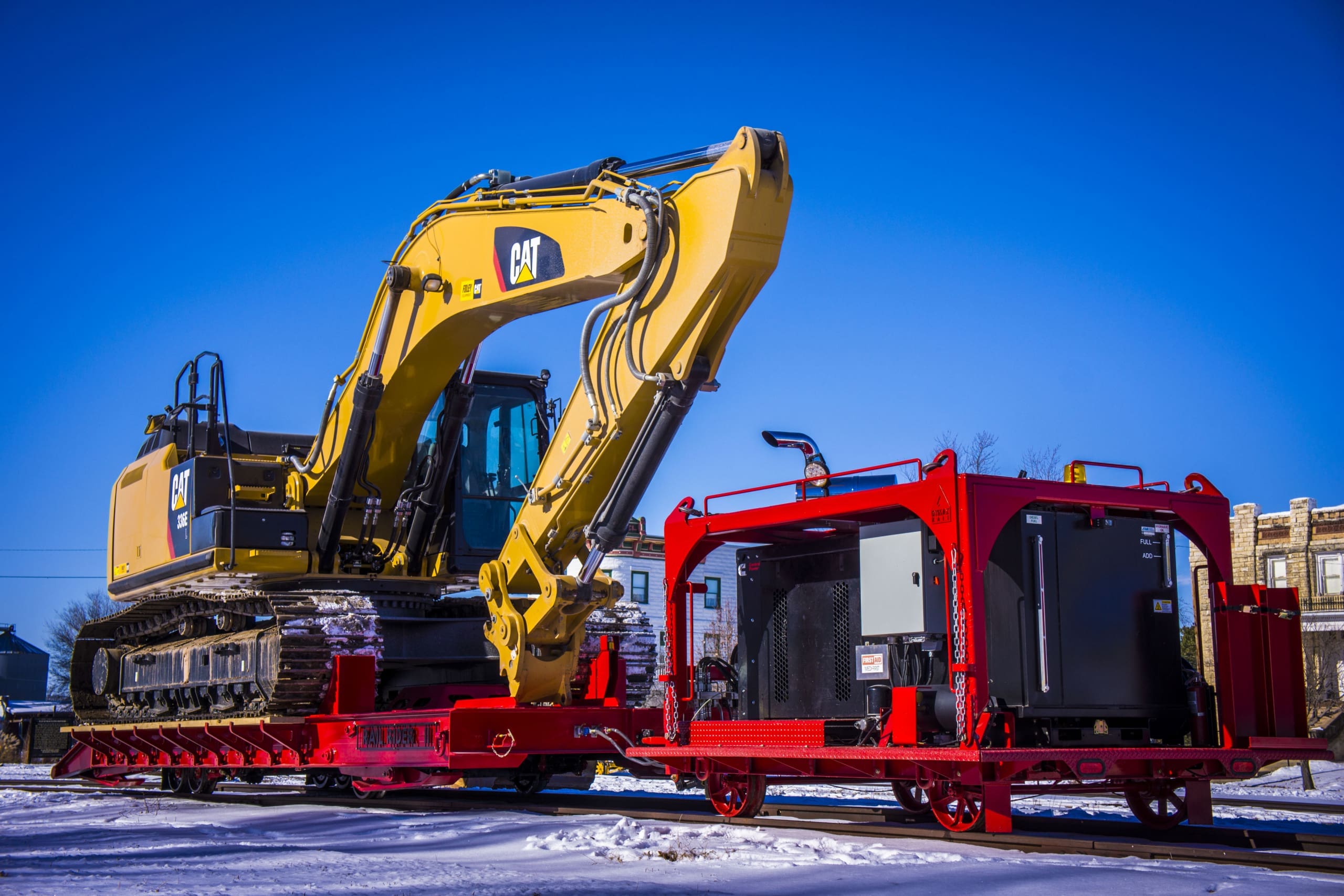

Move 36–45 ton excavators to remote worksites with no machine modifications. Includes an innovative remote control system with a foot pedal for easy operation.

4

4-point hydraulic stabilizers provide a solid foundation for enhanced performance on rail.

Excavator Transfer Shuttle

Efficient Rail Transport for Heavy Equipment

Move large excavators to remote worksites with the DymaxRail Excavator Transfer Shuttle. It’s powered by an engine cart and remote control system, without any machine modifications. Excavators can crawl off the track and get to work quickly.

Key Features & Benefits

  • Standalone Transport Solution: The shuttle is operated through a remote control and compact hydraulic power unit. No machine modifcations.
  • Hydraulic Drive System: Smooth, controlled movement along railway tracks.
  • Integrated Stabilizers: Safe and stable transport.
Model

Group No.

Description

Weight (lbs/kg)
DX-TRSL-EXEL-118x28ft-DMX-36T

6085D2

Shuttle Transporter-Excavator End-Load-118 inches wide x 28 feet length + includes Power Cart-DymaxRail-36 Ton

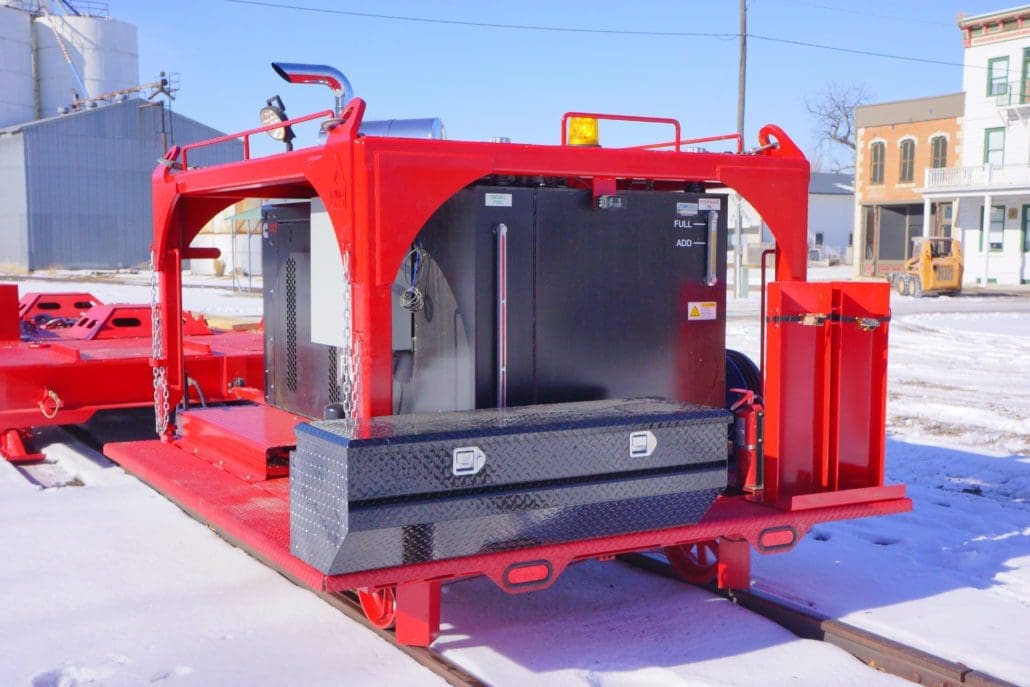

POWER CAR FEATURES

• Engine: 275HP power system with hydrostatic pump

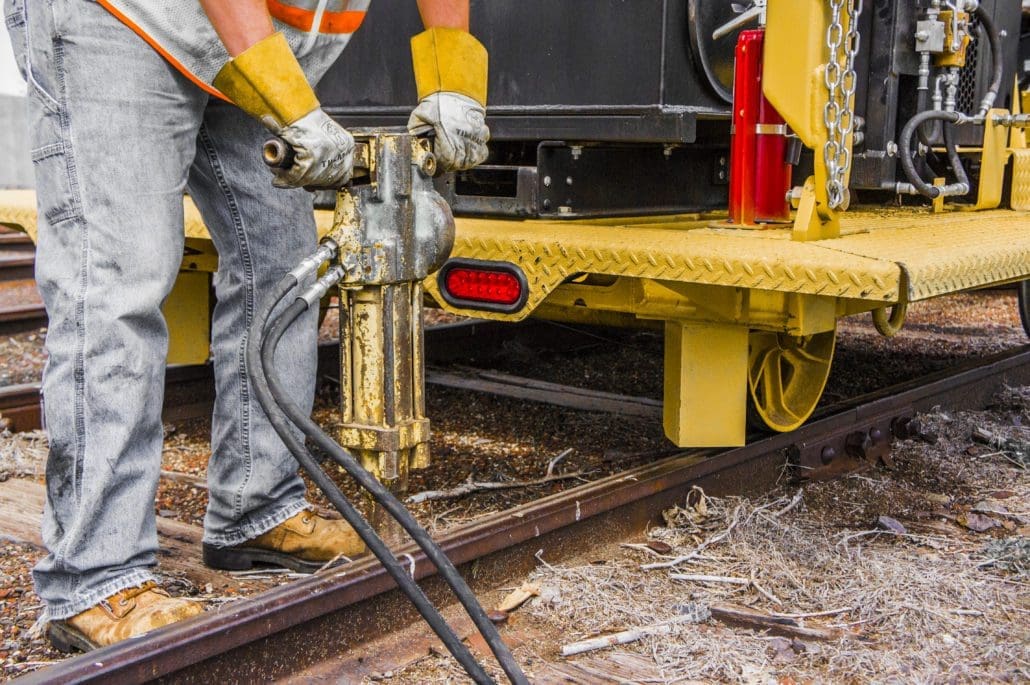

• Hydraulic hand tool circuit with hose reel and flow control
• Side step and handle bars • Mechanical brake with cobra friction shoe
• Directional lighting with LED spot lamps
• Amber beacon strobe • Acetalyne tank holders
• Toolbox and storage bin • Bulkhead disconnects (hydraulic and electrical)
• Train horn • Power car size: 127×80 inches less muffler
• Air compressor for air brakes

EXCAVATOR CART FEATURES

• 118 inches wide (142” with swingouts) x 28 feet cart length • Height off rail: 27 inches
• Twin hydraulic drive axles • 4-point hydraulic stabilizers
• Heavy duty ramps • Apitong wood decking
• Red & white directional lighting control system with LED spot lamps
• Boom stow bucket rest • Adjustable grouser stops
• Side outriggers with boards provided to make overall width 142 inches on rail
• Remote control supplied with foot pedal for in-cab operation
• Rear bolster group with twin axles; front single axle
• Hydraulic release, spring set brakes with external disconnects
• Thru-pass air lines for attaching to air brake trailers with gladhand connections
• Tie down locations and lift locations
• Towbar for power car included with stow location
• Pin eye hitches

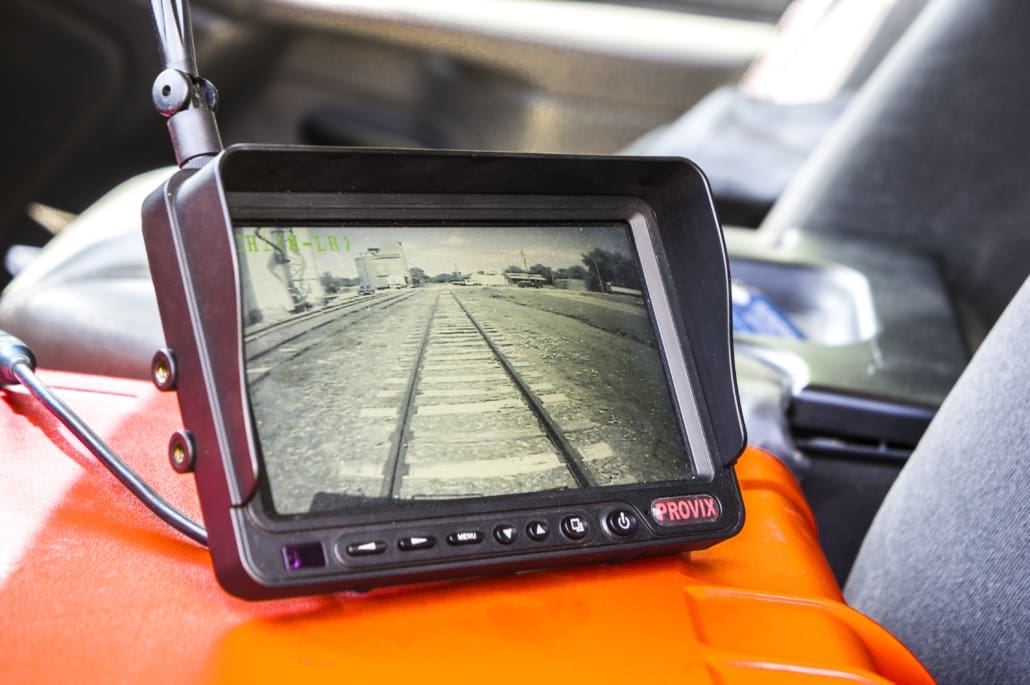

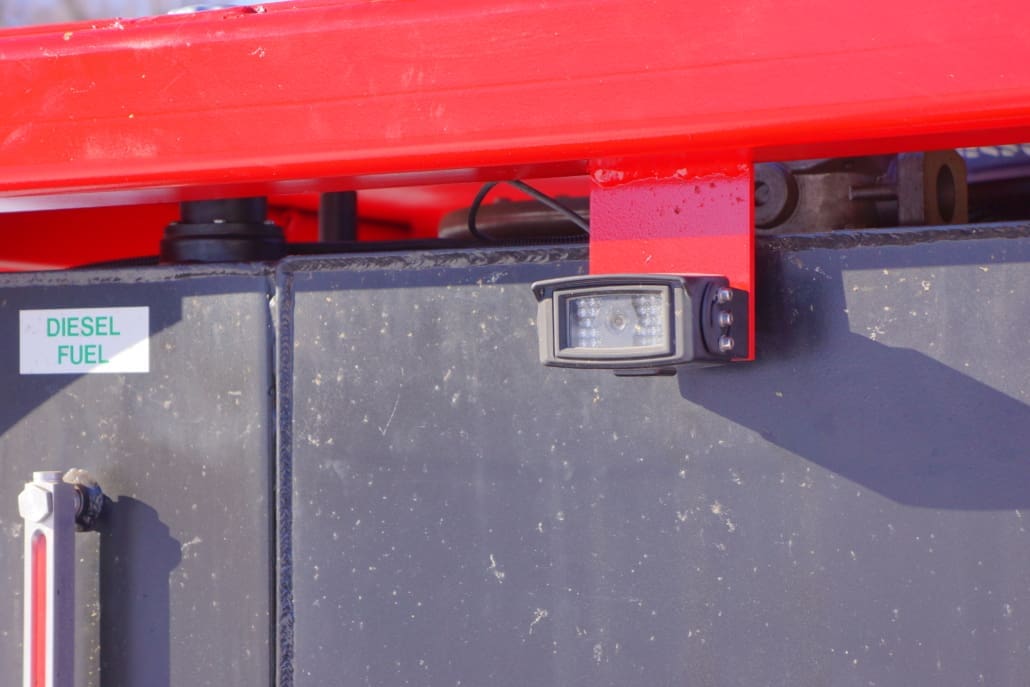

Includes remote camera solution for enhanced visibility on the rear of the power car.

WEIGHT: 28,500 lbs / 12,927 kg

Design and specifications are subject to change without notice.  Contact DymaxRail for custom solutions 1-800-530-5407 or sales@dymaxrail.com to learn more.
