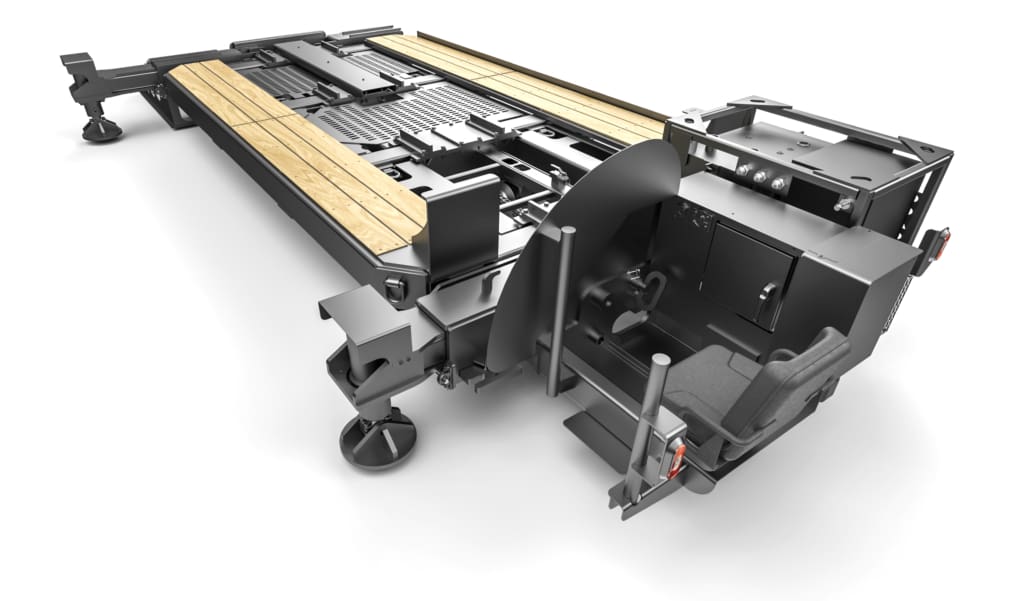

Smart Safety, Built In – The Drill Rig Shuttle features an advanced interlocking control system, ensuring maximum operator safety and stability.

2

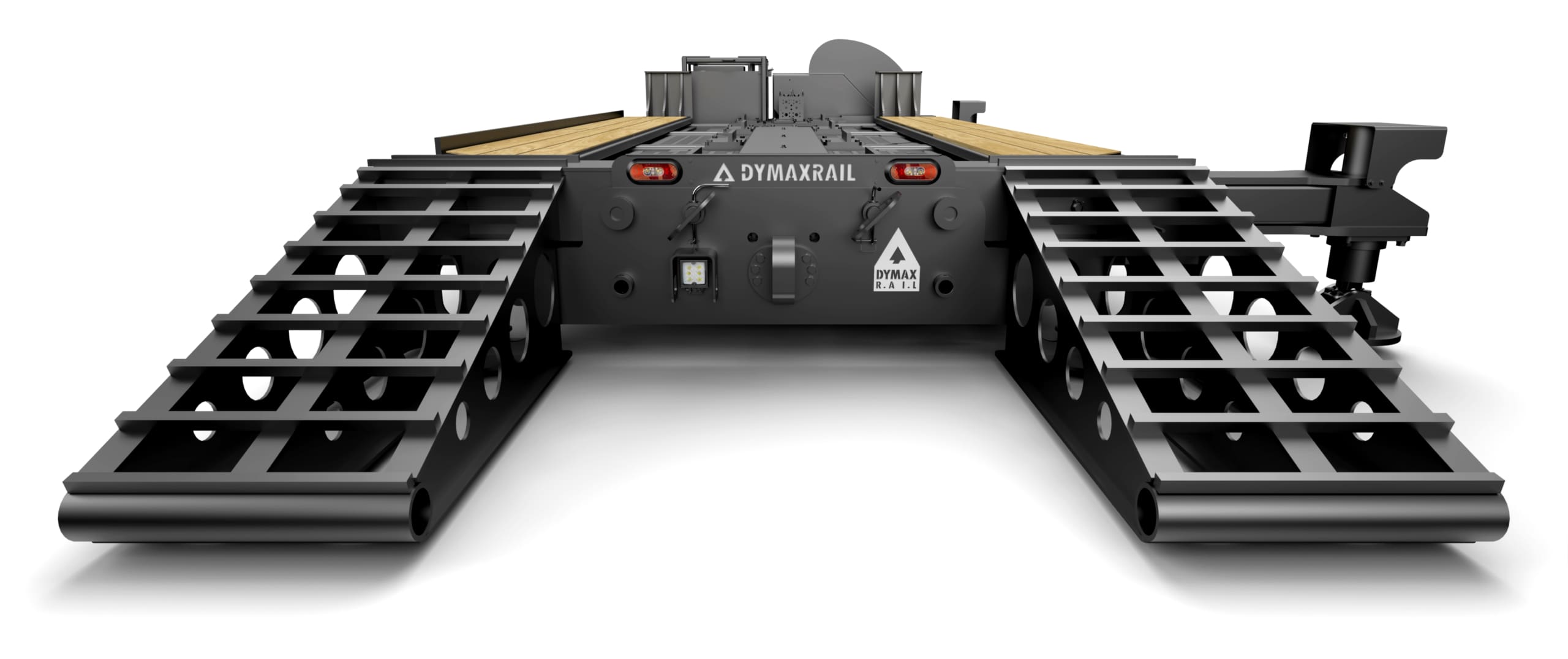

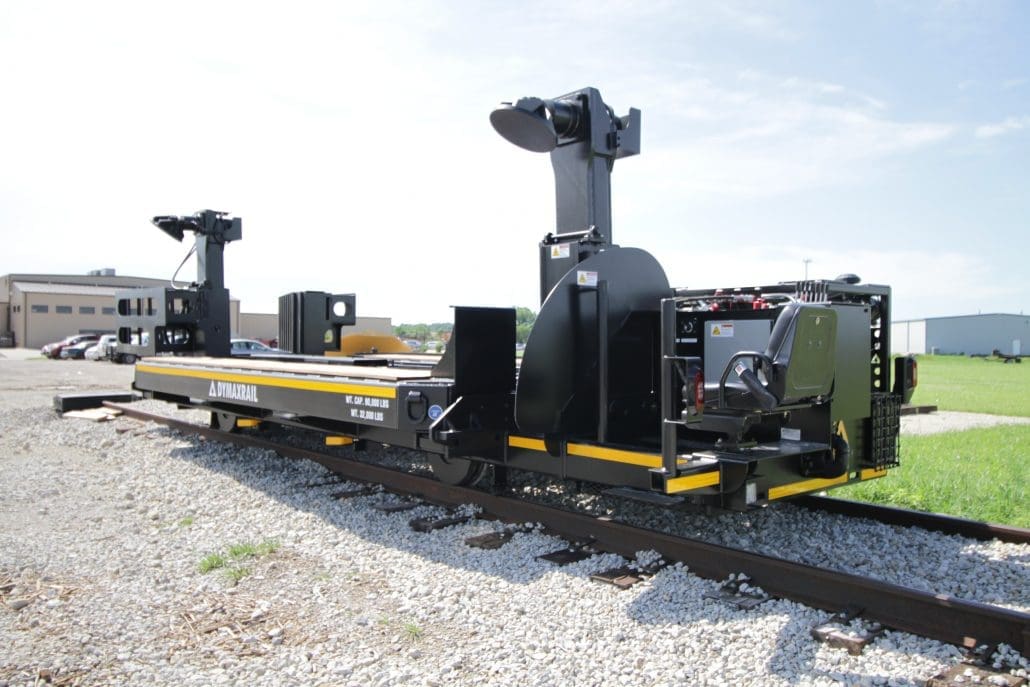

Hydraulic Powered Ramps – Fold up to 120” and operate within the Plate C track envelope.

3

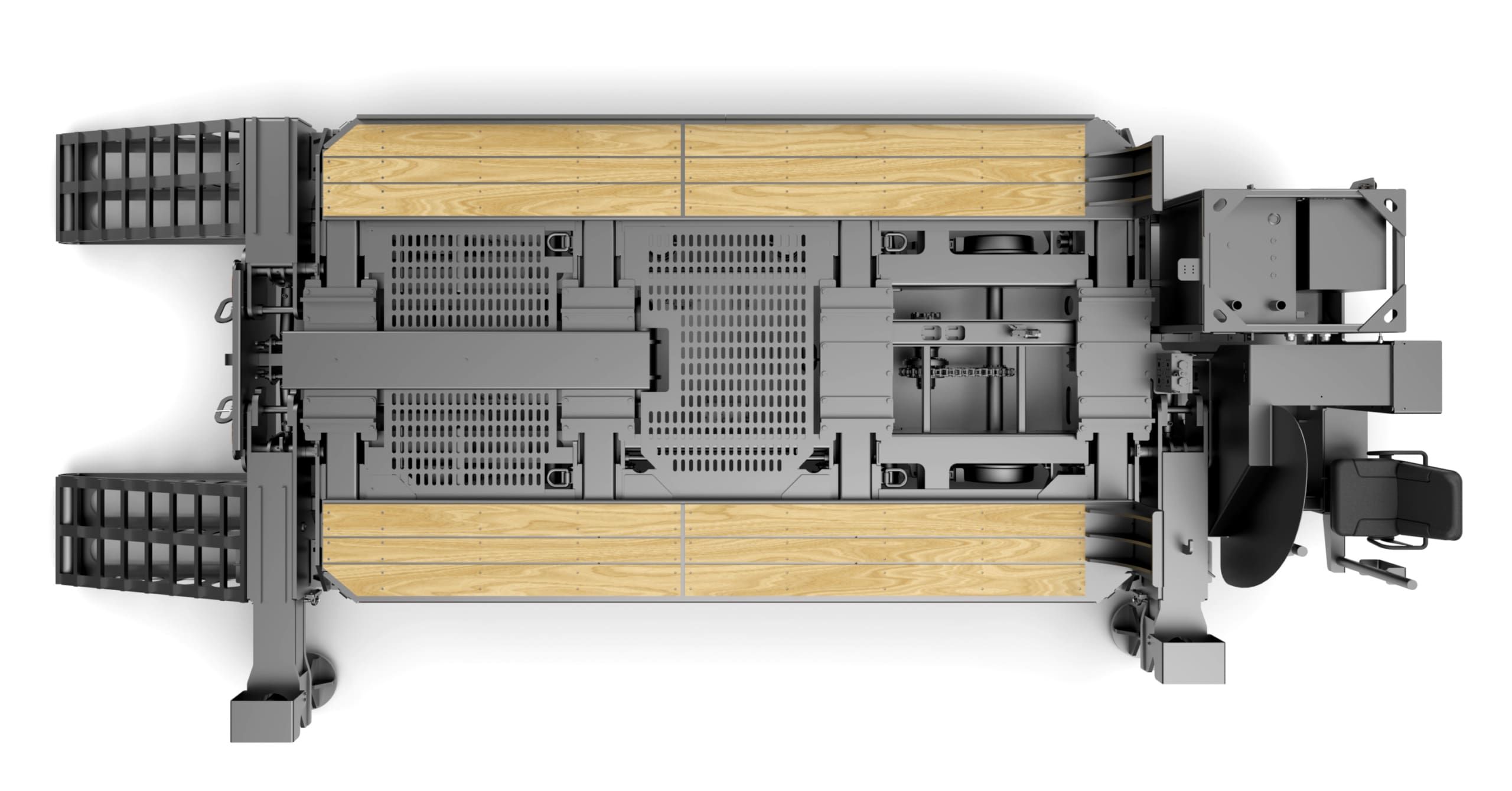

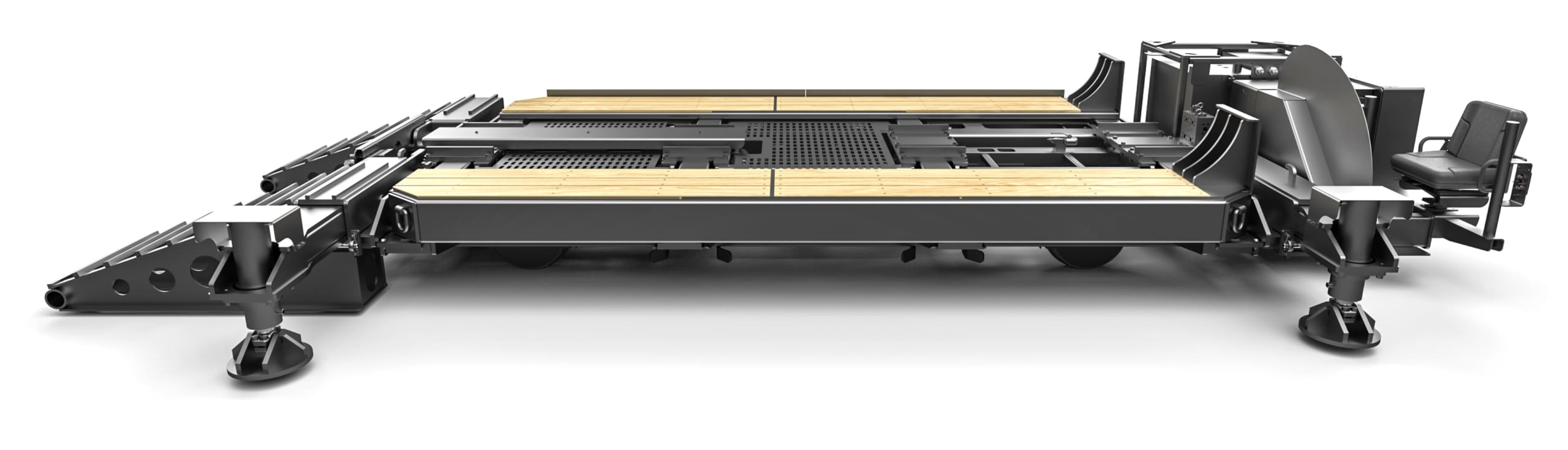

14 Inch Side-Shift Deck – Provides extra clearance for adjacent track work and tight urban job sites.

4

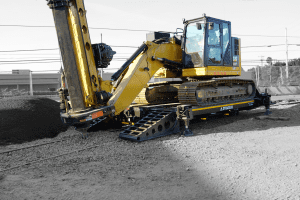

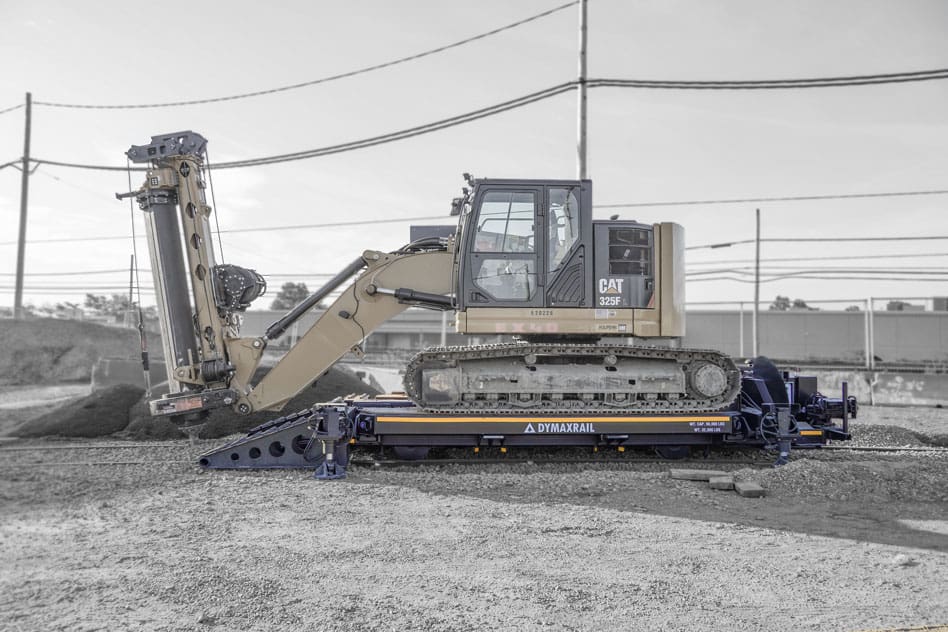

Haul Excavators, Drill and Sheet Piling Machinery

5

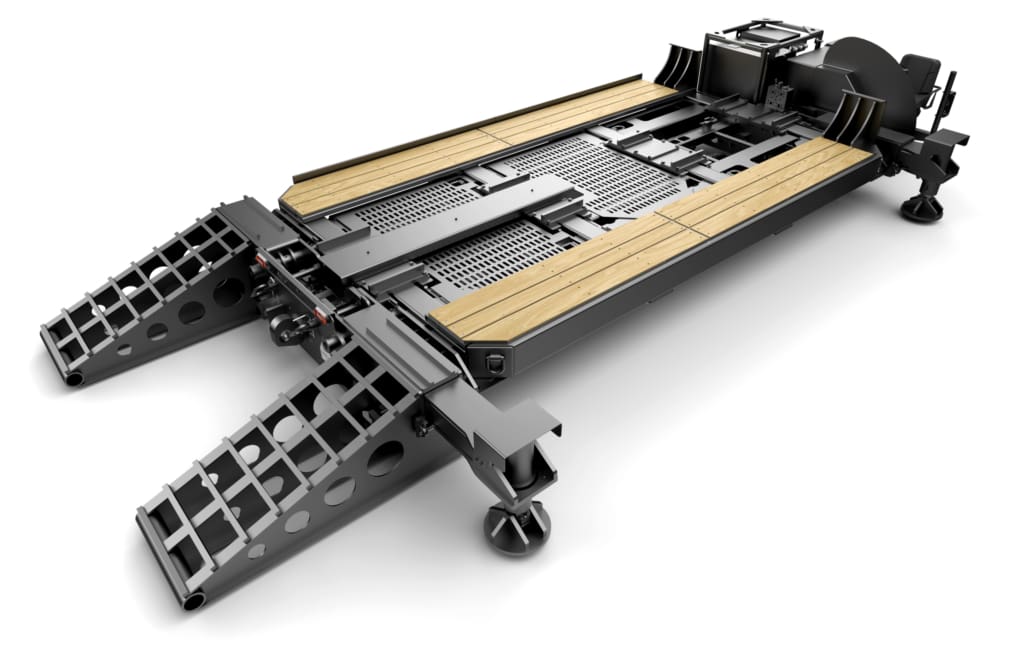

Folding Stabilizers – Secures the platform before side-shifting for maximum safety and stability.

6

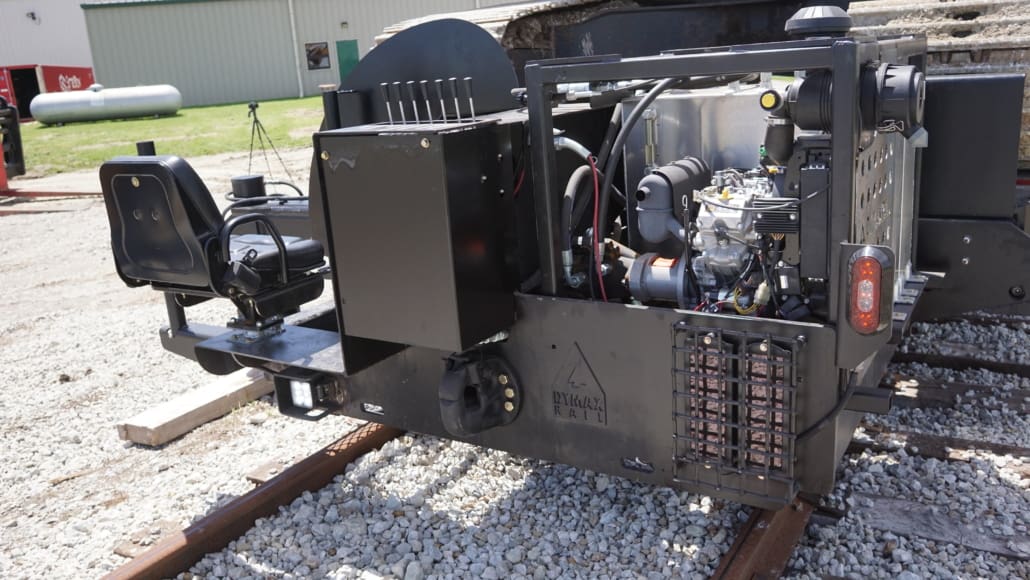

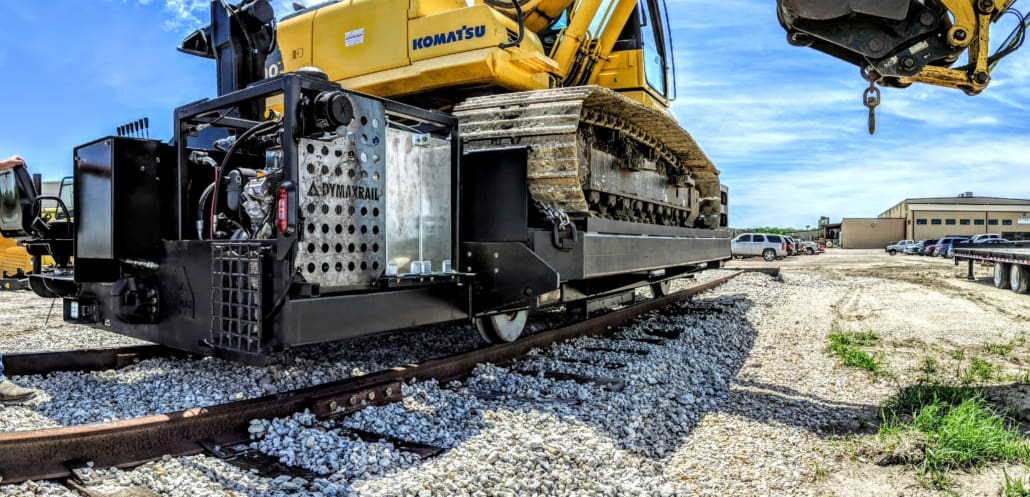

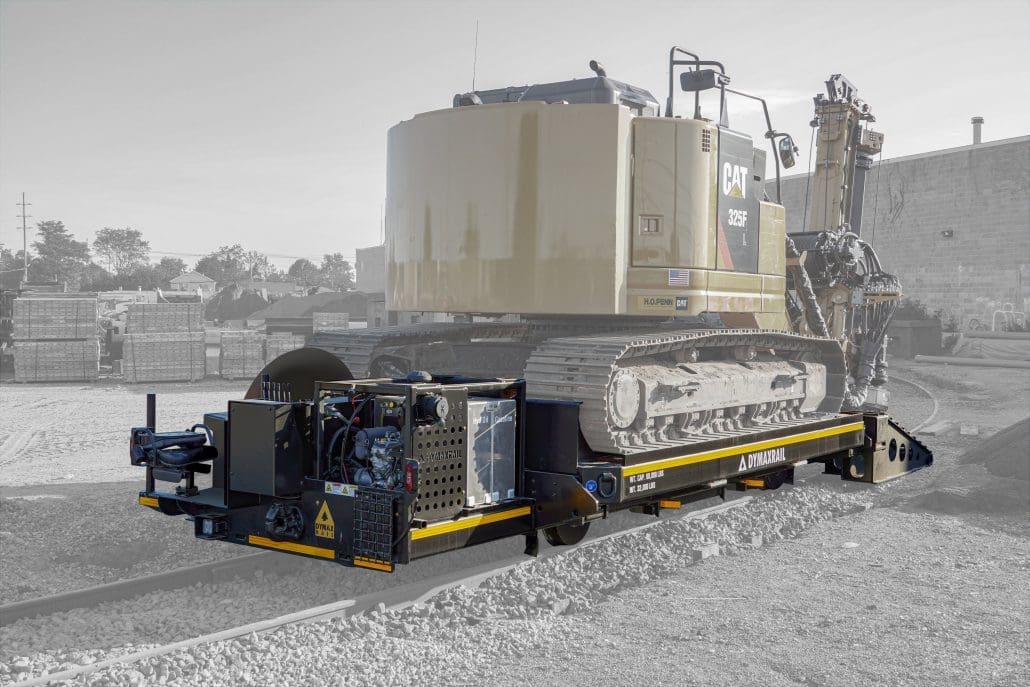

Removable 40HP Hydraulic Power Unit – Powers rail drive and secondary hydraulic systems for flexible operation.

Drill Rig Shuttle Car – Versatile Transport for Rail-Based Pile Driving & Drilling

The Drill Rig Shuttle Car is purpose-built for transporting pile driving and drilling equipment in rail applications. Designed for congested work zones, urban projects, and transit systems, it offers precise positioning, extra clearance, and flexible control—ideal for adjacent track work.

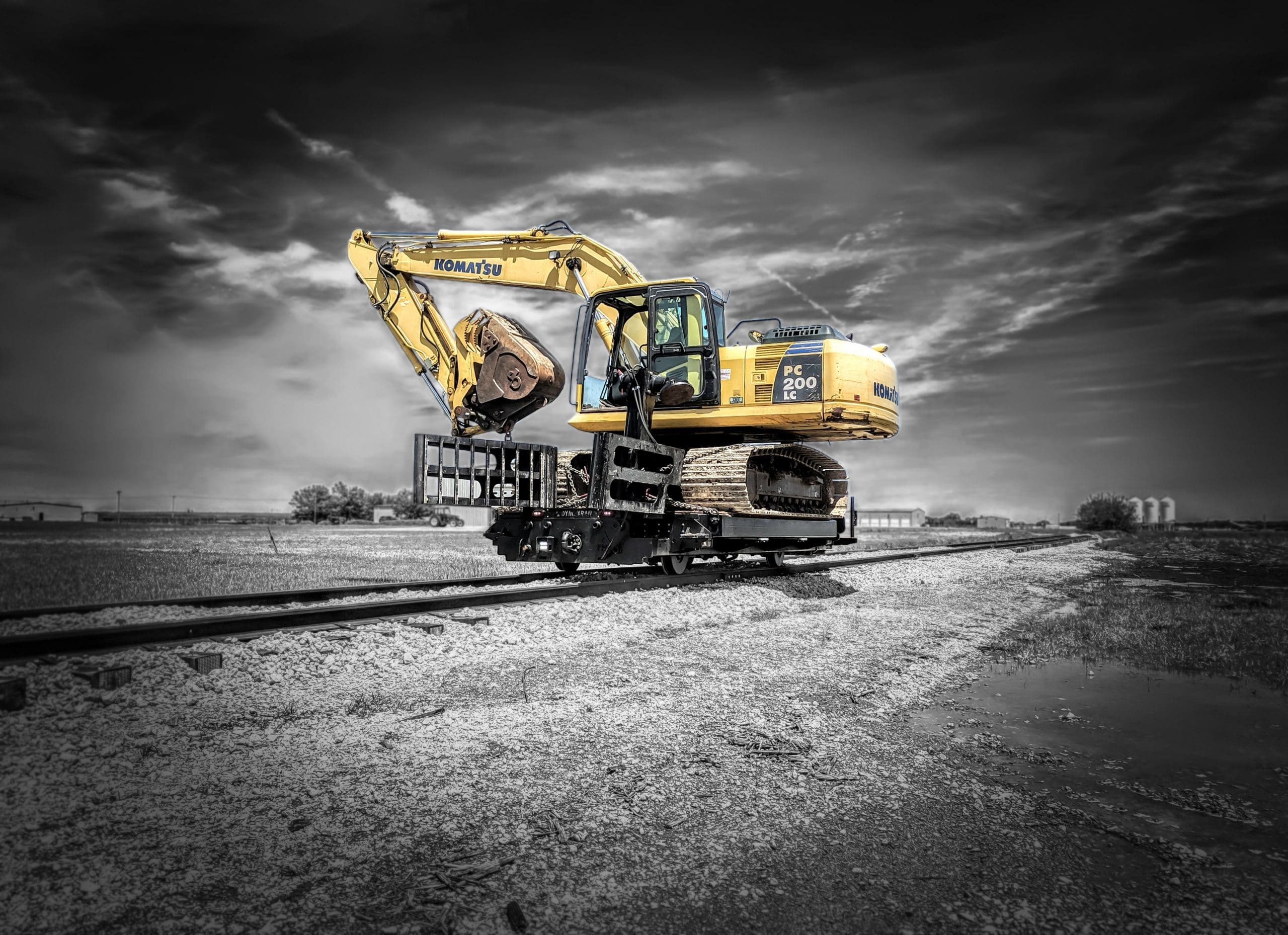

DRILLRIG SHUTTLE 45TC SS 3RD TRACK
  • Offset Positioning & Stability: 14-inch side-shifting frame for extra clearance, with secure stabilizers that lock the platform before offsetting.
  • Hydraulic Power & Control: Smooth movement powered by a removable 40HP unit, operable from the onboard seat or excavator hydraulics.
  • Compact Transport: Hydraulic ramps fold to 120” and fit within Plate C track envelope.
  • Versatile Solution:Haul more than just drill rigs – the 45-ton, heavy-duty frame can transport piling equipment, excavators and other maintenance equipment.
Model

Group No

Description

Weight (lbs / kg)
DX-TRSL-DRSS-10x29HPU-DMX-45TC

7070D1

Transporter Shuttle-Drill Rig Side Shifting Platform-10 feet wide x 29 feet long with HPU-DymaxRail-45 ton capacity

STANDARD FEATURES

  • Overall Length: 29 feet
  • Overall Width (Ramps Up): 10 feet wide
  • SideShift Deck: 10 feet wide x 16 feet 4 inches length
  • Sideshift Deck Offset: 14 inches total (one-way)
  • Load rating: 45 ton

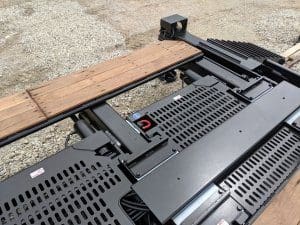

  • Replaceable wood decking.
  • Hydraulic twin drive axles, rail sweeps, replaceable 19” diameter wheels.
  • Max speed 15 mph with excavator. Max speed with 40HP power unit is 1-3 mph.
  • Tow hub design on both drive axles.
  • Spring set hydraulic release brake system with hydraulic hand pump for brake release when towing.
  • 40HP gas power unit with oil cooler, gear pump, and fuel tank.
  • Removable power unit for anti-theft.

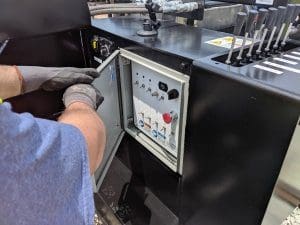

  • Smart control system provides push button operation and sequenced logic.
  • Backup control system for manual operation.
  • Operator chair – single station with panel and controls.
  • Hydraulic stabilizers on drilling side with heavy duty pads; derail bar on opposite side.
  • Hydraulic folding ramps with lockouts – fold up for travel position.
  • Pintle hitch, universal towbar with holder, D ring tie downs on side frame, lift rings.
  • 1x fire extinguisher, 1x machine control kit.
  • On-rail lighting package: directional lighting, spot lamps, beacon lighting and engine bay area.

WEIGHT: 32,000 lbs / 14,515 kg

Design and specifications are subject to change without notice. Contact DymaxRail sales for options or custom solutions not listed.
