GET THERE ROAD OR RAIL360 VISIBILITY SPACE SAVING DESIGNSTABLE FOUNDATION HI-RAIL INTEGRATION MULTIPLE APPLICATIONSVIDEO
Previous Previous Previous Next Next Next

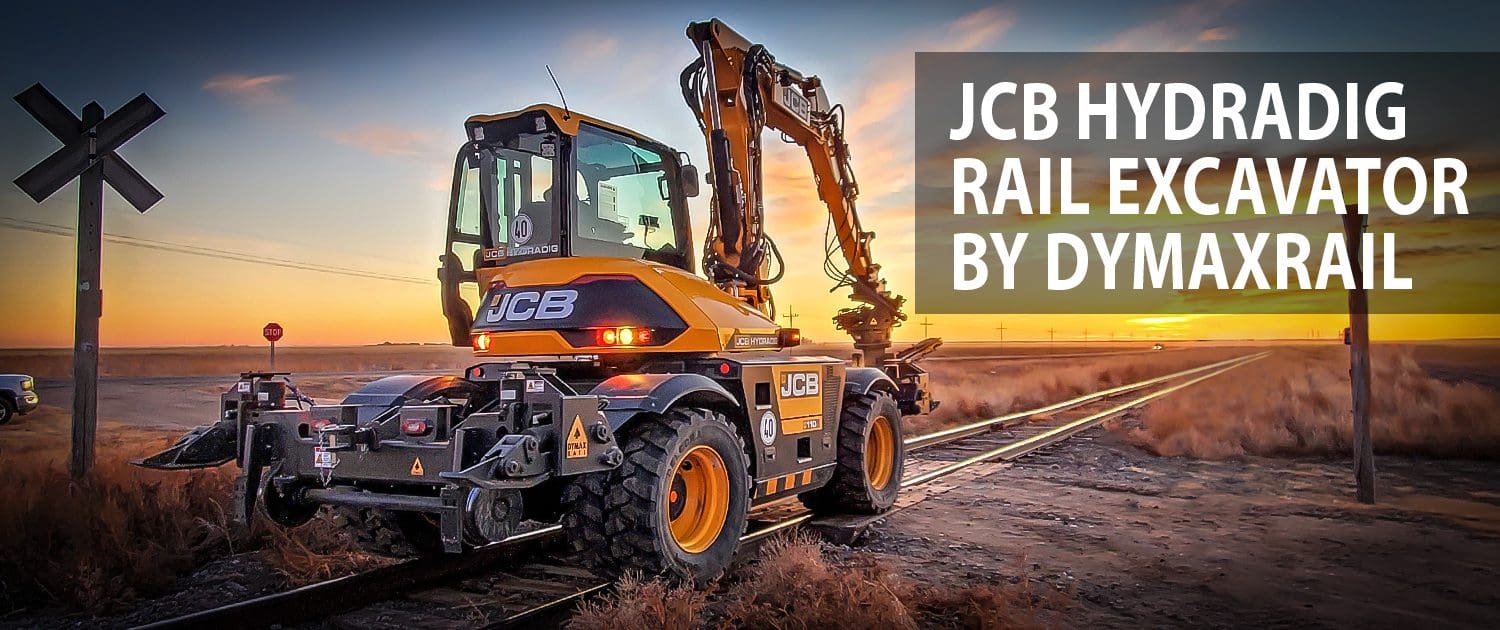

GET THERE BY ROAD OR RAIL:

In a world where space and track time is limited and infrastructure demands are at an all time high, the JCB Hydradig Rail Excavator by DymaxRail delivers the most power and performance of any machine in its class. Reach up to 25 miles per hour on rail thanks to a 109hp tier 4 final JCB Ecomax engine and Dymax Rail’s integrated hi-rail system.

360 DEGREE VISIBILITY:

A space capsule like cabin gives operators full perspective with endless views of their surroundings. See more and do more with a JCB Hydradig Railway Excavator by DymaxRail.

EXCELLENT FOR CITIES AND CONGESTED WORKSITES:

With 5 inches of tail swing and a triple articulating boom design the Hydradig Rail Excavator provides operators with more room in congested worksites.

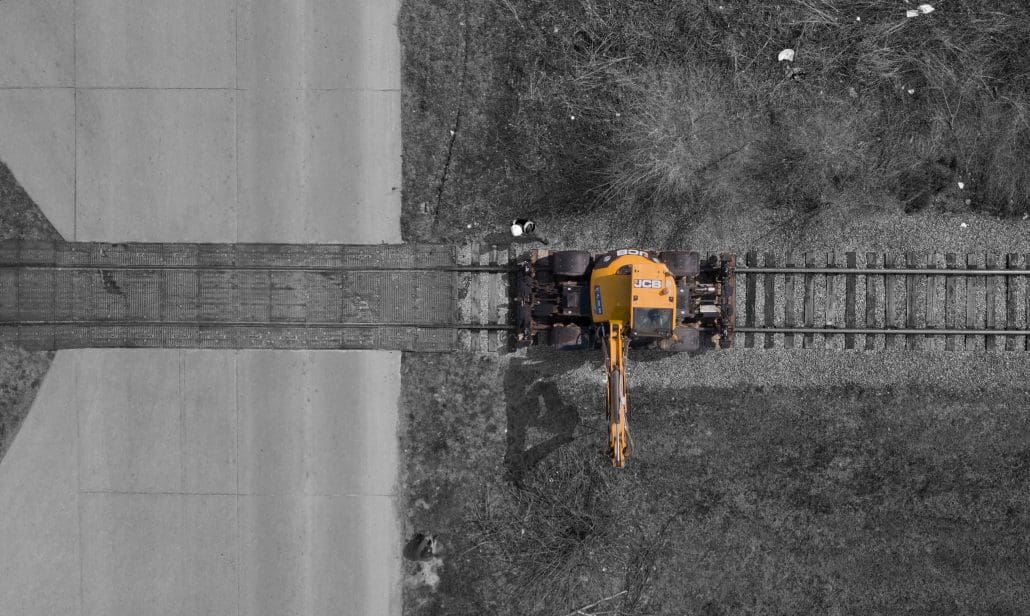

Rail crossing JCB110W

STABLE FOUNDATION:

The JCB Hydradig Rail Excavator was engineered to be different from the ground up. Unlike conventional wheeled excavators the JCB Hydradig features a specialized chassis that places the power unit below the upper canopy and greatly lowering the machines center of gravity.  Combine this with Dymax Rail Rider stabilizers and you get best in class stability over front and over side.

Hydradig Rail Undercutter

INTEGRATED HI-RAIL:

Engineered tough and built to last the Dymax Rail Rider system features the latest in hi-rail technology including hydraulic stabilizers, spring applied brakes, precision machined railgear with spring suspension, directional lighting, railgear position in cab indicator, push button steering shut off and remote control.

Rail crossing JCB110W

MULTIPLE APPLICATIONS:

The JCB Hydradig Rail Excavator easily handles a multitude of tasks including track undercutting, ballast tamping, crosstie changeouts, cribbing, tree and brush clearing, general excavation, track sweeping and cleaning and it only starts there. The possibilities are endless.

Specifications

MODEL: DX-RRDG-WX2B-JCB110W-HX-11T

DESCRIPTION: Rail Rider Guide- WX series Dual Blade with 3rd rail stabilizers – JCB 110W Hydradig – Excavator – 11 ton class

STANDARD FEATURES:

  • Standard Gauge 56.5 / 1435mm
  • Two rail axle systems integrated to factory lift group mounts
  • Single side spring suspension with stops
  • Directional lighting package + control
  • 4x 3rd rail style hydraulic stabilizers + control
  • Rail position sensor for operator awareness
  • Auto steering shutoff, slew lockout installed
  • Automatic rail wheel braking system
  • Tow hitch on both ends

WEIGHT: 6,000 lbs (without coupler or attachments)

MACHINE REQUIREMENTS

  • Available for only dual blade equipped machines.
  • For best performance your JCB Hydradig will require Delcora Spaceless Dual Tires.  The following upgrades are also required: Ensure your machine is set up with the high pressure relief circuit with cartridges capable of 4,000psi.
  • JCB offers an optional factory installed steering shut off valve. If this valve is not installed on your machine, please note that it will add to the lead time during the installation process of the railgear.
Design and specifications are subject to change without notice. For custom solutions contact DymaxRail 1-800-530-5407.
Dimensions Imperial

ft-in

Metric

mm

A – Overall Length 26-6 8128
B – Width Including Stabilizers on Rail Gear 8-4 2540
C – Height (Boom) 12-10 3907
D – Height (Cab) 9-10 2988
E – Wheel Centers 8-8 2641
F – Outside Rail Gear Dimension 20-1 6121

Specialized Attachment Solutions

Digging Buckets with Teeth
  • 12in, 14in, 18in, 24in, 30in, 36in
Hydraulic Thumb
  • 2 tine narrow design
Railway Buckets
  • 8” Cribbing Bucket
  • 10” Crib-Clam Bucket with 360° Rotation
  • 42” Tilt-Bucket
  • 36” Clamshell Bucket
  • 42” Ditching Bucket
Ballast Maintenance
  • Ballast Blaster 8ft cut length
  • Ballast Tamper – Single Motor
  • Ballast Tamper – Twin Workhead
  • Ballast Tamper – Twin Motor 6700 style workhead
Material Handling
  • Wood Tie Handler with optional rake or whale fin blade
  • Concrete Tie Handler with optional rake or whale fin blade
  • Rail Handler SG model for 40ft rail pieces
  • Magnet Solutions
Specialty
  • Rotary Brushcutter – Cuts up to 6” material and mulches
  • Rail tool carts
  • Water Trailer for weed control or washdown
  • Tie Shear Attachment
  • Tie Extractor and Inserter for wood ties

Hydradig Rail Undercutter

JCB Hydradig 110WRX

JCB Hydradig 110WRX

JCB Hydradig Rail Machine

JCB Hydradig 110WRX

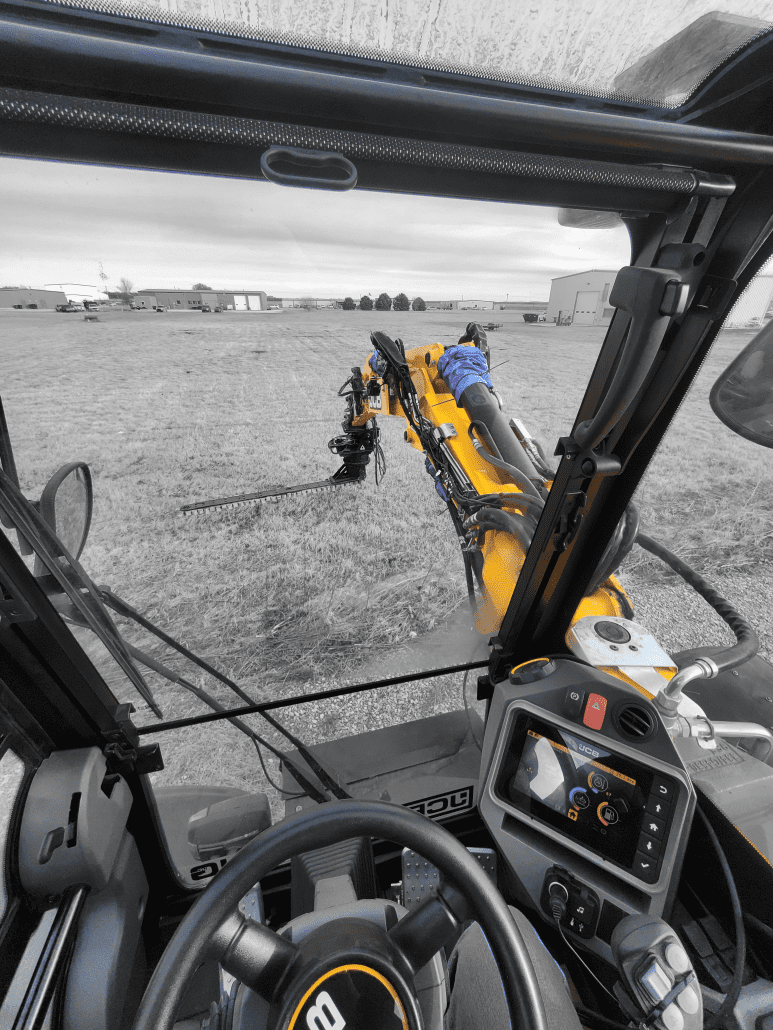

Triple Articulating Boom Hydradig Rail Excavator

JCB Hydradig Cab Monitor

RailRider Wheeled Excavator Remote Control

Hydradig Cab

Excavator Hydraulic Tool Circuit

Rail Rider Hydradig Towhitch

Wheeled HiRail Excavator Tires
