Dymax Rail Rollers:

Dymax Rail Rollers are used for laying rail in mass transit or freight applications.  Rollers are designed using high strength steels and are available in standard angle iron frame or in a smooth street roller frame group.  Width of the roller is 9 inches and works with most rail sizes. Rail Roller stands are available upon request.

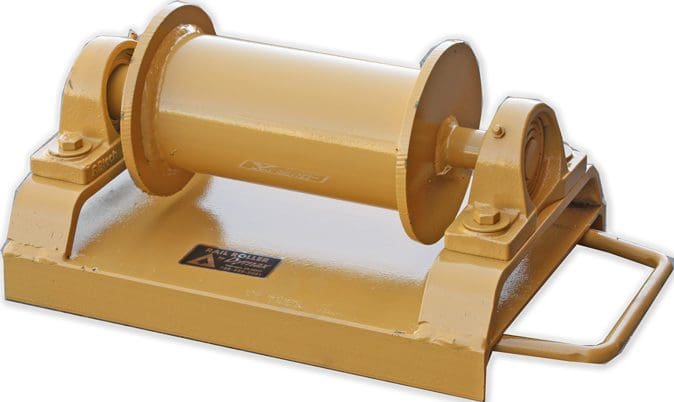

Dymax Standard Roller:

Available with 18 or 30” span the Standard Rail Roller features a 9 inch roller width and twin pillow block bearings for smooth rolling of rail up to ¼ mile length.

Dymax Street Roller:

Street Style Rail Rollers feature low profile frame specifically designed for working on concrete or smooth surface operations.  Street Roller models are made to order.

  • Standard Roller Model
    • 8.00” roller width
    • Twin roller bearings with two handles
    • 18” angle iron lower frame length for spanning ties
    • Dymax Part No: DY6137
  • Street Roller Model
    • 8.00” in roller width
    • Two handles with twin pillow block bearings
    • 10” width across lower frame for placement on flat surfaces
    • Dymax Part No: DY100320
  • 30” Standard Type Roller Model Dymax Part No. DY6138
  • Rail Roller Stand
  • Insulated designs
Model Code Description Features Weight (lbs) each
DX-RR-STD-8.00x18in

DY6137

 Rail Roller – Standard – 8.00x18in 18in length across angle iron • 8.00” roller width • two handles • two pillow block bearings 52
DX-RR-STD-8.00x30in

DY6138

 Rail Roller – Standard – 8.00x30in 30in length across angle iron • 8.00” roller width • two handles • two pillow block bearings 60
DX-RR-STR-8.00x10in

DY100320

 Rail Roller – Street Style – 8.00x10in 10in lower angle frame width • 8.00” roller width • two handles • two pillow block bearings 40
Contact DymaxRail for insulated options and roller stands.  Pricing and options are based upon quantities ordered.
