Ballast Tamper CustomTWO MOTOR TAMPER CUSTOMFOUR MOTOR TAMPER CUSTOMVideo

CUSTOM TAMPER SOLUTIONS:

DymaxRail Customized Ballast Tamper solutions are based upon popular North American production tamper workheads. Models are available in a 2 motor design or 4 motor design. Available to fit Backhoe Loaders and Excavators. Excellent for spot tamping applications on mainline track. Contact DymaxRail sales for customized tamper solutions.

Two Motor Tamper Custom:

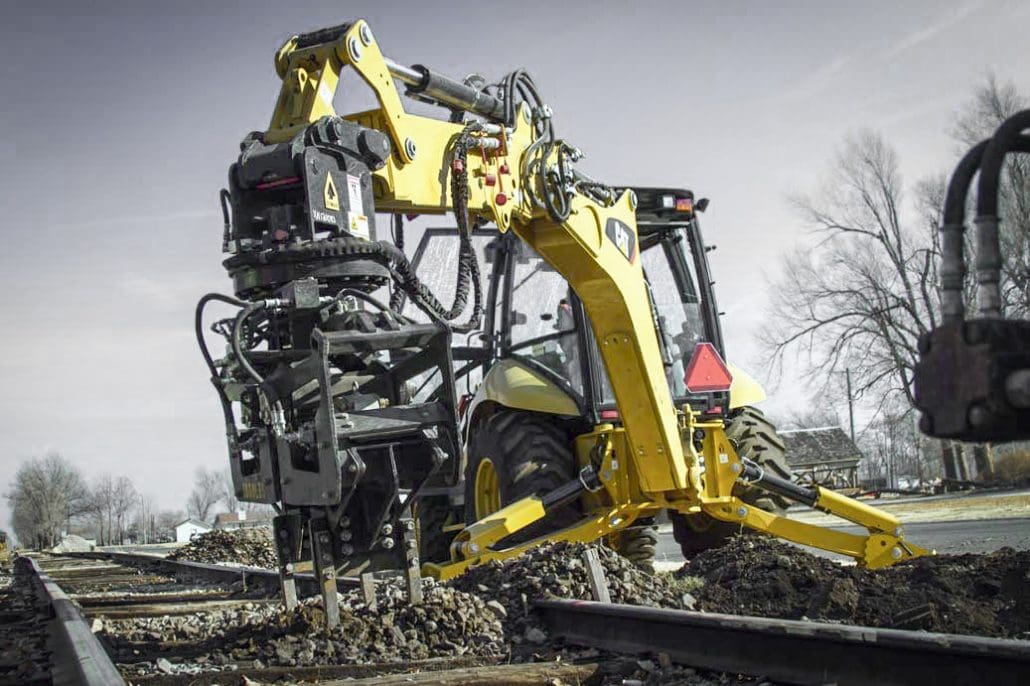

DymaxRail Custom Ballast Tamper model 360×2 is ideal for backhoe loaders and 12T excavator machines working in mainline track construction. Excellent power and performance. Equipped with replaceable carbide protected tamping tines.

Four Motor Tamper Custom:

DymaxRail Custom Ballast Tamper model 360×4 features full rotation system and is available to fit 14-30T excavator machines. Featuring four motors with integrated flow divider and other specialty valves, this tamper is ideal in main line track construction. Equipped with replaceable carbide protected tamping tines.

Ballast TAMPER Custom

Features

Zinc plated vibrator group with high speed motor
Replaceable carbide tamping tines
360 degree rotational system
Machine adapter with pins for fitting pin grab coupler systems
Electro hydraulic valve kit with control group for models with integrated rotation systems
Transport stand with tie downs

Options

2400 series workhead design style available upon request

Specifications

Model ID	Model Code	Description	Features	Weight LBS
100176	DX-BT-PNR-360×2-BL-10	Ballast Tamper – P&R Style – 360 degrees rotation x 2 motors – Backhoe Loader – Class 10	Standard Features: 2x Vibrator Groups • 360 rotator with electro-hydraulic diverter valve kit • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	1550
100180	DX-BT-PNR-360×2-HX-8T	Ballast Tamper – P&R Style – 360 degrees rotation x 2 motors – Hydraulic Excavator – 8 Ton	Standard Features: 2x Vibrator Groups • 360 rotator with electro-hydraulic diverter valve kit • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	1550
100182	DX-BT-PNR-360×2-HX-12T	Ballast Tamper – P&R Style – 360 degrees rotation x 2 motors – Hydraulic Excavator – 12 Ton	Standard Features: 2x Vibrator Groups • 360 rotator with electro-hydraulic diverter valve kit • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	2800
100184	DX-BT-PNR-360×4-HX-12T	Ballast Tamper – P&R Style – 360 degrees rotation x 4 motors – Hydraulic Excavator – 12 Ton	Standard Features: 4x Vibrator Groups • 360 rotator with electro-hydraulic diverter valve kit • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	4300
100191	DX-BT-PNR-360×4-HX-20T	Ballast Tamper – P&R Style – 360 degrees rotation x 4 motors – Hydraulic Excavator – 20 Ton	Standard Features: 4x Vibrator Groups • 360 rotator with electro-hydraulic diverter valve kit • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	4300
100192	DX-BT-PNR-360×4-HX-25T	Ballast Tamper – P&R Style – 360 degrees rotation x 4 motors – Hydraulic Excavator – 25 Ton	Standard Features: 4x Vibrator Groups • 360 rotator with electro-hydraulic diverter valve kit • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	4300
100200	DX-BT-PNR-TRQx2-HX-8T	Ballast Tamper – P&R Style – Tilt Rotational Coupler x 2 motors – Hydraulic Excavator – 8 Ton	Standard Features: 2x Vibrator Groups • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	1100
100202	DX-BT-PNR-TRQx2-HX-12T	Ballast Tamper – P&R Style – Tilt Rotational Coupler x 2 motors – Hydraulic Excavator – 12 Ton	Standard Features: 2x Vibrator Groups • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	2200
100203	DX-BT-PNR-TRQx4-HX-12T	Ballast Tamper – P&R Style – Tilt Rotational Coupler x 4 motors – Hydraulic Excavator – 12 Ton	Standard Features: 4x Vibrator Groups • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	3800
100210	DX-BT-PNR-TRQx4-HX-20T	Ballast Tamper – P&R Style – Tilt Rotational Coupler x 4 motors – Hydraulic Excavator – 20 Ton	Standard Features: 4x Vibrator Groups • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	3800
100211	DX-BT-PNR-TRQx4-HX-25T	Ballast Tamper – P&R Style – Tilt Rotational Coupler x 4 motors – Hydraulic Excavator – 25 Ton	Standard Features: 4x Vibrator Groups • Replaceable carbide tamping tines • transport stand provided • machine adapter with pins for fitting tiltrotator	3800

Design and specifications are subject to change without notice

Hydraulic Requirements

DymaxRail custom designed tamper products for construction machinery require multi-circuit hydraulics. DymaxRail cannot guarantee motor performance on this particular style of tamping workhead when mounted to construction equipment. If you have questions please contact Dymax Sales for more information. Your machine needs to meet the following requirements for proper operation of the DymaxRail work tool attachment listed.

CIR1 = Primary Circuit – The primary function of the work tool attachment

CIR2 = Secondary Circuit – The secondary function of the work tool attachment

CIR3 = Third Circuit – DymaxRail provided electro-hydraulic control group with valve integrated to the work tool attachment.

Model ID	Model Code	Hydraulic Requirements
		CIR1 (circuit 1) CIR2 (circuit 2) CIR3 (circuit 3)
100176	DX-BT-PNR-360×2-BL-10	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 16 / 2,200, CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 CIR3-Rotator, Electro-Hydraulic Valve Kit. Requires install of kit Not provided with jumper hose lines
100180	DX-BT-PNR-360×2-HX-8T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 16 / 2,200, CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 CIR3-Rotator, Electro-Hydraulic Valve Kit. Requires install of kit Not provided with jumper hose lines
100182	DX-BT-PNR-360×2-HX-12T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 16 / 2,200, CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 CIR3-Rotator, Electro-Hydraulic Valve Kit. Requires install of kit Not provided with jumper hose lines
100184	DX-BT-PNR-360×4-HX-12T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 28-32 / 2,200, CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 CIR3-Rotator, Electro-Hydraulic Valve Kit. Requires install of kit Not provided with jumper hose lines
100191	DX-BT-PNR-360×4-HX-20T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 28-32 / 2,200, CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 CIR3-Rotator, Electro-Hydraulic Valve Kit. Requires install of kit Not provided with jumper hose lines
100192	DX-BT-PNR-360×4-HX-25T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 28-32 / 2,200, CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 CIR3-Rotator, Electro-Hydraulic Valve Kit. Requires install of kit Not provided with jumper hose lines
100200	DX-BT-PNR-TRQx2-HX-8T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 16 / 2,200 CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 Not provided with jumper hose lines
100202	DX-BT-PNR-TRQx2-HX-12T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 16 / 2,200 CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 Not provided with jumper hose lines
100203	DX-BT-PNR-TRQx4-HX-12T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 28-32 / 2,200 CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 Not provided with jumper hose lines
100210	DX-BT-PNR-TRQx4-HX-20T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 28-32 / 2,200 CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 Not provided with jumper hose lines
100211	DX-BT-PNR-TRQx4-HX-25T	CIR1-Vibrate Motor, Type One Way, GPM/PSI (min/max): 28-32 / 2,200 CIR2-Tine Squeeze, Type Two way GPM/PSI (max): 10-15 / 3,000 Not provided with jumper hose lines

Design and specifications are subject to change without notice
