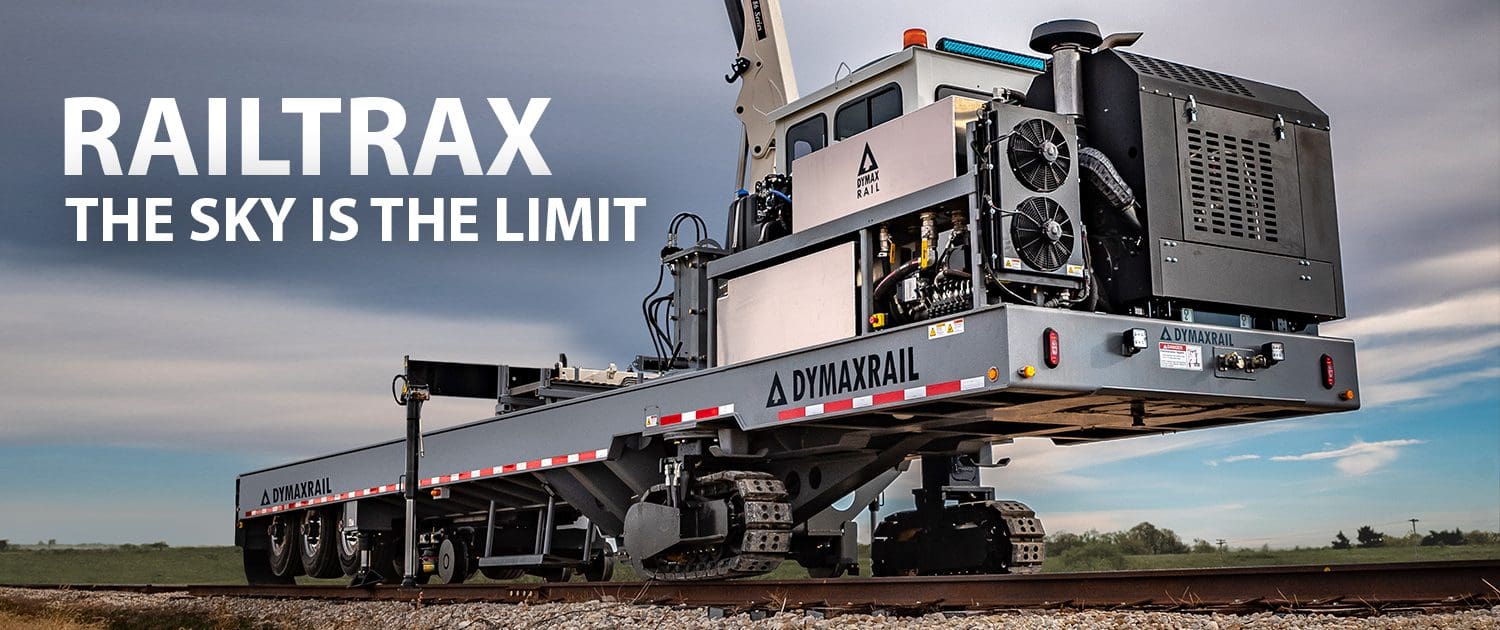

DYMAX RAILTRAX™ ROAD RAIL TRAILER:

As the world evolves, the need for expansive railway machinery capable of doing more than one specific job will be at all time highs. Using conventional semi-trucks, operators can tow the Dymax RailTrax on federal highways moving from job to job.

The innovative railway vehicle features hydrostatic-powered tracks providing road-ready access and easily moves up to 3 miles per hour on roadways. If you need to access the rails then simply drive to the nearest crossing and climb on. In less than 2 minutes you’re ready to drive to remote railway stations, tunnels, bridges and worksites delivering materials or hauling specialized equipment such as aerial lifts, cement and aggregate solutions or trash vacuum attachments for collection of tunnel trash around 3rd rails.

RAILTRAX 48D Drop Center Frame

ROAD TO RAIL IN MINUTES:

Go from the highway to the railway in minutes.  Easily drive on roadways using DymaxRail’s powered track systems to move the RailTrax where needed. Once on rail operators can quickly speed to remote destinations.

MODULAR DESIGN:

The  Dymax RailTrax is more flexible and can be adapted to a variety of applications.  Pull wire in catenary applications or tow railcars, haul backhoe loaders, track panels, pipe, transmission poles, containers or simply create your own machine to do the job you need done.

Specifications:

MODELSTANDARD FEATURES
DX-TR-RTX-48D-DMX-50TC
Work Deck WxL: 8ft6inx31ft-4in
Low center deck 34.2 inches off rail
Base Package
Transporter – RailTrax- 48 feet drop center – DymaxRail – 50 ton capacity
• 50T chassis drop center frame with tandem rear roadway gear.
• Air suspension package with duallies and aluminum rims
• 17,000lb capacity axles, total 34,000lb capacity
• Hydrostatic power unit 140HP with powered tracks, single axle rail drive
DX-TR-RTX-48S-DMX-50TC
Work Deck WxL: 8ft6inx31ft-4in
Deck 46in off rail
Base Package
Transporter – RailTrax- 48 feet straight deck – DymaxRail – 50 ton capacity
• 50T chassis straight frame with tri-axle roadway gear
• Air suspension package with super singles and aluminum rims
• 3x 17,000lb capacity axles
• Hydrostatic power unit 140HP with powered tracks, single axle rail drive
DX-TR-RTX-53S-DMX-50TC
Work Deck WxL: 8ft6inx36ft-4in
Package
Transporter – RailTrax- 53 feet straight deck – DymaxRail – 50 ton capacity
• 50T chassis straight frame with tandem spread roadway gear
• Air suspension package with duals and aluminum rims
• 2 x 20,000lb capacity axles*
• Hydrostatic power unit 140HP with powered tracks, single axle rail drive
*Avalible with axillary axle

Design and specifications are subject to change without notice. There are many upgrades and specialized attachment solutions available. Due to specific roadway requirements, some packages require specific trailer models or design. If you are interested in learning more about the Dymax RailTrax and its modular customization that would include material handling cranes and other attachments please get in touch with your regional sales representative or contact sales direct at 1-800-530-5407 or sales@dymaxrail.com. We look forward to helping you create a machine that’s more machine.

RAILTRAX IS A TRADEMARK OF DYMAXRAIL.

Optional Cranes:

Designed to work with a variety of articulating knuckle boom cranes. Contact DymaxRail to learn more about crane packages.
