DRIVE TYPE: ONE-WAY TRAVEL DIRECTION USING RUBBER TRACKS

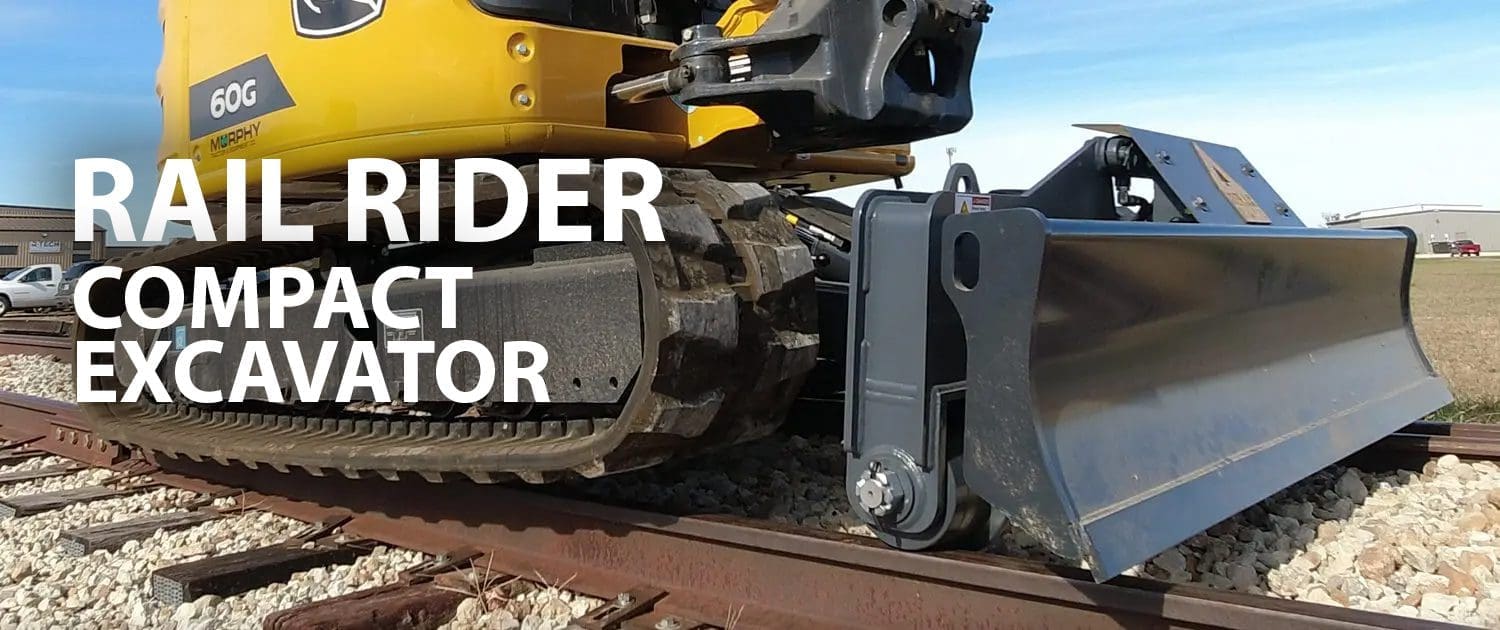

HI RAIL ATTACHMENT FOR COMPACT EXCAVATORS – BLADE MOUNT

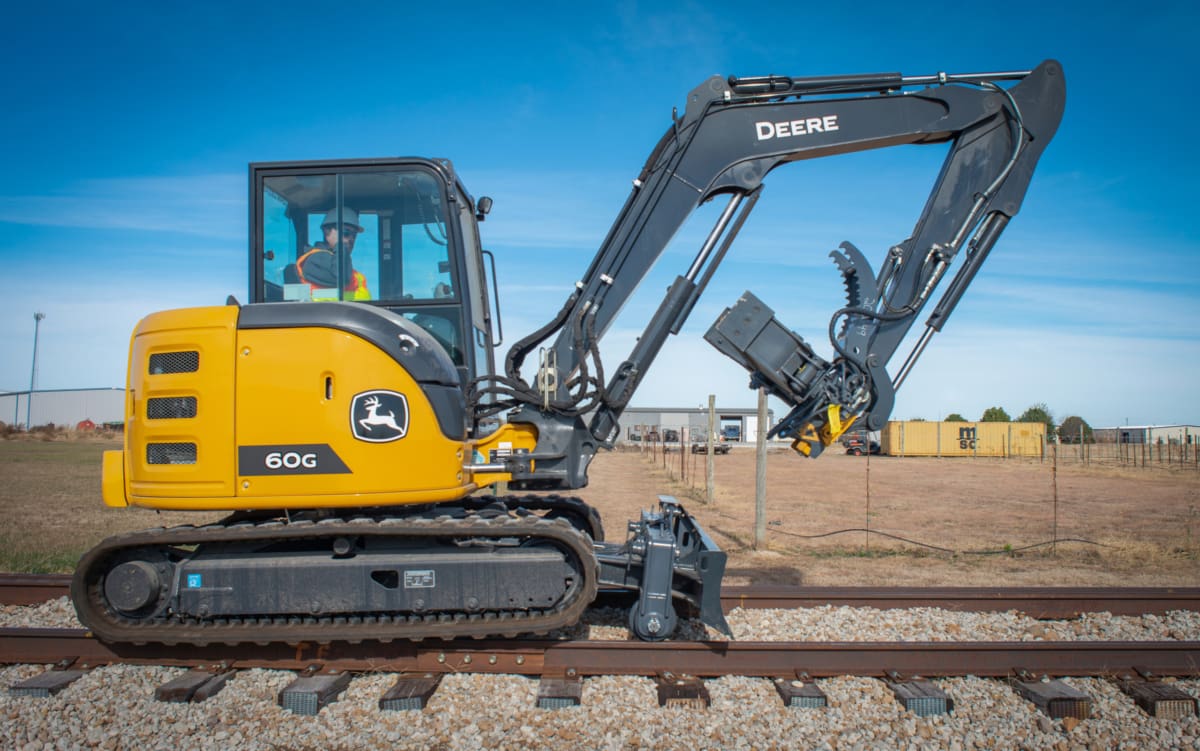

ADAPT AND GO! The Dymax Rail Rider G – Blade Mount hi rail gear solution attaches to the factory non-angling dozer blade on 5-6T compact excavators. The rubber tracks propel the machine on rail, while the blade mounted rail gear keeps the machine centered.
- Unique design requires no welding or machine modifications and helps guide smaller rubber track excavators on rail to perform track maintenance work.
- Hydraulic lift allows operator to utilize factory blade in off-track locations.
- Operates through standard blade lift circuit.
- Non-weld interface for ease of installation.
- When you’re done with it, you can unbolt and simply stow or leave on the excavator.
- Available for 5-6T Excavators including Cat, Deere, Case with standard non-angling blades.
1
1
Hydraulic lift railgear features 7 inch diameter heat treated wheels
| Model Code Description Weight |
|---|
| DX-RRDG-CXBM-CX57-HX-5T Rail Rider Guide – Compact Excavator Blade Mount – Case CX57 – Hydraulic Excavator – 5T Class 720 lbs |
| DX-RRDG-CXBM-CAT305-HX-5T Rail Rider Guide – Compact Excavator Blade Mount – Cat 305 – Hydraulic Excavator – 5T Class 720 lbs |
| DX-RRDG-CXBM-CAT306-HX-6T Rail Rider Guide – Compact Excavator Blade Mount – Cat 306 – Hydraulic Excavator – 6T Class 720 lbs |
| DX-RRDG-CXBM-JD60-HX-6T Rail Rider Guide – Compact Excavator Blade Mount – John Deere 60 – Hydraulic Excavator – 6T Class 720 lbs |
Design and specifications are subject to change without notice. For models not listed, please contact DymaxRail to determine availability.
