HI-RAIL - MPXMPX – HYDROSTATIC CARTLift, Place, Connect and Go!MADE FOR YOU.VIDEO
PreviousNext

MPX – HI-RAIL:

The DymaxRail MPX hydrostatic hi-rail cart quickly adapts to excavators and specialized machines.  MPX is driven hydrostatically by the machines hydraulic power and requires no machine modifications. Easily adapt the MPX control kit to your machine and in less than a day you’re ready to ride the rails.

Ideal for tracked excavator machines ranging from 8 ton in size up to 30 ton in size. Easily reach remote rail site locations that can only be accessed via rail.  Rail networks and contractors now have the ability to better handle jobs like disaster response as well as a multitude of track maintenance and construction jobs. Do more with DymaxRail’s MPX hydrostatic hi-rail cart.

MPX – HYDROSTATIC CART:

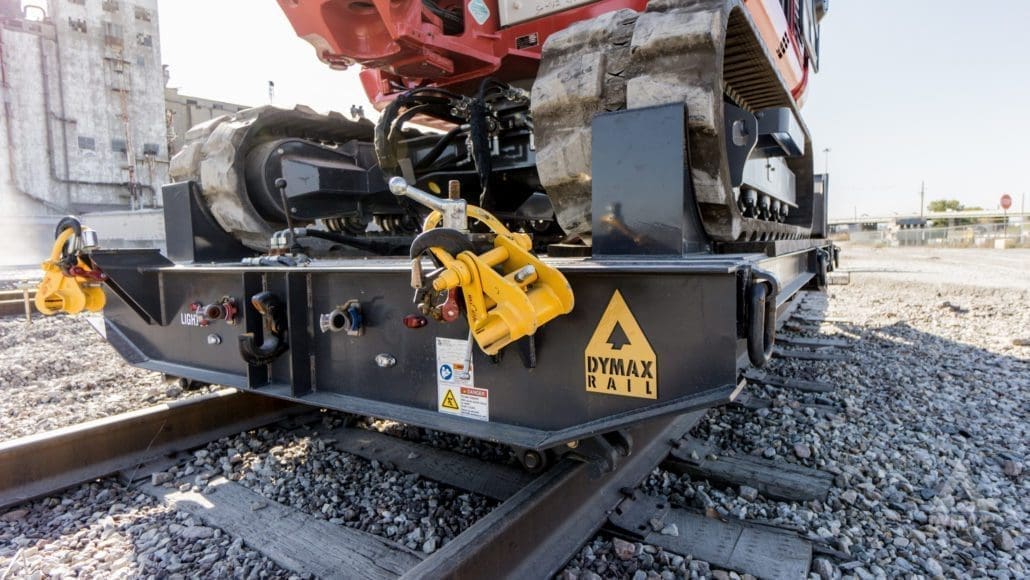

DymaxRail’s MPX hydrostatic cart is available in 4 standard models.  MPX features hydraulic brakes, platform stabilizers with optional rail clamps, solar powered directional lighting systems including spot lamps and travel alarm.

DrillRig Railrider MPX25-30

Lift, Place, Connect and Go!

The DymaxRail MPX does not require machine modifications.  Lift the MPX from the trailer and place it on the rails in minutes.  With stabilizers down operators can climb aboard, connect the hoses and go to work.  Each model is fitted with a towing hub and can be towed if needed behind larger roadway vehicles.

MADE FOR YOU.

The MPX is adaptable to a variety of machines such as drill rigs or chipping and shredding machines that use undercarriages.  Quickly adapt to multiple machine types, track gauges or third rail systems. Contact DymaxRail for more information.

Standard Features

  • 2wd system 1x motor
  • Hydraulic park and service brake – shoe type
  • Towing hub
  • 1x Hi torque drive motor
  • SOLAR powered lighting systems
  • Spot lamp with travel alarm
  • Pin eye hitch
  • 8T models
    • 4x rail clamps
  • 11-14T
    • 2x Rail clamps
    • 2x Stabilizers
  • 15T larger
    • 2x Rail clamps
    • 4x Stabilizers
  • Tie Downs
  • Lift points
  • Wood and steel deck combination
  • Storage bin
  • 4 foot tow bar with chains
  • Grouser stops
  • Recessed bins with drainage
  • Hoses with disconnects to excavator
  • 1x Machine interface hydraulic kit

Options

  • Twin motor drive package for additional Horsepower associated with steep grade or towing requirements
  • Additional rail clamps or stabilizers
  • Additional machine interface hydraulic kit
  • Gas Powered HPU (Hydraulic Power Unit)
  • Generator
  • Toolboxes

Specifications

Item Reference Excavator Class Model Code Recommended Lift Capacity (lbs) Description Weight (lbs)
7728D1 8 ton DX-RCH-MPXE-1000x14ft-HX-8T 4,800 Rail Cart Hydrostatic-MPX End Load-1000 series x 14 feet overall length-Hydraulic Excavator-8 Ton 4,750
7729D1 11 ton DX-RCH-MPXE-1112x17ft9-HX-11T 8,500 Rail Cart Hydrostatic-MPX End Load-1112 Series x 17 feet 9in overall length-Hydraulic Excavator-11 Ton 8,550
7730D1 12 ton DX-RCH-MPXE-1112x17ft9-HX-12T 8,500 Rail Cart Hydrostatic-MPX End Load-1112 Series x 17 feet 9in overall length-Hydraulic Excavator-12 Ton 8,550
7731D1 13 ton DX-RCH-MPXE-1314x17ft9-HX-13T 8,800 Rail Cart Hydrostatic-MPX End Load-1314 series x 17 feet 9in overall length-Hydraulic Excavator-13 Ton 8,800
7732D1 14 ton DX-RCH-MPXE-1314x17ft9-HX-14T 8,800 Rail Cart Hydrostatic-MPX End Load-1314 series x 17 feet 9in overall length-Hydraulic Excavator-14 Ton 8,800
7733D1 15 ton DX-RCH-MPXE-1516x18ft6-HX-15T 10,200 Rail Cart Hydrostatic-MPX End Load-1516 series x 18 feet 6 in overall length-Hydraulic Excavator-15 Ton 10,200
7734D1 16 ton DX-RCH-MPXE-1516x18ft6-HX-16T 10,200 Rail Cart Hydrostatic-MPX End Load-1516 series x 18 feet 6 in overall length-Hydraulic Excavator-16 Ton 10,200
7735D1 18 ton DX-RCH-MPXE-1819x19ft6-HX-18T 11,000 Rail Cart Hydrostatic-MPX End Load-1819 series x 19 feet 6 in overall length-Hydraulic Excavator-18 Ton 11,000
7736D1 20 ton DX-RCH-MPXE-2100x21ft-HX-20T 12,500 Rail Cart Hydrostatic-MPX End Load-2100 series x 21 feet overall length-Hydraulic Excavator-20 Ton 12,500
7737D1 23 ton DX-RCH-MPXE-2224x23ft-HX-23T 14,000 Rail Cart Hydrostatic-MPX End Load-2224 series x 23 feet overall length-Hydraulic Excavator-23 Ton 14,000
7738D1 24 ton DX-RCH-MPXE-2224x23ft-HX-24T 14,000 Rail Cart Hydrostatic-MPX End Load-2224 series x 23 feet overall length-Hydraulic Excavator-24 Ton 14,000
7739D1 25 ton DX-RCH-MPXE-2526x24ft-HX-25T 15,500 Rail Cart Hydrostatic-MPX End Load-2526 series x 24 feet overall length-Hydraulic Excavator-25 Ton 15,300
7740D1 26 ton DX-RCH-MPXE-2526x24ft-HX-26T 15,500 Rail Cart Hydrostatic-MPX End Load-2526 series x 24 feet overall length-Hydraulic Excavator-26 Ton 15,500
7741D1 29 ton DX-RCH-MPXE-2829x24ft-HX-29T 18,500 Rail Cart Hydrostatic-MPX End Load-2829 Series x 24 feet overall length-Hydraulic Excavator-29 Ton 18,500
7742D1 36 ton DX-RCH-MPXE-3600x30ft-HX-36T 23,000 Rail Cart Hydrostatic-MPX End Load-3600 series x 30 feet overall length-Hydraulic Excavator-36 Ton 22,500
Design and specifications are subject to change without notice. Contact DymaxRail for latest updates.
