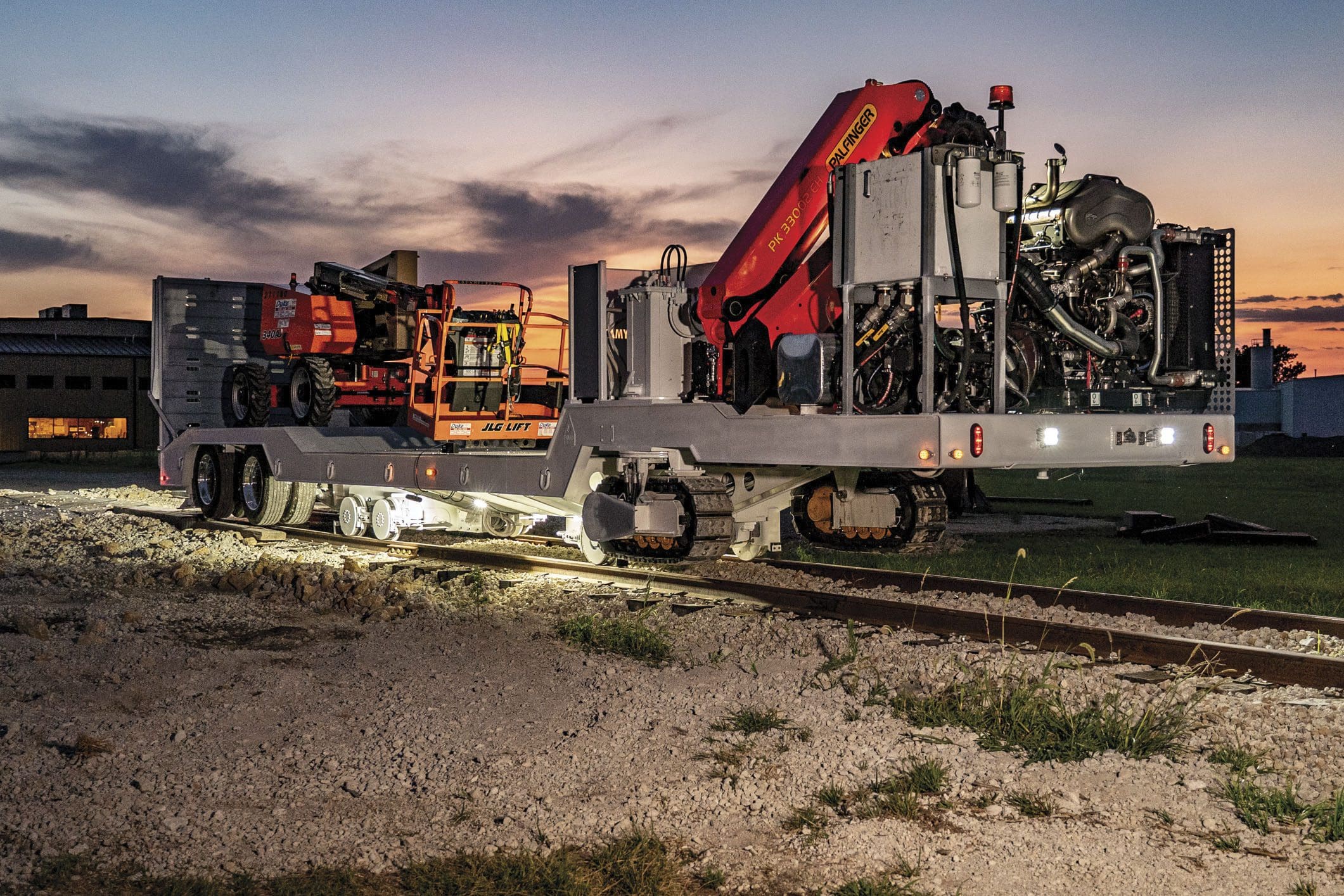

Multipurpose Hi-Rail Work Platforms:
DymaxRail’s Multipurpose Hi-Rail Work Platforms are extremely versatile for use in railway track construction and maintenance. The integrated hydrostatic crawler tracks and railgear systems enhance worksite mobility and manueverability but allowing operators to access the rails without truck assistance and quickly speed to remote locations in minutes. The unique design enables customers to build a machine from the trailer up thus enhancing production capabilities, safety and efficiency. All machines are designed in house from the rails up.
DymaxRail’s Hi-Rail Work Platform drives itself on roads and railways and can be towed on federal highways.
Operator Cabin:
Operator cabin with console control package allows operators to work in a traditional manner. Simply flip a switch to use the remote control function. Operator cabin package includes AC, Heat, 4-camera display, 120v outlet receptacle with USB charging. Specialized control solutions available.
Modular Design:
The DymaxRail Mobile Work Platform is more flexible and can be adapted to a variety of applications. Pull wire in catenary applications or tow railcars, haul backhoe loaders, track panels, pipe, transmission poles, containers or simply create your own machine to do the job you need done.
Rail Systems:
Hydrostatic railgear provides long lasting durability and performance. Tri-axle configuration with specialized bogie features oscillating trunnion ball providing excellent navigation on rail and enables the bogie to rotate 90 degrees when loading to and from the rail crossings.
- Hydrostatic drive + towable hub
- Air brakes
- Rail sweeps
- DymaxRail HD replaceable rail wheels
- Specialized lighting
- Speed up to 12mph or design something more unique that can travel faster.
Tier 4 Power Systems:
The unique design enables customers to build a machine from the trailer up thus enhancing production capabilities, safety and efficiency. All machines are designed in house from the rails up.
Controls:
The DYMAXRAIL Mobile Work Platform is provided with standard remote control, backup remote and carrying case.
Optional in cab control available for cab models.
Applications Include
- CATENARY
- BRIDGE & TUNNEL
- DRILLING & FOUNDATION
- CONSTRUCTION & MAINTENANCE
5350 Chassis - Standard Features
|
STANDARD FEATURES |
OPTIONS |
||
|
DIMENSIONS CAPACITY MAIN FRAME |
53 feet overall length, 36 feet work platform length, 8-6 wide 50 ton uniform load rating with DymaxRail hi-tensile strength steel beams with steel tread plate deck |
CUSTOM |
Straight frame Special designs available |
|
ROAD AXLES |
11-6 min spread axle, air suspension, brakes ABS, Aluminum rims with tires-255/70R22.5, 40,000lb – 20,000lb axle rating |
CRANES |
IMT 1072 / IMT 32/222 / IMT 40/275 Certain size cranes may be limited to placement for roading configuration and may require tag axle. |
|
RAILAXLES |
Hydrostatic, Tri-axle, Twin motors, Tow Package, Air brakes, replaceable rail wheels, sweeps, rail speed max 12 mph |
TAGAXLE |
Pin on tag axle / air suspension |
|
HPU4174 |
140-174HP Diesel T4F Power unit, Hydrostatic pump with secondary pump, Fuel tank, oil tank, oil cooler |
HPU6300 |
Powerunit 6 Cylinder – 190-300HP |
|
CONTROLS |
Remote with carrying case + emergency manual control |
TOOLCIRCUIT |
Hydraulic tool circuit with single hose reel |
|
TRACKS |
Hydrostatic steerable up to 60°, Rubber pads, Grease tensioner |
GENERATOR |
Special generator packages subject to HP limitation |
|
ACCESSORIES |
Pintle hitch rear 50T, universal towbar with holder, D ring tie downs on side frame |
CONTROLS2 |
Remote standard setup with on-board operator controls |
|
LIGHTING |
Standard DOT side markers, clearance, tail and brake lighting. On rail lighting package includes directional lighting, spot lamps, beacon lighting, engine bay & under platform lights. |

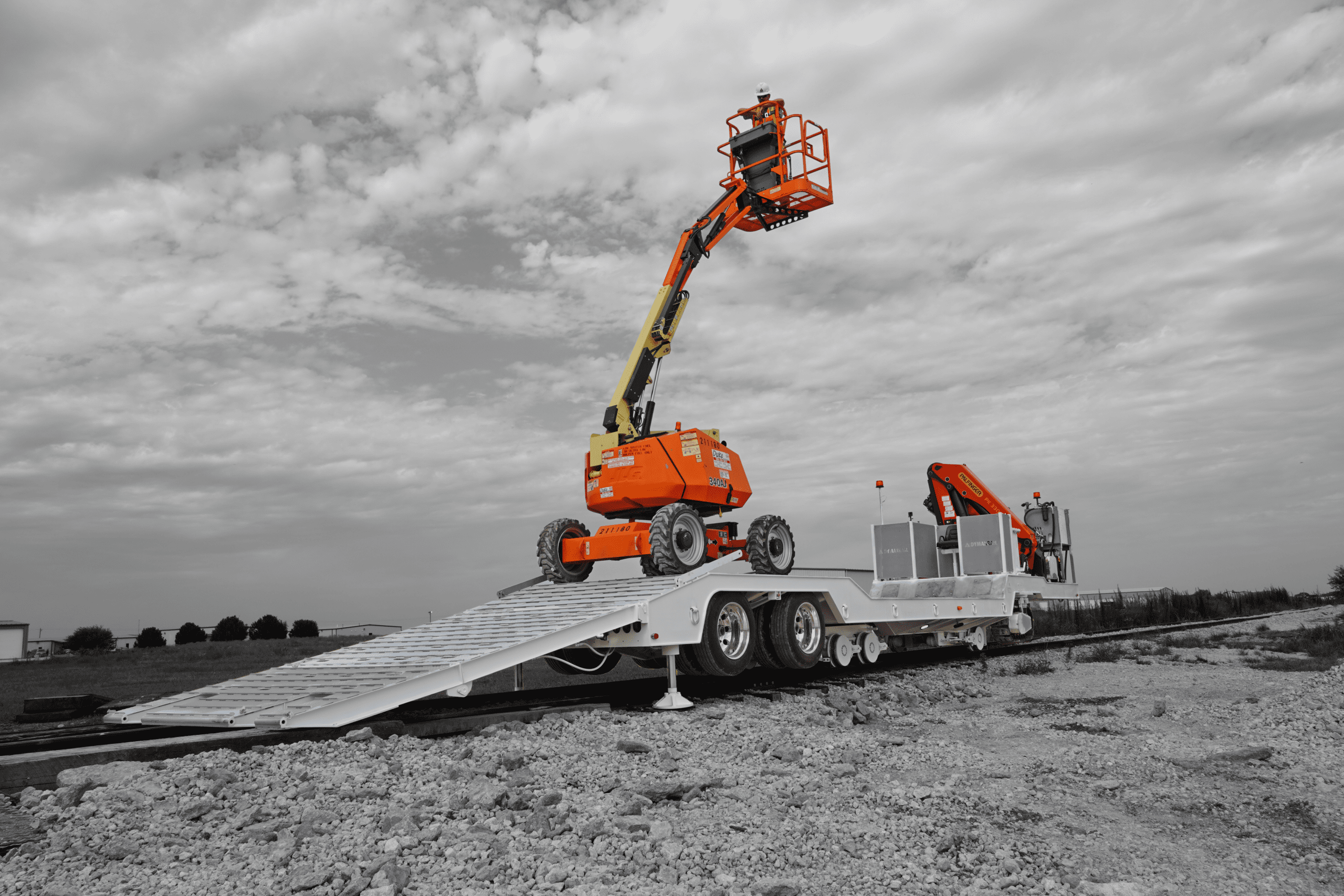

RAMP |
Bi-fold Hydraulic Ramp for loading equipment |
|
STABILIZERS |
Twin hydraulic stabilizers |
CAB |
Operator cabin with seat, bench, AC, heat with |
|
The 5350 Chassis can be designed to work in various applications including freight and transit systems. For technical information on the 5350 series work platform chassis please contact DymaxRail. |
|||
4850 Chassis - Standard Features
|
STANDARD FEATURES |
OPTIONS |
||
|
DIMENSIONS CAPACITY MAIN FRAME |
48 feet overall length, 31 feet work platform length, 8-6 wide 50 ton uniform load rating with DymaxRail hi-tensile strength steel beams with steel tread plate deck |
CUSTOM |
Straight frame or drop deck Special designs available |
|
ROAD AXLES |
6ft spread axle, air suspension, brakes, ABS, aluminum rims with tires-255/70R22.5, 34,000lb -17,000lb axle rating each |
CRANES |
IMT 1072 / IMT 32/222 / IMT 40/275 Certain size cranes may be limited to placement for roading configuration and may require tag axle. |
|
RAILAXLES |
Hydrostatic, Tri-axle, Twin motors, Tow Package, Air brakes, replaceable rail wheels, sweeps, Rail speed max 12 mph |
TAGAXLE |
Pin on tag axle / air suspension |
|
HPU4174 |
140-174HP Diesel T4F Power unit, Hydrostatic pump with secondary pump, Fuel tank, oil tank, oil cooler |
HPU6300 |
Powerunit 6 Cylinder – 190-300HP |
|
CONTROLS |
Remote with carrying case + emergency manual control |
TOOLCIRCUIT |
Hydraulic Tool Circuit |
|
TRACKS |
Hydrostatic steerable up to 60°, Rubber pads, Grease tensioner |
GENERATOR |
Special generator packages subject to HP limitation |
|
ACCESSORIES |
Pintle hitch rear 50T, universal towbar with holder, D ring tie downs on side frame |
CONTROLS2 |
Remote standard setup with on-board operator controls |
|
LIGHTING |
Standard DOT side markers, clearance, tail and brake lighting. On rail lighting package includes directional lighting, spot lamps, beacon lighting, engine bay & under platform lights. |
RAMP |
Bi-fold Hydraulic Ramp for loading equipment |
|
STABILIZERS |
Twin hydraulic stabilizers |
CAB |
Operator cabin with seat, bench, AC, heat with |
|
The 4850 Chassis can be designed to work in various applications including freight and transit systems. For technical information on the 4850 series work platform chassis please contact DymaxRail. |
|||
